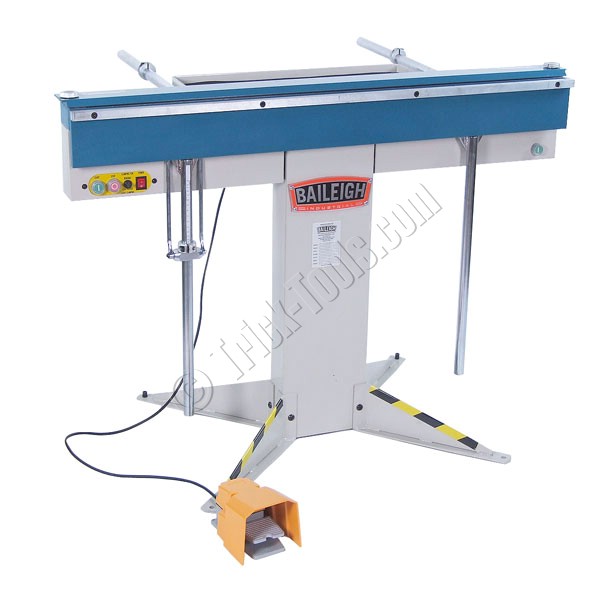

Baileigh 4 foot Magnetic Box & Pan Brake, 16 gauge

Part #: BB-4816M
Ships From: Our warehouse
Availability: Usually ships within 1 day
We want to give you the best information possible regarding your order at Trick-Tools and product availability is very important to us. This information reflects our best estimate of the shipping time for your order on a product by product basis. Items in stock at our warehouse typically ship same day if the order is placed before 3pm Central Time.

Availability on Items shipped directly from the factory is an estimate for that product based on averages from our experience. Items marked "Call for availability" have limited stock or unpredictable lead times and require a phone call to get a lead time estimate. We apologize but we are unable to guarantee lead times on factory-shipped items.
Model: 1000490
Price: $2,295.00
Sale Price: $2,195.00
SALE
  • 6 tons of magnetic pull across entire beam
  • 48 inch 16 gauge mild steel capacity
  • Back gauge for repeatability
  • Bend angle gauge for precise bends
FREIGHT:
Freight
ORIGIN:
BRAND:
Quantity:

DESCRIPTION

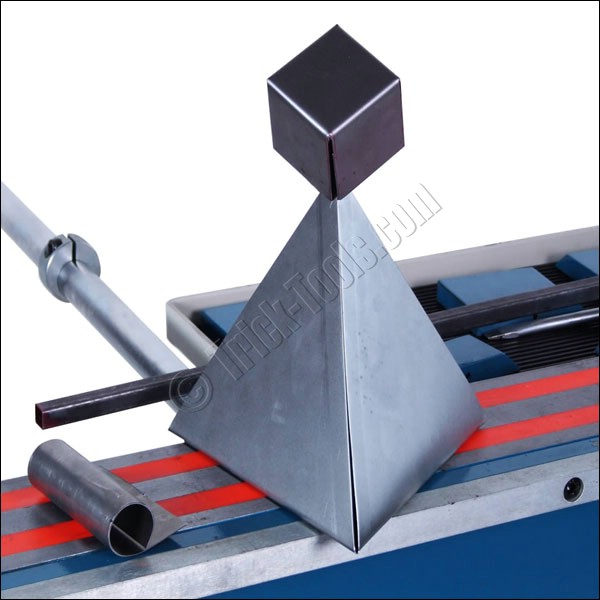

The BB-4816M magnetic sheet metal brake is a unique box and pan brake that has nearly endless bending possibilities when compared to most conventional sheet metal brakes. Since it is not reliant on conventional finger depths, this brake can form boxes to almost any depth. A scaled stroke angle control can be set for repeatable bends time after time. It also includes a back gauge and a clamping bar with simple to use gap adjustments for different material thicknesses.

Features
  • 6 tons of magnetic pull across entire beam
  • 5/8 inch minimum reverse bend
  • 48 inch 16 gauge mild steel capacity
  • 220 volt 1 phase
  • Rugged, simple construction, requires little maintenance
  • Back gauge for repeatability
  • Bend angle gauge for precise bends


Note: To achieve proper performance and prevent damage, the power supplied to this machine must be 220VAC ±5% (209VAC to 231VAC). Failure to comply will damage the machine and void the warranty. If needed, we offer a small buck-boost transformer that will lower or raise the voltage 5-20%. See accessories tab.



Warranty:

1 year manufacturer's warranty

SPECIFICATIONS

Type: magnetic
Mild Steel Capacity: 16 gauge (1.6mm)
Stainless Capacity: 20 gauge (.73mm)
Working Length (inches): 48
Max Depth Of Box (inches): unlimited
Max Lift Of Beam (inches): unlimited
Front To Rear Adj (inches): 1/8
Min Reverse Bend (inches): 5/8
Finger Nose Angle: 67.5
Weight (pounds): 462
Dimensions (LxWxH): 52 x 37 x 37

INCLUDES

  • (1) 51.25 x 4 inch Deep Bending Bar
  • (1) 51.25 x 2 inch Deep Bending Bar
  • (1) 23 x 4 inch Deep Bending Bar
  • (1) 51.25 x 4 inch Deep Bending Bar with 1-3/4 inch deep slots
  • (1) 11 x 4 inch Deep Bending Bar
  • (1) 5.5 x 4 inch Deep Bending Bar
  • (1) 2.75 x 4 inch Deep Bending Bar
  • (1) 2 x 4 inch Deep Bending Bar
  • (1) 1.5 x 4 inch Deep Bending Bar
  • (1) 1 x 4 inch Deep Bending Bar
