Baileigh RDB-050 Manual Tube Bender

Part #: RDB-050
Ships From: Factory shipped
Availability: Usually ships within 1-2 weeks
We want to give you the best information possible regarding your order at Trick-Tools and product availability is very important to us. This information reflects our best estimate of the shipping time for your order on a product by product basis. Items in stock at our warehouse typically ship same day if the order is placed before 3pm Central Time.

Availability on Items shipped directly from the factory is an estimate for that product based on averages from our experience. Items marked "Call for availability" have limited stock or unpredictable lead times and require a phone call to get a lead time estimate. We apologize but we are unable to guarantee lead times on factory-shipped items.
Price: $995.00
  • 2-1/2 inch OD capacity
  • 3 bending speeds
  • Built-in anti-springback features
  • 180 degree bends without removing pins
FREIGHT:
Freight
ORIGIN:
BRAND:
Quantity:

DESCRIPTION

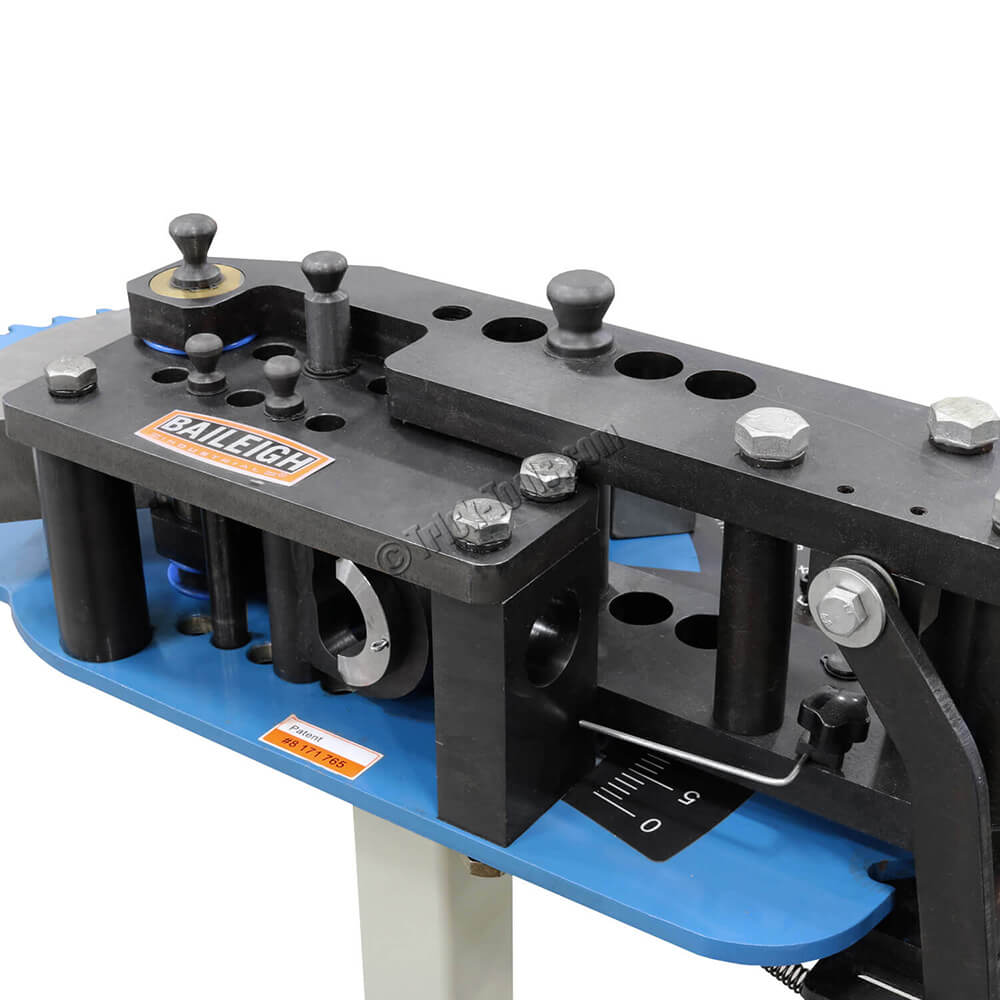

The RDB-050 manual tube bender is the newest manual machine in the Baileigh/RMD lineup. This bender features a unique 3-bending speed ratchet mechanism that gives the user the option of high speed bending for smaller diameter tubing and a lower speed, high torque setting for heavy wall material.

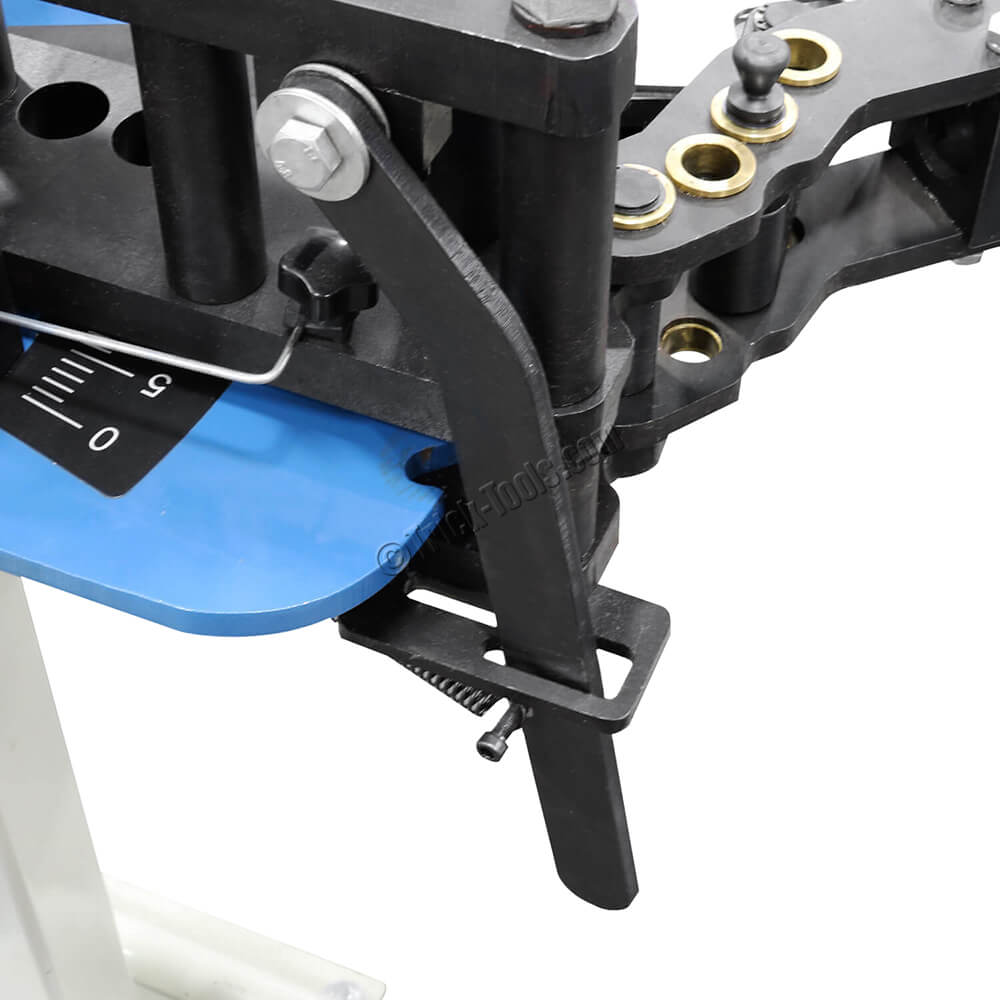

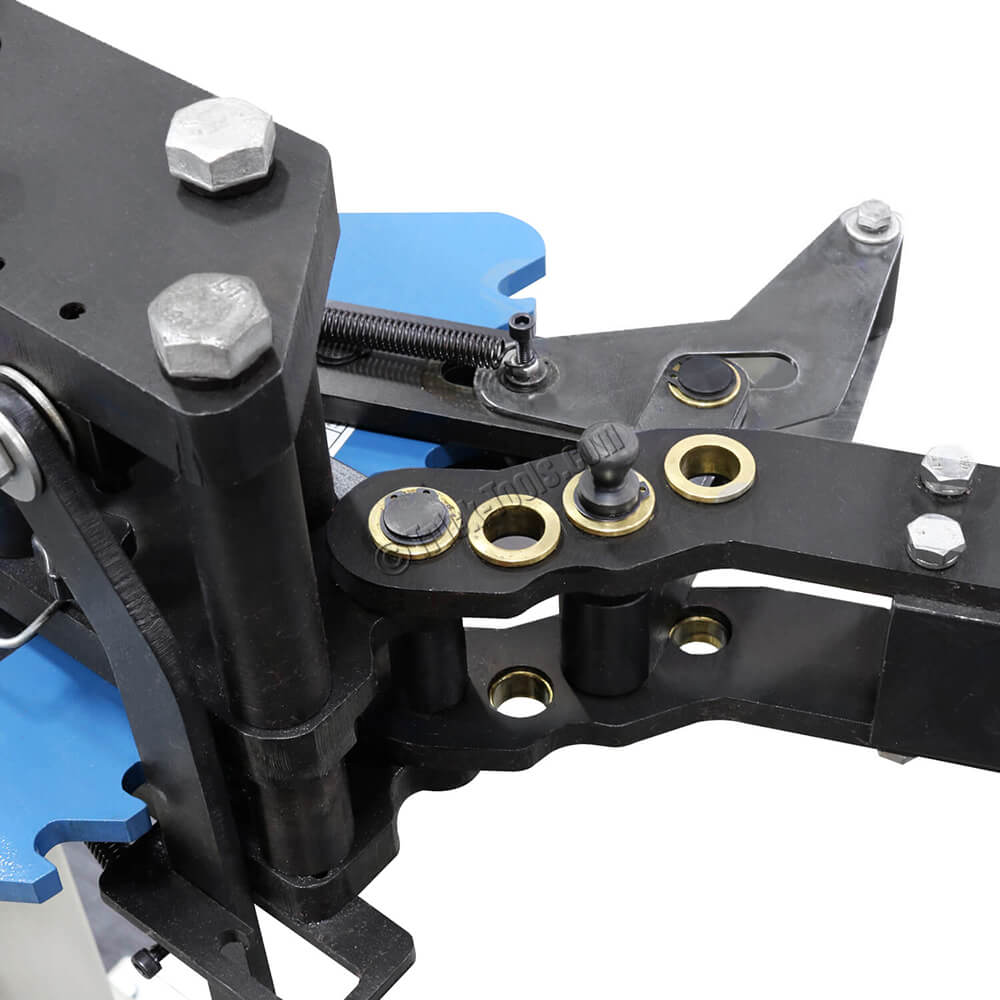

The unique drive mechanism on this bender allows the user to make a full 180 degree bend without having to remove pins or reposition drive arms. An anti-springback mechanism greatly reduces the risk of wrinkling thin wall material and provides support for bending heavier material. All pivot points on this heavy duty machine also utilize aluminum bronze bushings to prevent galling.

Warranty:

1 year manufacturer's warranty

SPECIFICATIONS

Mild Steel Capacity (inches): 2-1/2 x .120
Round Chrome Moly Capacity (inches): 2 x .120
Minimum OD (inches): 3/4
Bending Style: rotary draw
Min Center Line Radius (inches): 3
Max Center Line Radius (inches): 7
Max Degree of Bend: 180
Maximum OD (inches): 2-1/2
Weight (pounds): 270
