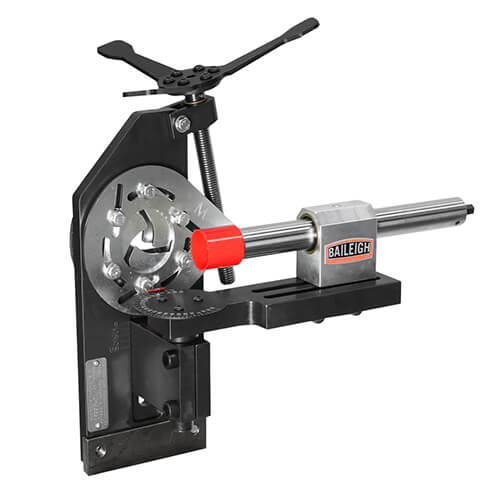

Baileigh TN-250 Hole Saw Tube Notcher

Part #: TN-250
Ships From: Our warehouse
Availability: Usually ships within 1 day
We want to give you the best information possible regarding your order at Trick-Tools and product availability is very important to us. This information reflects our best estimate of the shipping time for your order on a product by product basis. Items in stock at our warehouse typically ship same day if the order is placed before 3pm Central Time.

Availability on Items shipped directly from the factory is an estimate for that product based on averages from our experience. Items marked "Call for availability" have limited stock or unpredictable lead times and require a phone call to get a lead time estimate. We apologize but we are unable to guarantee lead times on factory-shipped items.
Price: $695.00
BEST SELLER
  • Capacity of 1/2 to 2-1/2 inch OD
  • 230 degree of angle adjustment
  • Offset coping up to 1 inch vertically
  • Shaft supported by sealed needle bearings
SHIPPING:
UPS
ORIGIN:
BRAND:
Quantity:

DESCRIPTION

The TN-250 is one of the most versatile hole saw notchers on the market today. The unique radial vise clamping system allows for clamping tubing from 1/2 inch to 2-1/2 inch OD in any location, including the center of a bend. Hole saws are supported on a massive 1-1/4 inch OD shaft, which also includes a replaceable hex insert for attaching to a standard 1/2 inch drive drill.

Offset copes of up to 1 inch can be accomplished by raising or lowering the cutter assembly. This notcher also allows for the use of 3 inch deep hole saws for making longer cuts in a single pass.

Other features include:

  • Capacity of 1 to 2-1/2 inch OD
  • 230 degrees of angle adjustment
  • All CNC machined
  • Radial vise allows for clamping in the center of a bend
  • Can offset notch up to 1 inch vertically
  • 1-1/4 inch ground and polished stainless steel shaft
  • Sealed needle bearing shaft support
  • Easy mounting: Bolt it to a table or simply clamp it in a vise
  • Can use 3 inch deep hole saws
  • Requires an ordinary 1/2 inch hand drill


Warranty:

1 year manufacturer's warranty

SPECIFICATIONS

Arc Capacity: 230 degrees
Max Notch Angle: Unlimited
Max Diameter: 2-1/2 inch
Min Diameter: 1/2 inch
Max Offset (inches): 1 inch
Weight (pounds): 45
Dimensions (LxWxH): 13 x 6 x 16
