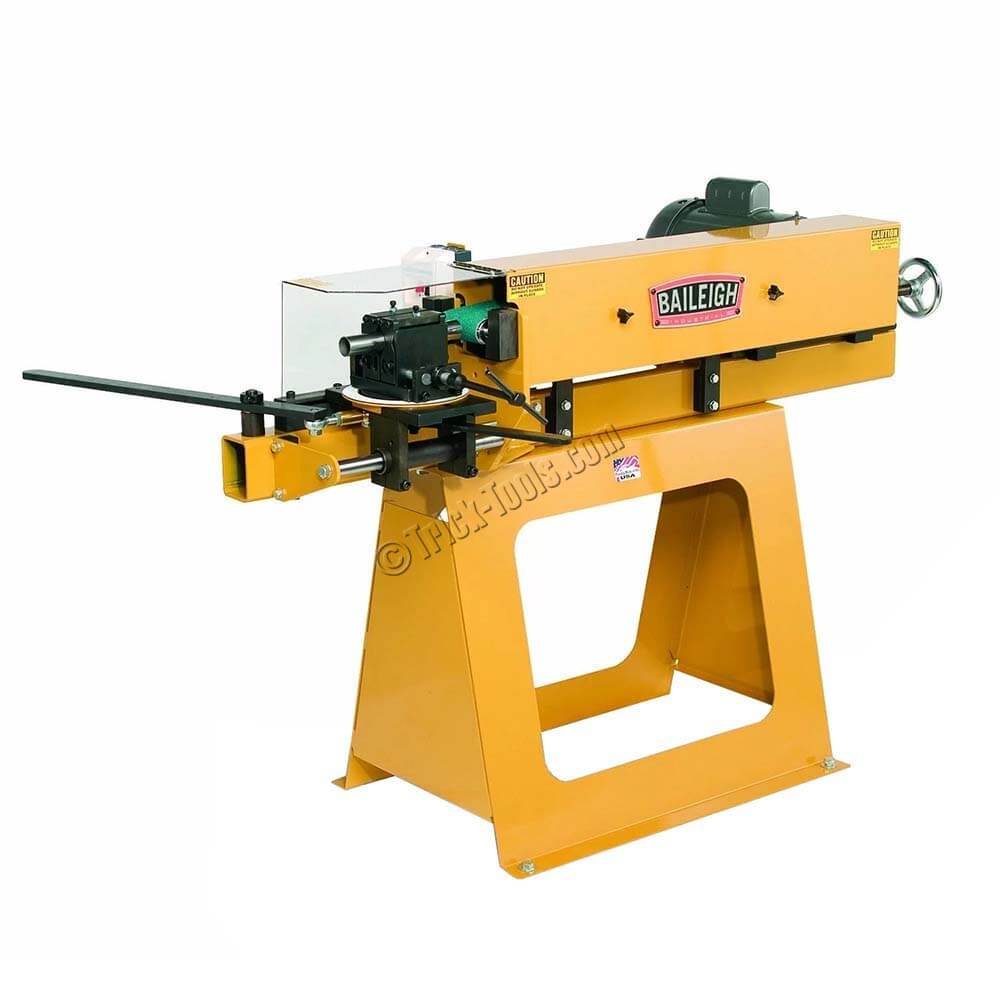

Baileigh TN-400 4 inch Abrasive Tube Notcher

Part #: TN-400
Ships From: Factory shipped
Availability: Usually ships within 2-4 days
We want to give you the best information possible regarding your order at Trick-Tools and product availability is very important to us. This information reflects our best estimate of the shipping time for your order on a product by product basis. Items in stock at our warehouse typically ship same day if the order is placed before 3pm Central Time.

Availability on Items shipped directly from the factory is an estimate for that product based on averages from our experience. Items marked "Call for availability" have limited stock or unpredictable lead times and require a phone call to get a lead time estimate. We apologize but we are unable to guarantee lead times on factory-shipped items.
Price: $4,795.00
  • Capacity of 3/4 to 2 inch OD
  • Angles up to 60 degrees
  • 3 hp motor powers the 4x79 inch belt

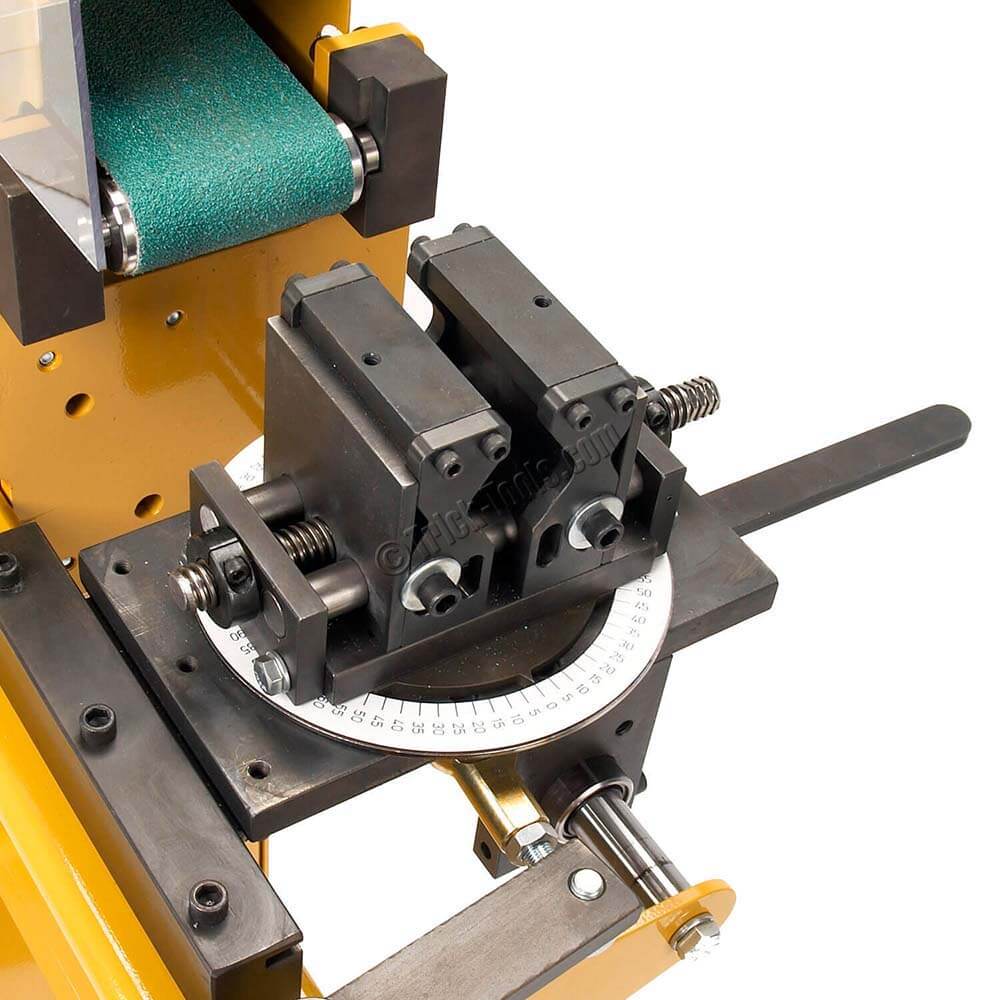

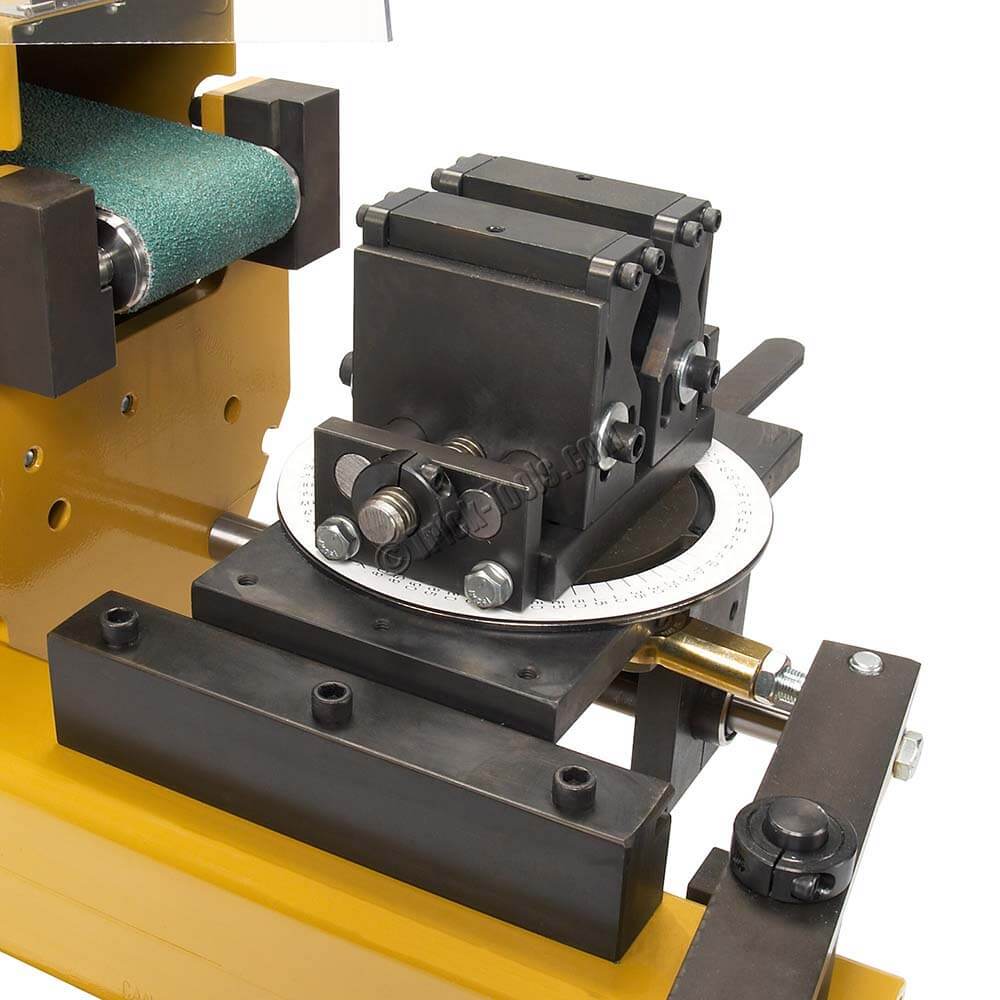

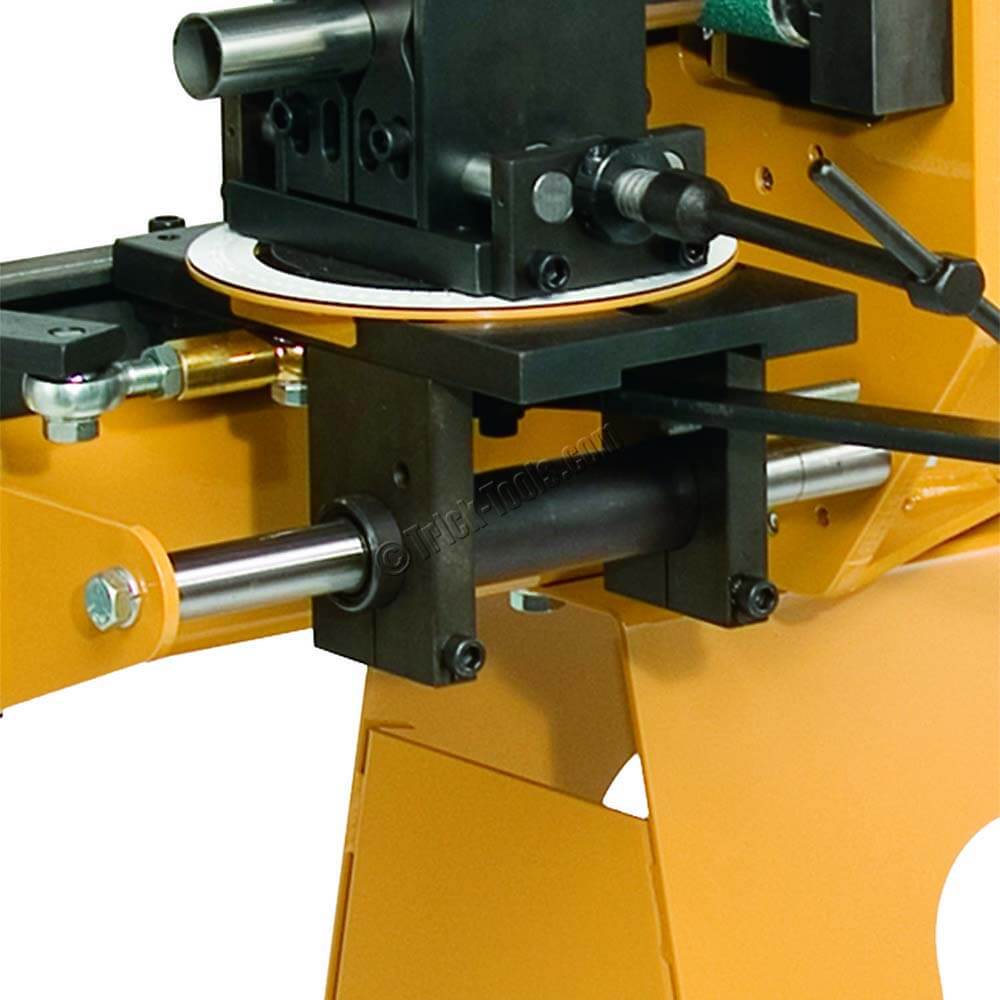

The Baileigh TN-400 can notch through tube or pipe in seconds giving you the perfect fit every time. This notching machine is perfect for coping the ends of 3/4 inch OD to 2 inch OD tubing at any angle from 0 to 60 degrees, and has a quick release taper lock mechanism for loosening the vise to make angle or position adjustments in seconds with no tools. Changing the mandrel can also be done in seconds by removing the quick-change side guard and loosening the belt tension hand wheel.


1 year manufacturer's warranty


Motor: 3 hp, 220 volt, 1 phase
Max Notch Angle: 60 degrees
Max Diameter: 2 inch
Min Diameter: 3/4 inch
Belt Width (inches): 4
Speed: 5420 feet per minute
Weight (pounds): 450
Dimensions (LxWxH): 70 x 35 x 43


  • 1-1/4 inch PIPE mandrel
  • 36 grit belt
