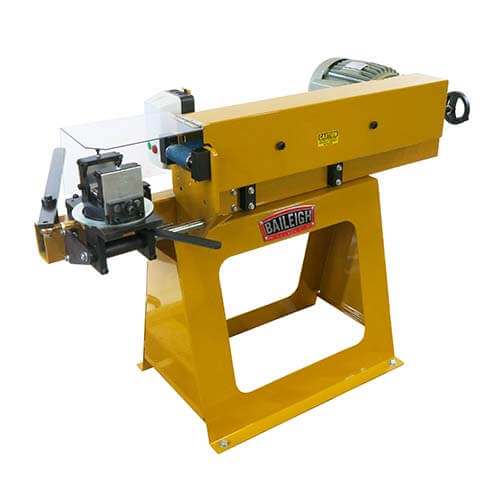

Baileigh TN-600 6 inch Abrasive Tube Notcher

Part #: TN-600
Ships From: Factory shipped
Availability: Usually ships within 2-4 weeks
We want to give you the best information possible regarding your order at Trick-Tools and product availability is very important to us. This information reflects our best estimate of the shipping time for your order on a product by product basis. Items in stock at our warehouse typically ship same day if the order is placed before 3pm Central Time.

Availability on Items shipped directly from the factory is an estimate for that product based on averages from our experience. Items marked "Call for availability" have limited stock or unpredictable lead times and require a phone call to get a lead time estimate. We apologize but we are unable to guarantee lead times on factory-shipped items.
Price: $5,895.00
  • Capacity of 3/4 to 3 inch OD
  • Angles up to 60 degrees
  • 5 hp motor powers the 6x79 inch belt

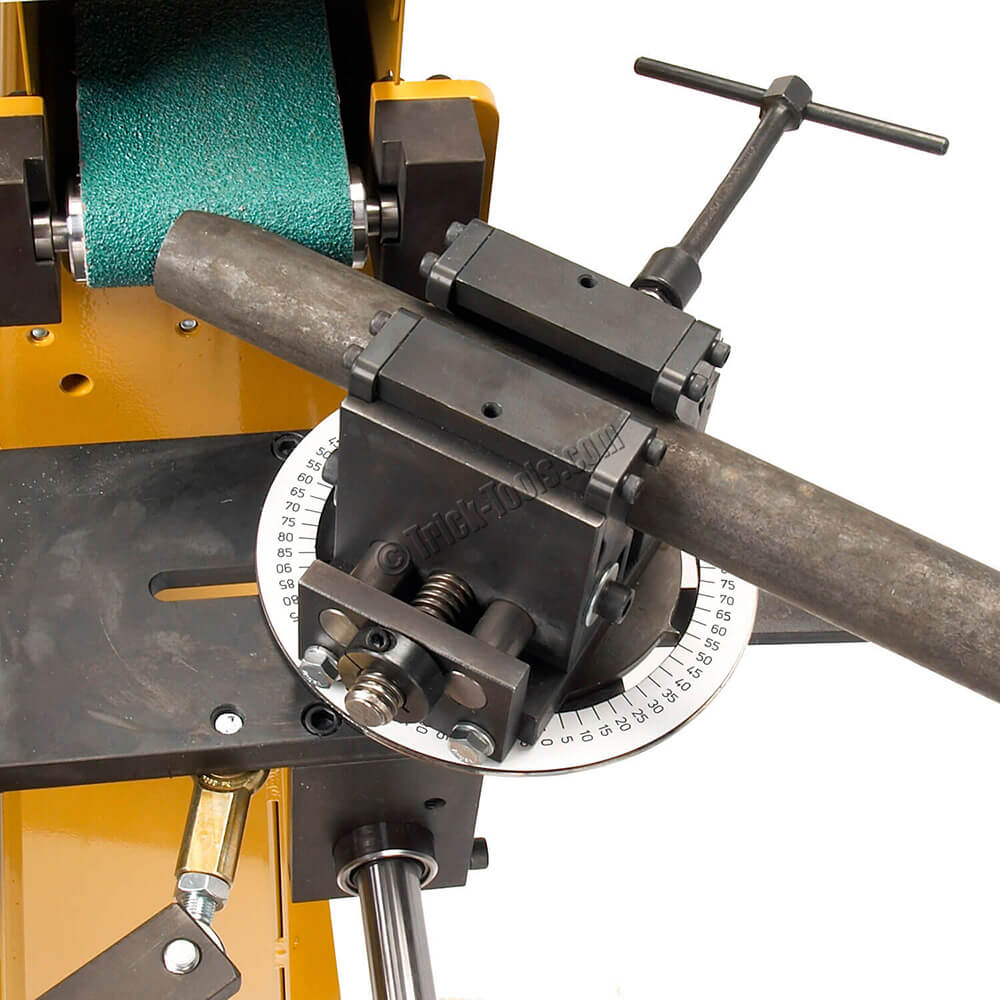

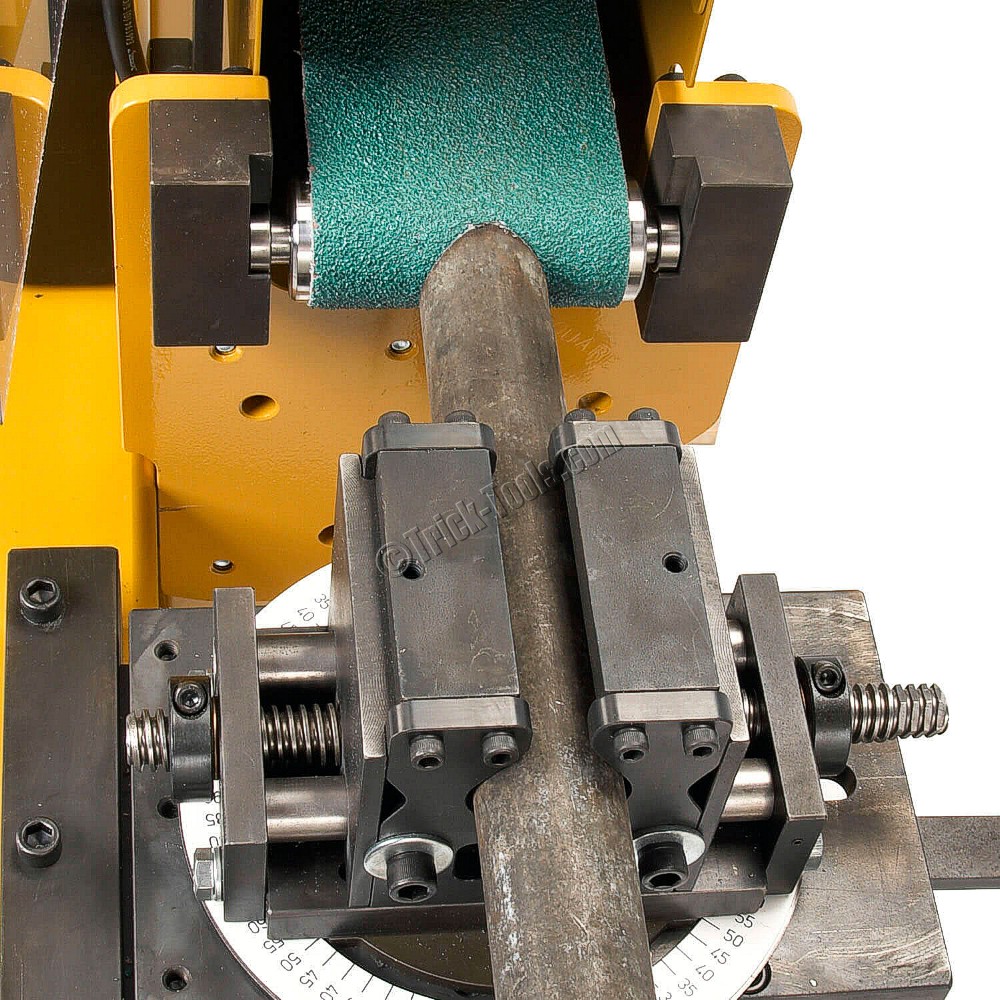

The TN-600 abrasive tube notcher uses industrial grade mechanical and electrical components and a logical design to notch through tubing and pipe with ease. The spindle size allows for an industry standard 6 x 79 inch belt to be used. This 6 inch wide surface allows this tubing notcher to cope at maximum capacity of 3 inch OD at angles up to 60 degrees. Smaller 4 inch wide belts can be used as well if notching only up to 2 inch OD at angles up to 60 degrees. Additional mandrel spindles are required for each different OD to be notched.

The belt drive on this powerful tube notcher has a large diameter urethane drive wheel for maximum grip of the belt drive which is important when notching at maximum capacity. The motor and drive wheel are on a spring suspension to take up any belt stretching that may take place and there is also a fine tune adjustment for belt tracking. This machine has a powerful 5 hp motor that notches at full capacity with ease and only requires 220 volts of single phase power, so it can be used in almost all fabrication shops.


1 year manufacturer's warranty


Motor: 5 hp, 220 volt, 1 phase
Max Notch Angle: 60 degrees
Max Diameter: 3 inch
Min Diameter: 3/4 inch
Belt Width (inches): 6
Speed: 5400 feet per minute
Weight (pounds): 475
Dimensions (LxWxH): 70 x 40 x 43


  • 1-1/4 inch PIPE mandrel
  • 36 grit belt
