Bead Form 1

Part #: BF1
Ships From: Our warehouse
Availability: Usually ships within 1 day
We want to give you the best information possible regarding your order at Trick-Tools and product availability is very important to us. This information reflects our best estimate of the shipping time for your order on a product by product basis. Items in stock at our warehouse typically ship same day if the order is placed before 3pm Central Time.

Availability on Items shipped directly from the factory is an estimate for that product based on averages from our experience. Items marked "Call for availability" have limited stock or unpredictable lead times and require a phone call to get a lead time estimate. We apologize but we are unable to guarantee lead times on factory-shipped items.
Price: $439.00
  • 5/8 inch to 2 inch capacity
  • Rugged steel and aluminum construction
  • Meets Milspec and SAE AS5131 specs up to 2 inch OD
  • Great for turbo, fuel, intake, and radiator hose
SHIPPING:
UPS
ORIGIN:
BRAND:
Quantity:

DESCRIPTION

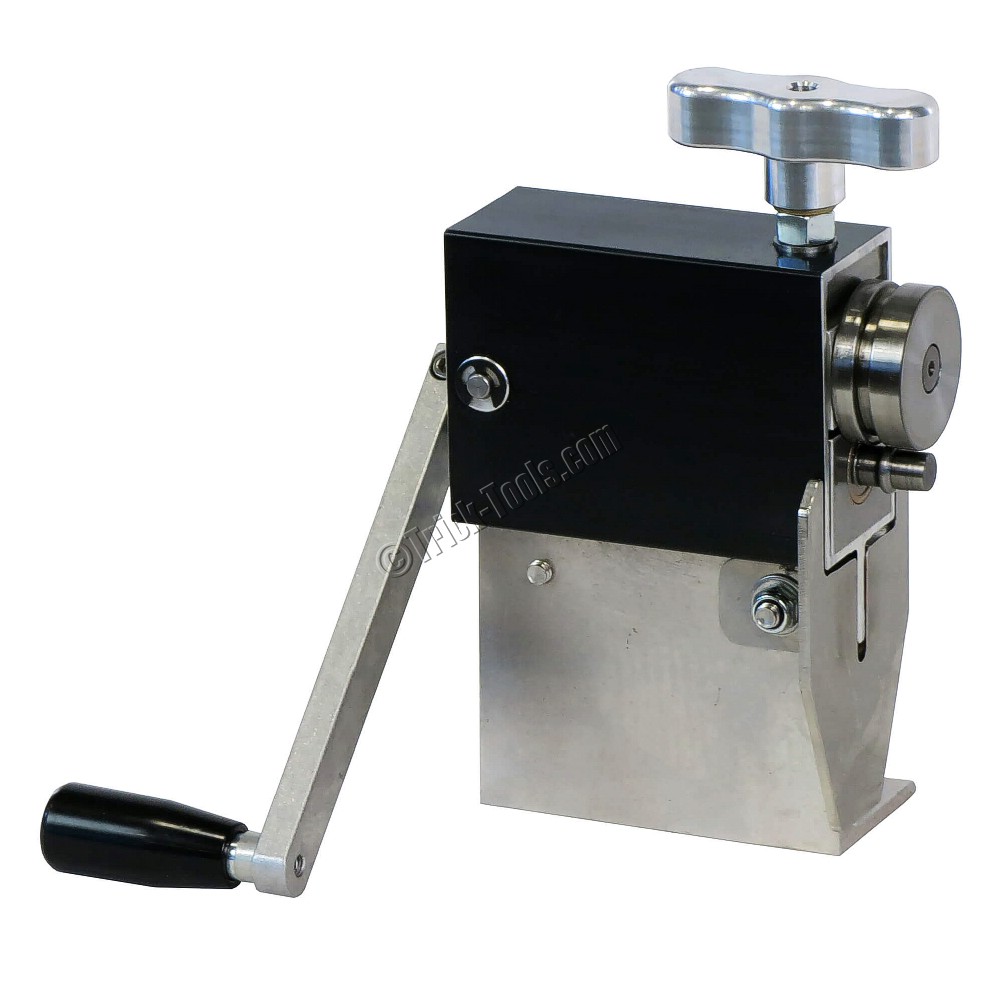

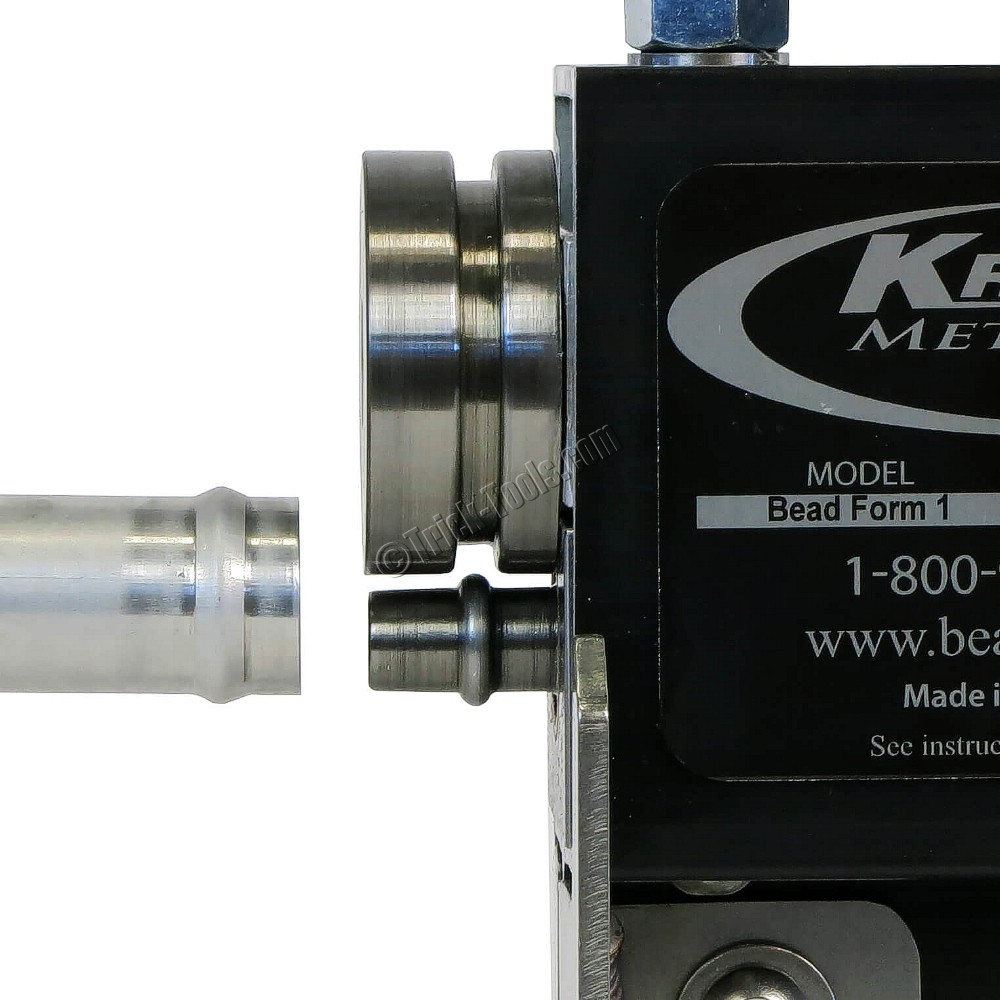

Bead Form 1 quickly forms a hose bead on all types of tubing. Positive action gear drive and extensive component material testing make this tool very durable. It is designed to work on stainless, aluminum, copper, brass or mild steel.

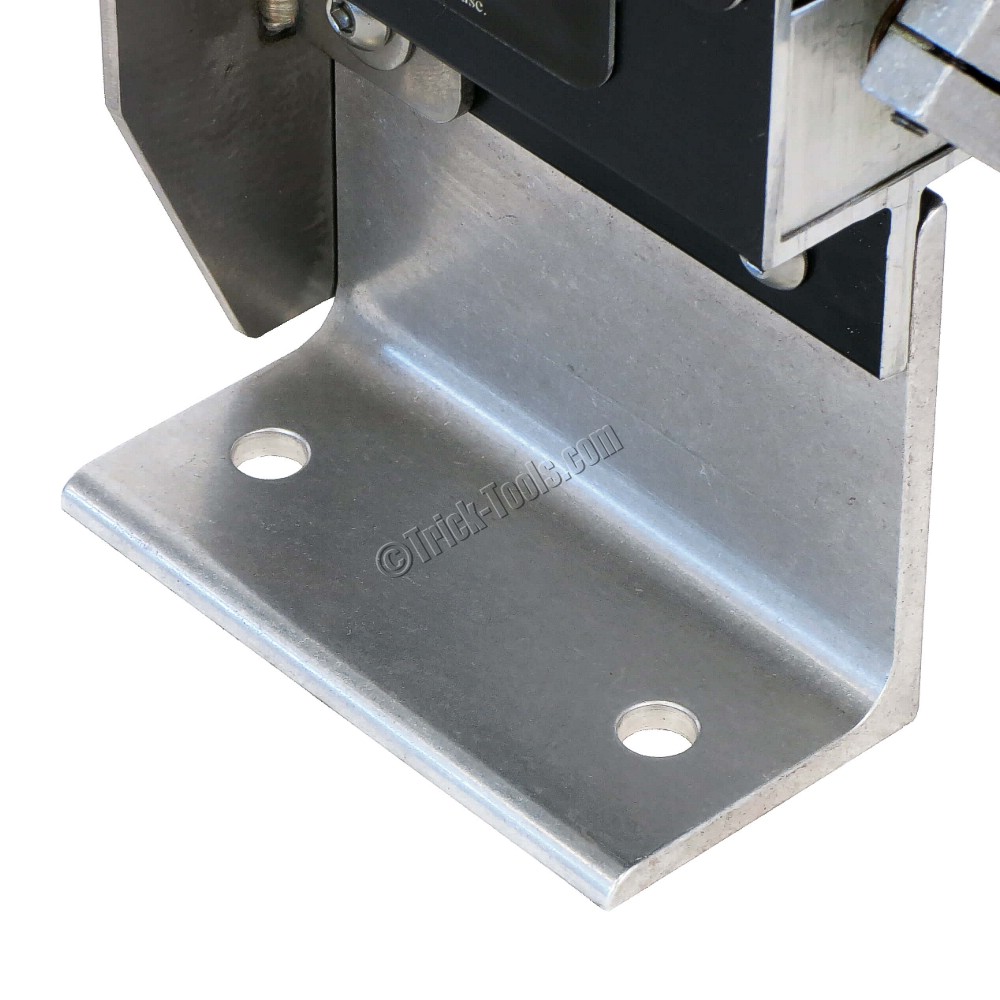

The bead produced meets Milspec and SAE AS5131 specs up to 2 inch OD. The hand crank can be removed and replaced with a ratchet and 1/4 inch square socket. Can be bench mounted with the included bracket, vise mounted with additional block, and even comes with a handy carrying case and instructions. Great for fuel, intake, turbo, and radiator lines.



Warranty:

1 year manufacturer's warranty

SPECIFICATIONS

Minimum Id (inches): 9/16
Steel Capacity (inches): .050 wall
Aluminum Capacity: .050 wall
Bead Dimensions (inches): .050 tall x .185 wide
Throat Depth (inches): .305 to center of bead
Construction: extruded aluminum body with 8620 steel rollers
Weight (pounds): 3.55
Dimensions (LxWxH): 5.5 x 3 x 8

INCLUDES

  • Handy carrying case
  • Bead Form 1 tool
  • Instructions
