Bead Form 2 HD Electric

Part #: BF2HDE
Availability: Usually ships within 1 week
We want to give you the best information possible regarding your order at Trick-Tools and product availability is very important to us. This information reflects our best estimate of the shipping time for your order on a product by product basis. Items in stock at our warehouse typically ship same day if the order is placed before 3pm Central Time.

Availability on Items shipped directly from the factory is an estimate for that product based on averages from our experience. Items marked "Call for availability" have limited stock or unpredictable lead times and require a phone call to get a lead time estimate. We apologize but we are unable to guarantee lead times on factory-shipped items.
Price: $1,894.00
  • 7/8 inch to 4 inch capacity
  • Heat treated lower shaft
  • Replaceable pivot bushings
  • Meets Milspec and SAE AS5131 specs for 1-1/2 inch OD and larger
  • Great for turbo, fuel, intake, and radiator hose
SHIPPING:
UPS
ORIGIN:
BRAND:
Quantity:

DESCRIPTION

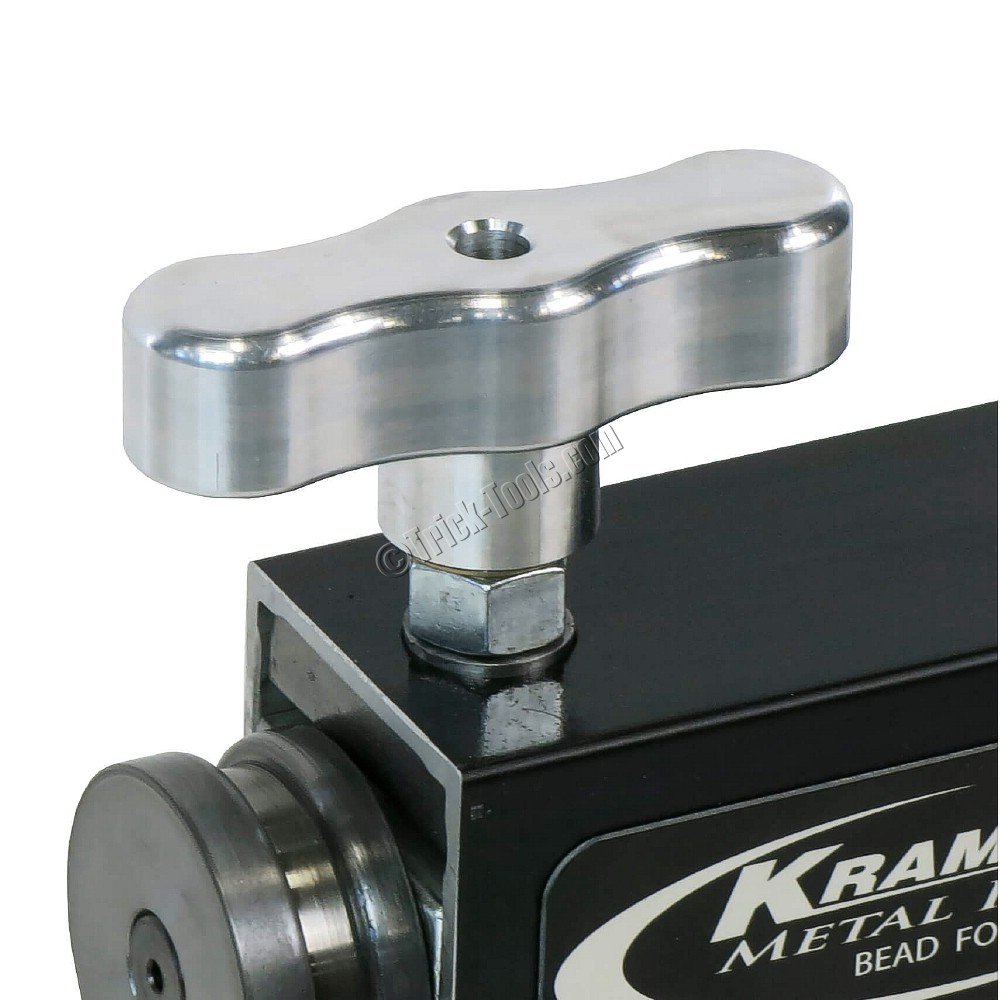

Bead Form 2 HD electric quickly forms a hose bead on all types of tubing. Heat treated lower shaft, replaceable pivot bushings, positive action gear drive, steel form rollers, and a 1/6 hp Bodine gear motor make this tool very durable.

The bead produced meets Milspec and SAE AS5131 specs for 1-1/2 inch OD and larger. It is designed to work in a production environment on stainless, aluminum, copper, brass or mild steel. Great for fuel, intake, turbo, and radiator lines.

The Bead Form 2 HD Electric includes an upgraded needle bearing support for the lower forming shaft as well as external oiling ports for lubricating the needle bearings.

Warranty:

1 year manufacturer's warranty

SPECIFICATIONS

Minimum Id (inches): 3/4
Steel Capacity (inches): .065 wall
Aluminum Capacity: .065 wall
Stainless Capacity (inches): .050 wall
Bead Dimensions (inches): .080 tall x .270 wide
Throat Depth (inches): .315 to center of bead
Motor: 1/6 hp, 110 volt
Construction: heat treated lower shafts and steel rollers, extruded aluminum body
Weight (pounds): 19
Dimensions (LxWxH): 16 x 8 x 8

INCLUDES

  • Bead Form 2 HD electric tool, with external oiling ports
  • Oil can
  • Instructions
