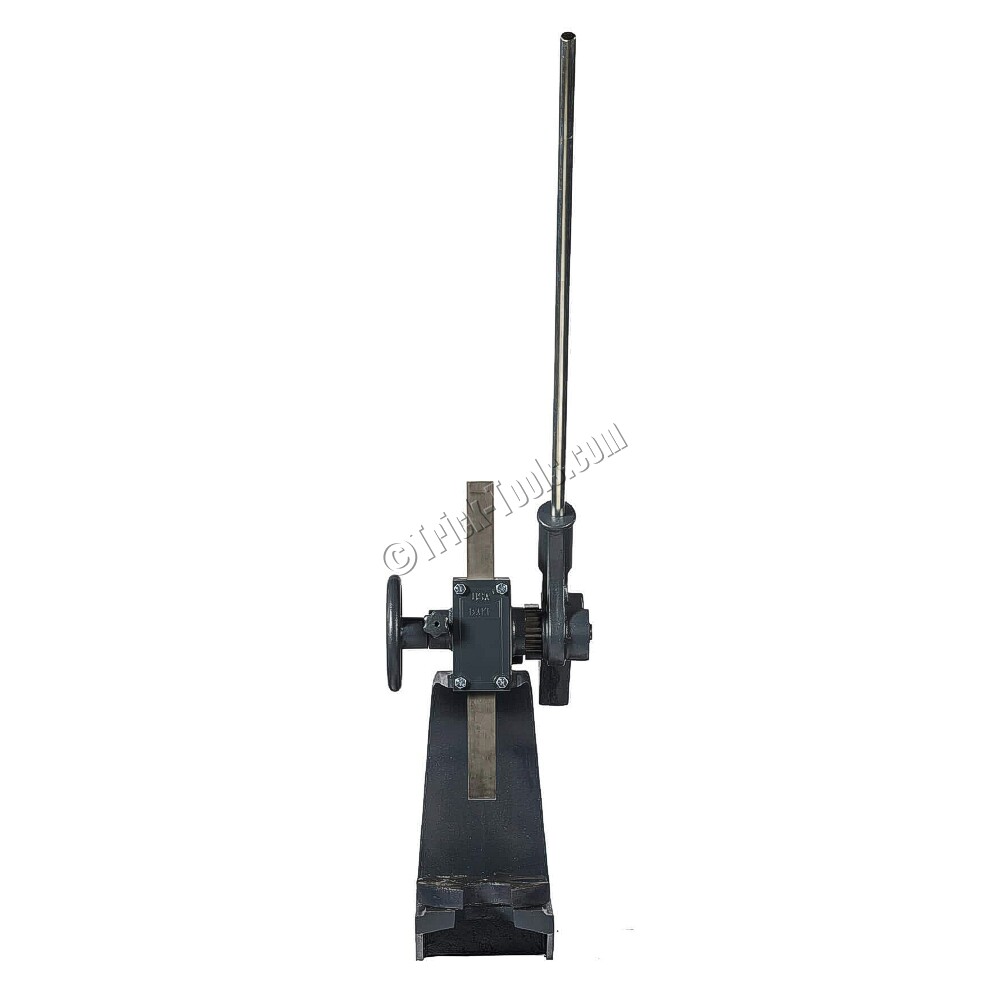

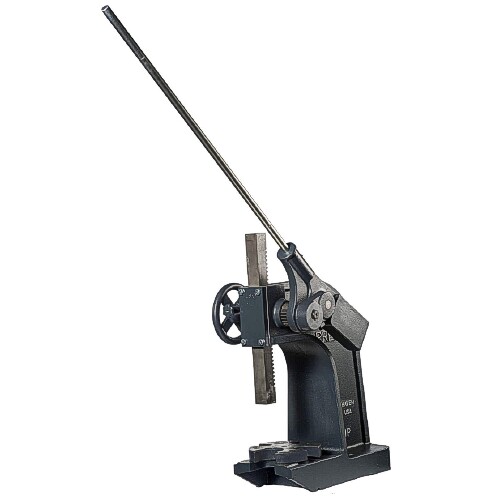

Dake No. 3A Ratchet Leverage Arbor Press, 5 ton



The Dake 3A Ratchet Leverage Arbor Press, with a 5 ton capacity, is designed to work in the manner that is most comfortable for you. The ratchet drive allows the lever to be used in the most convenient position. The counterweight quickly returns the lever after a down stroke. The ram can be quickly returned to start height with the hand wheel. An optional floor pedestal is available.

Warranty:

1 year manufacturer's warranty

Freight
Part #: 02004
Model: No. 3A
Ships From: Factory shipped
Availability: Usually ships within 1 week

Price: $2,950.00


Maximum Capacity: 5 tons
Stroke (inches): 16
Throat Depth (inches): 10
Throat Height (inches): 16
Ram Size: 2 x 2 x 23
Weight (pounds): 450
Dimensions (LxWxH): 10 x 24 x 28.5
  • Arbor press
  • Fixed table
  • Optional pedestal available
