Mittler Bros. Louver Press U-Weld Kit

Part #: 500-LA-04
Ships From: Factory shipped
Availability: Usually ships within 1 week
We want to give you the best information possible regarding your order at Trick-Tools and product availability is very important to us. This information reflects our best estimate of the shipping time for your order on a product by product basis. Items in stock at our warehouse typically ship same day if the order is placed before 3pm Central Time.

Availability on Items shipped directly from the factory is an estimate for that product based on averages from our experience. Items marked "Call for availability" have limited stock or unpredictable lead times and require a phone call to get a lead time estimate. We apologize but we are unable to guarantee lead times on factory-shipped items.
Price: $1,815.00
  • 10 tons of power
  • 48 inch throat
  • Your choice of louver sizes
  • Accepts all Mittler Bench Press accessories
SHIPPING:
UPS
ORIGIN:
BRAND:
Options:
Quantity:

Configuration

DESCRIPTION

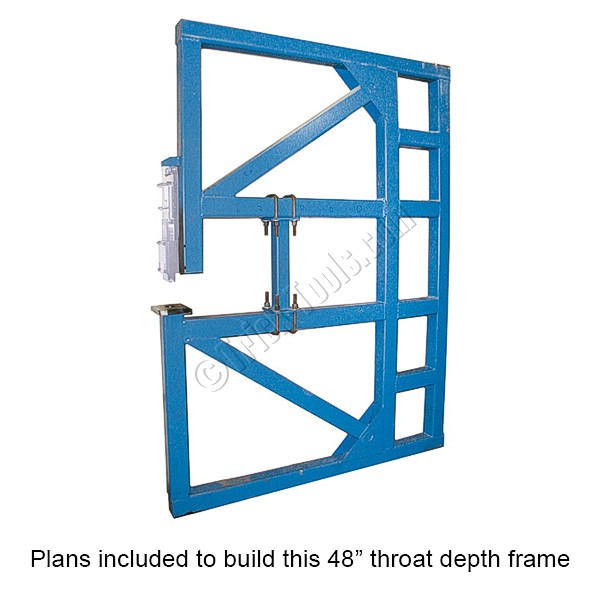

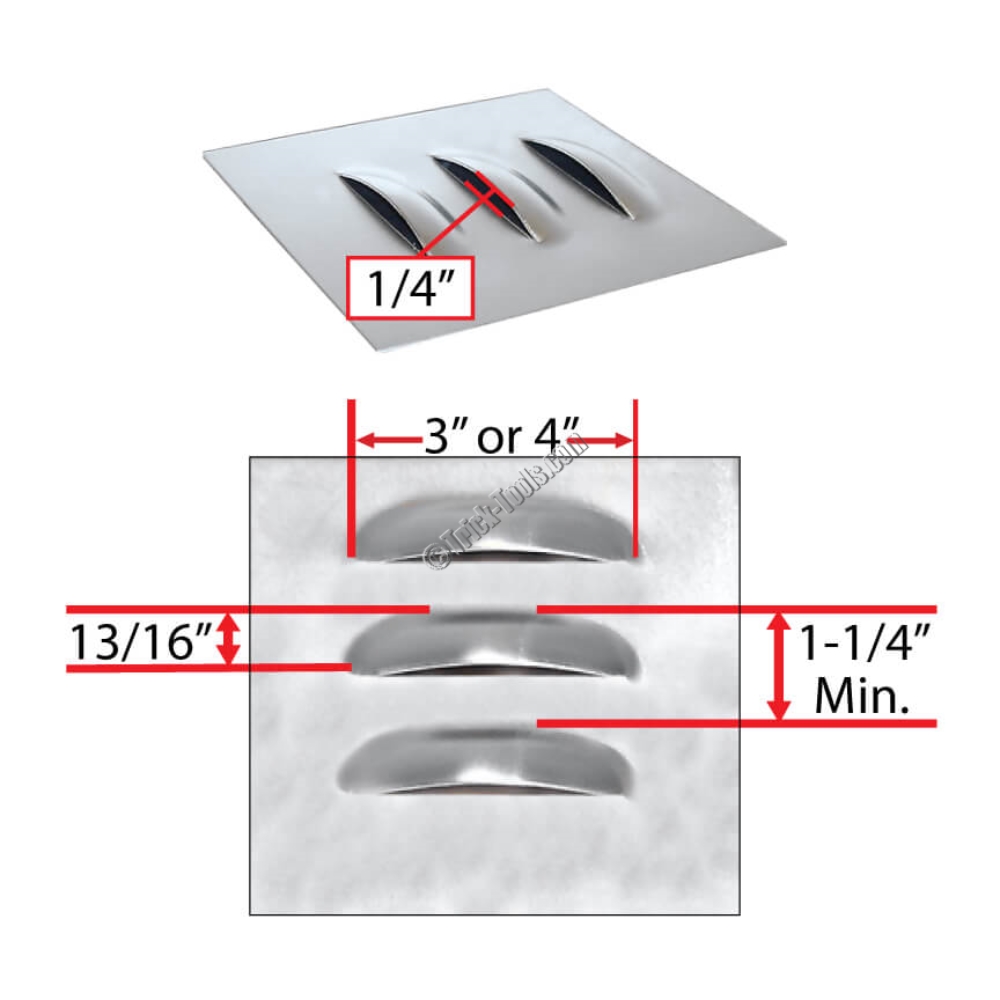

The Mittler Bros. Louver Press U-weld kit gives you everything you need but the steel to build the frame of this huge 48 inch throat machine. This profit producing machine can punch louvers from 1 to 5 inches wide in up to 16 gauge mild steel with additional dies and also accepts the popular Bench Press tooling for a variety of additional functions. The new improved design will allow the tooling to rotate 90 degrees for working with extra long parts.

(Hydraulic pump sold separately)

SPECIFICATIONS

Maximum Capacity: 10 tons
Stroke (inches): 4
Throat Depth (inches): 48
Bending Output Flat Capacity: 3/16 mild steel

INCLUDES

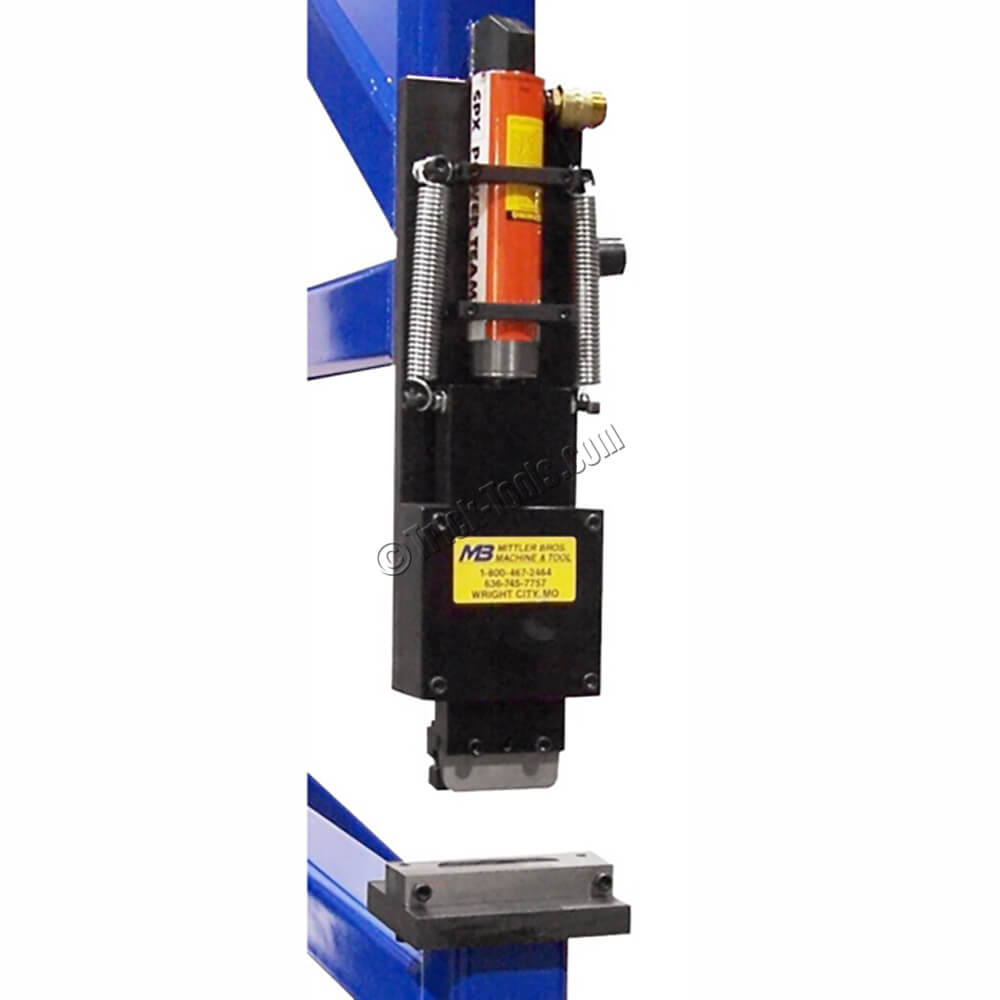

  • 10 ton hydraulic ram
  • Die mounting plate
  • Precision slide assembly
  • Louver tool set of your choice
  • Blueprints, bill of materials, instructions
