RAMS 2019 Powered Rotary Machine

Part #: 2019
Ships From: Factory shipped
Availability: Usually ships within 1-2 weeks
We want to give you the best information possible regarding your order at Trick-Tools and product availability is very important to us. This information reflects our best estimate of the shipping time for your order on a product by product basis. Items in stock at our warehouse typically ship same day if the order is placed before 3pm Central Time.

Availability on Items shipped directly from the factory is an estimate for that product based on averages from our experience. Items marked "Call for availability" have limited stock or unpredictable lead times and require a phone call to get a lead time estimate. We apologize but we are unable to guarantee lead times on factory-shipped items.
Price: $6,995.00
  • Variable speed and pressure control
  • 14 gauge capacity
  • 1/2 hp motor
  • Many options for roll sets
FREIGHT:
Freight
ORIGIN:
BRAND:
Quantity:

DESCRIPTION

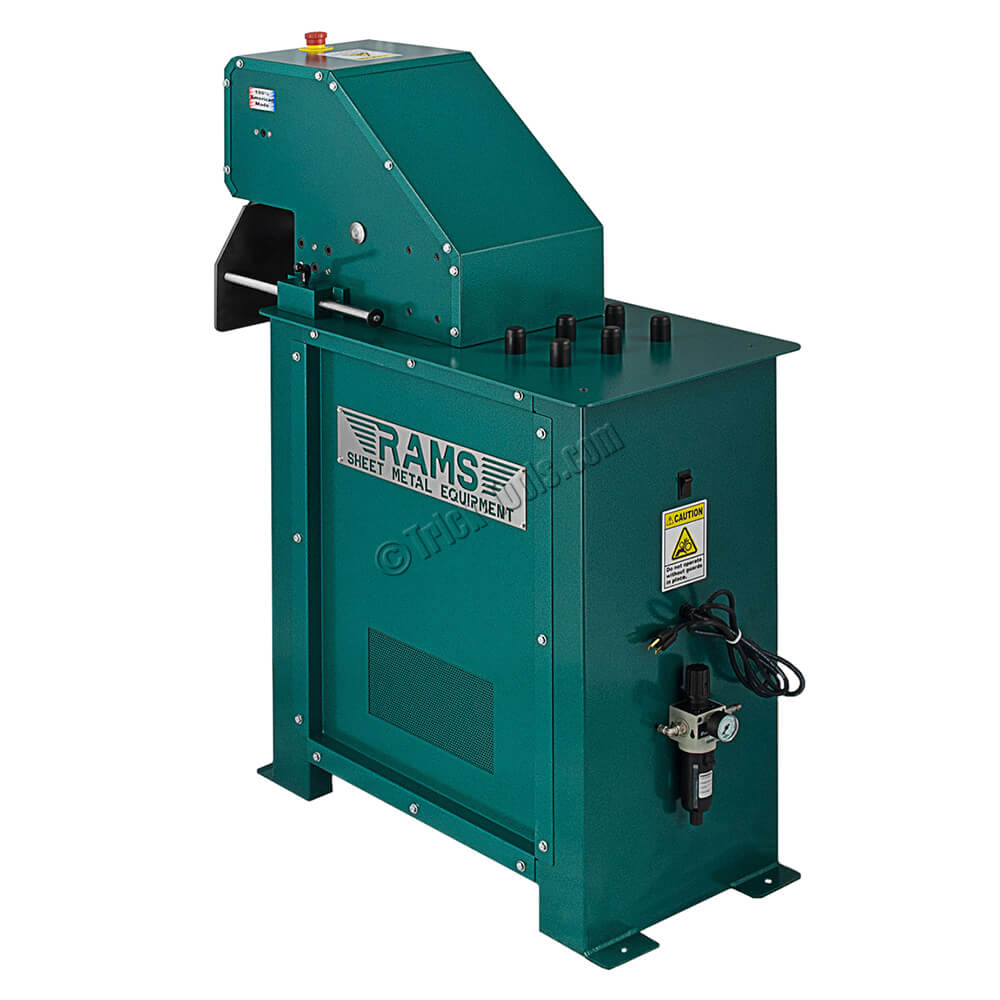

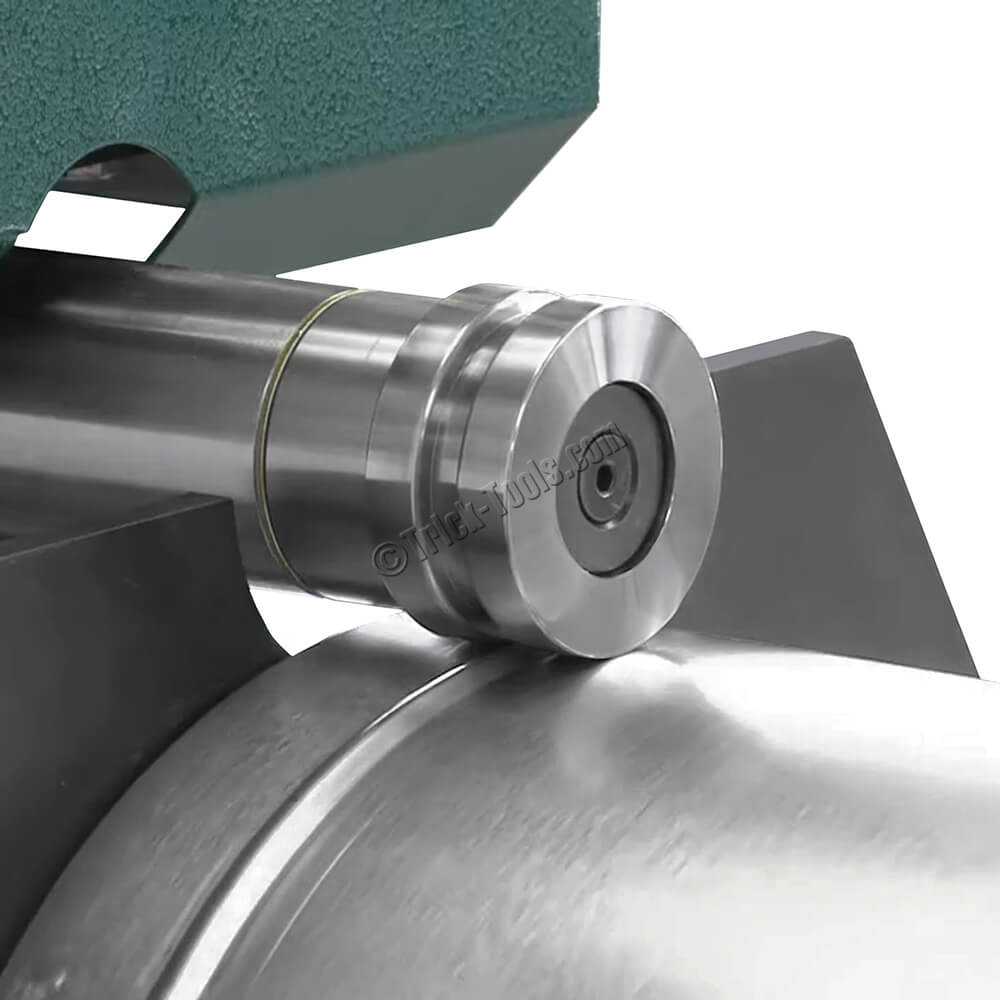

RAMS Sheet Metal introduces their 14 gauge powered rotary machine. Capable of forming beads, crimping, flanging, and many other profiles, this machine can handle the heaviest of bead forming applications. The machine features 12 inch throat depth and a unique square drive shaft that is incredibly strong and eliminates the need for key-ways.

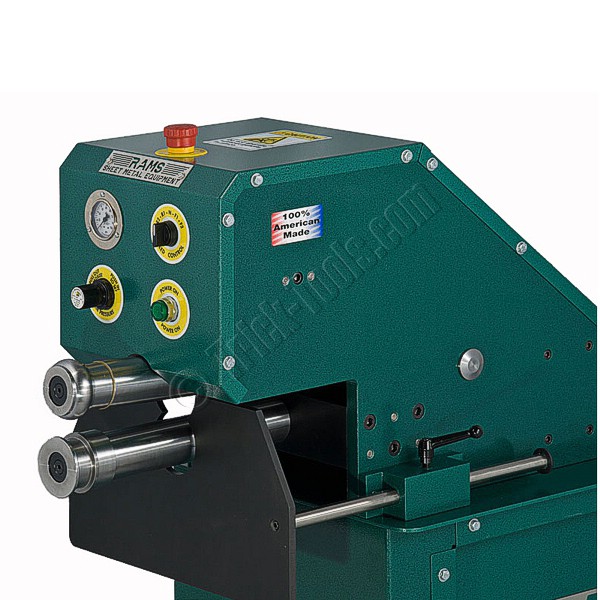

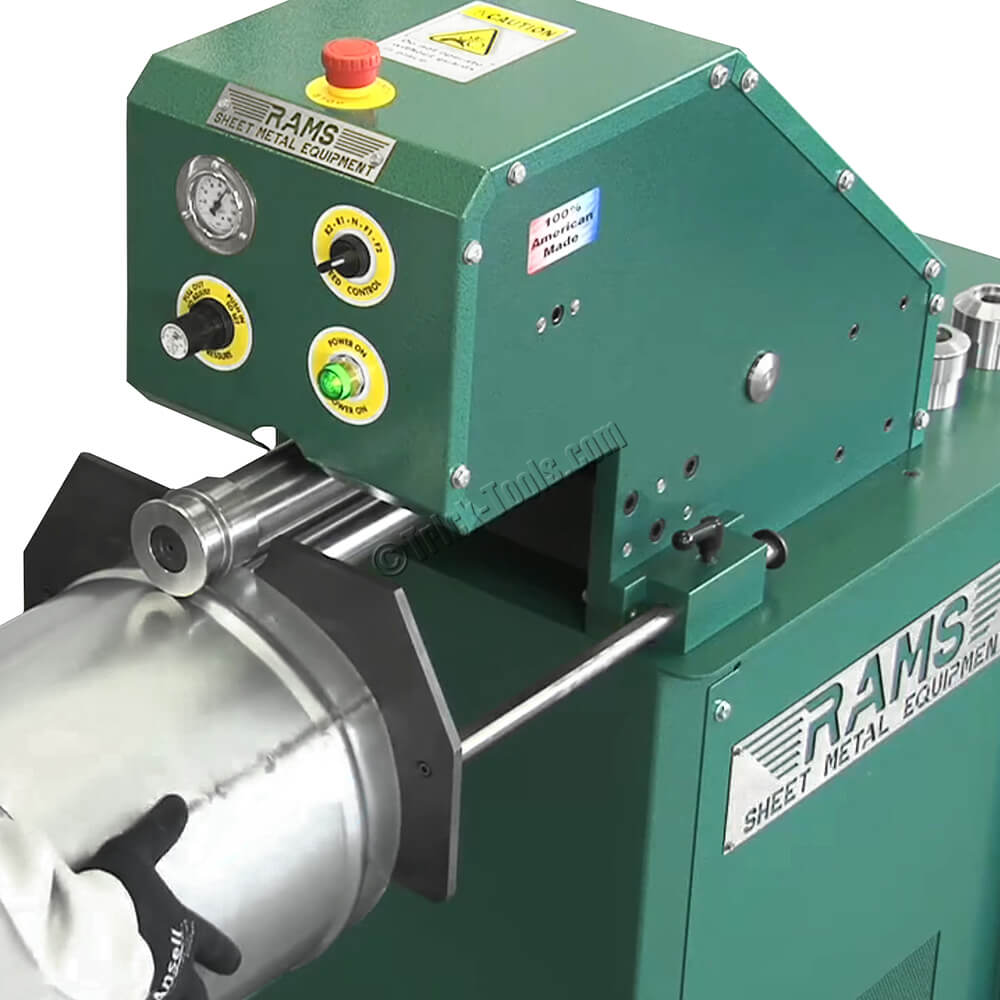

The machine is also equipped with many user friendly features including a control panel that allows on the fly pressure and speed adjustments, and a foot pedal control that allows the user to control the time it takes the rollers to contact the material. A time delay roller rotation can be adjusted to allow rollers to begin rotation prior to or after material contact.

Finally, the machine is equipped with an easily adjusted back gauge and integrated roller storage for the most commonly used dies.

Warranty:

2 year manufacturer's warranty

SPECIFICATIONS

Steel Capacity (inches): .075 (14 gauge)
Stainless Capacity (inches): 18 gauge
Throat Depth (inches): 12
Motor: 1/2 hp, 110 volt
Construction: fabricated steel frame
Weight (pounds): 350

INCLUDES

  • Machine
  • 3 Roll Sets of your choice
  • depth stop
  • roll storage
  • foot pedal control
