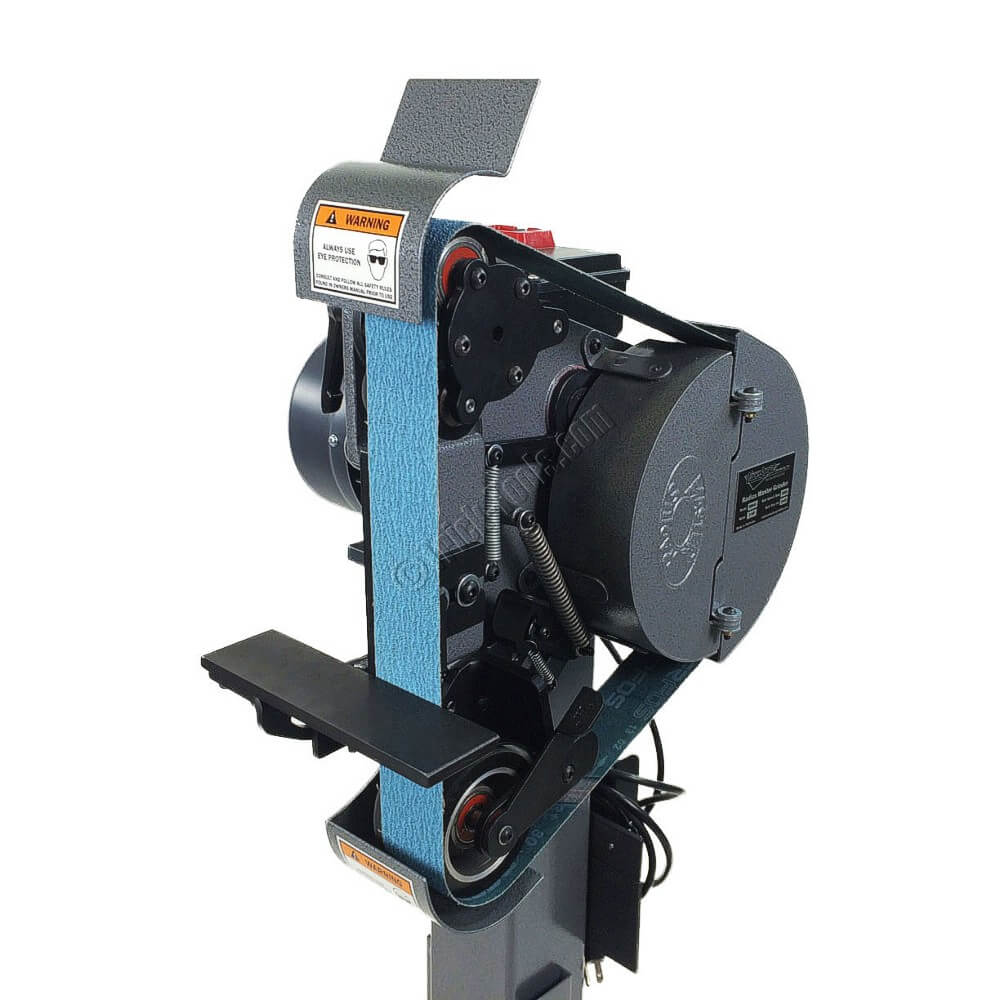

RadiusMaster Series II Belt Grinding Machine

Part #: RM48
Ships From: Our warehouse
Availability: Usually ships within 1 day
We want to give you the best information possible regarding your order at Trick-Tools and product availability is very important to us. This information reflects our best estimate of the shipping time for your order on a product by product basis. Items in stock at our warehouse typically ship same day if the order is placed before 3pm Central Time.

Availability on Items shipped directly from the factory is an estimate for that product based on averages from our experience. Items marked "Call for availability" have limited stock or unpredictable lead times and require a phone call to get a lead time estimate. We apologize but we are unable to guarantee lead times on factory-shipped items.
Model: RAM1000
Price: $2,595.00
BEST SELLER
  • 1, 1-1/2, 2, 3-1/2 and 8 inch contact wheels
  • 2 x 48 inch belt
  • 2 hp motor
  • Tilting pedestal
  • 2 work rests
FREIGHT:
Freight
ORIGIN:
BRAND:
Speed:
Quantity:

Configuration

DESCRIPTION

The RadiusMaster is a patented belt grinding machine that outperforms all other general purpose belt grinders. It offers offers a combination of features never seen before on one tool!

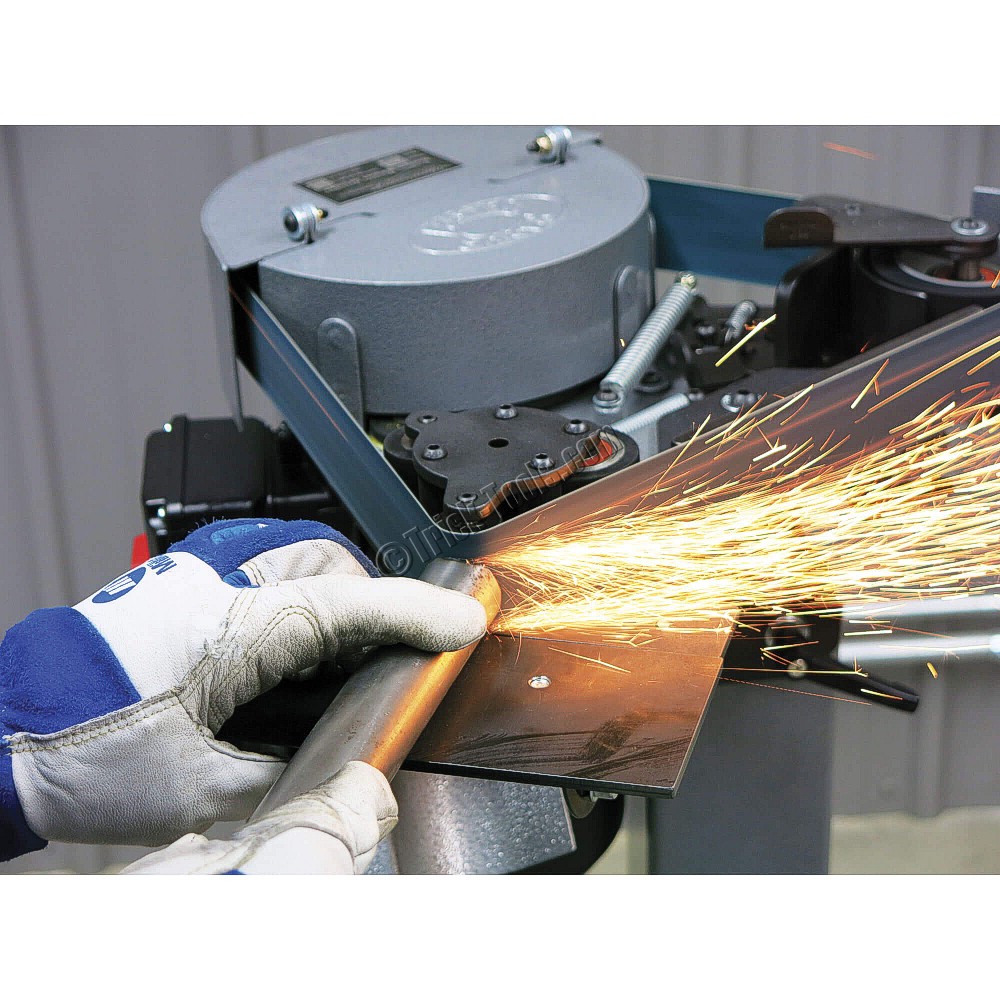

Choose from seven grinding surfaces including 5 different radius wheels, slack belt and platen grinding. The unique tilting stand allows for use of all of the surfaces in either a vertical or horizontal position and the quick release pivoting head allows you to place them in the most convenient position. No tools are required to tilt or pivot the machine, change radius wheels, work-rests or belts.

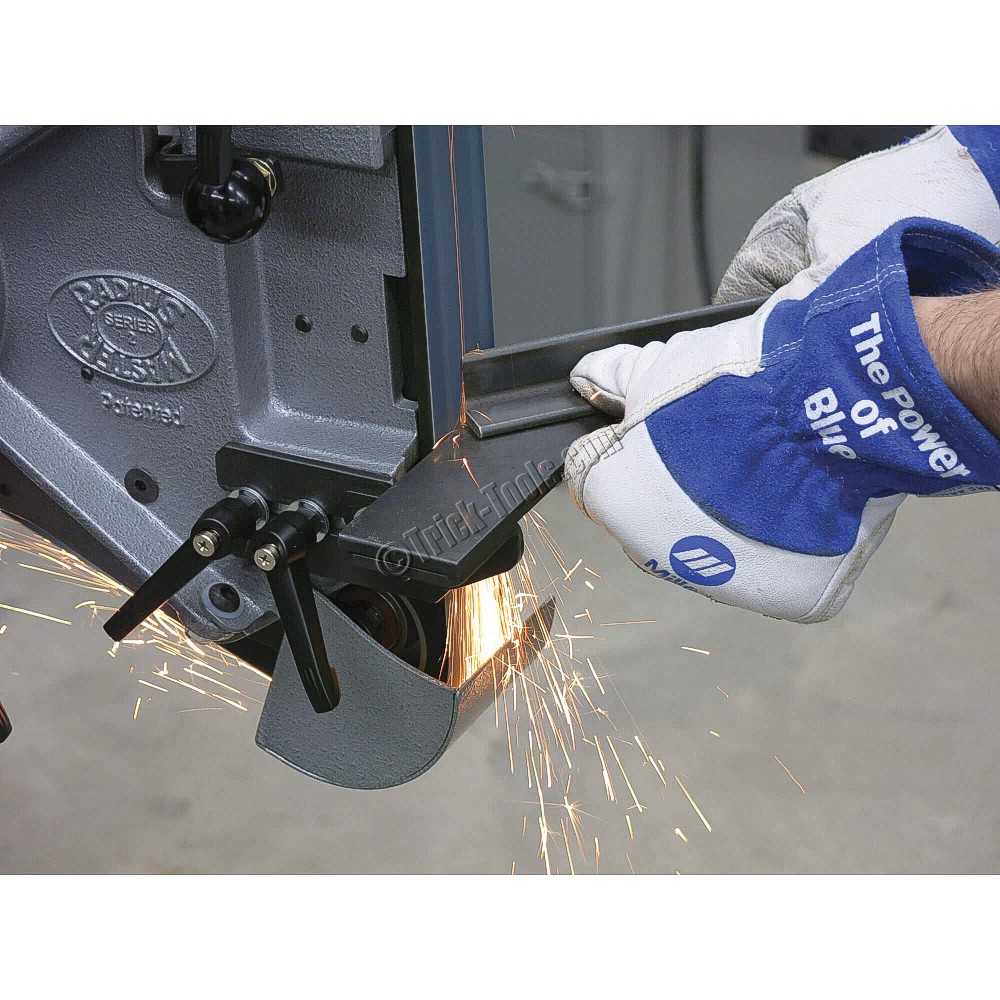

The Series II now allows sharp square notching and sharpening on both sides of the belt, improved belt tracking, and increased height for facing against the platen. The NEW variable speed option makes the RadiusMaster even more versatile for working with a variety of materials.



Warranty:

1 year manufacturer's warranty

SPECIFICATIONS

Motor: 2 hp, 110v
Belt Width (inches): 2
Belt Length (inches): 48
Belt Speed: 0-3600 feet per minute
Contact Wheel Diameter (inches) : 1.00; 1.50; 2.00; 3.50; 8.00
Weight (pounds): 109
Dimensions (LxWxH): 17 x 16 x 15

INCLUDES

  • RM48 Radius Master belt grinding machine
  • Belt grinder pedestal
  • Contact wheels - 1 inch OD, 1-1/2 inch OD, 2 inch OD, 3-1/2 inch OD, 8 inch OD
  • Work rest for 3 wheel spindle
  • Work rest for vertical platen
  • 1) 80 grit belt
