Roper Whitney No. 17 Medium Duty Bench Punch

Part #: 131020170
Ships From: Our warehouse
Availability: Usually ships within 1 day
We want to give you the best information possible regarding your order at Trick-Tools and product availability is very important to us. This information reflects our best estimate of the shipping time for your order on a product by product basis. Items in stock at our warehouse typically ship same day if the order is placed before 3pm Central Time.

Availability on Items shipped directly from the factory is an estimate for that product based on averages from our experience. Items marked "Call for availability" have limited stock or unpredictable lead times and require a phone call to get a lead time estimate. We apologize but we are unable to guarantee lead times on factory-shipped items.
Model: No. 17
Price: $595.00
BEST SELLER
  • 5 tons of punching power
  • Easy, linear pull handle
  • 6-1/2 inches of throat depth
  • Made in the USA
SHIPPING:
UPS
ORIGIN:
BRAND:
Quantity:

DESCRIPTION

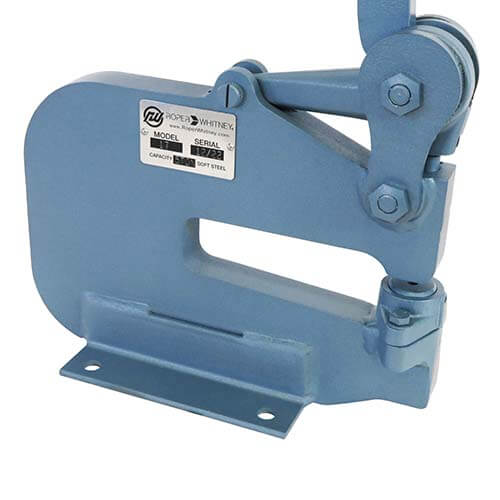

The Roper Whitney No. 17 punch features a heavy duty fabricated steel frame with 6-1/2 inches of throat depth, making it an especially versatile punch. The punch generates 5 tons of pressure, enough to punch a 1/2 inch hole in 1/8 inch mild steel. At the same time, the die shoe is adjustable to permit the proper alignment of punches and dies for punching thin sheet metal.

The advantage bench mounted punches have over portable rotary punches is that they feature a more convenient linear pull handle, and provide additional throat depth.

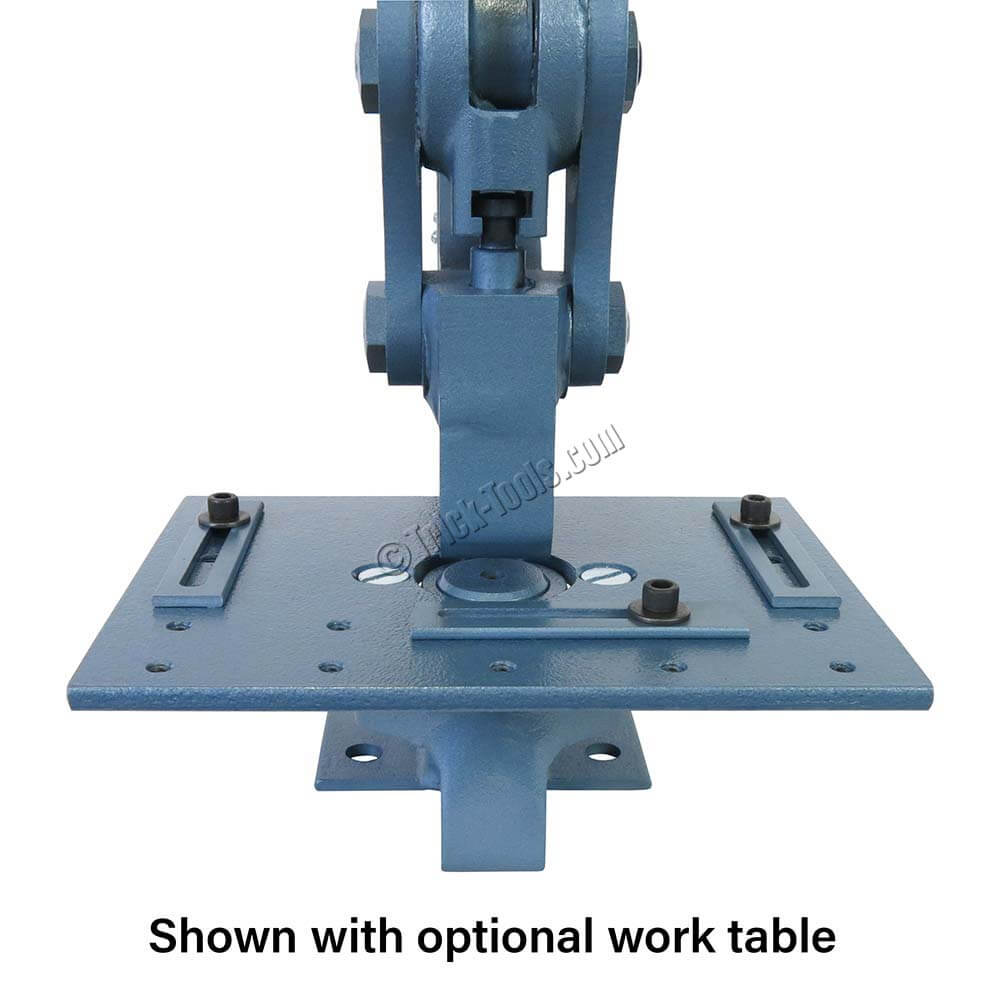

An optional work table with stops is also available for this punch. See the accessories tab.

Warranty:

3 year manufacturer's warranty

SPECIFICATIONS

Maximum Capacity: 5 tons
Tool Opening (inches): .375
Throat Depth (inches): 6.5
Throat Height (inches): 2.125
Weight (pounds): 38.5
Dimensions (LxWxH): 15 x 4.5 x 35

INCLUDES

  • No. 17 bench mounted punch
  • 9/32 inch round punch and die set

DOCUMENTATION
