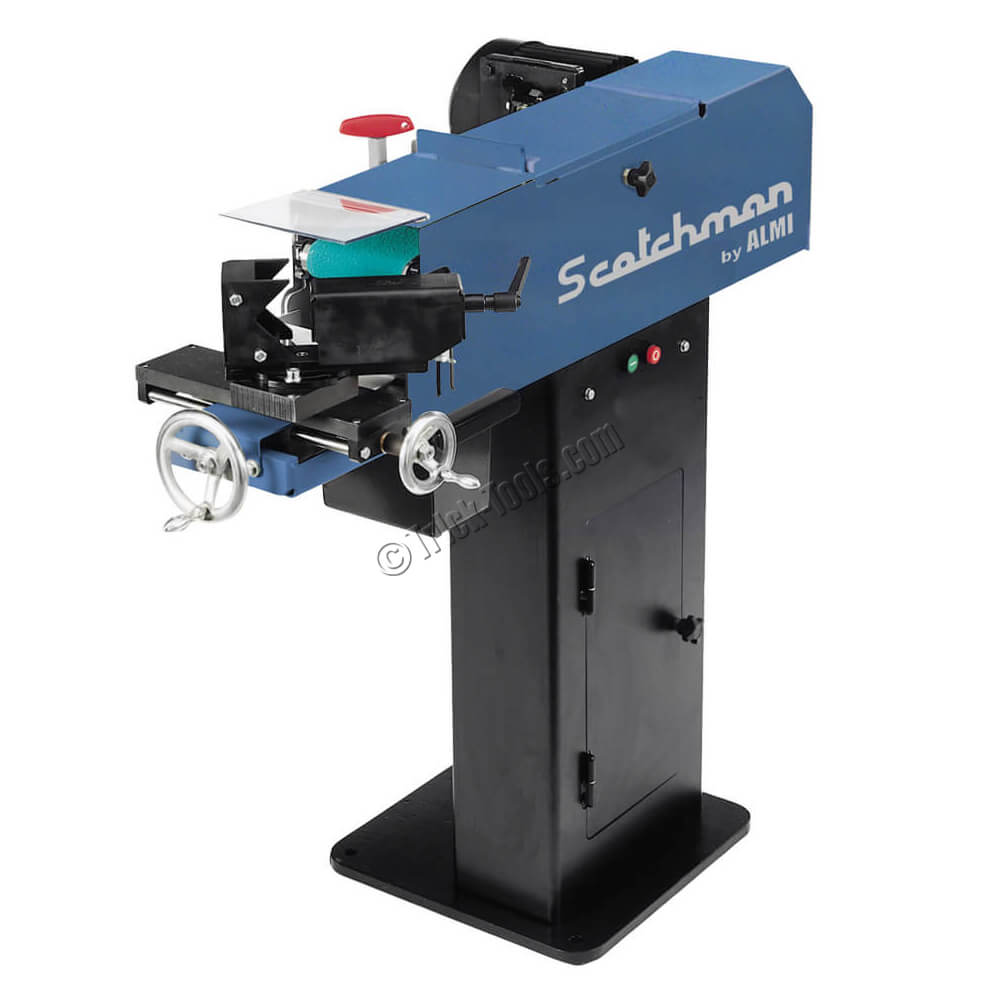

Scotchman Heavy Duty 6 inch Abrasive Tube Notcher

Part #: AL150
Ships From: Factory shipped
Availability: Usually ships within 2-4 days
We want to give you the best information possible regarding your order at Trick-Tools and product availability is very important to us. This information reflects our best estimate of the shipping time for your order on a product by product basis. Items in stock at our warehouse typically ship same day if the order is placed before 3pm Central Time.

Availability on Items shipped directly from the factory is an estimate for that product based on averages from our experience. Items marked "Call for availability" have limited stock or unpredictable lead times and require a phone call to get a lead time estimate. We apologize but we are unable to guarantee lead times on factory-shipped items.
Price: $8,195.00
  • Two axis precision cross-feed table
  • Heavy duty frame and base construction
  • Top-mounted grinding surface
  • Notches .840 to 4-1/2 inch OD
  • Includes 2 pipe mandrels and 2 belts



Scotchman Abrasive Tube Notchers are fast and cost effective methods to fit tubes together prior to welding. The high speed grinding belt provides a smooth polished surface at any angle from 0 to 60 degrees in tubing from .840 inch up to 4-1/2 inch OD. The guarded belt surface on top is ideal for grinding or deburring. Belt life is generally around 100-200 copes per belt depending on material. Two pipe mandrels and two belts are included and change out in seconds with no tools required.

Other features include:

  • Two axis precision cross-feed table with operator handle wheels
  • Heavy duty frame and base construction
  • Mandrel center-line adjustment
  • One vise holds all pipe and tube sizes
  • Top-mounted grinding surface
  • Vise graduated in degrees for easy set up
  • Notches 3/4 inch to 4 inch diameter
  • Choose from 17 mandrel diameters to ensure correct gap-free fit
  • Mandrels can be changed quickly for different notch sizes
  • Tool free belt and mandrel change over
  • Quiet operation below 80 decibels
  • Smooth operation with minimal vibration
  • Solid aluminum drive wheel.


3 year manufacturer's warranty


Motor: 5.5 hp
RPM: 3420
Max Notch Angle: 60 degrees
Max Diameter: 4 inch
Min Diameter: 3/4 inch
Belt Width (inches): 6
Speed: 98.4 feet per second
Weight (pounds): 596
Dimensions (LxWxH): 59 x 47 x 26.5


  • 1-1/4 and 1-1/2 inch nominal pipe size mandrels
  • Two 36 grit belts
