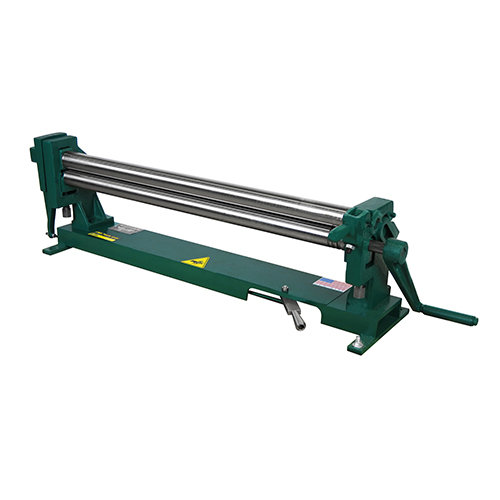

Tennsmith 36 inch Slip Roll, 22 gauge

Part #: SR36
Ships From: Factory shipped
Availability: Lead times vary - Call for availability
We want to give you the best information possible regarding your order at Trick-Tools and product availability is very important to us. This information reflects our best estimate of the shipping time for your order on a product by product basis. Items in stock at our warehouse typically ship same day if the order is placed before 3pm Central Time.

Availability on Items shipped directly from the factory is an estimate for that product based on averages from our experience. Items marked "Call for availability" have limited stock or unpredictable lead times and require a phone call to get a lead time estimate. We apologize but we are unable to guarantee lead times on factory-shipped items.
Price: $940.00
BEST SELLER
  • Precision ground rolls
  • Heavy cast end frames
  • Set up scales for repeatability
  • Includes wire grooves
FREIGHT:
Freight
WARRANTY:
Tennsmith
ORIGIN:
BRAND:
Quantity:

DESCRIPTION

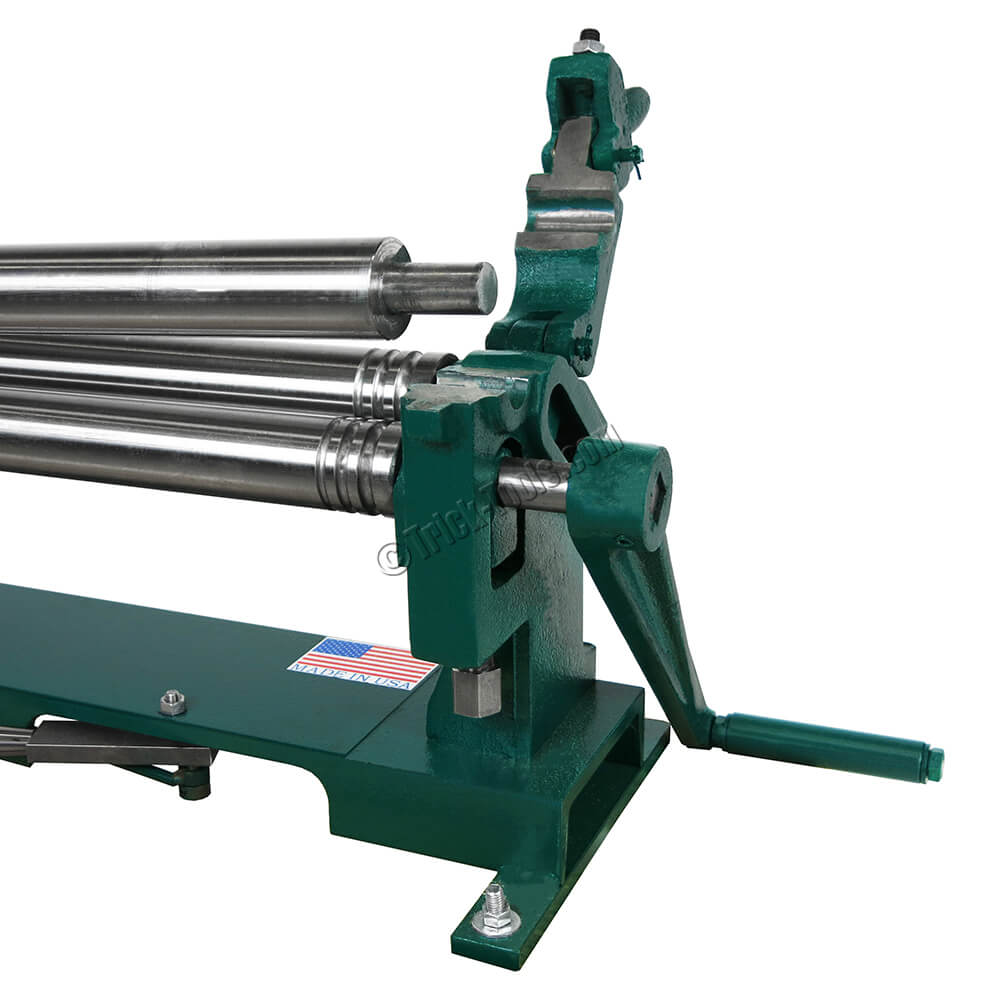

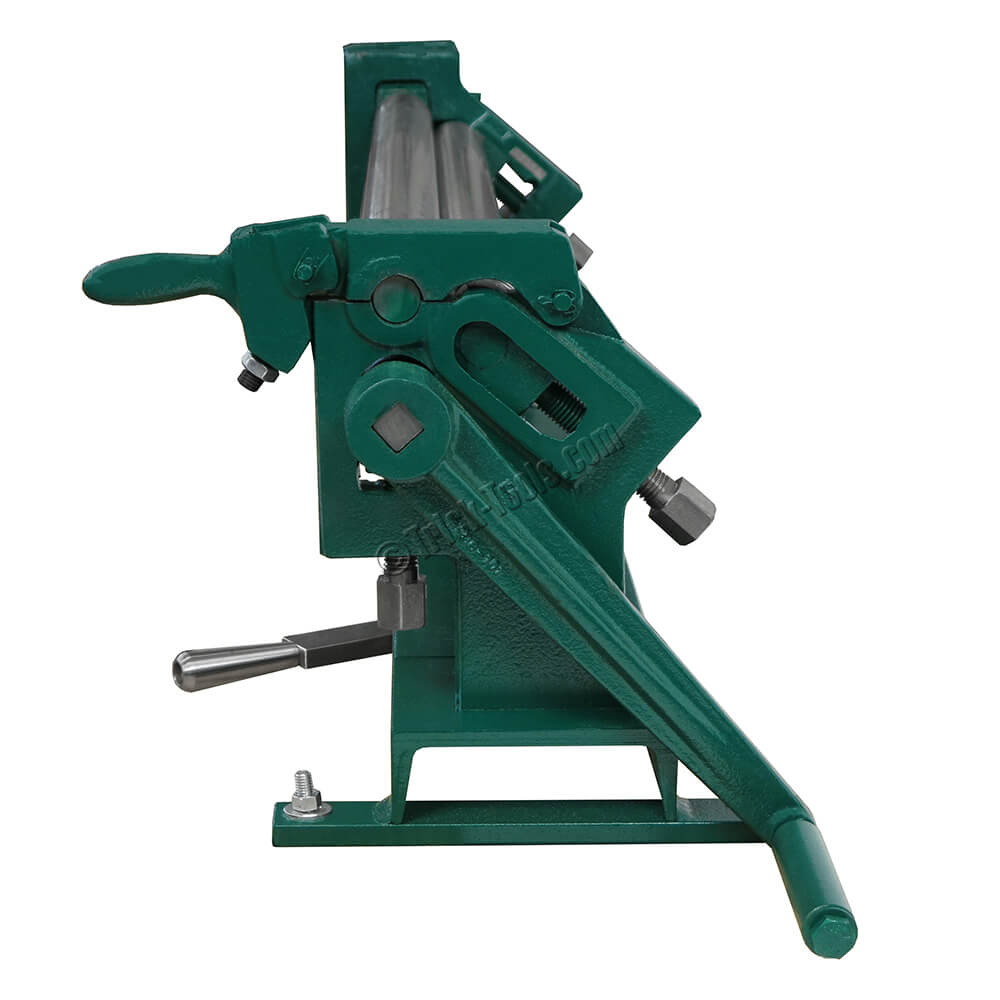

Tennsmith's SR36 slip roll combines precision-turned, ground, and polished high carbon steel rolls with heavy-duty cast iron end frames.

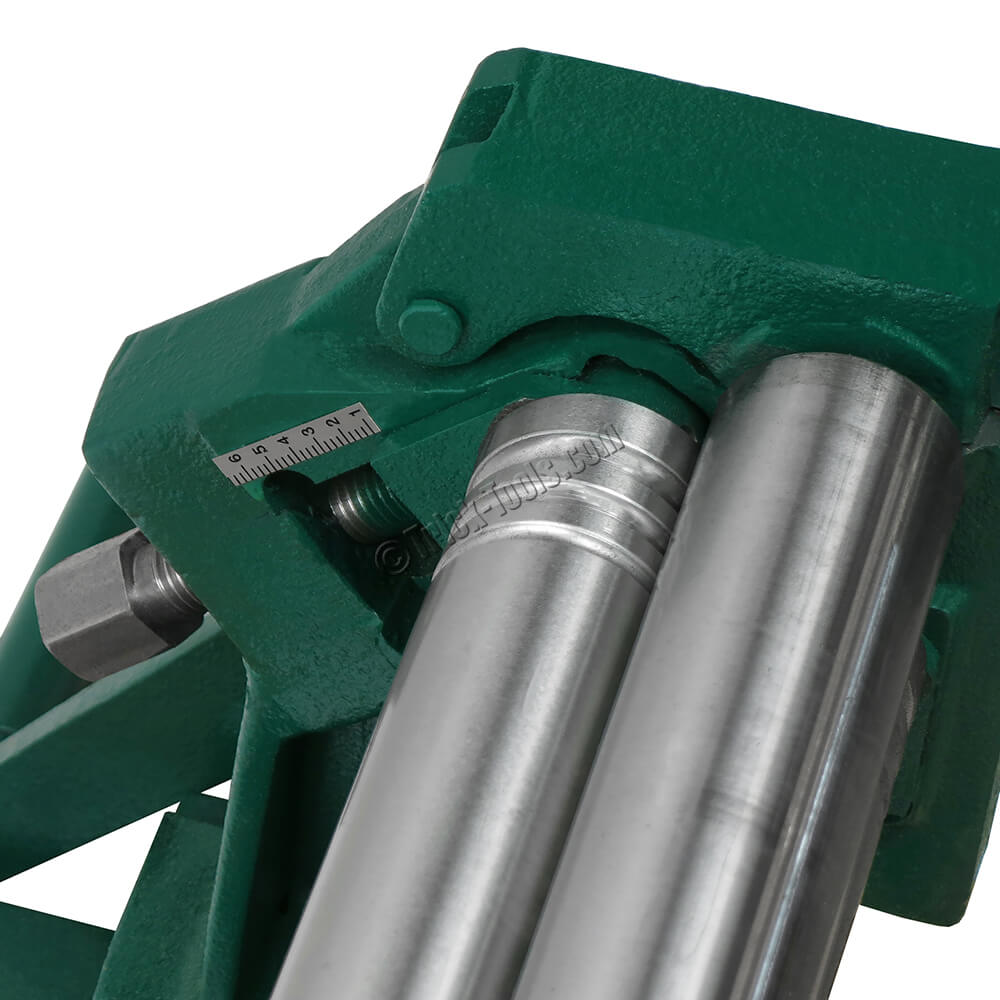

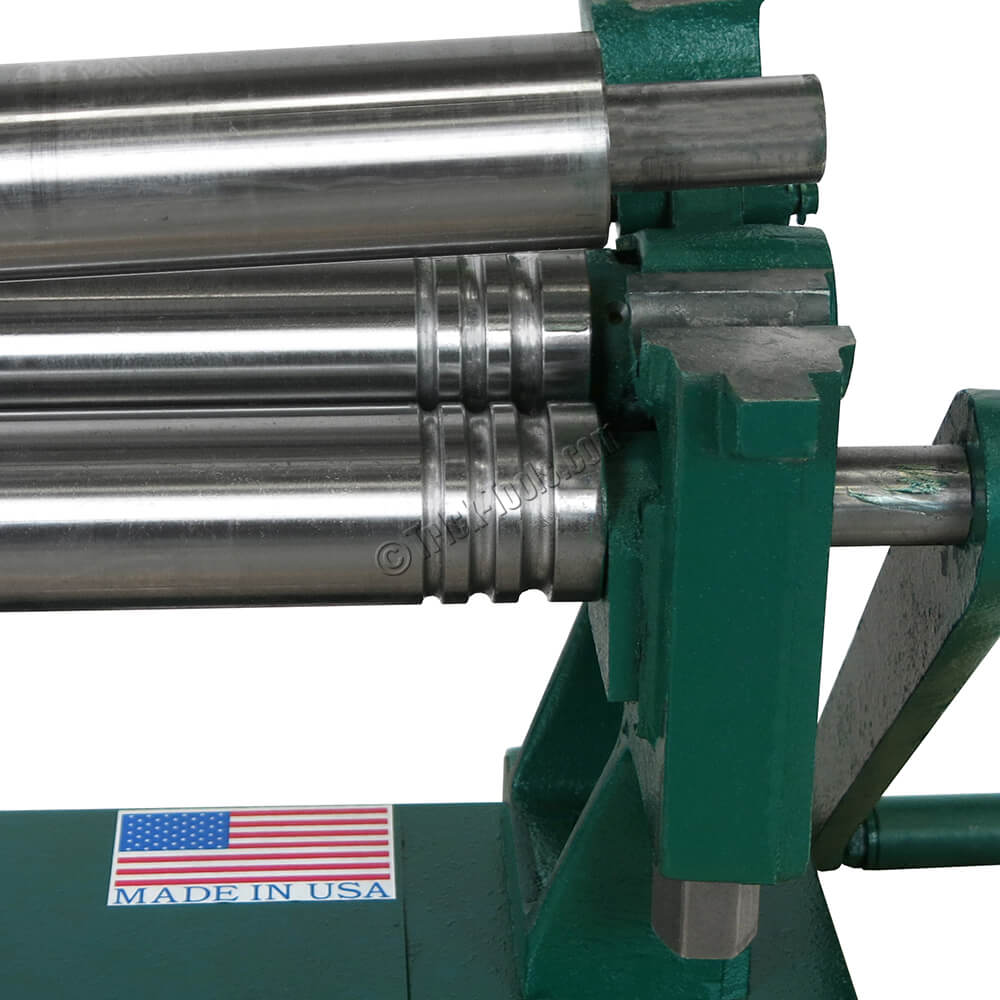

Convenient operating features include large roll adjusting screws, scales for speeding repeat set-up, and a front mounted handle to lift the upper roll for material removal. Wire grooves are also standard.

See accessories tab for optional stand, along with other slip roll accessories.

Warranty:

3 year manufacturer's warranty

SPECIFICATIONS

Type: manual
Mild Steel Capacity: 22 gauge (.73mm)
Stainless Capacity: 26 gauge (.45mm)
Working Length (inches): 36
Min Forming Radius (inches): 1
Number/Dia Of Rolls: (3) 2 inch
Driven Rolls: 2
Wire Grooves: 3/16 inch, 1/4 inch, 5/16 inch
Weight (pounds): 250
Dimensions (LxWxH): 51 x 19 x 19
