Tennsmith PR-16 Powered Rotary Machine

Part #: PR-16
Ships From: Factory shipped
Availability: Lead times vary - Call for availability
We want to give you the best information possible regarding your order at Trick-Tools and product availability is very important to us. This information reflects our best estimate of the shipping time for your order on a product by product basis. Items in stock at our warehouse typically ship same day if the order is placed before 3pm Central Time.

Availability on Items shipped directly from the factory is an estimate for that product based on averages from our experience. Items marked "Call for availability" have limited stock or unpredictable lead times and require a phone call to get a lead time estimate. We apologize but we are unable to guarantee lead times on factory-shipped items.
Price: $6,750.00
  • Variable speed control
  • 16 gauge capacity
  • 3/4 hp motor
  • Many options for roll sets
FREIGHT:
Freight
WARRANTY:
Tennsmith
ORIGIN:
BRAND:
Throat Depth:
Voltage:
Quantity:

Configuration

DESCRIPTION

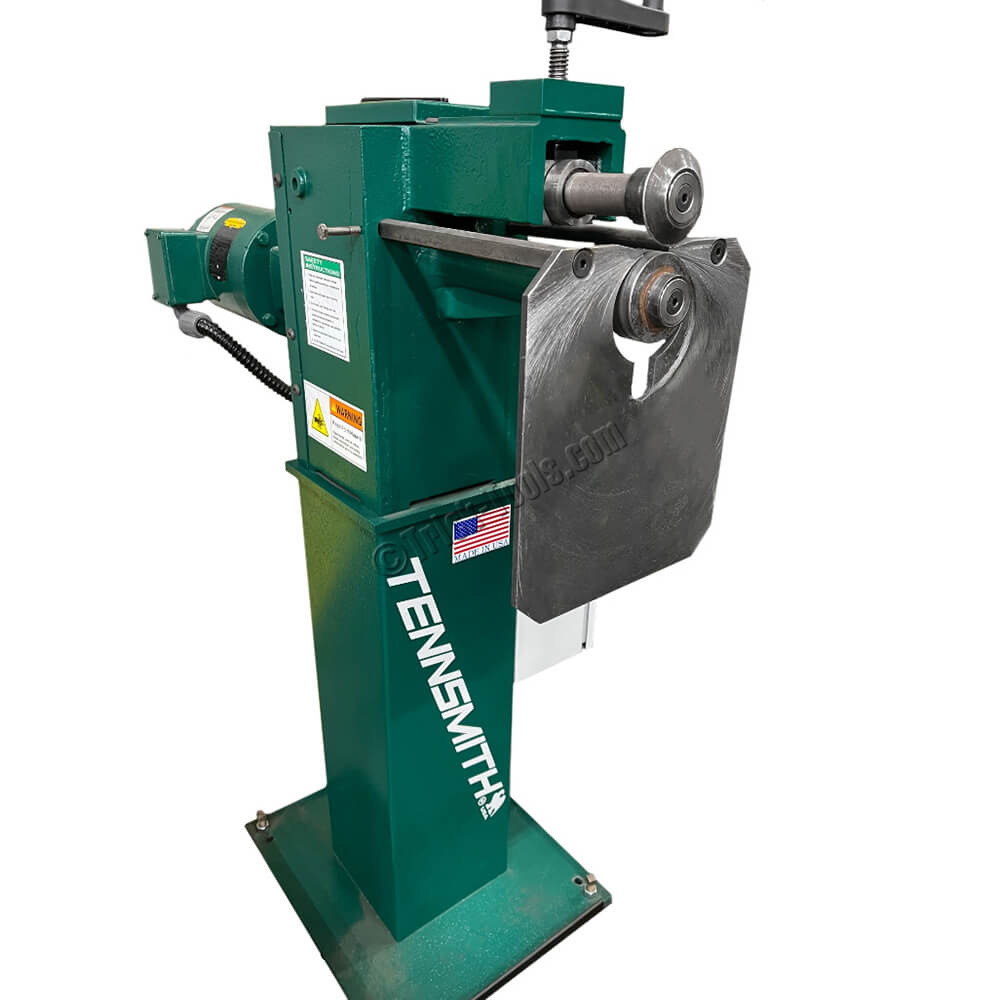

Tennsmith's power rotary machine PR-16 is a versatile machine capable of forming numerous applications up to 16 gauge mild steel material. Standard features include variable speed control, and heavy cast body with steel body stand. A 3/4 hp gear motor provides smooth operation. The forming pressure is controlled by a crank on the top of the frame.

An optional hydraulic powered forming pressure unit is available. Rolls are ordered separately for this unit. Crimping, single beading, ogee beading, elbow edging, flattening, wiring, burring, and turning rolls are available.

Warranty:

1 year manufacturer's warranty

SPECIFICATIONS

Steel Capacity (inches): .060 (16 gauge)
Stainless Capacity (inches): 20 gauge
Throat Depth (inches): 10
Motor: 3/4 hp
Construction: fabricated steel frame
Weight (pounds): 350

INCLUDES

Roll sets sold separately
