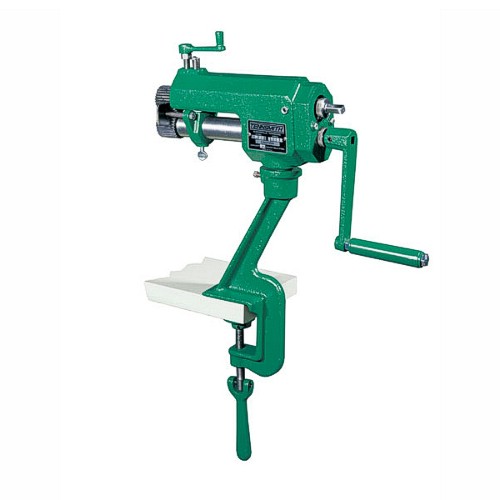

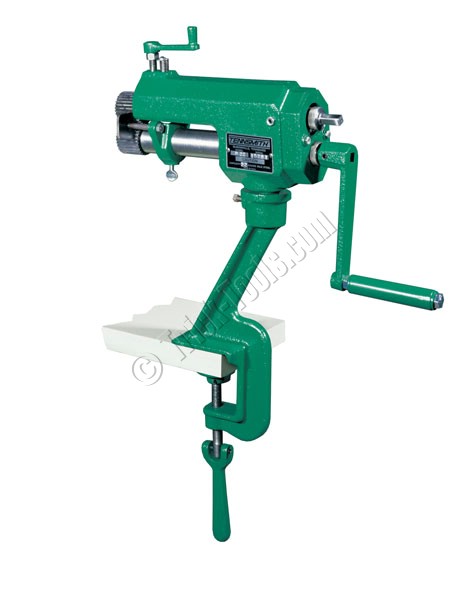

Tennsmith R22 Manual Rotary Machine



The Tennsmith model R22, with interchangeable rolls, is a versatile forming tool for the manual performance of numerous sheet metal operations. This tool features a solid cast, enclosed frame and smooth meshing machine gears. Material can be fed through the rolls in either direction by selecting the proper arbor. The forming pressure of the rolls is controlled by the crank on top of the frame.

This unit comes standard with 5 rolls, a hand crank, spanner and bench stand. Machine is rated for 22 gauge mild steel.

Warranty:

1 year manufacturer's warranty

UPS Tennsmith
Part #: R22
Ships From: Our warehouse
Availability: Usually ships within 1 day

Price: $920.00
Roll Package:


Steel Capacity (inches): .030 (22 gauge)
Throat Depth (inches): 7
Construction: cast iron frame and steel shafts

Machine and Bench Mount Base

If ordered with rolls:

  • A - 1/8 inch Turning Roll
  • C - Burring Roll
  • D - Wiring Roll
  • E - Crimping Roll
  • F - 3/4 inch Ogee Bead Roll
