Dake F10 H-Frame Press, 10 ton

Part #: 72210
Ships From: Factory shipped
Availability: Usually ships within 1 week
We want to give you the best information possible regarding your order at Trick-Tools and product availability is very important to us. This information reflects our best estimate of the shipping time for your order on a product by product basis. Items in stock at our warehouse typically ship same day if the order is placed before 3pm Central Time.

Availability on Items shipped directly from the factory is an estimate for that product based on averages from our experience. Items marked "Call for availability" have limited stock or unpredictable lead times and require a phone call to get a lead time estimate. We apologize but we are unable to guarantee lead times on factory-shipped items.
Model: F10
Price: $485.00
Sale Price: $460.75
  • 10 ton capacity
  • Adjustable table
  • Single speed hand pump
  • Floor mounted
FREIGHT:
Freight
ORIGIN:
BRAND:
Quantity:

DESCRIPTION

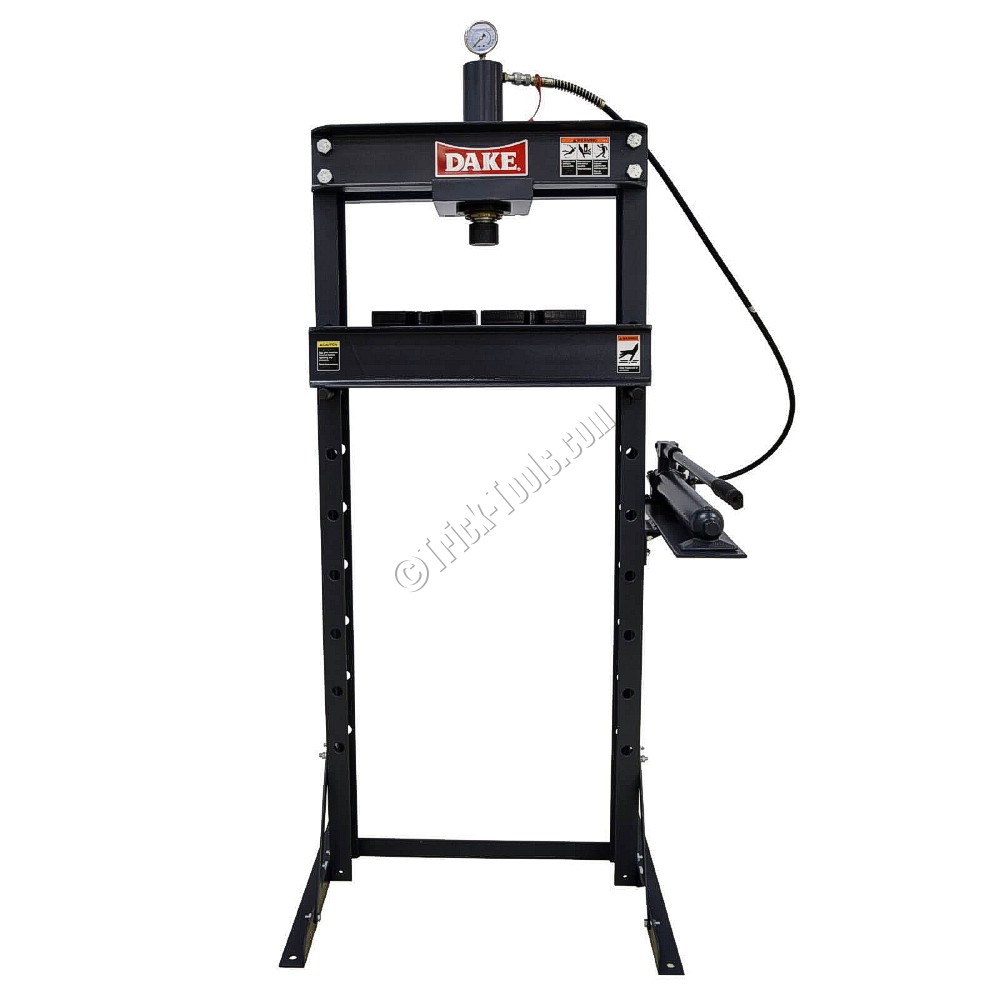

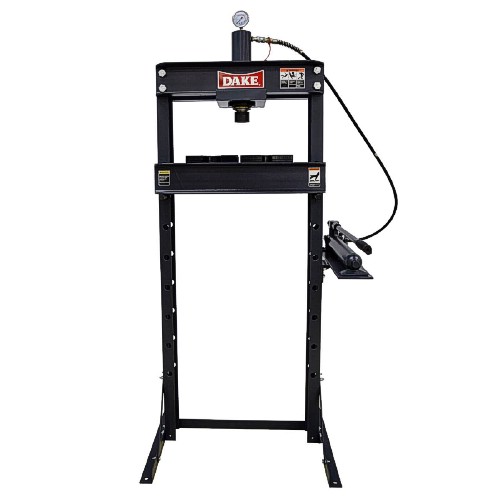

The Dake F10 10 ton shop press is a utility H-Frame Press with a fast and efficient single-speed hand pump. It features a large diameter, single-acting polished piston with a convenient top mounted gauge. The hydraulic pressing cylinder can be relocated to the right or left, and the table can also be adjusted up or down.

Warranty:

1 year manufacturer's warranty

SPECIFICATIONS

Maximum Capacity: 10 tons
Width Between Uprights (inches): 16.75
Width Between Table Chnls (inches): 3
Max Ram To Table (inches): 38
Ram Travel (inches): 6
Cylinder: 100 ton
Weight (pounds): 225
Dimensions (LxWxH): 24 x 28 x 60

INCLUDES

  • Two combination table plates and V-blocks
  • Flat ram nose and step reduced ram nose
  • Hydraulic pressure gauge
