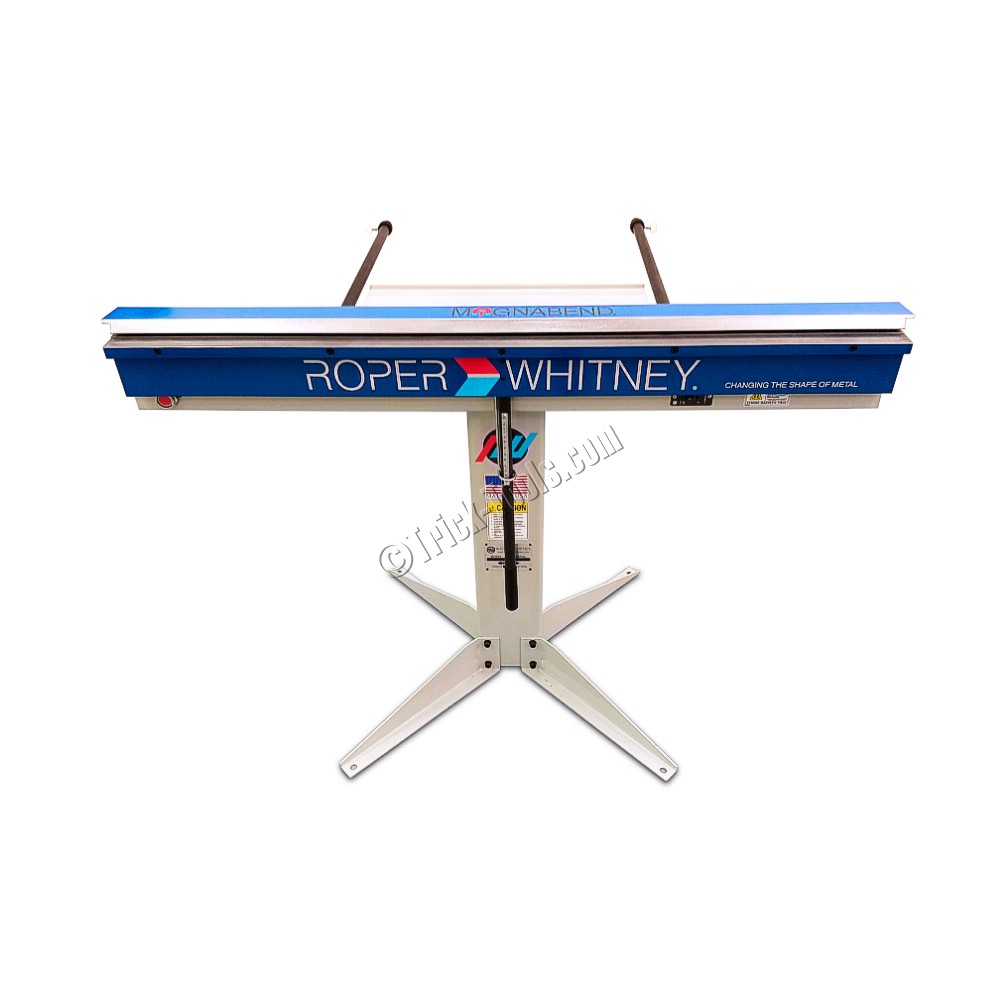

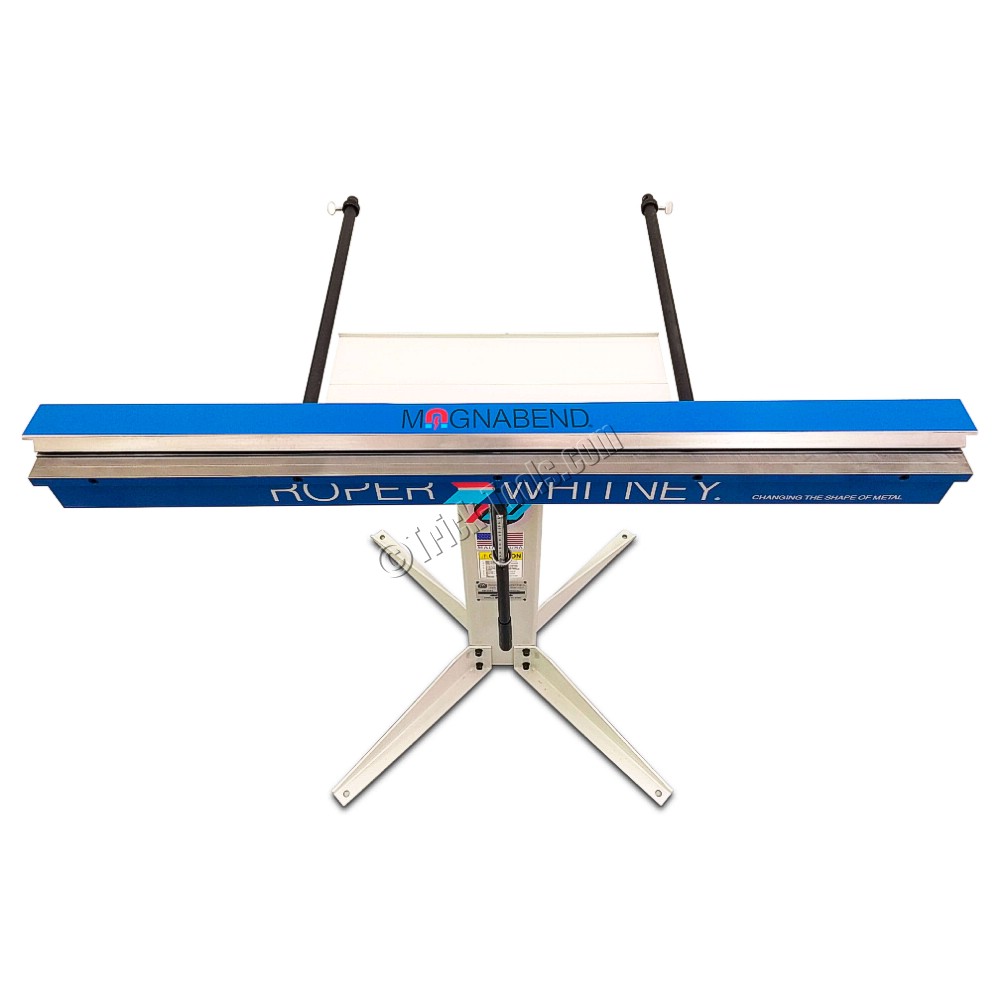

Magnabend 4 foot Magnetic Box & Pan Brake, 18 gauge

Part #: MBB4181
Model: 156185125
Ships From: Factory shipped

Lead Time: Discontinued

We want to give you the best information possible regarding your order at Trick-Tools and product availability is very important to us. This information reflects our best estimate of the shipping time for your order on a product by product basis. Items in stock at our warehouse typically ship same day if the order is placed before 3pm Central Time.

Availability on Items shipped directly from the factory is an estimate for that product based on averages from our experience. Items marked "Call for availability" have limited stock or unpredictable lead times and require a phone call to get a lead time estimate. We apologize but we are unable to guarantee lead times on factory-shipped items.

Price: $3,550.00

Unlimited depth of box
48 inch 18 gauge mild steel capacity
Back gauge for repeatability
110 volt power

FREIGHT:

ORIGIN:

BRAND:

We're sorry but this product is currently unavailable.

DESCRIPTION

The Magnabend electromagnetic brake by Roper Whitney offers performance no conventional bending brake can match. The unique design of the clamping system eliminates typical interference points of standard machines. The rugged simple construction incorporates only one moving part to assure low maintenance and versatility for light duty forming.

The included tooling allows for a wide variety of complex shapes to be created right out of the box including rolled edges up 330 degrees, partial length bends, closed shapes, and unlimited box depths. Made in the USA.

Warranty:

3 year manufacturer's warranty

SPECIFICATIONS

•Type: magnetic
•Mild Steel Capacity: 18 gauge (1.2mm)
•Stainless Capacity: 22 gauge (.8mm)
•Working Length (inches): 48
•Max Depth Of Box (inches): unlimited
•Max Lift Of Beam (inches): unlimited
•Min Reverse Bend (inches): 3/4
•Finger Nose Angle: 67.5
•Weight (pounds): 275
•Dimensions (LxWxH): 53 x 34 x 25
