Siegmund Welding Table, 118 x 59 inch

Part #: S1-280040

We want to give you the best information possible regarding your order at Trick-Tools and product availability is very important to us. This information reflects our best estimate of the shipping time for your order on a product by product basis. Items in stock at our warehouse typically ship same day if the order is placed before 3pm Central Time.

Availability on Items shipped directly from the factory is an estimate for that product based on averages from our experience. Items marked "Call for availability" have limited stock or unpredictable lead times and require a phone call to get a lead time estimate. We apologize but we are unable to guarantee lead times on factory-shipped items.

Price: $10,800.00

Five fixturing surfaces
1 inch thick work surface
28mm holes spaced 100mm apart
Nitride plasma finish for corrosion protection and anti-spatter

FREIGHT:

ORIGIN:

BRAND:

We're sorry but this product is currently unavailable.

DESCRIPTION

Siegmund Welding Tables are the finest available on the market. These German constructed tables feature five fixturing surfaces constructed from 1 inch (25mm) thick plate with additional reinforcement underneath the work surface. Fixture mounting holes are CNC machined to 28mm diameter, spaced 100mm apart with a flatness rating of +/- .0025 inches per foot. The tables are given a plasma nitride finish which creates a work surface that is extremely resistant to wear, deformation, corrosion, and weld spatter. Table hardness is rated at HRC 49.7 (HV500).

A wide variety of clamps and fixturing components are available for these tables to make them useful for virtually any welding project. See documents tab for more information.

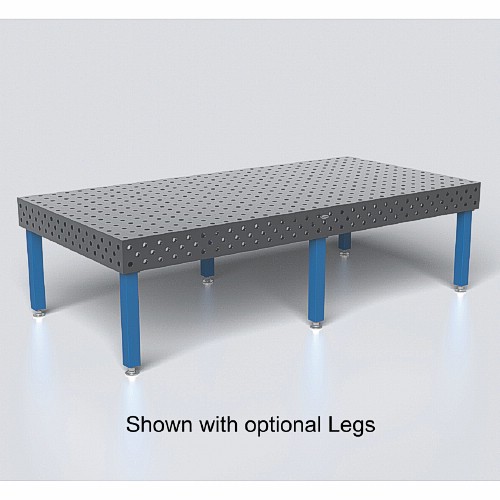

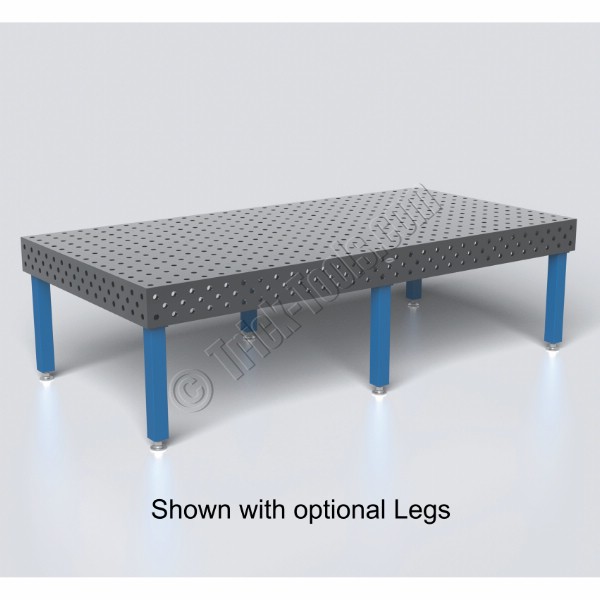

Table does not include legs. See accessories tab for leg options.

Note: Liftgate delivery is not available for this item.

Warranty:

1 year manufacturer's warranty

SPECIFICATIONS

•Size: 118 x 59 inches (3000mm x 1500mm)
•Flatness: +/- .0025 inches per foot
•Finish: Plasma Nitride
•Hole diameter: 28mm
•Hole spacing: 100mm
•Plate thickness: 1 inch
•Weight (pounds): 2976
