Carell A31 Series Initial Pinch Plate Roll, 3/16 inch

Part #: A313-155
Ships From: Factory shipped
Lead Time: Lead times vary - Call for availability
We want to give you the best information possible regarding your order at Trick-Tools and product availability is very important to us. This information reflects our best estimate of the shipping time for your order on a product by product basis. Items in stock at our warehouse typically ship same day if the order is placed before 3pm Central Time.

Availability on Items shipped directly from the factory is an estimate for that product based on averages from our experience. Items marked "Call for availability" have limited stock or unpredictable lead times and require a phone call to get a lead time estimate. We apologize but we are unable to guarantee lead times on factory-shipped items.
Call For Price
NEW
  • 3 foot to 10 foot lengths available
  • Two driven rolls
  • Power adjustment of bending roll
  • Induction hardened rolls
FREIGHT:
Freight
ORIGIN:
BRAND:
Carell logo

DESCRIPTION

The Carell A31 Series Plate Rolls by Famar are precision built machines with a proven track record of dependability. Their rugged steel frames are built for durability in a production environment. Several optional features allow customization of these plate rolls to ensure the right fit for your application. Customization beyond the listed features is also possible, just call our solution specialists for more info!

Initial pinch plate rolls work by 'pinching' the flat sheet between two counter-opposed rolls while the third offset roll or ‘bending roll’ moves upward to contact and then bend the sheet. When rotation of the rollers is activated, the sheet exits at a given radius. With the sheet cut to the developed length and the bending roll properly positioned; the part is rolled into a cylindrical form, where it can then be welded at the seam to produce a cylinder. The upper roll is in a fixed position; the lower pinch roll can move up/down to pinch the material. The third roll (the forming roll) is also adjustable. To remove a rolled cylinder, it must be extracted from off of the top roll via the forward tilting top roll. In most applications, these machines require removal and re-insertion of the sheet in order to pre-bend both ends.

Standard features include:

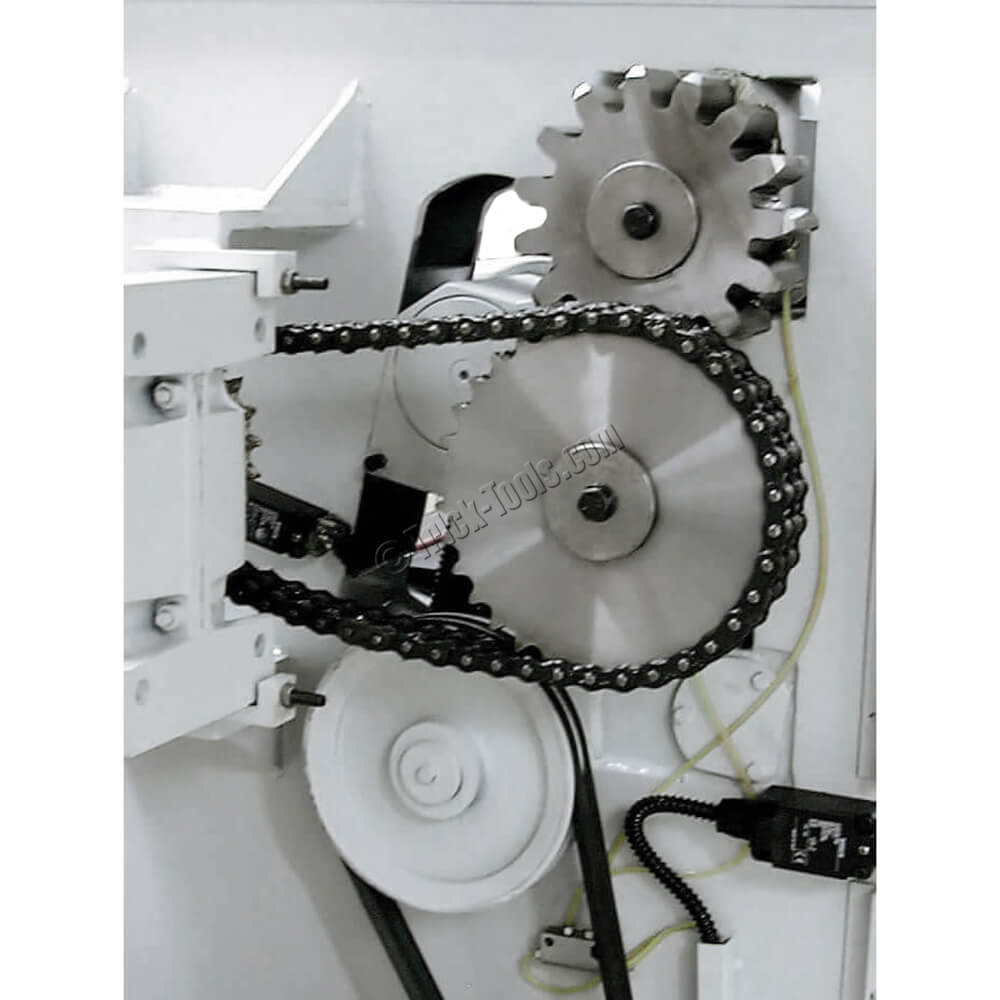

  • Powered rotation on top & pinch rolls
  • Induction hardened rolls (54-56 HRC)
  • Bending roll power adjusts up & down
  • Push button controls on remote pedestal

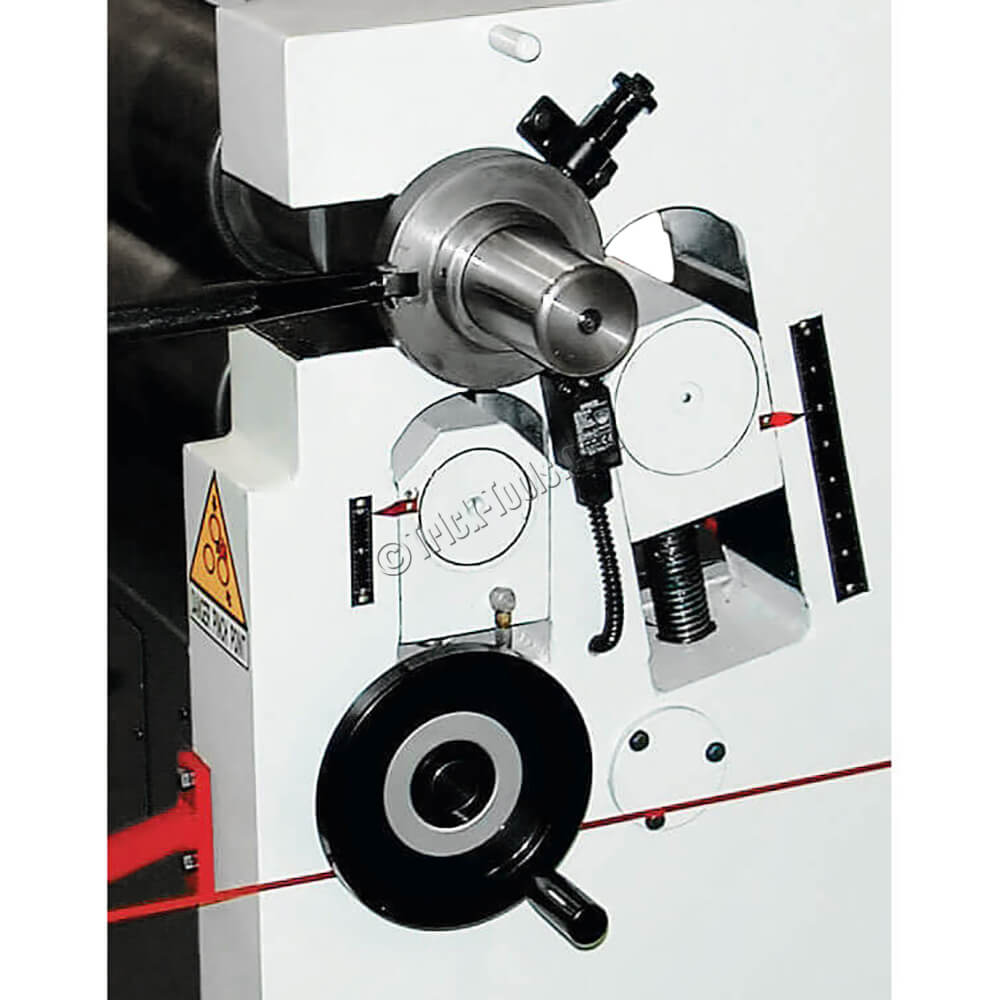

  • Forward release top roll w/ safety lock
  • Emergency stop & safety trip wire
  • Keyed safety lockout on control panel
  • Linear scales for precise positioning
  • Low voltage 24v AC controls

Options include:

  • Polished rolls - ideal for stainless and aluminum work
  • LED readout for roll position repeatability
  • Foot pedal rotation control
  • Cone rolling device
  • Wire/rod grooves
  • Extended shafts and section dies

Starting prices listed. Please call us with your application for a quote.

SPECIFICATIONS

Mild Steel Capacity: 3/16 inch (4.7mm)
Number/Dia Of Rolls: 3 / 5.12 inch OD
Driven Rolls: 2
Motor: 5.5, 3 hp
Weight (pounds): 2700
Dimensions (LxWxH): 131x36x46
