JET JMD-45 Square Column Variable Speed Mill/Drill

Part #: JMD-45VSPF
Model: JMD-45VSPF, JMD-45VSPFT
Ships From: Factory shipped

Lead Time: Usually ships within 1 week

We want to give you the best information possible regarding your order at Trick-Tools and product availability is very important to us. This information reflects our best estimate of the shipping time for your order on a product by product basis. Items in stock at our warehouse typically ship same day if the order is placed before 3pm Central Time.

Availability on Items shipped directly from the factory is an estimate for that product based on averages from our experience. Items marked "Call for availability" have limited stock or unpredictable lead times and require a phone call to get a lead time estimate. We apologize but we are unable to guarantee lead times on factory-shipped items.

Price: $10,688.59
Sale Price: $8,009.10

FREE SHIPPING

Save 10% on this Mill/Drill for a limited time!
Includes FREE stand ($525 value)
9-1/2 x 32-1/4 inch cast table
Variable speed spindle
1-1/2 hp 115/230v motor

FREIGHT:

WARRANTY:

ORIGIN:

BRAND:

Options:

Quantity:

DESCRIPTION

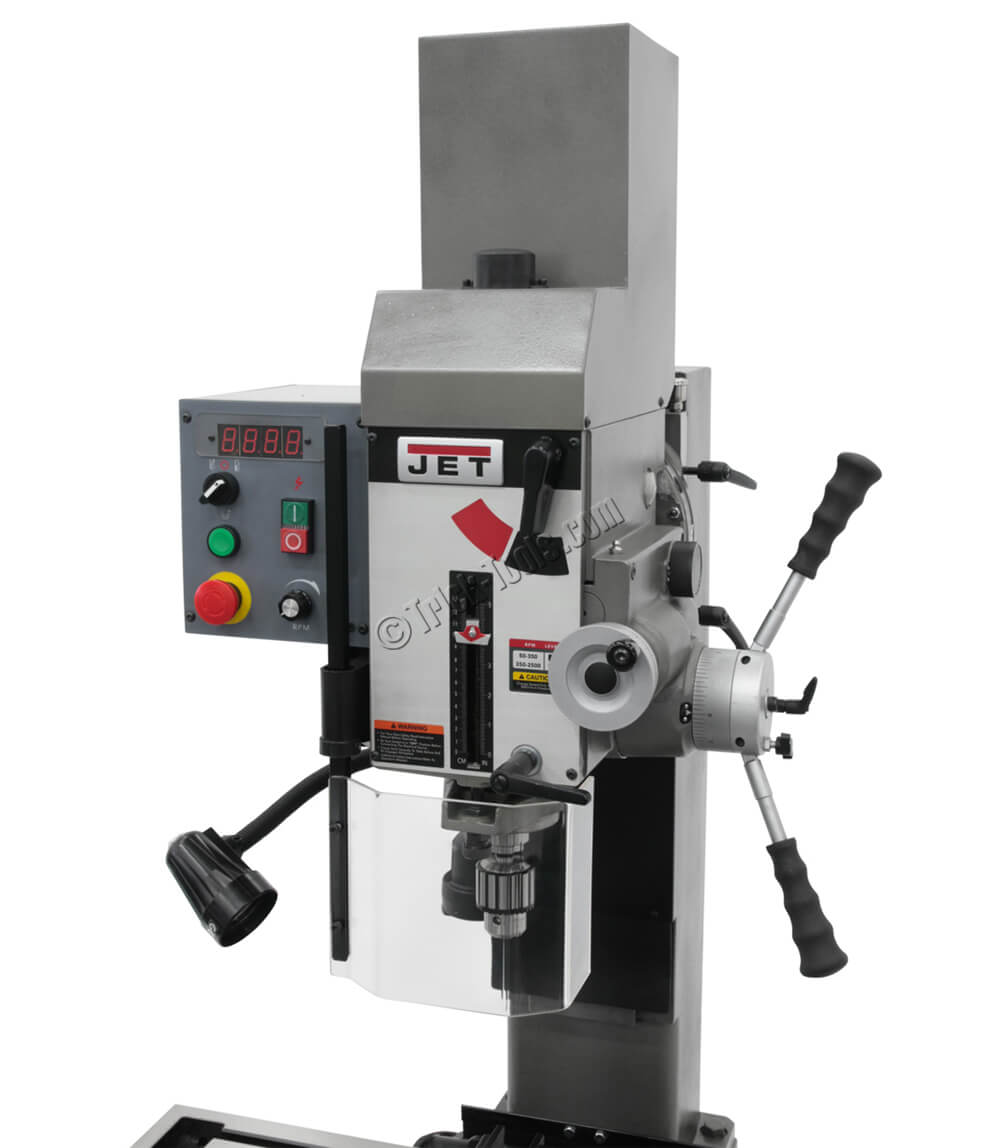

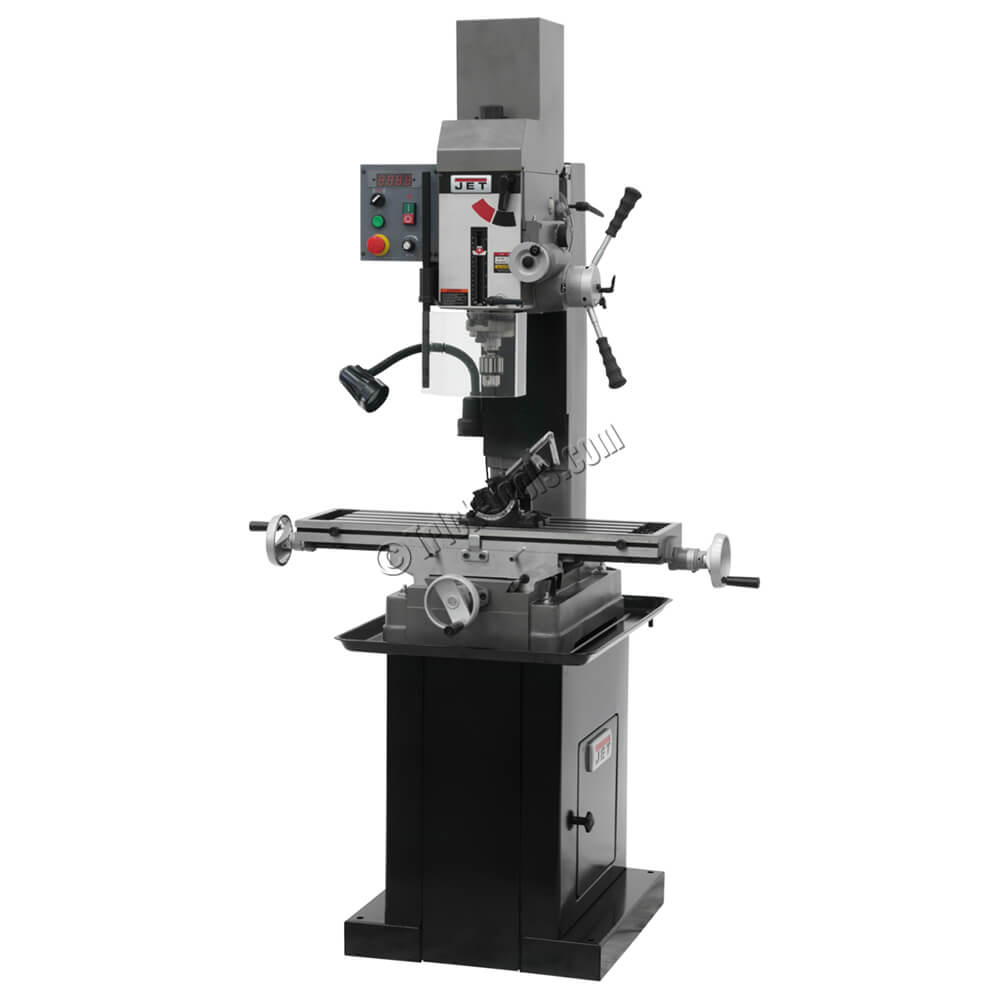

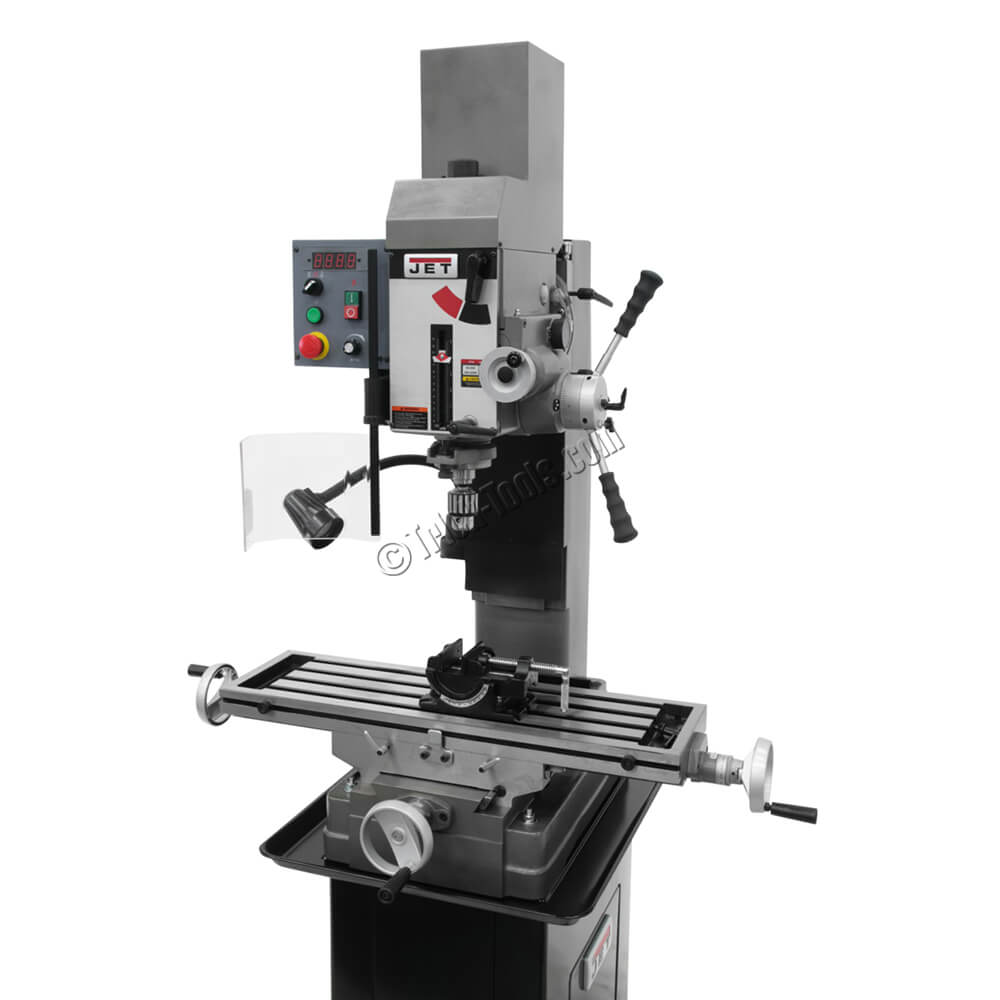

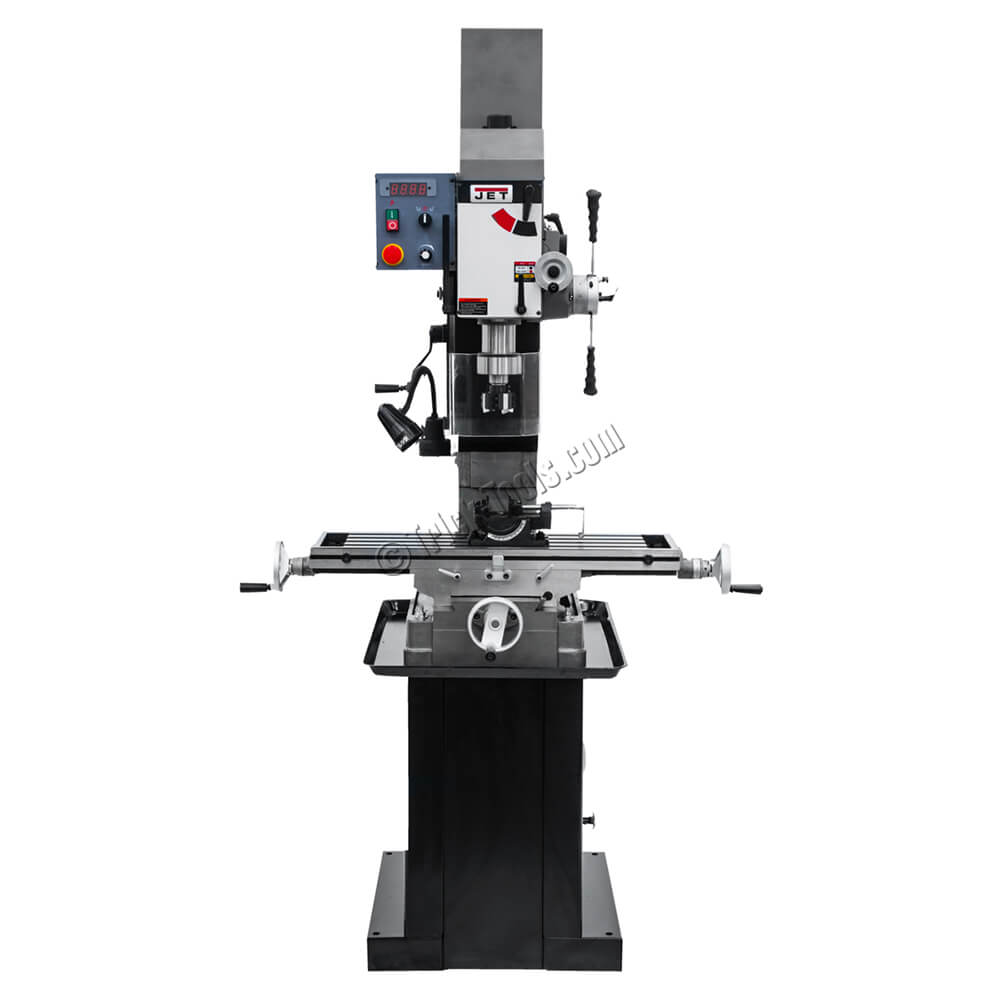

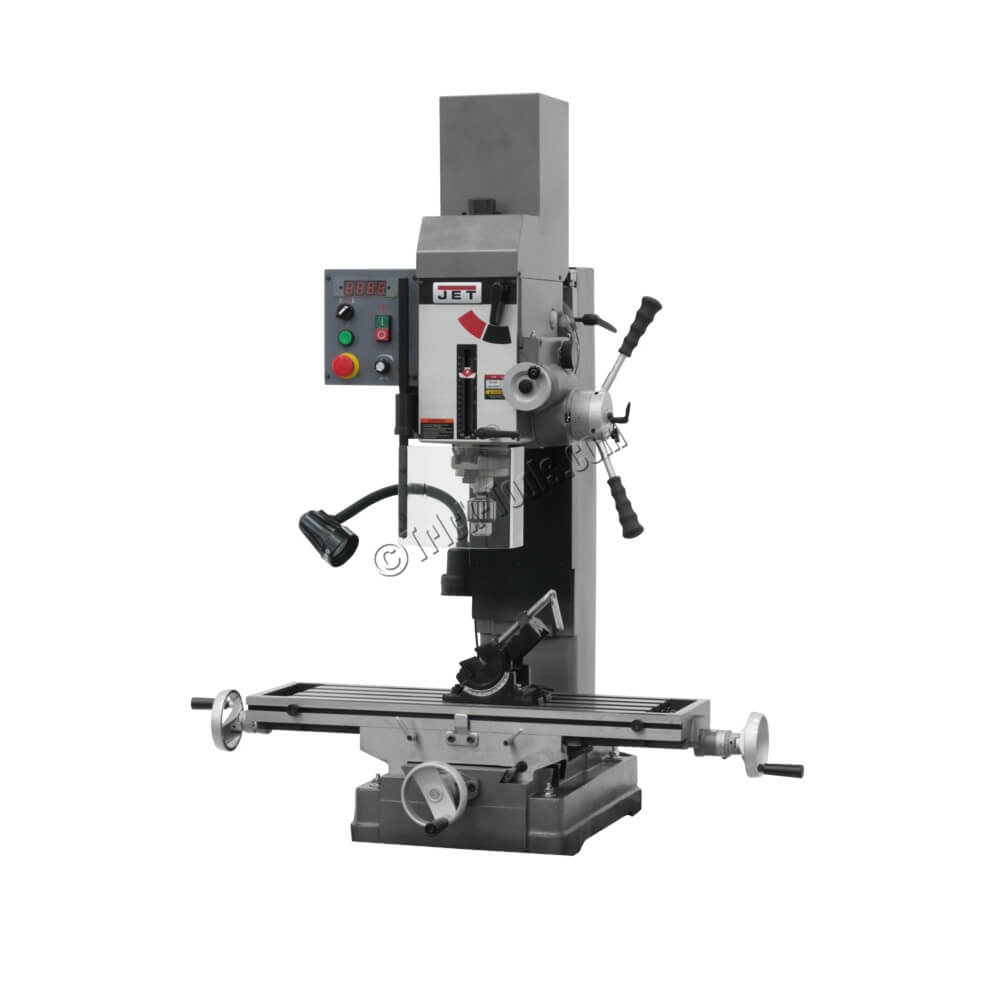

The JET JMD-45VSPF and JMD-45VSPFT Mill/Drills are great for medium-duty machine work, drilling, and tapping. The JMD-45 series Mill/Drills utilize a square column for increased precision and rigidity along with features like a variable speed geared head, 1-1/2 hp 115/230v single phase motor, CSA/CSU certification, 9-1/2 x 32-1/4 inch table, tilting head (90 degrees left / 30 degrees right), and an R-8 taper spindle. This unit can be benchtop mounted or free-standing with the dedicated stand. While the footprint may be small, the JMD Mill Drills still include JET's RED Assurance 2-year warranty.

Options include Newall NMS300 or NMS800 digital read out, X-Axis powerfeed, and automatic tapping. See the options drop down above ADD TO CART for a list of available options.

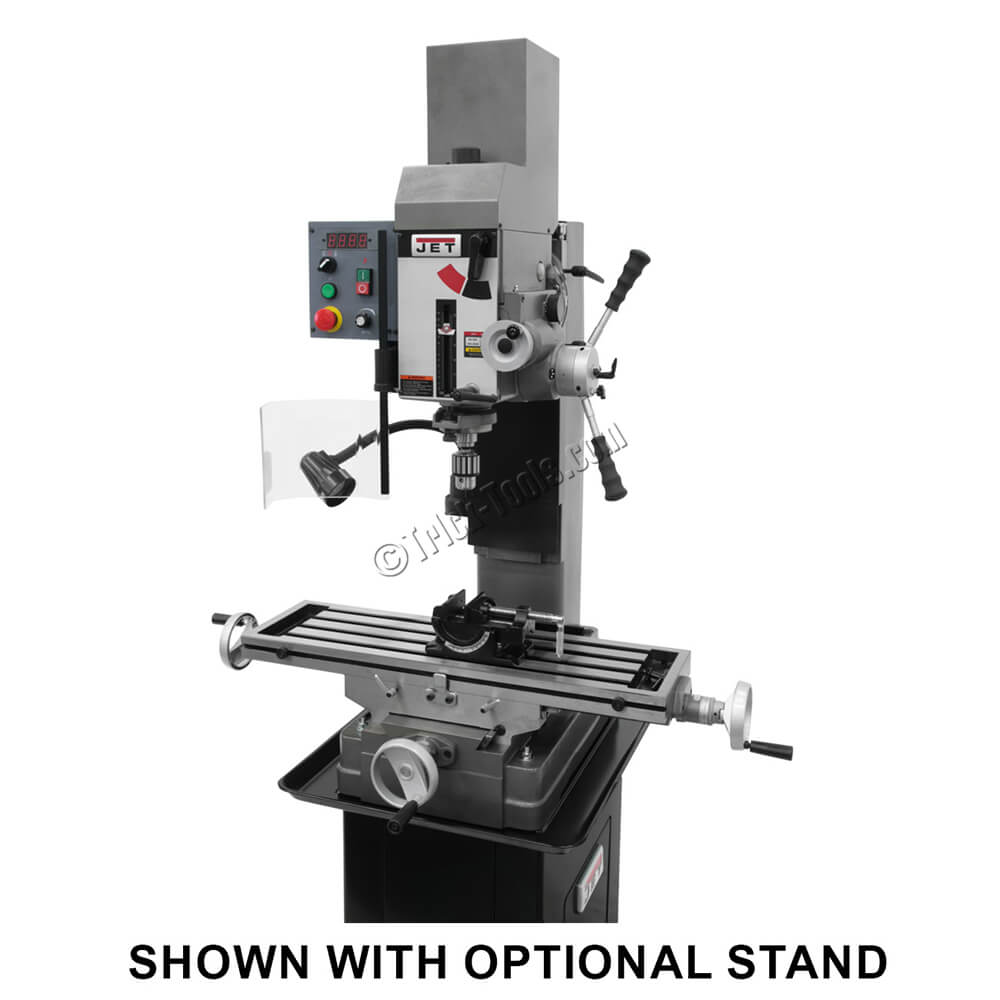

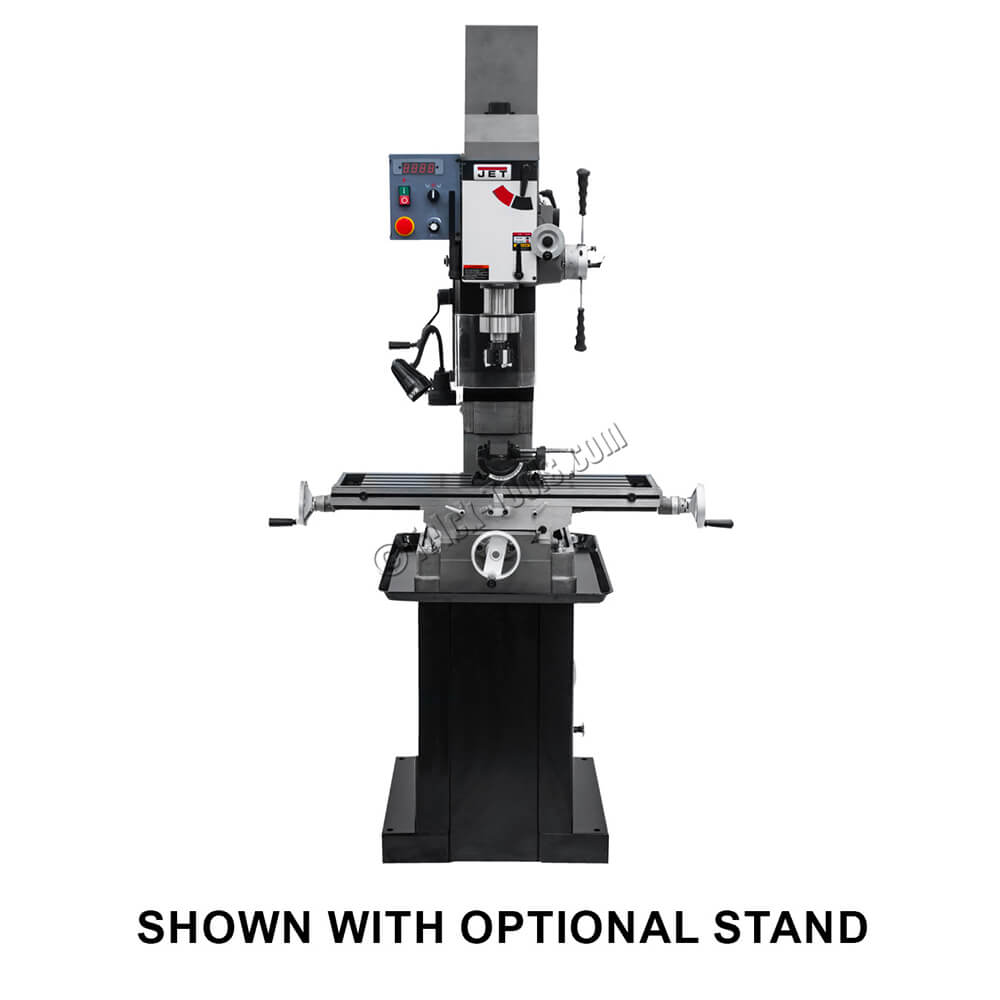

For a limited time, receive a FREE work stand with the purchase of a JET Mill/Drill. ($525 value)

Specifications:

Drilling Capacity: 1-1/4 inch
Face Mill Capacity: 4 inch
End Mill Capacity: 3/4 inch
Swing: 19-11/16 inch
Maximum Distance Spindle to Table: 18-1/8 inch
Spindle Taper: R-8
Spindle Travel: 5 inch
Quill Diameter: 3 inch
Power Downfeed: No
Number of Spindle Speeds: Variable
Range of Spindle Speeds: 50-2500 RPM
Maximum Table Travel: 20-1/2 inch
Cross Travel: 8-1/4 inch
Working Surface of Table: 9-1/2 x 32-3/4 inch
Number of T-Slots: 4
T-Slot Size: 5/8 inch
Overall Dimensions (LxWxH): 29 x 36 x 50 inches
Base Dimensions: 15-15/16 x 26-11/16 inches
Motor: 1-1/2HP, 115/230V single phase 60Hz (prewired 115V)
Electrical Certifications: CSA/CUS
Net Weight: 767 lbs
Shipping Weight: 820 lbs

Power Downfeed Specifications:
Number of Power Feeds: 3
Range of Power Feeds: 0.005, 0.007, 0.010 in.
Spindle Auto Travel: 4-1/4
Tapping Capacity: 3/4 inch (for JMD-45VSPFT)

Warranty:

2 year manufacturer's warranty

SPECIFICATIONS

•Motor: 1-1/2 hp
•Number of Speeds: Variable
•Spindle Speed(s)Range: 50-2500 rpm
•Drills To Center (inches): 18.125
•Drilling Capacity (inches): 1-1/4
•Spindle Taper: R-8
•Quill Diameter (inches): 3
•Spindle Travel (inches): 5
•Spindle To Table Max (inches): 18-1/8
•Table Size (inches): 9-1/2 x 32-1/4
•Base (inches): 15-15/16 x 26-11/16
