Siegmund System 16 Welding Workstation with Drawers and Vise

Name: Siegmund System 16 Welding Workstation with Drawers and Vise
Brand: Siegmund
SKU: 2-167342 + 2-164004.XX
Price: 3061.00 USD
Availability: InStock

Part #: 2-167342 + 2-164004.XX
Ships From: Factory shipped

Lead Time: Usually ships within 1 week

We want to give you the best information possible regarding your order at Trick-Tools and product availability is very important to us. This information reflects our best estimate of the shipping time for your order on a product-by-product basis. Items in stock at our warehouse typically ship same day if the order is placed before 3pm Central Time.

Availability on Items shipped directly from the factory is an estimate for that product based on averages from our experience. Items marked 'Call for Availability' have limited stock or unpredictable lead times and require a phone call to get a lead time estimate. We apologize but we are unable to guarantee lead times on factory-shipped items.

Price: $3,490.00
Sale Price: $3,061.00

47 x 31 inch table with storage
Includes vise, clamps, stops, and bolts
16mm holes spaced 50mm apart
Accepts all Siegmund System 16 clamps and accessories

FREIGHT:

ORIGIN:

BRAND:

We're sorry but this product is currently unavailable.

DESCRIPTION

The Siegmund System 16 Nitrided Welding Workstation Kit is a great addition for any welder. Built from hardened tool steel, the tabletop goes through an additional plasma nitride process to harden the top work surface to a Vickers rating of more than 750. Fixture mounting holes are CNC machined to 16mm diameter and are laid out in a square 50mm grid. The table is rated to hold a massive 2200 lbs with the fine adjustment leveling feet and 880 lbs with the optional casters.

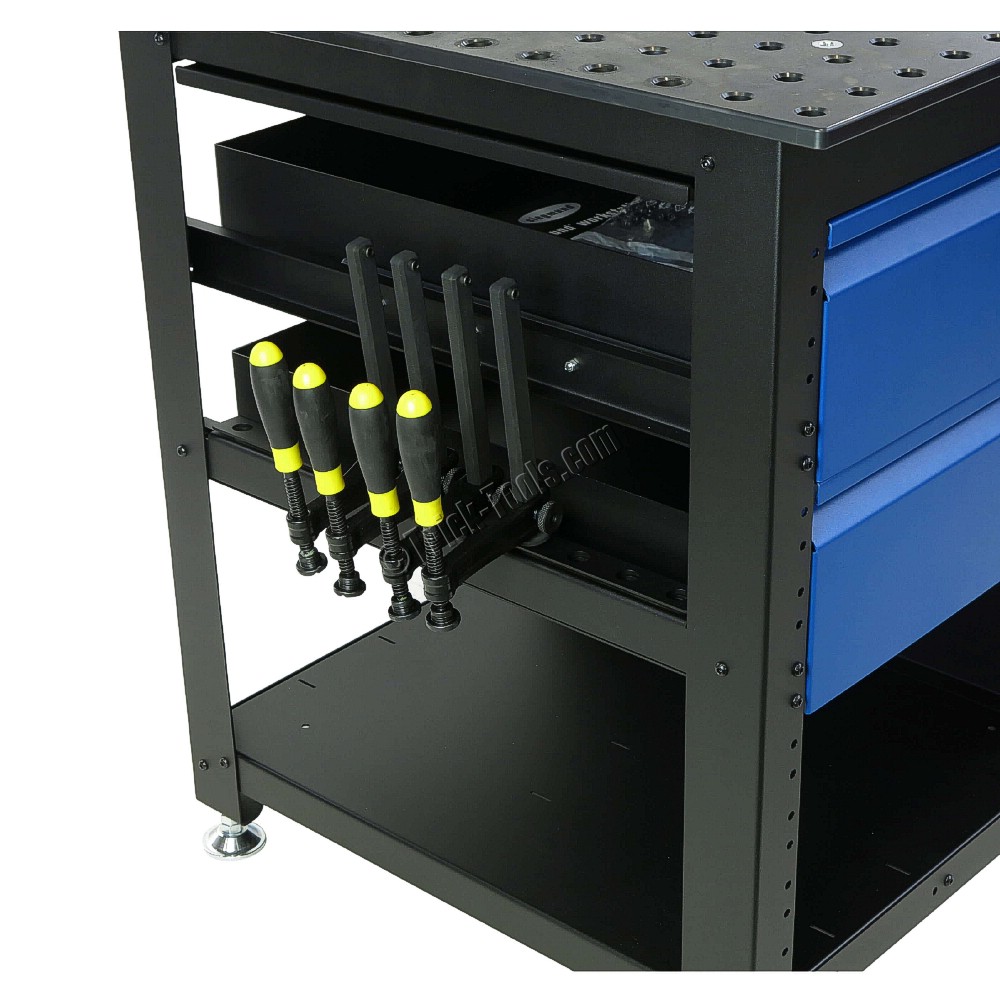

This kit features a 47 x 31 inch reversible tabletop, chip trays to capture welding slag and grit, two drawers for convenient storage, a vice, and several bolts, stops, and clamps to get you started. The workstation top has a flatness rating of +/- .0157 inches per foot.

A wide variety of clamps and fixturing components are available for these tables to make them useful for virtually any welding project. See the accessories tab for more information.

Warranty:

1 year manufacturer's warranty

SPECIFICATIONS

•Size: 47 x 31 inches
•Flatness: +/- .0157 inches per foot
•Finish: Nitrided
•Hole diameter: 16mm
•Hole spacing: 50mm
•Plate thickness: 12mm (0.47 inches)
•Weight (pounds): 360
