HEM Saw 260BSA Dual Mitering Band Saw

Part #: HEM260BSA
Model: 260BSA
Ships From: Factory shipped

Lead Time: Usually ships within 1 week

We want to give you the best information possible regarding your order at Trick-Tools and product availability is very important to us. This information reflects our best estimate of the shipping time for your order on a product by product basis. Items in stock at our warehouse typically ship same day if the order is placed before 3pm Central Time.

Availability on Items shipped directly from the factory is an estimate for that product based on averages from our experience. Items marked "Call for availability" have limited stock or unpredictable lead times and require a phone call to get a lead time estimate. We apologize but we are unable to guarantee lead times on factory-shipped items.

Price: $12,195.00

NEW

1.8 hp motor
8.7 inch capacity
Miters 60 degrees left, 45 degrees right
Hydraulic down feed with adjustable cutting pressure
Flood coolant system

FREIGHT:

ORIGIN:

BRAND:

DESCRIPTION

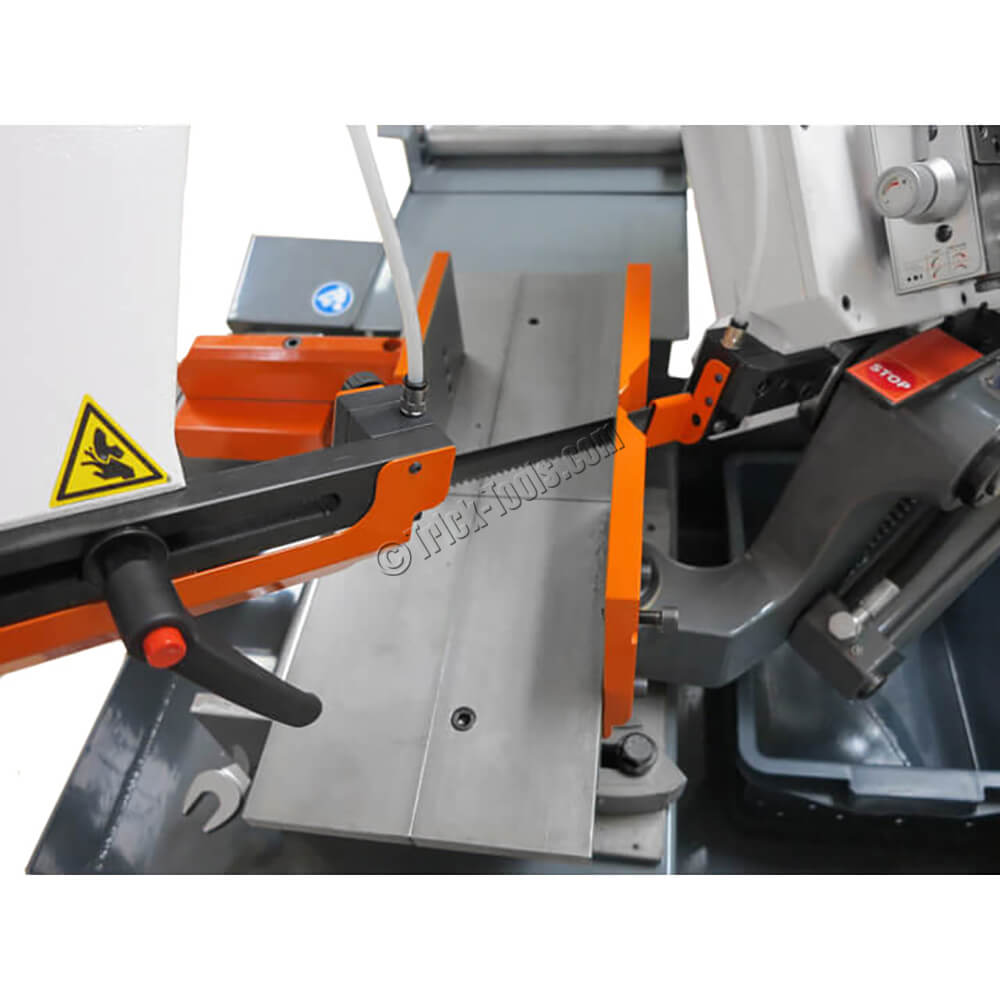

The HEM Saw 260BSA dual mitering, semi-automatic band saw by Carif is a great industrial band saw that offers a wide variety of cutting features. Its unique patented hydraulic system operates the vise, feed rate, and cutting pressure. The saw will miter either direction up to 45 degrees and all the way to 60 degrees to the left.

Features include:

Patented hydraulic system
Hard stop measuring device
Hydraulic adjustable feed rate and cutting pressure

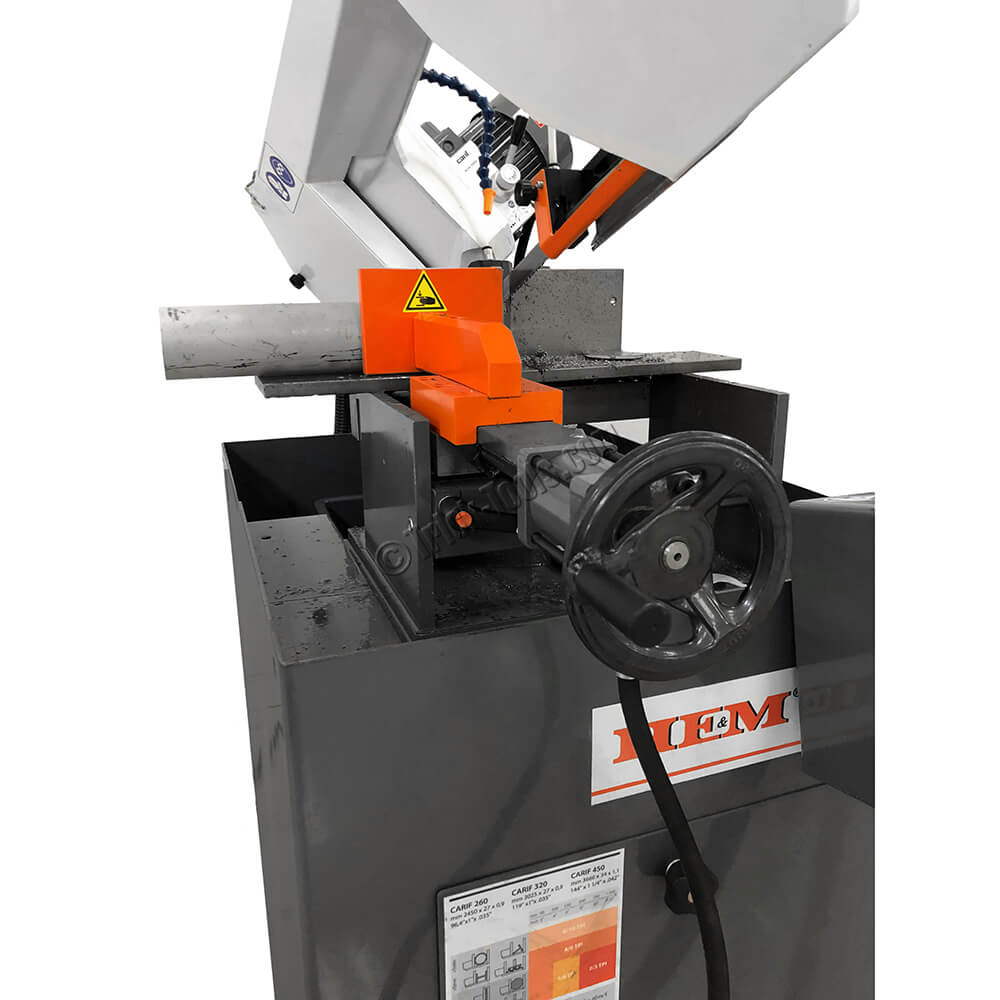

Hydraulic adjustable vise
Flood coolant system

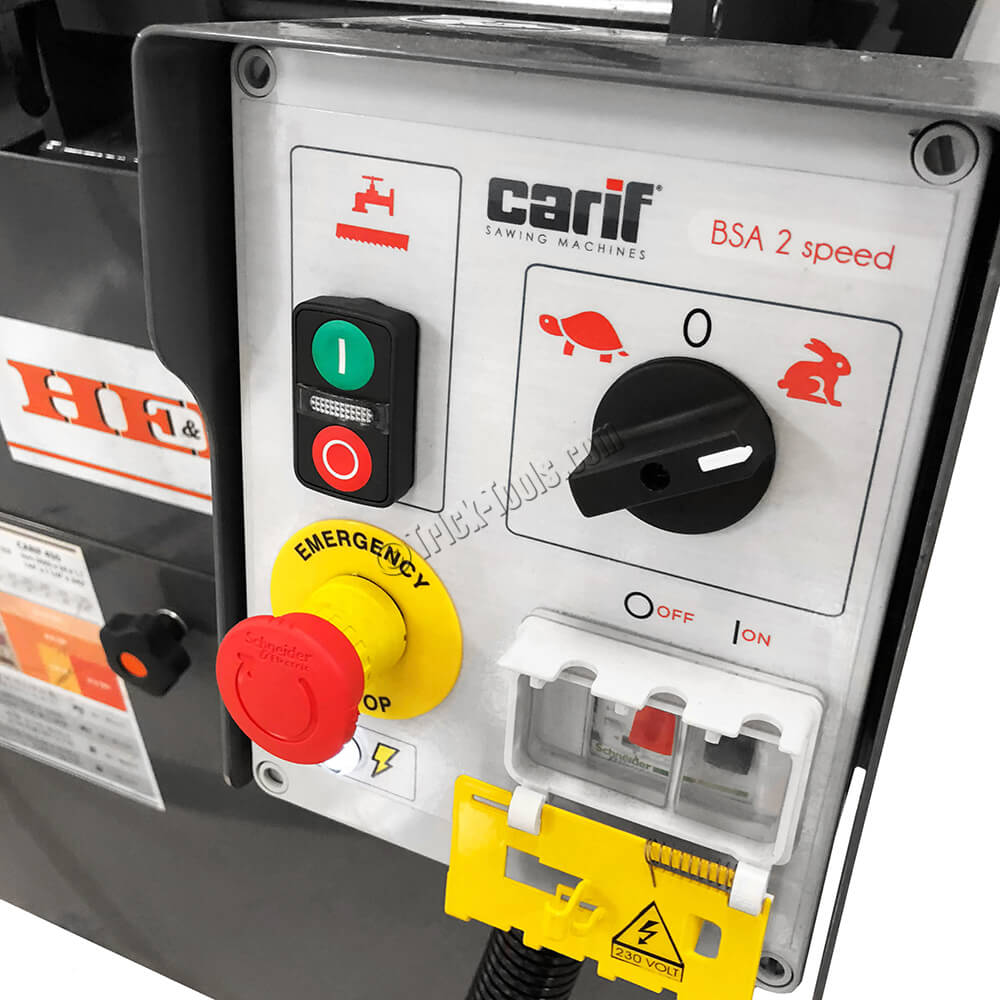

Movable control cabinet
Rugged 3/16 inch steel base
Optional inbound/outbound roller tables

Warranty:

1 year manufacturer's warranty

SPECIFICATIONS

•Type: stationary
•Motor: 1.8 hp, 230 volt 3 phase
•Blade Width (inches): 1
•Blade Length (inch): 96.5
•Blade Thickness (inches): .035
•Number of Speeds: 2
•Speed(s): 106/216 sfpm
•Mitering Range: 60 degrees left, 45 degrees right
•Round Tube Capacity 90 Deg (inches): 8-1/2
•Round Tube Capacity 45 Deg (inches): 3-7/8 Right, 5-7/8 Left
•Rectangle Tube Capacity 90 Deg (inches): 10 x 5-7/8
•Rectangle Tube Capacity 45 Deg (inches): 4-3/4 x 3-7/8 Right, 5-7/8 x 5-7/8 Left
•Weight (pounds): 750
