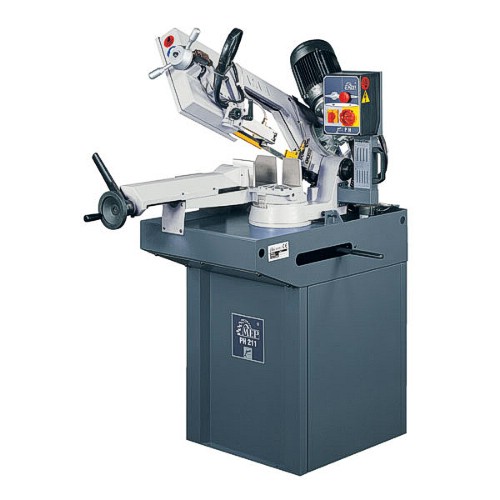

Hyd-Mech PH211 Mitering Head Band Saw

Name: Hyd-Mech PH211 Mitering Head Band Saw
Brand: Hyd-Mech
SKU: PH211
Price: 2700.00 USD
Availability: InStock

Part #: PH211
Ships From: Factory shipped

Lead Time: Usually ships within 1 week

We want to give you the best information possible regarding your order at Trick-Tools and product availability is very important to us. This information reflects our best estimate of the shipping time for your order on a product-by-product basis. Items in stock at our warehouse typically ship same day if the order is placed before 3pm Central Time.

Availability on Items shipped directly from the factory is an estimate for that product based on averages from our experience. Items marked 'Call for Availability' have limited stock or unpredictable lead times and require a phone call to get a lead time estimate. We apologize but we are unable to guarantee lead times on factory-shipped items.

Price: $2,700.00

SALE

1 hp motor
7 inch capacity
Miters 60 degrees right
Quick cam vise
Electric coolant pump

FREIGHT:

ORIGIN:

BRAND:

We're sorry but this product is currently unavailable.

DESCRIPTION

The Hyd-Mech PH211 Mitering Head Band Saw is an economical sawing solution that provides exceptional cutting capability for light production and maintenance applications. These machines come with a sturdy base with pull out coolant tank. Mitering cuts up to 60 degrees are attained easily with the mitering head that rides on pre-loaded taper bearings offer smooth angle adjustment. Blade drive load is monitored and the saw will shut off if the blade loses tension. Material loading and unloading is quick and easy with the quick-cam vise. Material being cut and blade are cooled and lubricated with the on-board coolant system. Repeatable cuts are done with the adjustable length stop rod.

Warranty:

1 year manufacturer's warranty

SPECIFICATIONS

•Type: stationary
•Motor: 1.0 hp, 220 volt 1 phase
•Blade Width (inches): .75
•Blade Length (inch): 83.5
•Blade Thickness (inches): .035
•Number of Speeds: 1
•Speed(s): 130 feet per minute
•Mitering Range: 60 degrees
•Round Solid Capacity 90 Deg (inches): 7
•Round Tube Capacity 90 Deg (inches): 7
•Square Tube Capacity 90 Deg (inches): 7
•Rectangle Tube Capacity 90 Deg (inches): 5 x 7
•Weight (pounds): 400
•Dimensions (LxWxH): 22 x 43 x 57
