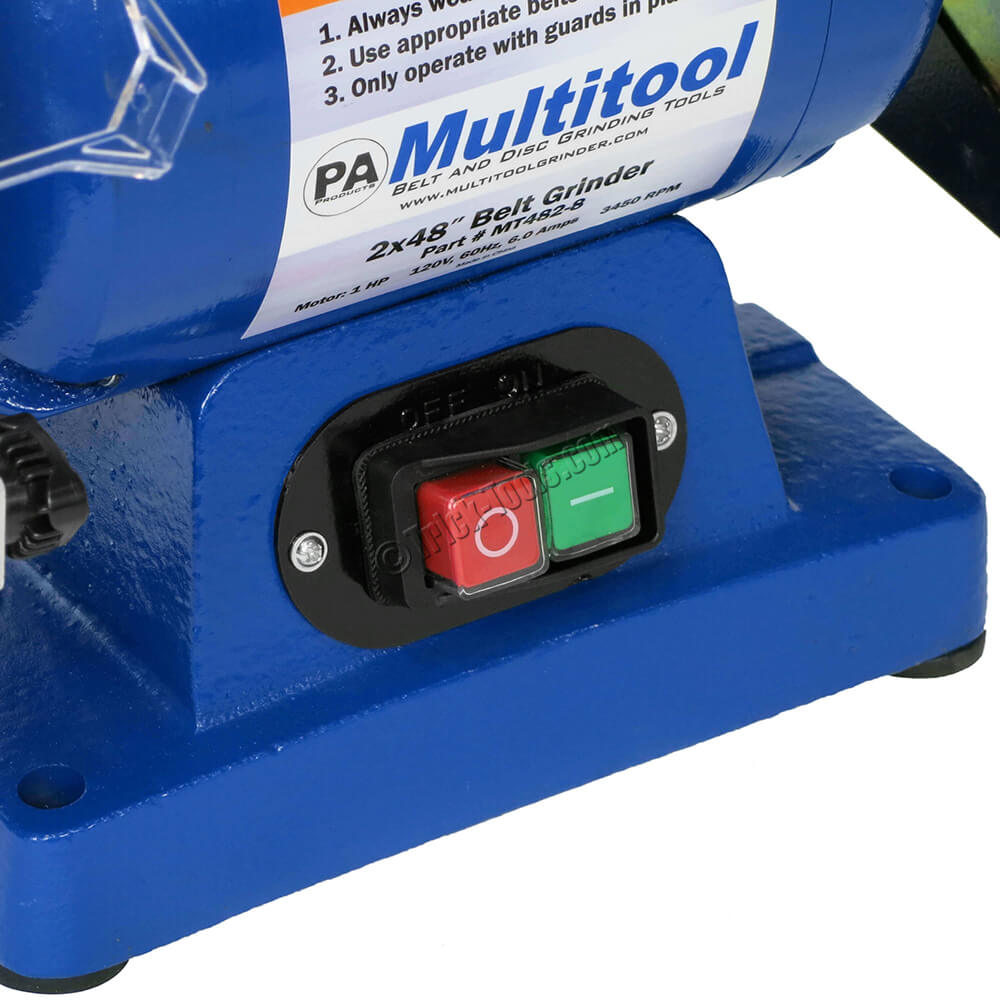

Multitool 2 x 48 inch, 1 hp Belt Grinder

Part #: MT482-8
Ships From: Our warehouse
Lead Time: Usually ships within 1 day
We want to give you the best information possible regarding your order at Trick-Tools and product availability is very important to us. This information reflects our best estimate of the shipping time for your order on a product by product basis. Items in stock at our warehouse typically ship same day if the order is placed before 3pm Central Time.

Availability on Items shipped directly from the factory is an estimate for that product based on averages from our experience. Items marked "Call for availability" have limited stock or unpredictable lead times and require a phone call to get a lead time estimate. We apologize but we are unable to guarantee lead times on factory-shipped items.
In Stock
Price: $649.00
  • 2 x 48 belt size
  • 4970 SFPM
  • 1 hp motor
  • Quick change belt system with automatic tensioning
SHIPPING:
UPS
WARRANTY:
Multitool Warranty
ORIGIN:
BRAND:
Multitool logo
Quantity:

DESCRIPTION

The popular Multitool 2x48 belt grinding attachment is now available mated to a 1 hp grinder. This longer belt model allows for more room to grind on the top platen and a longer abrasive life than other models. More than a traditional belt sander, this versatile tool has a belt speed of approximately 4,970 surface feet per minute which allows for material removal up to 5 times faster than with the equivalent grit grinding wheel.

In addition to the 8-inch grinding stone on the left, the Multitool has four different grinding surfaces to cover almost any grinding need. The most used surface is the front contact wheel which has a serrated surface to make grinding and deburring very controllable and smooth. The top platen can be used for straightening or profiling longer edges and the underside of the Multitool has a slack belt area for blending and finishing. Finally, the 7-inch disc on the side can be used with or without the optional miter table for beveling and profiling or final finishing.

Belts change in seconds from grinding to sand, deburr, or polish. A variety of belts and discs are available for any project, see the Accessories tab.

beware of counterfeits



Warranty:

3 years on attachment, 2 years on motor

SPECIFICATIONS

Motor: 1 hp, 110 volt
Belt Width (inches): 2
Belt Length (inches): 48
Belt Speed: 4970 feet per minute
RPM: 3450
Contact Wheel Diameter (inches) : 3.5
Platen Size (inches): 2.125 x 11.25
Disc Size (inches): 7
Weight (pounds): 47
Dimensions (LxWxH): 17 x 20 x 11

INCLUDES

  • 2 x 48 inch belt grinder
  • 1 hp 8 inch grinder motor
  • 100 grit belt and 120 grit disc
  • 8 inch, 36 grit grinding stone
  • Instructions and hardware

DOCUMENTATION

VIDEO







Questions & Answers
avatar
Popular Questions

3 years ago
3 years ago
You can rotate the arm to any angle but keep in mind that there is no support on the bottom of the belt so it is good for slack belt grinding only.
4 years ago
4 years ago
To calculate Surface Feet per Minute (SFPM), you would take the RPM x . 262 x Drive Wheel Diameter. In this case the drive wheel is 5.5" so the speed would be 4970 sfpm. Changing the contact wheel diameter changes the RPM of the contact wheel but not the belt speed.
