Baileigh BP-3305CNC 63 inch CNC Press Brake, 33 ton

Name: Baileigh BP-3305CNC 63 inch CNC Press Brake, 33 ton
Brand: Baileigh Industrial
SKU: BA9-1020680
Price: 24749.00 USD
Availability: InStock

Part #: BA9-1020680
Model: BP-3305CNC
Ships From: Factory shipped

Lead Time: Usually ships within 1 week

We want to give you the best information possible regarding your order at Trick-Tools and product availability is very important to us. This information reflects our best estimate of the shipping time for your order on a product-by-product basis. Items in stock at our warehouse typically ship same day if the order is placed before 3pm Central Time.

Availability on Items shipped directly from the factory is an estimate for that product based on averages from our experience. Items marked 'Call for Availability' have limited stock or unpredictable lead times and require a phone call to get a lead time estimate. We apologize but we are unable to guarantee lead times on factory-shipped items.

Price: $30,407.07
Sale Price: $24,749.00

FREE SHIPPING

33 tons of pressure
63 inch bed length
Easy to use basic CNC control
Includes punch and multi V-die

FREIGHT:

ORIGIN:

BRAND:

DESCRIPTION

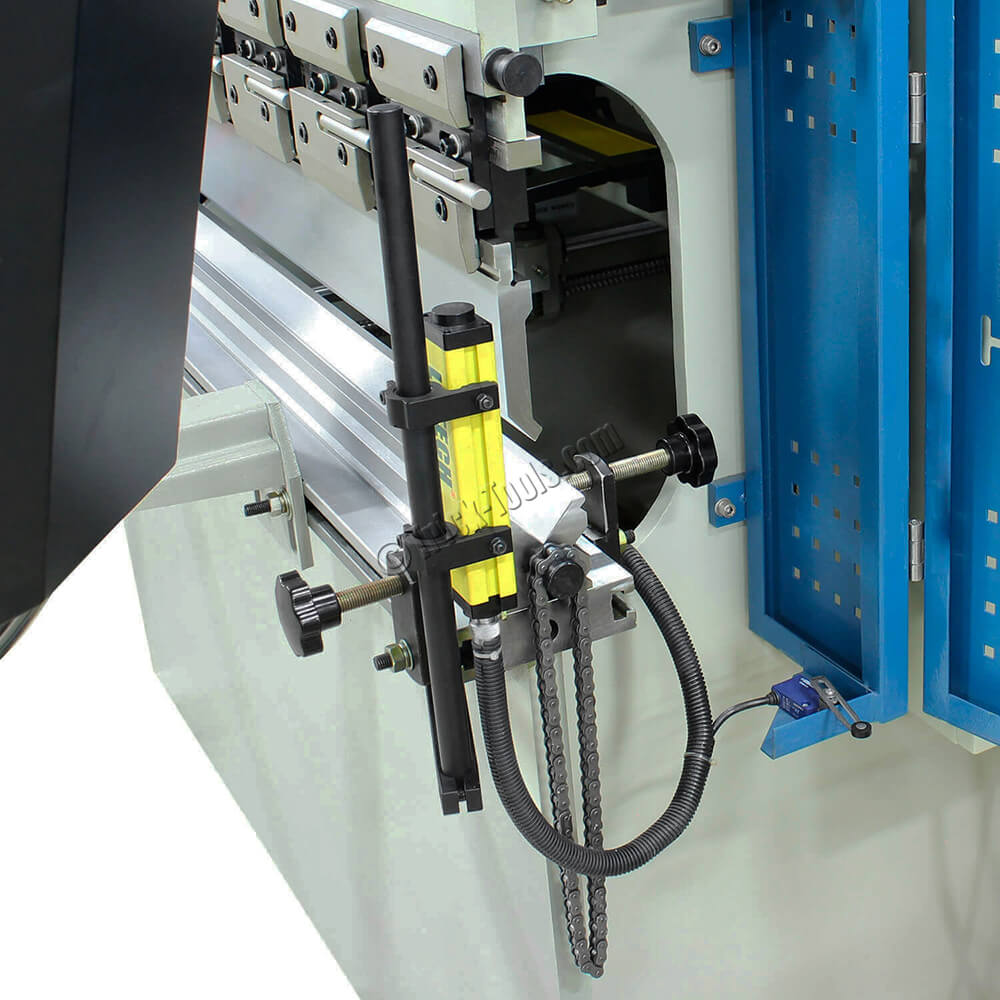

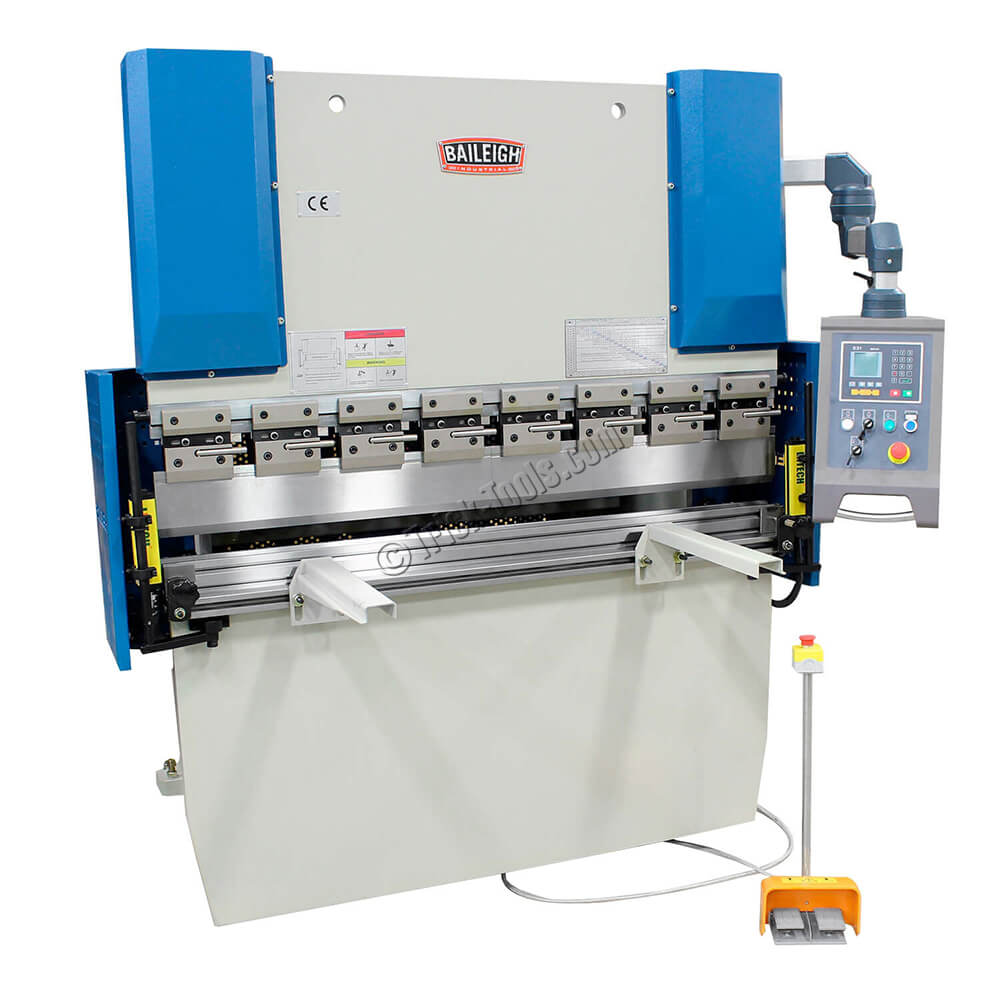

The Baileigh BP-3305CNC CNC Press Brake packs a lot of features into a small package. It delivers 33 tons across its 63-inch table and includes a 78-degree gooseneck punch, multi-vee die, 40 program controller, and safety light curtain. The BP-3305CNC has a welded steel plate construction to minimize deflection and maintain rigidity along with high-quality NOK, Siemens, and Omron components.

Technical Specifications

Pressure: 33 Tons
Power requirements: 220V, 3-phase
Main motor: 7.5 hp

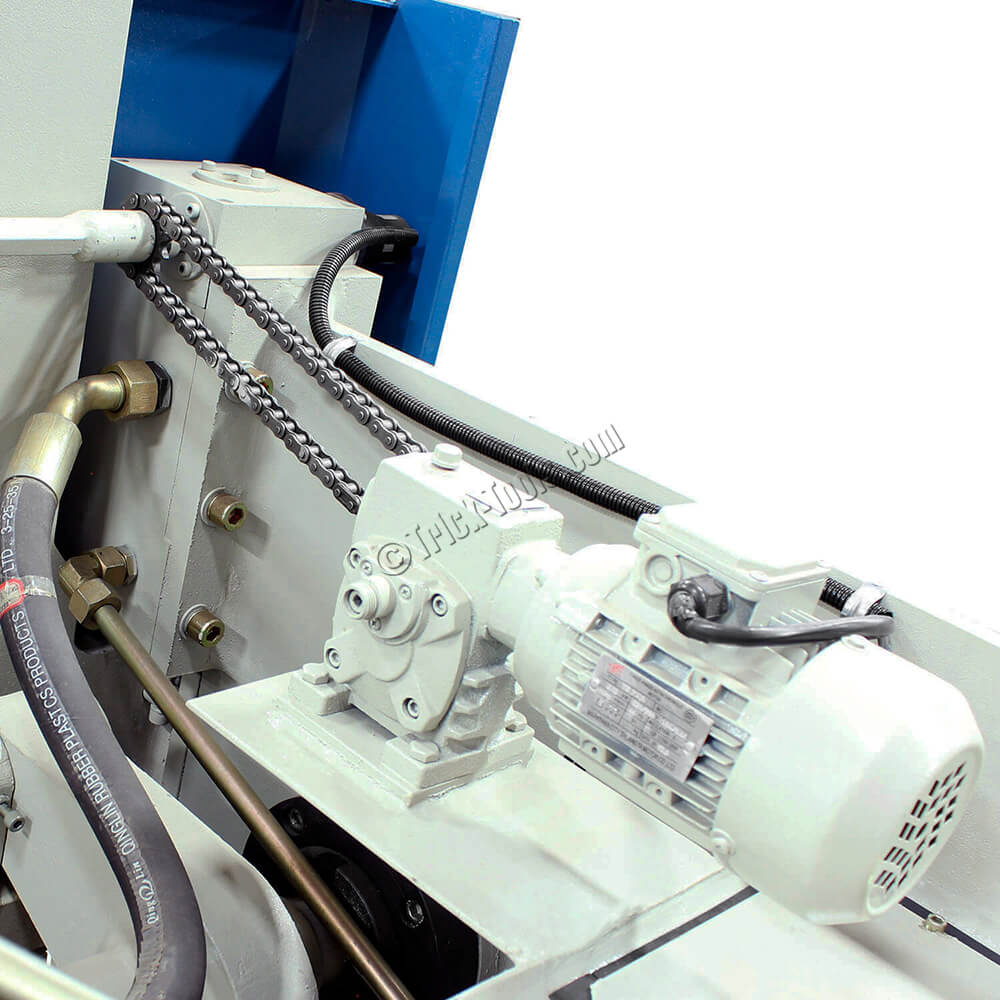

Back gauge motor: 1/2 hp

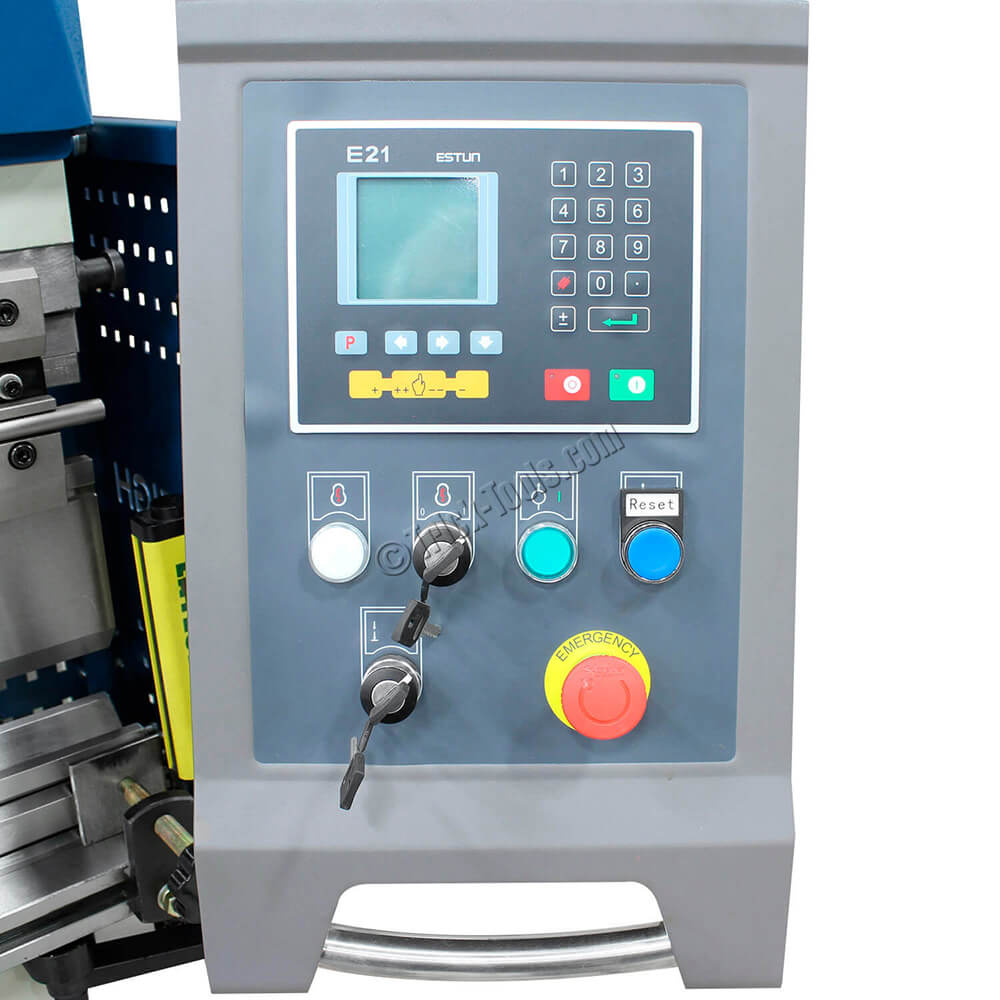

Controller: 40 programs with 25 steps per program
Table size: 63 x 7 inches

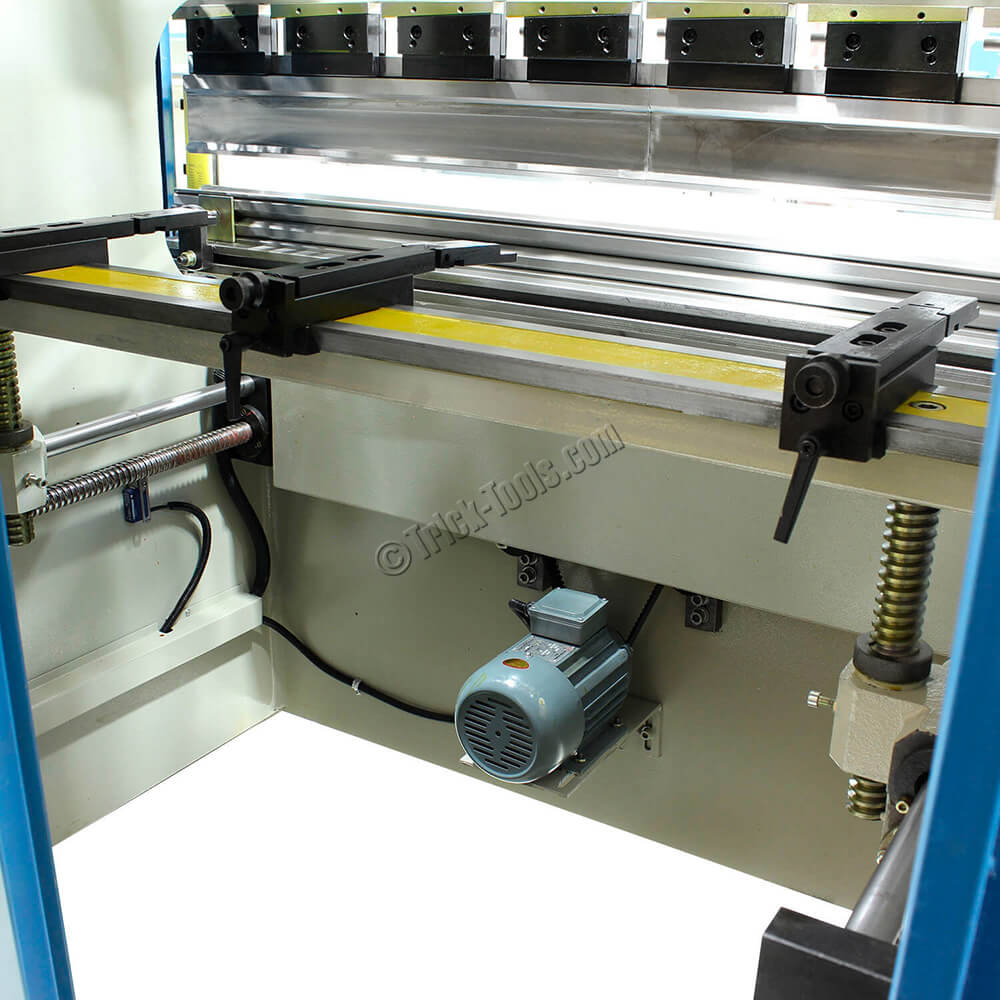

Back gauge depth: 21.5 inches
Throat depth: 8 inches
Stroke distance: 3.15 inches
Approach speed: 3.5 inch/sec
Return speed: 3.3 inch/sec
Bending speed: .394 inch/sec
Distance between housings: 51.25 inches
Distance from table to ram: 13.325 inches
Tooling stye: European

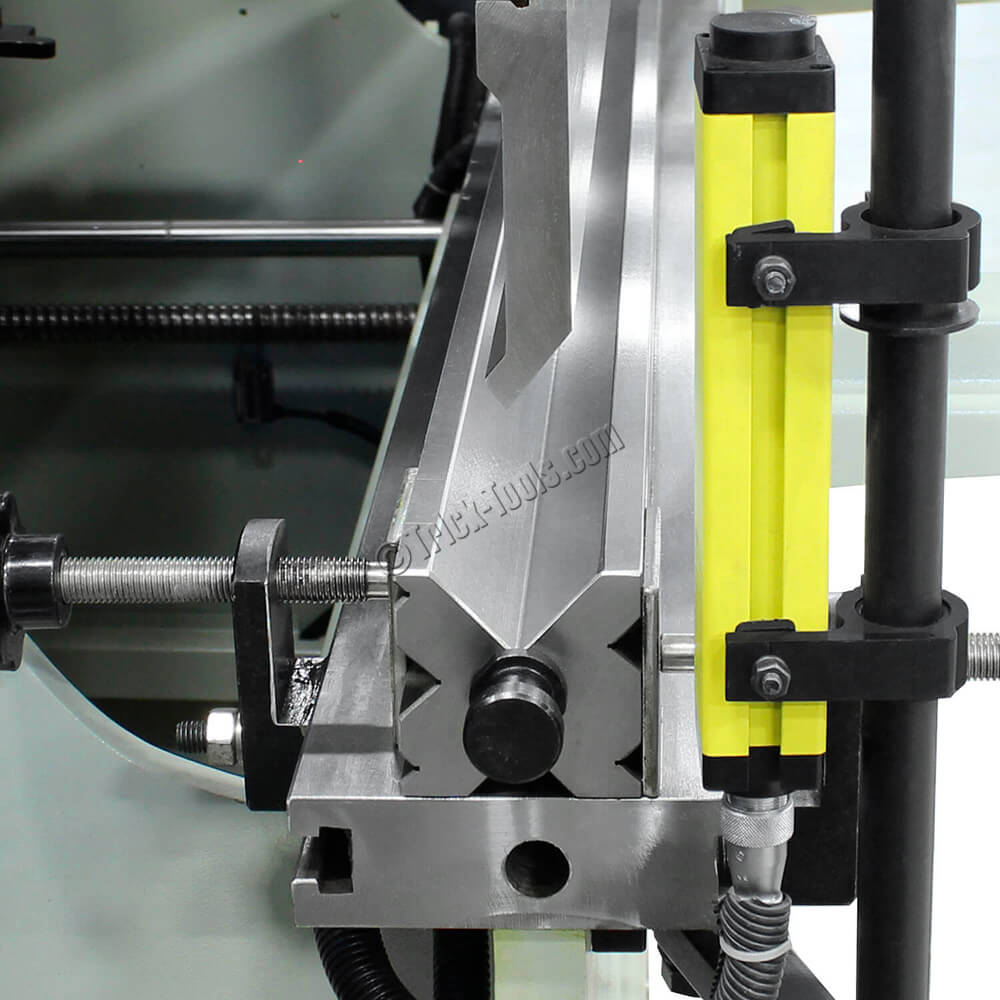

Included punch: 78° Gooseneck (split into two 31.5 inch sections)
Included vee die: 7 way V-die (.3125, .39, .47, .625, .94, 1.25, and 2 inch)
Shipping weight: 5050 lbs
Shipping dimensions: 91 x 56 x 87 inches

BP-3305CNC Quick Reference Bend Specs:

Mild Steel Thickness	Max Bend Length	Vee Die Opening
14 gauge (0.075)	63 inches	5/8 inch
12 gauge (0.105)	63 inches	.94 inch
11 gauge (0.120)	63 inches	1-1/4 inch
10 gauge (0.135)	52 inches	1-1/4 inch
3/16 inch (0.188)	52 inches	2 inch
1/4 inch (0.250)	24 inches	2 inch
5/16 inch (0.313)	12 inches	2 inch

Warranty:

1 year manufacturer's warranty

SPECIFICATIONS

•Type: electric
•Capacity: 33 ton
•Working Length (inches): 63
•Max Forming Length (inches): 51 inches between frames
•Motor: 220v 3ph, 7.5 HP
•Weight (pounds): 5050
