Siegmund System 16 Workbench Bundle, 1200 x 800mm

Part #: 2-WS161208.1
Ships From: Factory shipped

Lead Time: Backordered - Lead time unknown

We want to give you the best information possible regarding your order at Trick-Tools and product availability is very important to us. This information reflects our best estimate of the shipping time for your order on a product by product basis. Items in stock at our warehouse typically ship same day if the order is placed before 3pm Central Time.

Availability on Items shipped directly from the factory is an estimate for that product based on averages from our experience. Items marked "Call for availability" have limited stock or unpredictable lead times and require a phone call to get a lead time estimate. We apologize but we are unable to guarantee lead times on factory-shipped items.

Price: $2,595.00
Sale Price: $1,597.00

SALE

Includes 21-piece fixture bundle
Adjustable 32 to 38 inch work height
16mm holes spaced 50mm apart
Nitride plasma finish for corrosion protection and anti-spatter

FREIGHT:

ORIGIN:

BRAND:

DESCRIPTION

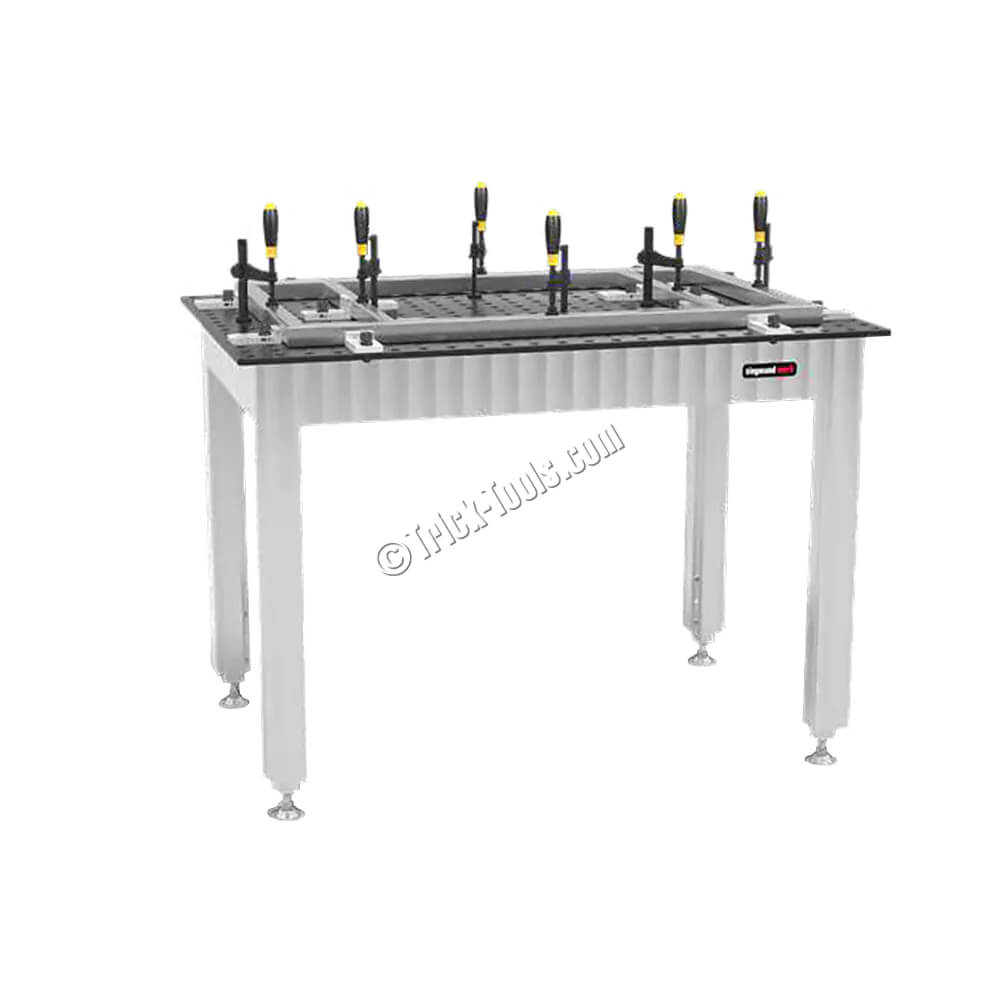

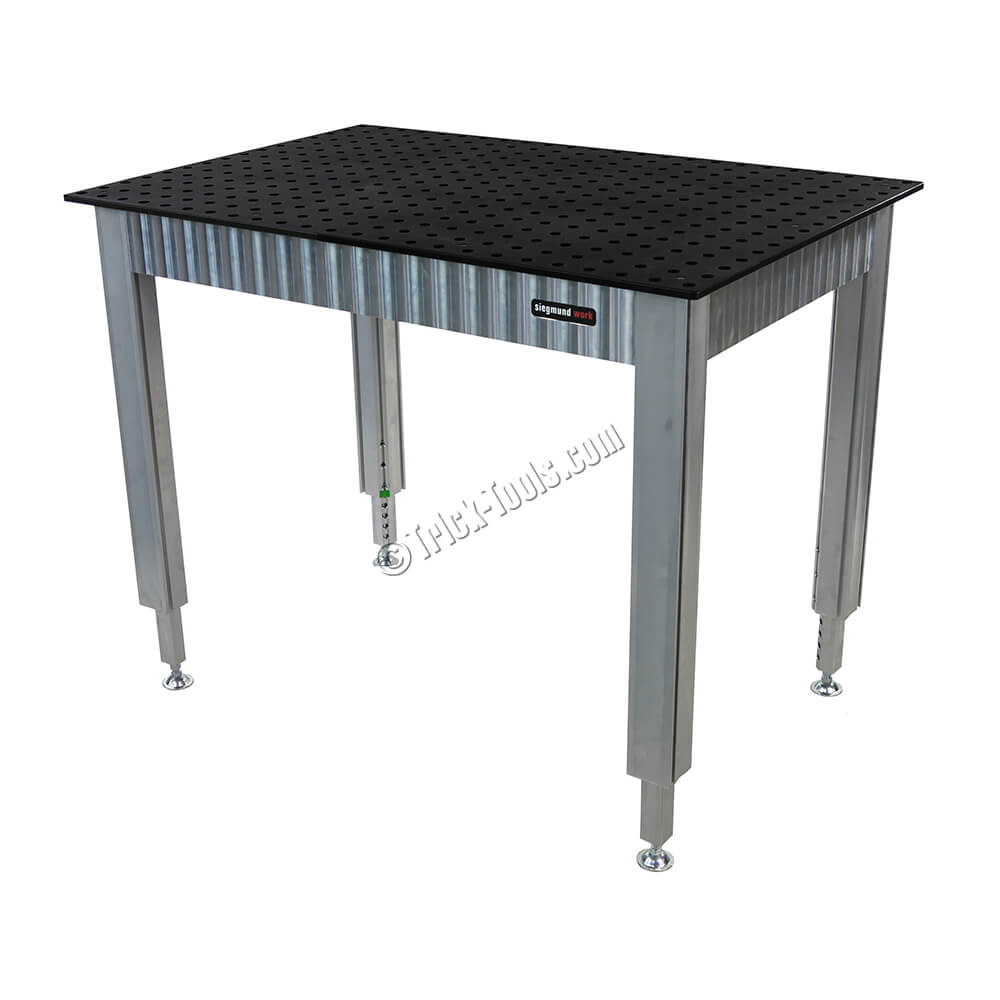

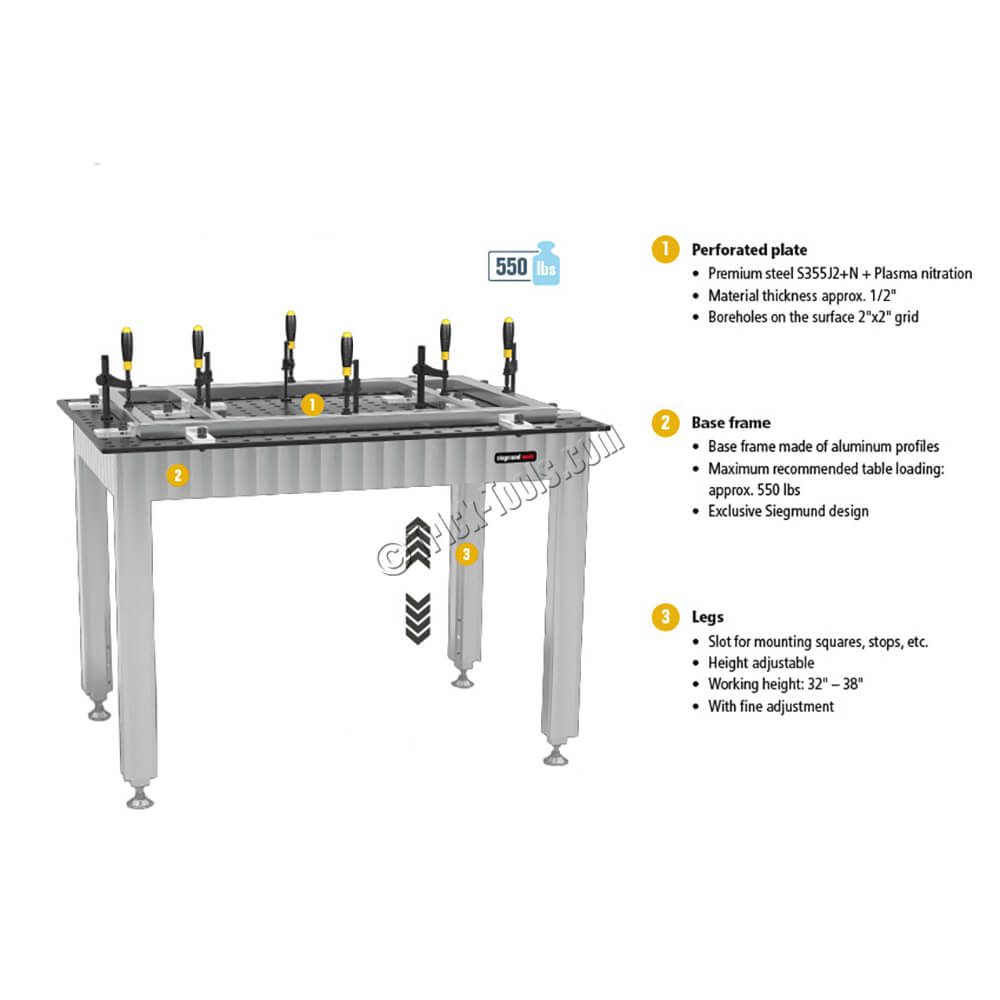

New from Siegmund, this System 16 Workbench utilizes the engineering and accuracy of System 16 welding tables in a lighter-duty version. The perforated plate is approximately 12mm (1/2 inch) thick and has high-precision 16mm chamfered holes on a 50mm grid pattern to accelerate setup and eliminate the need to convert prints. These German-made tables are built from premium steel and go through a plasma nitride process to harden the top work surface.

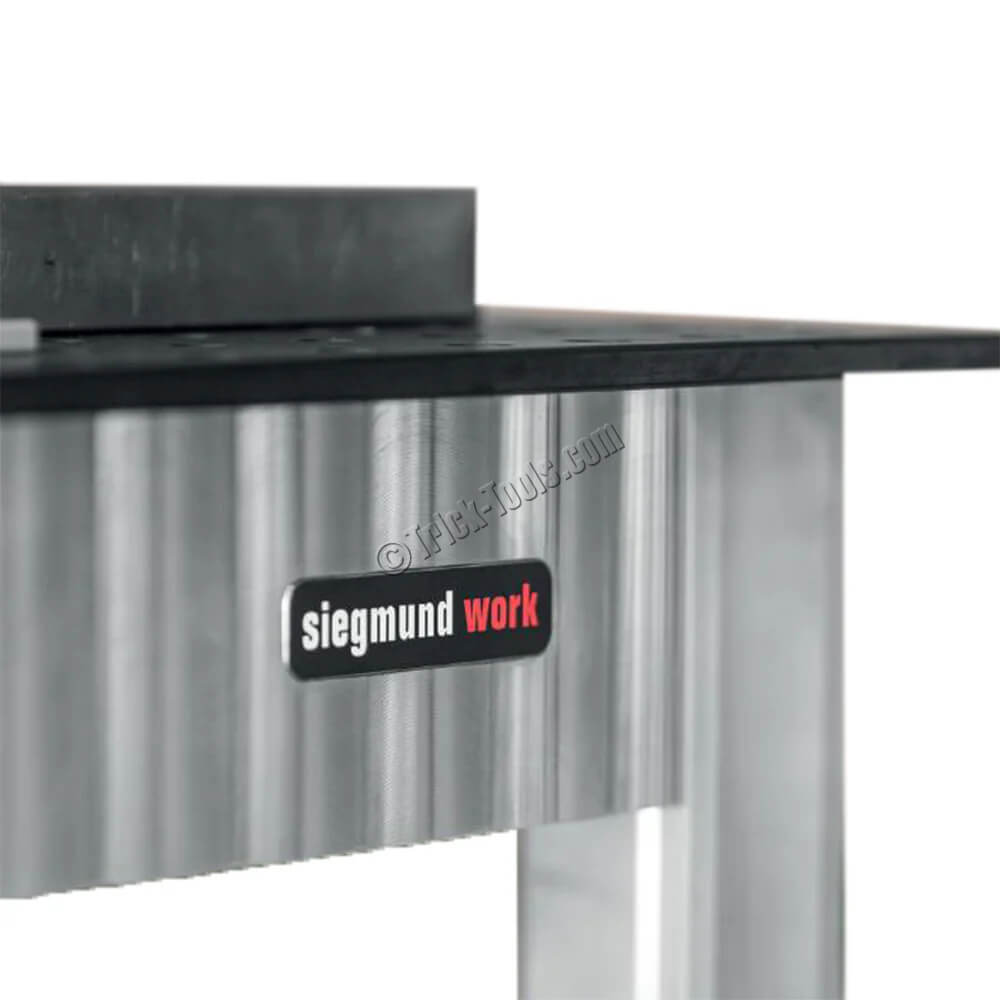

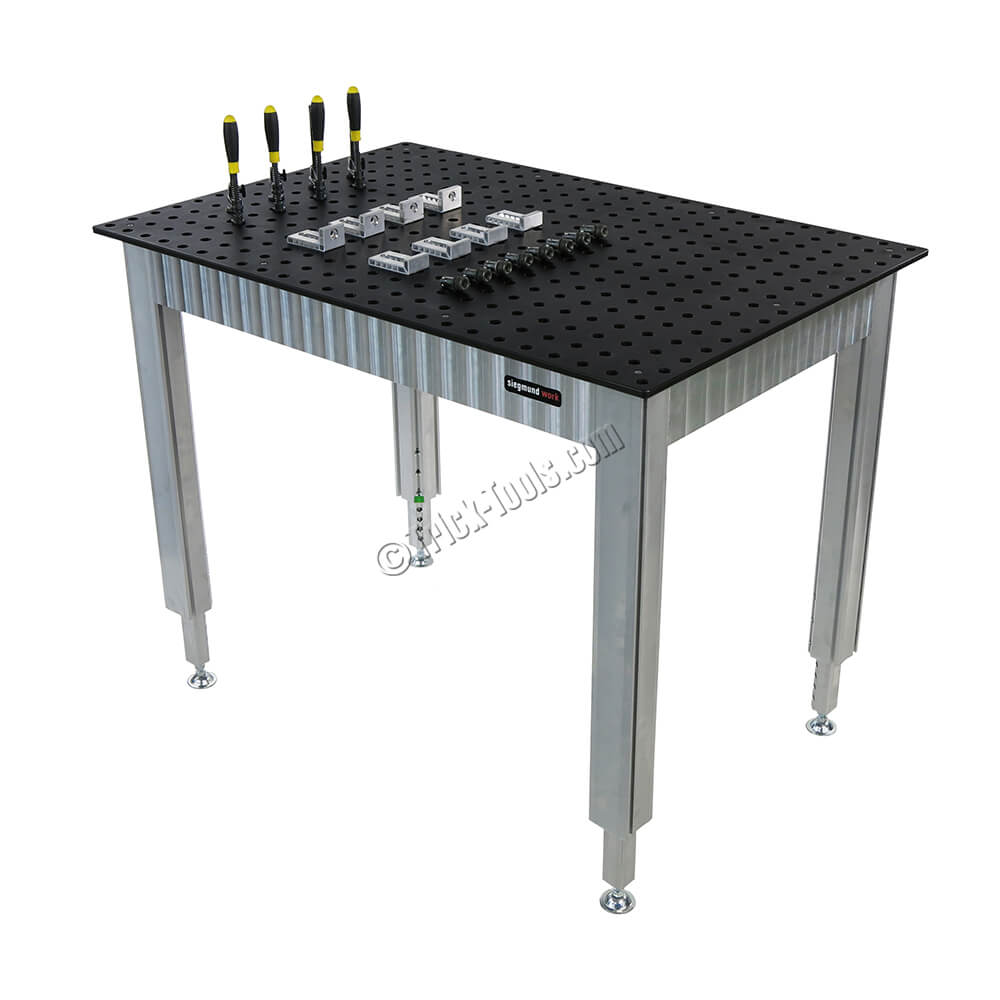

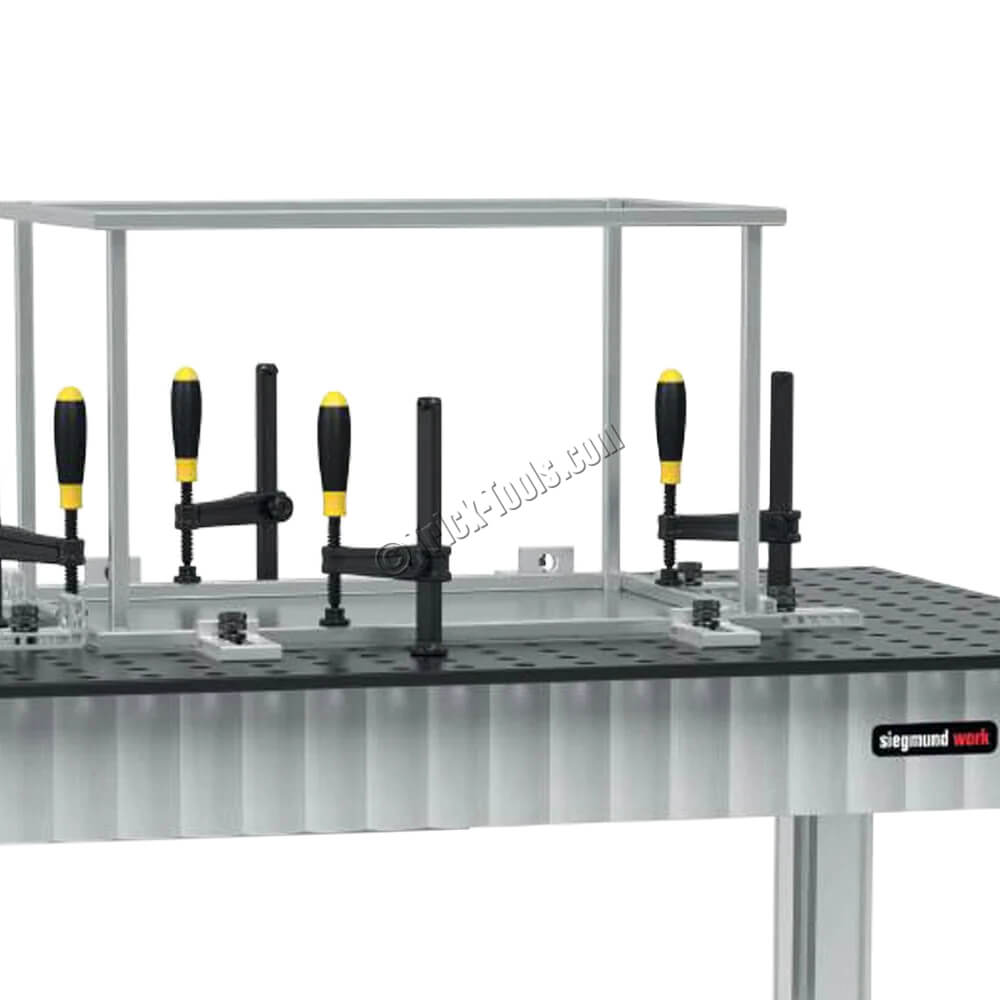

The Siegmund Workbench features an extruded aluminum profile frame that quickly bolts together, making it easy to set up and move around the shop, yet strong enough to hold up to 550lbs. This kit includes adjustable height legs that range from a 32 to 38 inch table working height and a 21-piece fixture kit. A wide variety of additional clamps and fixturing components are available for these tables to make them useful for virtually any welding project. See the Accessories tab for more information.

Warranty:

1 year manufacturer's warranty

SPECIFICATIONS

•Capacity: 550 lbs static load
•Size: 31 x 47 inches
•Finish: Nitrided
•Hole diameter: 16mm
•Hole spacing: 50mm
•Plate thickness: 1/2 inch
•Weight (pounds): 221
