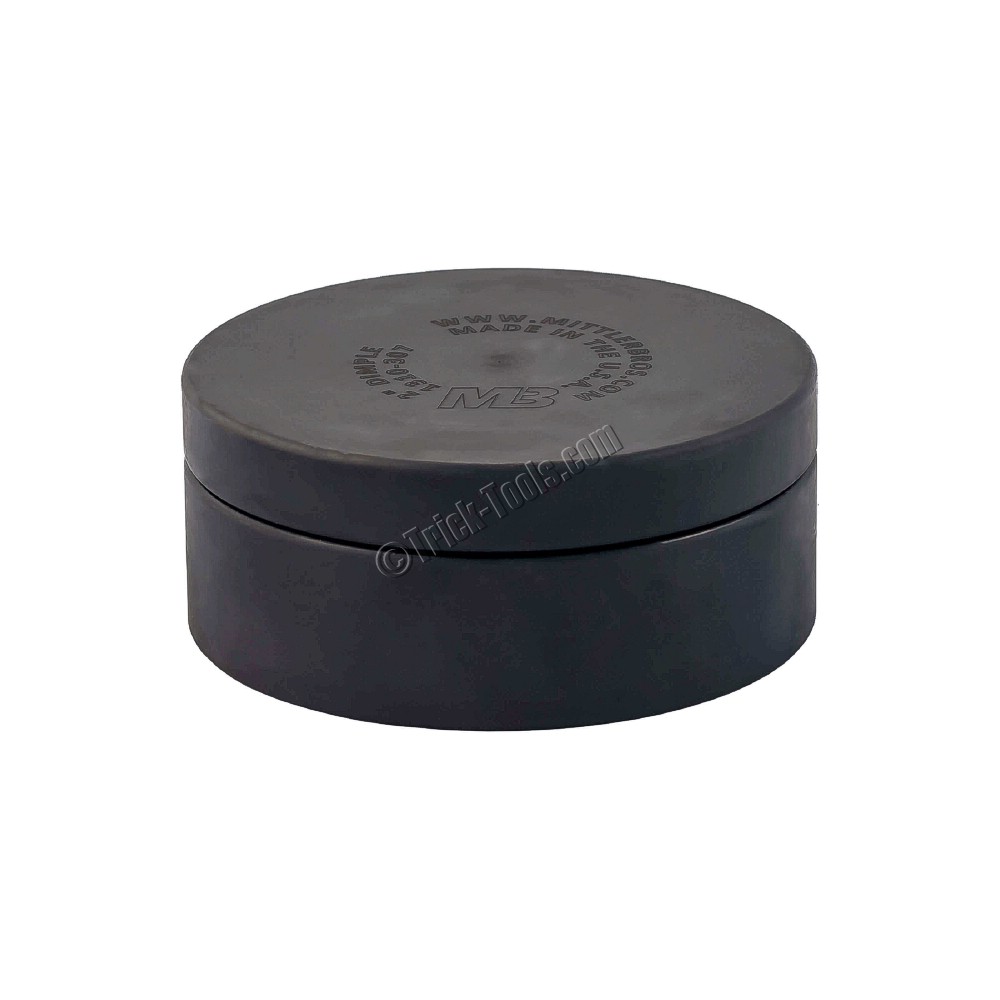

2 inch Mittler Bros. Dimple Die

Part #: 1310-307
Ships From: Factory shipped
Lead Time: Usually ships within 2-4 days
We want to give you the best information possible regarding your order at Trick-Tools and product availability is very important to us. This information reflects our best estimate of the shipping time for your order on a product by product basis. Items in stock at our warehouse typically ship same day if the order is placed before 3pm Central Time.

Availability on Items shipped directly from the factory is an estimate for that product based on averages from our experience. Items marked "Call for availability" have limited stock or unpredictable lead times and require a phone call to get a lead time estimate. We apologize but we are unable to guarantee lead times on factory-shipped items.
Price: $160.00
  • Rated for up to 1/8 inch plate
  • Black oxide finish protects from rust
  • Use in ironworker or press
SHIPPING:
UPS
ORIGIN:
BRAND:
Mittler Bros logo
Quantity:

DESCRIPTION

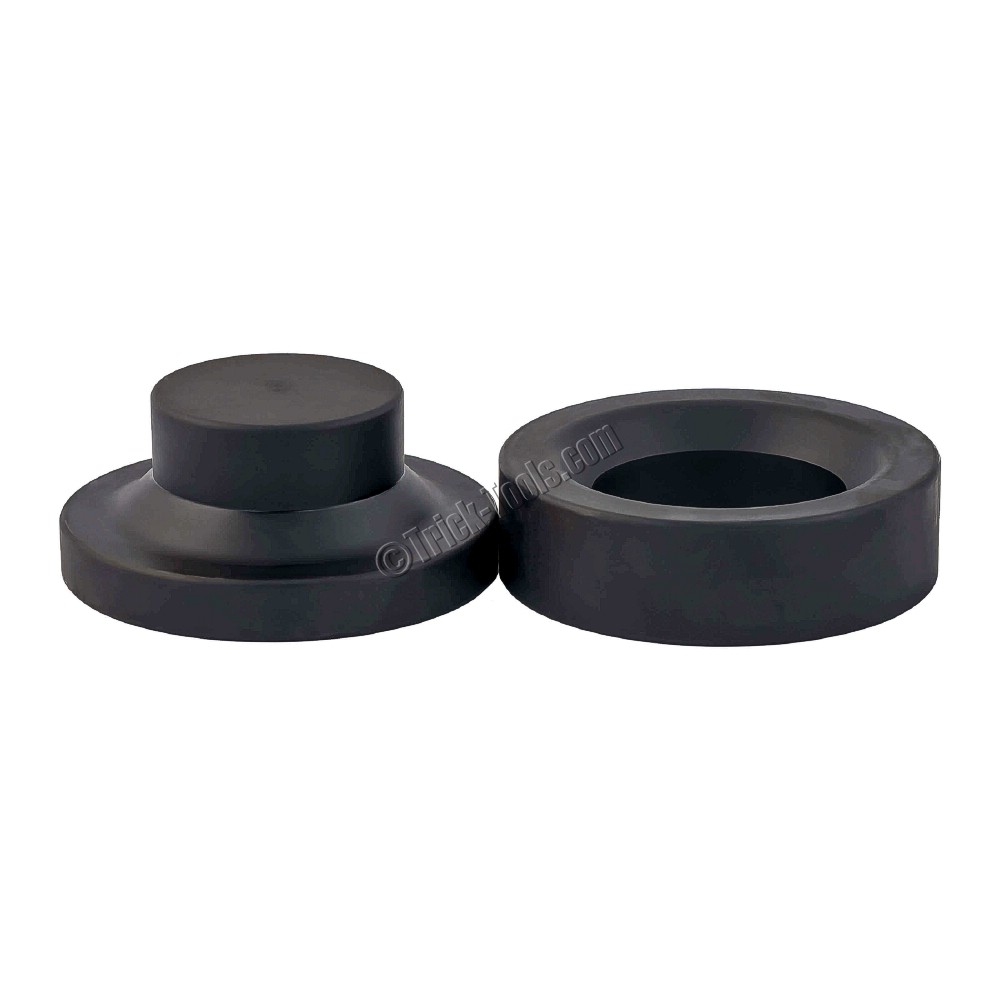

Designed with a 45-degree flare, these Mittler Brothers dimple dies are used to improve the strength and appearance of a panel and will flange (or flare) an existing hole in sheet metal up to .125 inch thick 4130 chrome-moly. These dies are made from case hardened tool steel and work great in a press or ironworker.

The overall outside diameter of the 2 inch dimple die is 3-1/2 inches



SPECIFICATIONS

Starting Hole (inches): 2
Finish Hole (inches): +.084 (approximate based on 14 gauge steel)
Flare Height (inches): .176 (approximate based on 14 gauge steel)
Construction: steel
