Baileigh MH-37HD Power Hammer

Part #: MH-37HD
Model: BA9-MH37HD
Ships From: Factory shipped

Lead Time: Usually ships within 2-4 weeks

We want to give you the best information possible regarding your order at Trick-Tools and product availability is very important to us. This information reflects our best estimate of the shipping time for your order on a product by product basis. Items in stock at our warehouse typically ship same day if the order is placed before 3pm Central Time.

Availability on Items shipped directly from the factory is an estimate for that product based on averages from our experience. Items marked "Call for availability" have limited stock or unpredictable lead times and require a phone call to get a lead time estimate. We apologize but we are unable to guarantee lead times on factory-shipped items.

Price: $95,091.39
Sale Price: $77,399.99

FREE SHIPPING

.125 inch mild steel capacity
37 inch throat
Variable speed 0-1,500 strokes per minute
Can function as a Pullmax or Yoder style hammer
Made in the USA

FREIGHT:

ORIGIN:

BRAND:

DESCRIPTION

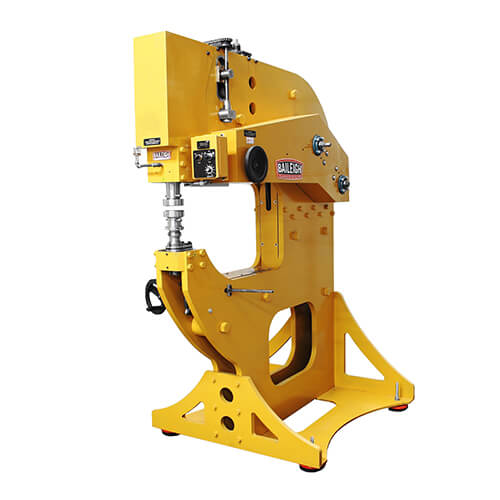

The Baileigh MH-37HD Multi-Hammer takes metal shaping to new heights. Using technology developed in the popular MH-19 model and then increasing the size and capacity, the MH-37HD performs the functions of a rigid Pullmax machine and a slapping Yoder power hammer.

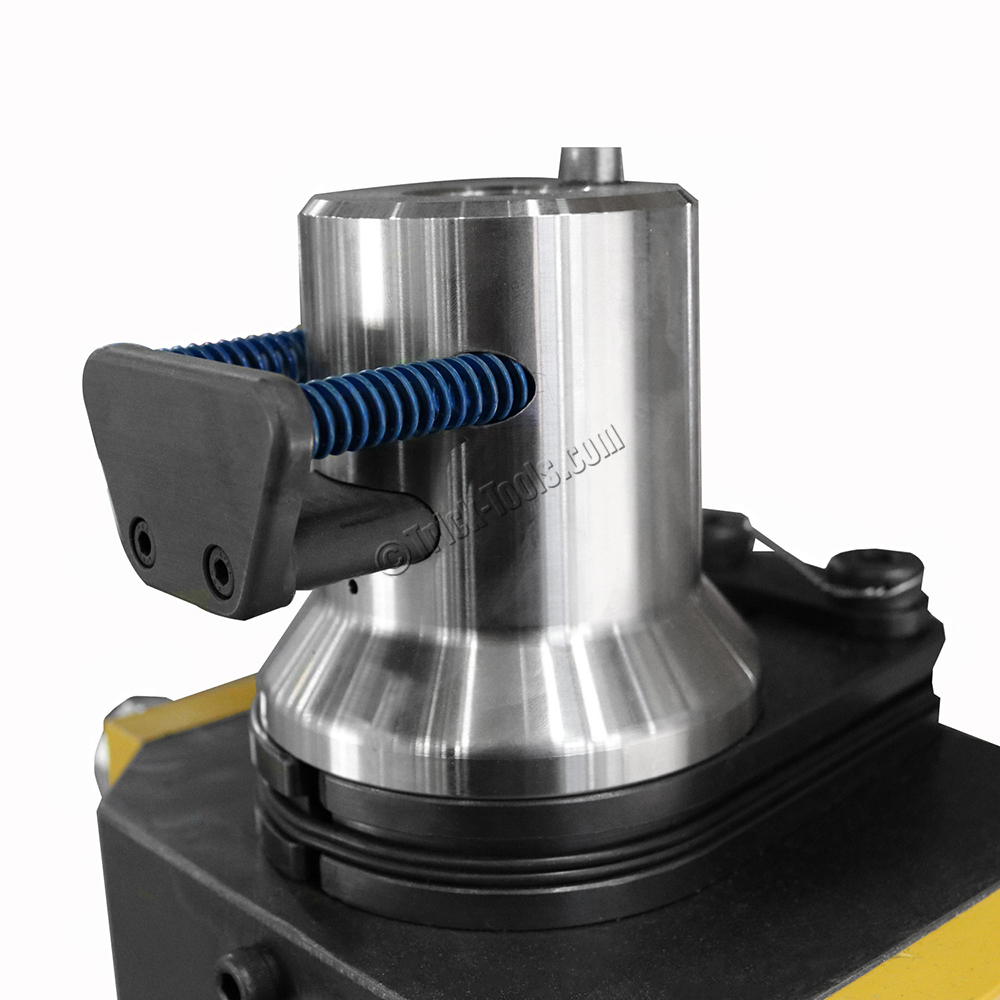

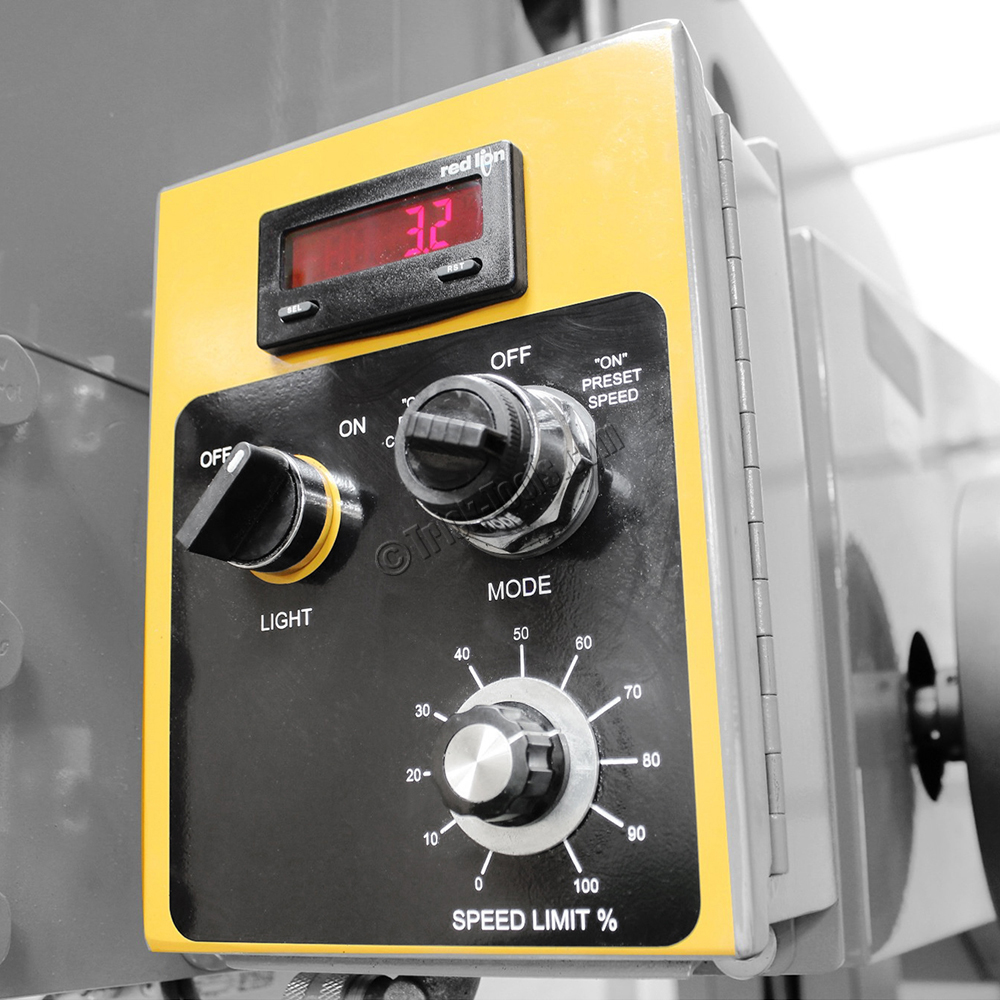

The MH-37HD power hammer features a 220v, 3-phase motor with an inverter drive that can be adjusted from 0-1500 beats per minute. Speed can be constantly adjusted with the variable foot pedal or locked to a specific speed using the control panel. The machine also features quick-release adjustment handles and a quick change tooling system.

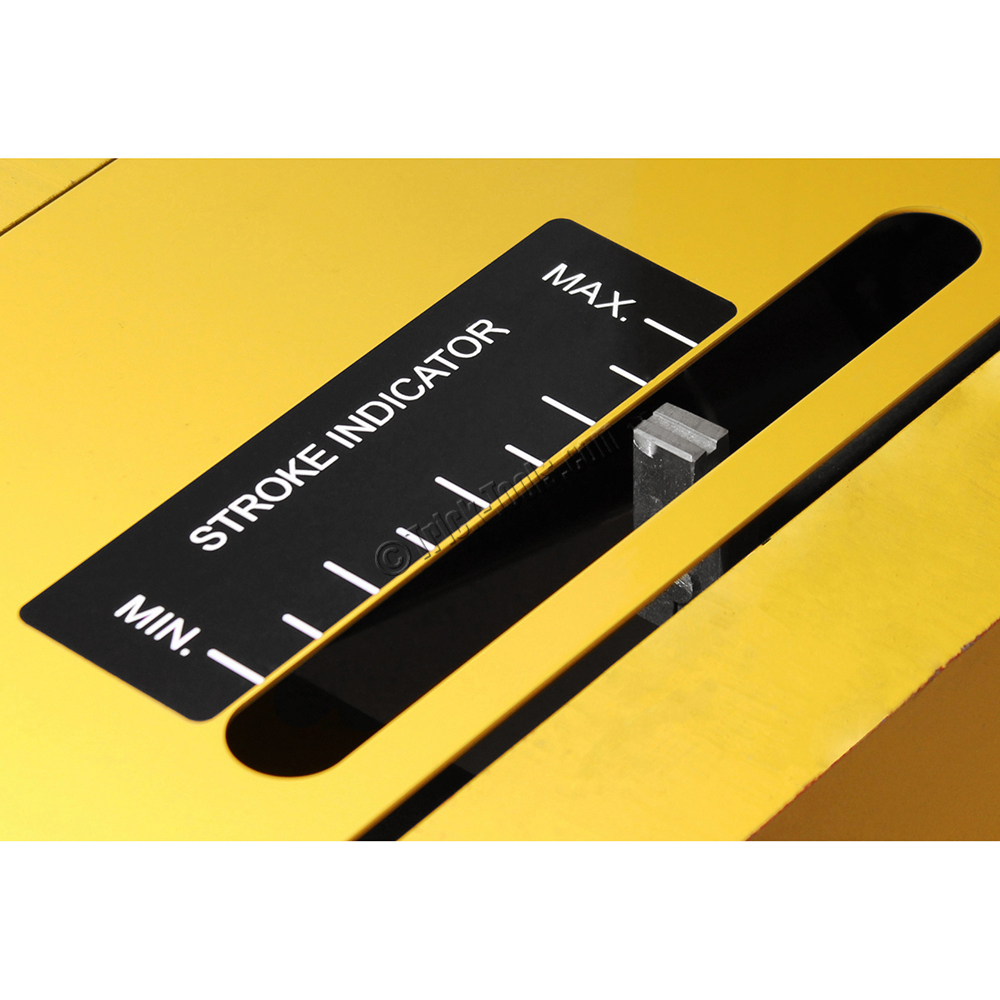

When operating in rigid mode there is a fixed distance between the dies and the stroke can be adjusted on the fly from .1 to .750 inches. Tooling designs and options are endless, but some popular applications are thumbnail shrinking, stretching, flanging, beading, offsetting, and louvers. The spring mode allows the dies to slap together giving a hammering effect. This mode would be used for doming and planishing.

Special Notes:
- Liftgate delivery is not available for this item.
- This Power Hammer must ship via flat-bed semi.

Warranty:

1 year manufacturer's warranty

SPECIFICATIONS

•Throat Depth (inches): 37
•Steel Capacity: 11 gauge (3.0mm)
•Aluminum Capacity (inches): .250 (6.4mm) soft
•Strokes per Minute: 0-1,500
•Motor: 220 volt 3 ph, 5 hp
•Weight (pounds): 6000
•Dimensions (LxWxH): 72 x 60 x 90
