Baileigh SBR-5220 52 inch Shear, Brake, and Roll, 20 gauge

Part #: SBR-5220
Model: BA9-1007002
Ships From: Factory shipped
Lead Time: Lead times vary - Call for availability
We want to give you the best information possible regarding your order at Trick-Tools and product availability is very important to us. This information reflects our best estimate of the shipping time for your order on a product by product basis. Items in stock at our warehouse typically ship same day if the order is placed before 3pm Central Time.

Availability on Items shipped directly from the factory is an estimate for that product based on averages from our experience. Items marked "Call for availability" have limited stock or unpredictable lead times and require a phone call to get a lead time estimate. We apologize but we are unable to guarantee lead times on factory-shipped items.
Price: $4,668.59
Sale Price: $3,799.99
  • Combination shear, brake, and slip roll in one compact machine
  • Right or left handed operation
  • Segmented fingers on brake
  • 20 gauge mild steel capacity
FREIGHT:
Freight
ORIGIN:
BRAND:
Baileigh Industrial logo
Quantity:

DESCRIPTION

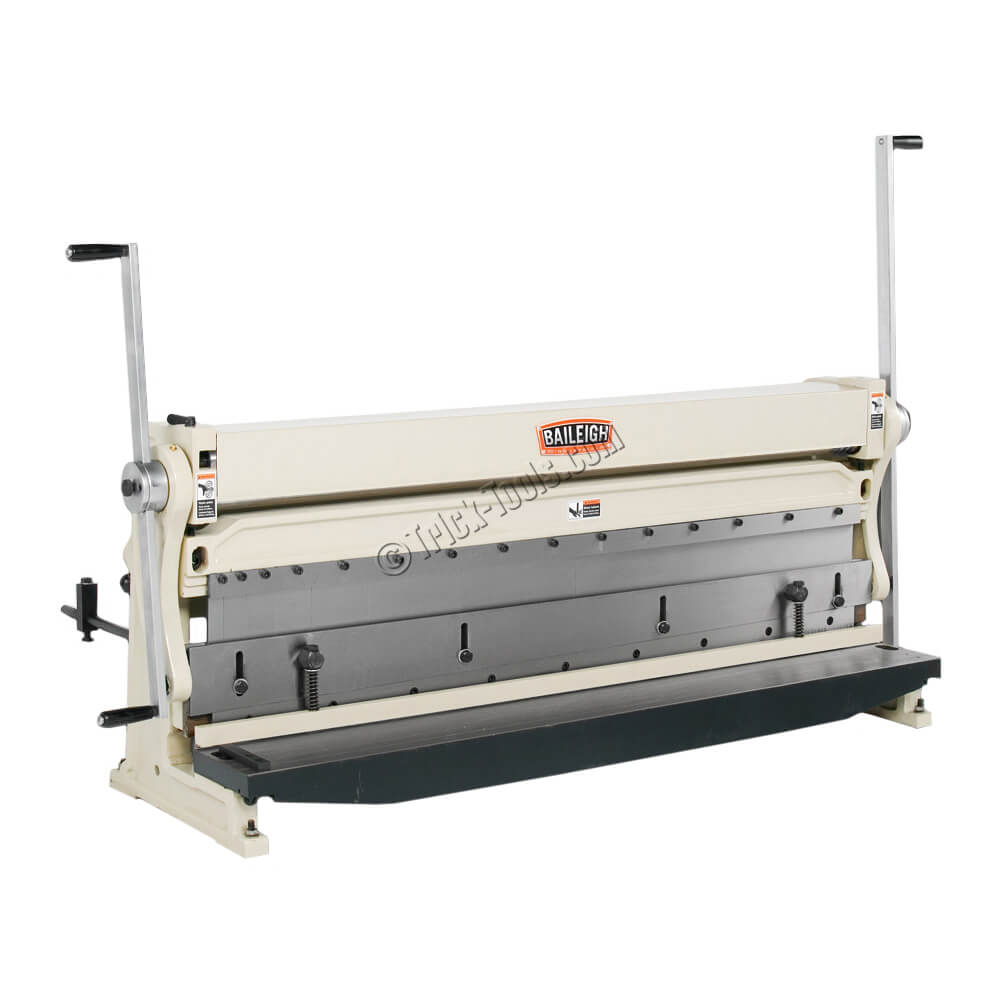

The Baileigh 52 inch 20 gauge combination shear, brake, and roll machine is a great solution for the home hobbyist or light fabrication shop working in light gauge sheet metal who needs 3 operations in a compact machine. The machine can shear mild steel, aluminum, brass, copper, lead, plastic, and zinc.

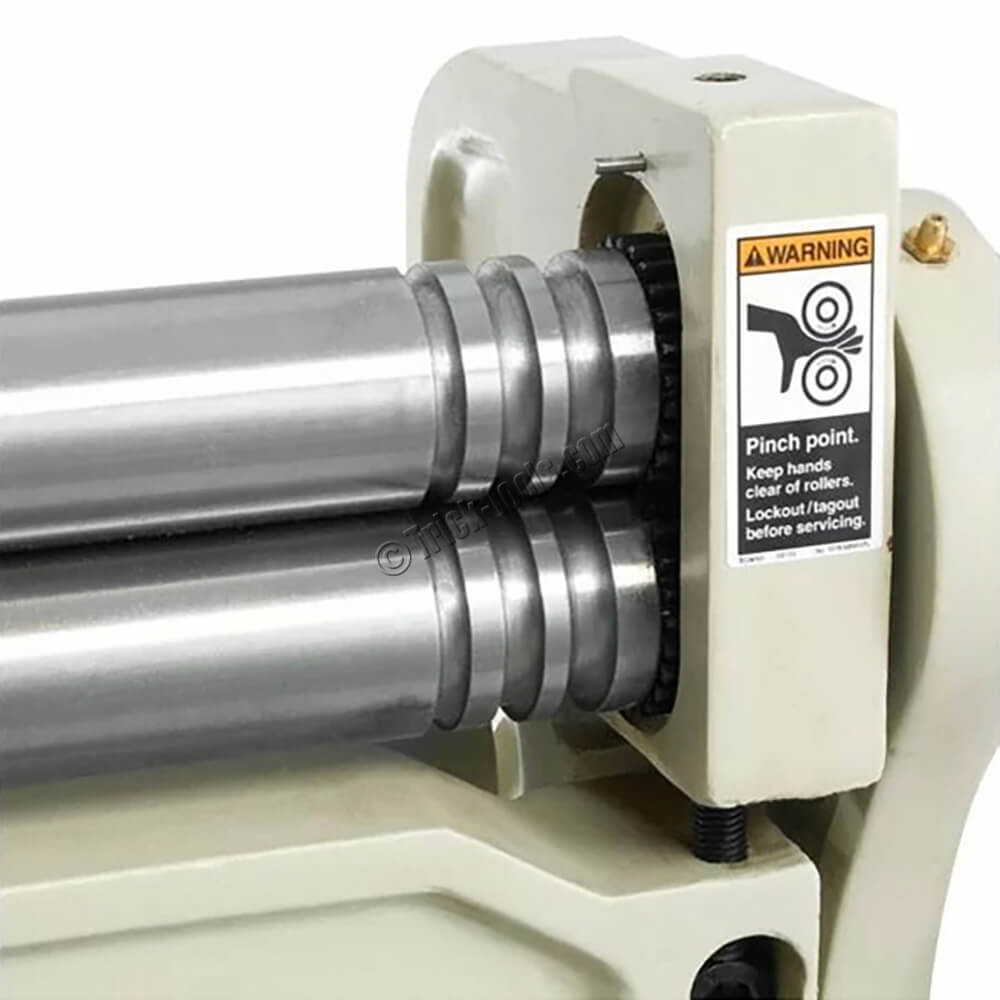

The brake is equipped with easily removable fingers that permit angle, channel, box, and other complex bending operations. The slip rolls are precision turned and ground and also feature wire grooves.

Warranty:

1 year manufacturer's warranty

SPECIFICATIONS

Type: manual
Mild Steel Capacity: 20 gauge (.9mm)
Stainless Capacity: 24 gauge (.6mm)
Working Length (inches): 52
Cutting Length (inches): 52
Rolling Capacity: 20 gauge
Max Forming Length (inches): 52
Min Forming Radius (inches): 0.85
Number/Dia Of Rolls: (3) 1-3/4 inch
Weight (pounds): 830
Dimensions (LxWxH): 67 x 23 x 30
