Baileigh TN-800 End Mill Tube Notcher

Part #: TN-800
Model: 1008060
Ships From: Factory shipped

Lead Time: Usually ships within 1 week

We want to give you the best information possible regarding your order at Trick-Tools and product availability is very important to us. This information reflects our best estimate of the shipping time for your order on a product by product basis. Items in stock at our warehouse typically ship same day if the order is placed before 3pm Central Time.

Availability on Items shipped directly from the factory is an estimate for that product based on averages from our experience. Items marked "Call for availability" have limited stock or unpredictable lead times and require a phone call to get a lead time estimate. We apologize but we are unable to guarantee lead times on factory-shipped items.

Price: $12,039.99
Sale Price: $9,799.99

FREE SHIPPING

Capacity of 1 to 3 inch OD
Angles up to 60 degrees
Quick changeover for different sizes

FREIGHT:

ORIGIN:

BRAND:

DESCRIPTION

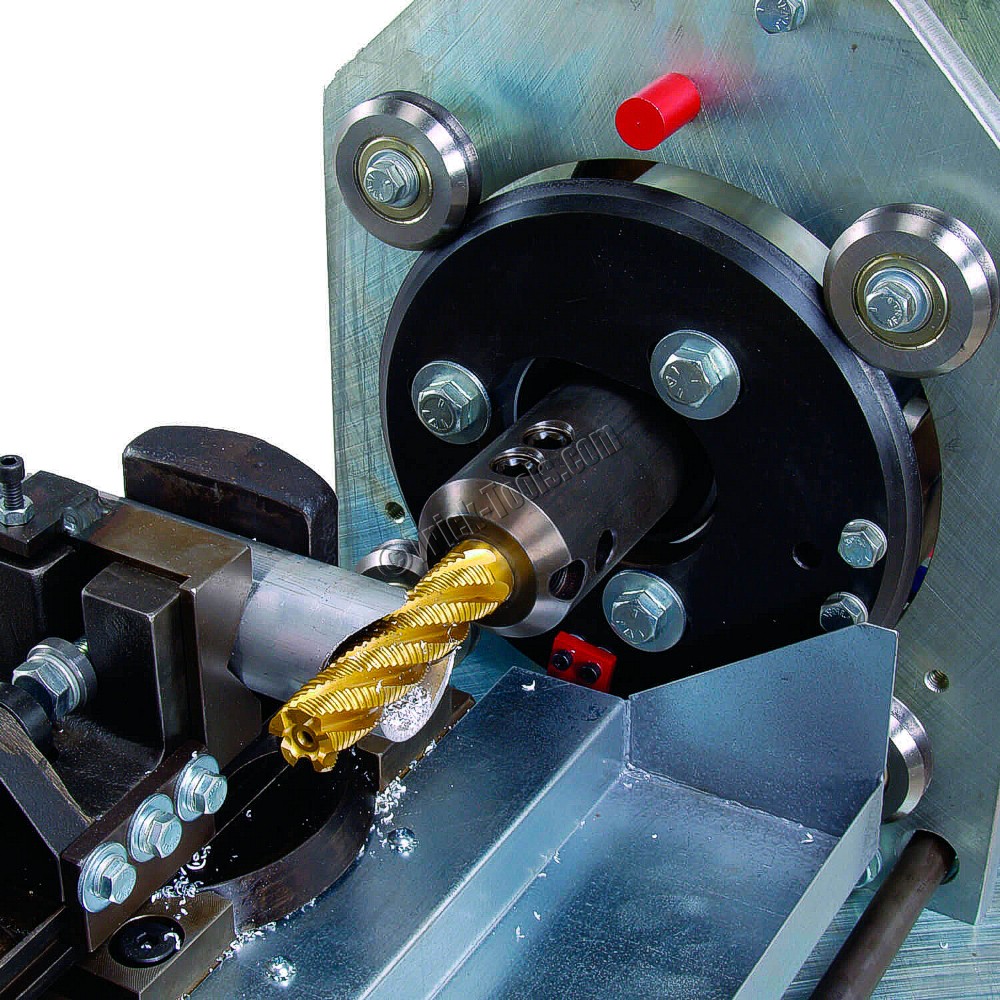

The Baileigh Model TN-800 tubing notcher has an operator adjusted eccentric path that requires only one cutter to notch weld joints on tubing, pipe, or solids with outside diameters of 1 to 3 inch. This unique feature means the Model 800 tooling cost savings are on going. Notching under 1 inch is achieved by installing an optional 1/2 inch cutter and adapter bushing.

Create perfect weld joints in chrome moly, mild steel, stainless steel, and aluminum pipe of tubing.
Does not contaminate the weld joint, offering more strength in the weld.
Unmatched versatility, mobility, and easy operation. Our pipe notcher is capable of notching up to 60 degrees in either direction.
Cross slide table, angle vise, and V-Jaws can be independently calibrated allowing accurate positioning of straight, angled, or offset notches.
Vise Quick changeover for different diameters of tube
Ruggedly built stand with large wheels and casters allows for fast and easy mobility.

Warranty:

1 year manufacturer's warranty

SPECIFICATIONS

•Motor: 1 hp, 110 volt
•RPM: 350
•Max Notch Angle: 60 degrees
•Max Diameter: 3 inch
•Min Diameter: 1 inch
•Weight (pounds): 610
•Dimensions (LxWxH): 40 x 30 x 48
