Mittler Bros. Double Sided Ultimate Tubing Notcher

Part #: 400-S2-MB
Ships From: Factory shipped

Lead Time: Usually ships within 1-2 weeks

We want to give you the best information possible regarding your order at Trick-Tools and product availability is very important to us. This information reflects our best estimate of the shipping time for your order on a product by product basis. Items in stock at our warehouse typically ship same day if the order is placed before 3pm Central Time.

Availability on Items shipped directly from the factory is an estimate for that product based on averages from our experience. Items marked "Call for availability" have limited stock or unpredictable lead times and require a phone call to get a lead time estimate. We apologize but we are unable to guarantee lead times on factory-shipped items.

Price: $6,575.00

Notch both sides without re-indexing
Vise allows any angle setting
Fast, efficient operation
Variable speed standard

FREIGHT:

ORIGIN:

BRAND:

DESCRIPTION

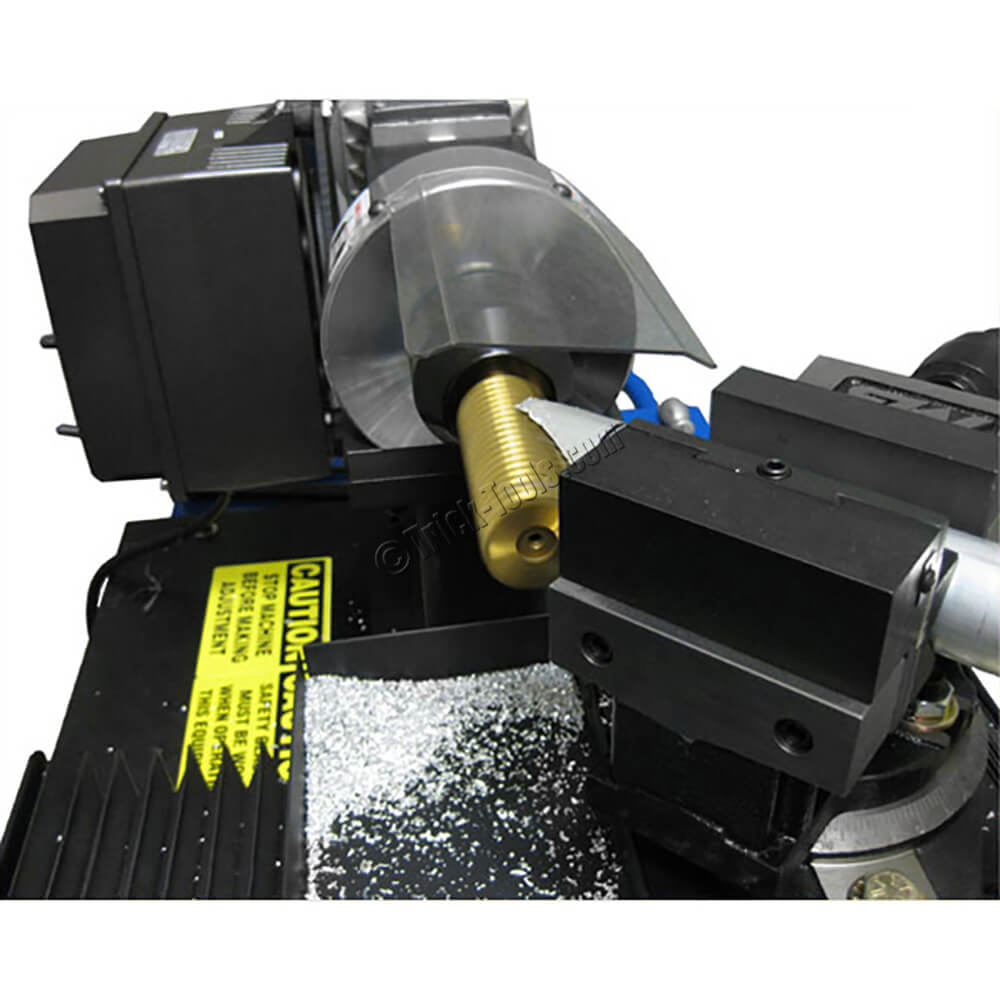

The MB Ultimate Tubing Notcher has been a favorite in fabrication shops for many years. Now the engineers at Mittler have improved on their original design and developed the Double Sided Ultimate Notcher. With a wider base than the standard Ultimate Notcher, the vise can now be positioned on either side of end mill. This makes two sided notching possible without having to re-index the tube. The rest of the operation is the same as the original Ultimate notcher, just clamp your tube in the calibrated swivel vise that allows for accurate and repeatable positioning at any angle. A compound feed table advances tubing into the milling cutter, producing a perfect notch and a perfect fit - every time.

Options available:

Standard

3/4 to 2 inch capacity
1.5 hp motor

Upgraded

3/4 to 2-3/8 inch capacity
1.5 hp motor

Adjustable Offset

Adjustable height vise for offset notching

Warranty:

1 year manufacturer's warranty

SPECIFICATIONS

•Motor: 1.5 hp variable speed, 110 volt
•Max Notch Angle: Unlimited
•Max Diameter: 2 inch (2-3/8 w/ upgrade)
•Min Diameter: 3/4 inch
•Speed: Variable, 75-250 rpm
•Dimensions (LxWxH): 43 x 28 x 36
