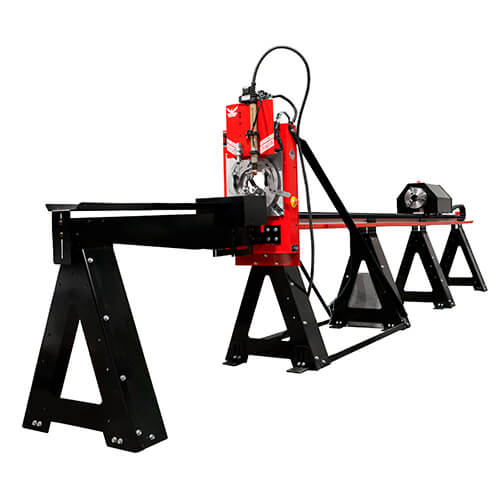

Bend-Tech Dragon A250 Tube Cutting and Marking System

Part #: BTD-A250
Model: BTD-A250-12, BTD-A250-21
Ships From: Factory shipped

Lead Time: Usually ships within 4-6 weeks

We want to give you the best information possible regarding your order at Trick-Tools and product availability is very important to us. This information reflects our best estimate of the shipping time for your order on a product by product basis. Items in stock at our warehouse typically ship same day if the order is placed before 3pm Central Time.

Availability on Items shipped directly from the factory is an estimate for that product based on averages from our experience. Items marked "Call for availability" have limited stock or unpredictable lead times and require a phone call to get a lead time estimate. We apologize but we are unable to guarantee lead times on factory-shipped items.

Call For Price

Plasma cutting, notching, and marking
Up to 4 inch OD round tubing
Includes Bend-Tech Industrial CAD software

FREIGHT:

ORIGIN:

BRAND:

DESCRIPTION

The New Bend-Tech Dragon is an affordable, complete solution for tube notching, cutting, and marking tubing up to 4 inches in diameter. The Dragon is capable of taking a full length of tubing, cutting it to length, notching the end profile, making holes or slots as needed, and then marking any bend locations with rotation and degrees. Bend-Tech Dragon obtains all of the necessary information from Bend-Tech Industrial software automatically. Just add your plasma machine and computer!

Included with the Bend-Tech Dragon is two powerful software packages; Bend-Tech Industrial and Bend-Tech Dragon Software. Working side by side, these products will allow you to create 3D CAD designs from scratch or convert from SOLIDWORKS, AutoCAD, Inventor, PRO Engineer, etc. into a readable format for the machine. Dragon Software will automatically create your cutting, marking and etching paths directly from Bend-Tech Industrial and comes with a nesting ability to allow several parts on the same stock tube.

Key Features

12 or 21 foot bed length, unlimited working length with re-positioning
2 inch through chuck allows for re-positioning of longer material with built-in laser pointer
Works on 3/4 to 4 inch OD round tubing
Automatic tool change between plasma cutting and marking
160 lbs material capacity with the 12 foot bed and 260 lbs with the 21 foot bed
1/32 to 5/8 inch cutting capacity (dependant on plasma cutter)
Upgraded rack and pinion design ensure tolerances within +/- 0.010 inch

Shipping Note: This machine ships via flat-bed only. Please call or email for a quote.

INCLUDES

Dragon CNC Tube System for plasma cutting and marking
Laser pointer built-in for re-positioning
Computer with keyboard and mouse
Bend-Tech Industrial CAD
Bend-Tech Dragon driver software
Plamsa cutter not included (Recommended matching - Hypertherm or Thermal Dynamics)
