Bend-Tech PRO Tube Bending Software

Part #: BTPRO
Ships From: Our warehouse

Lead Time: Usually ships within 1 day

We want to give you the best information possible regarding your order at Trick-Tools and product availability is very important to us. This information reflects our best estimate of the shipping time for your order on a product by product basis. Items in stock at our warehouse typically ship same day if the order is placed before 3pm Central Time.

Availability on Items shipped directly from the factory is an estimate for that product based on averages from our experience. Items marked "Call for availability" have limited stock or unpredictable lead times and require a phone call to get a lead time estimate. We apologize but we are unable to guarantee lead times on factory-shipped items.

In Stock

Price: $295.00

BEST SELLER

3D design of multiple parts within an assembly
Up to 10 bends per part
Can produce notching templates

SHIPPING:

ORIGIN:

BRAND:

DESCRIPTION

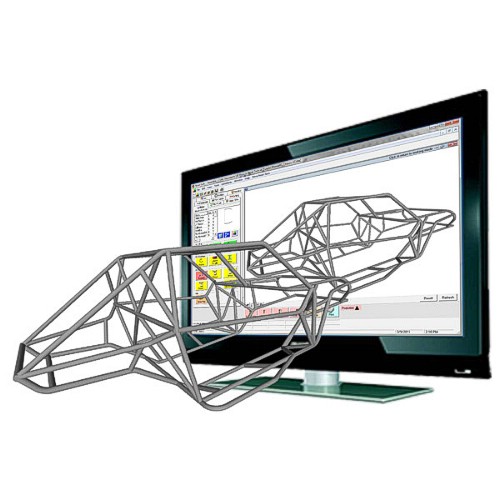

Bend-Tech PRO is made for the small shop or serious hobbyist and is used for designing tubular assemblies and even complete frames. Bend-Tech Pro is ideal for customers with manual or simple hydraulic machines and has the ability to design and dimension tubular assemblies, calculate and model all bent parts, and aid in tube notching. It is by far the most easy-to-use tubing design product on the market. Customers who have never used a CAD system before are productive the first time they sit down to use it.

Key Features

Full tubular assembly design
Printable notching templates
Dimensions by inside, outside or centerline of tube
Spring back calculator
3D bending simulation
Multiple interfaces to design parts your way
Material library stores your stock materials
Die library stores the dies for your bender
Die calibration determines actual start of bend location
Bend data provides cut length, bend locations and angles, rotation and order

Optional Modules - Save! (see accessories tab)
Large Radius - for roll bending and custom CLR's
Sheet Metal - allows sheet metal parts in assembly
Header Design - design your own exhaust headers
Exhaust - design full exhaust systems around obstructions
Plate Templates - common motorsports tabs and brackets
Roll Cage Templates - popular roll cage templates
Armor Templates - bumpers, guards, and rack templates

Works with Round, Square, and Rectangle Tubing

SPECIFICATIONS

•Format: PC software, version 7.x
•System Requirements:

Minimum Requirements

Windows Operating System (XP, Vista, 7, 8, 8.1, 10, 11)
1 GHz Processor
2 GB RAM (Memory)
1 GB Hard Drive Space
1024 x 768 Screen Resolution
OpenGL 1.3 Compatible Graphics Card
.NET Framework 3.5 Installed
Active Internet Connection (Internet connection is needed during the first activation and then every 6 month, software can run offline in between).

Recommended Requirements
Windows Operating System (XP, Vista, 7, 8, 8.1, 10, 11)
1GHz Dual-Core Processor
4GB Ram (Memory)
1 GB Hard Drive Space
1280 x 800 Screen Resolution or greater
OpenGL 1.3 Compatible Graphics Card
.NET Framework 3.5 SP1 Installed
PDF Reader Installed (for Help Guides)
Full Keyboard and Mouse
CD Drive (for install from CD)
High-Speed Internet
MacOS Requirements
Windows OS running on Emulator/Parallels.
Same requirements as above.
Bend-Tech does NOT run directly on MacOS.
