BuildPro ALPHA28 Modular Welding Table Package, 79 x 39 inch

Part #: T28-2010XQ-SP22
Model: T28-0211002
Ships From: Factory shipped

Lead Time: Usually ships within 1 week

We want to give you the best information possible regarding your order at Trick-Tools and product availability is very important to us. This information reflects our best estimate of the shipping time for your order on a product by product basis. Items in stock at our warehouse typically ship same day if the order is placed before 3pm Central Time.

Availability on Items shipped directly from the factory is an estimate for that product based on averages from our experience. Items marked "Call for availability" have limited stock or unpredictable lead times and require a phone call to get a lead time estimate. We apologize but we are unable to guarantee lead times on factory-shipped items.

Price: $9,249.00
Sale Price: $8,324.10

FREE SHIPPING

Five fixturing surfaces
28mm holes spaced 100mm apart
Nitride plasma finish for corrosion protection and anti-spatter
Moveable, reversible, replaceable plates
32 piece fixturing kit included

FREIGHT:

ORIGIN:

BRAND:

We're sorry but this product is currently unavailable.

DESCRIPTION

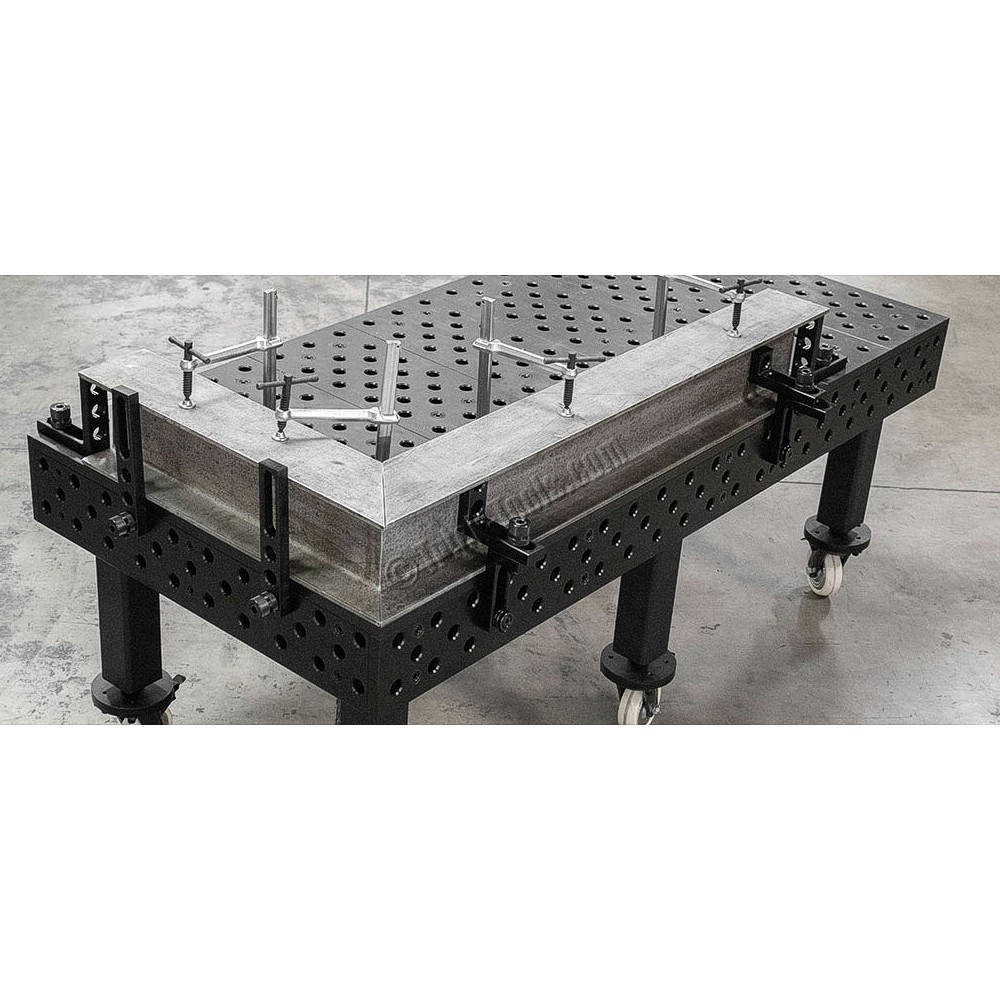

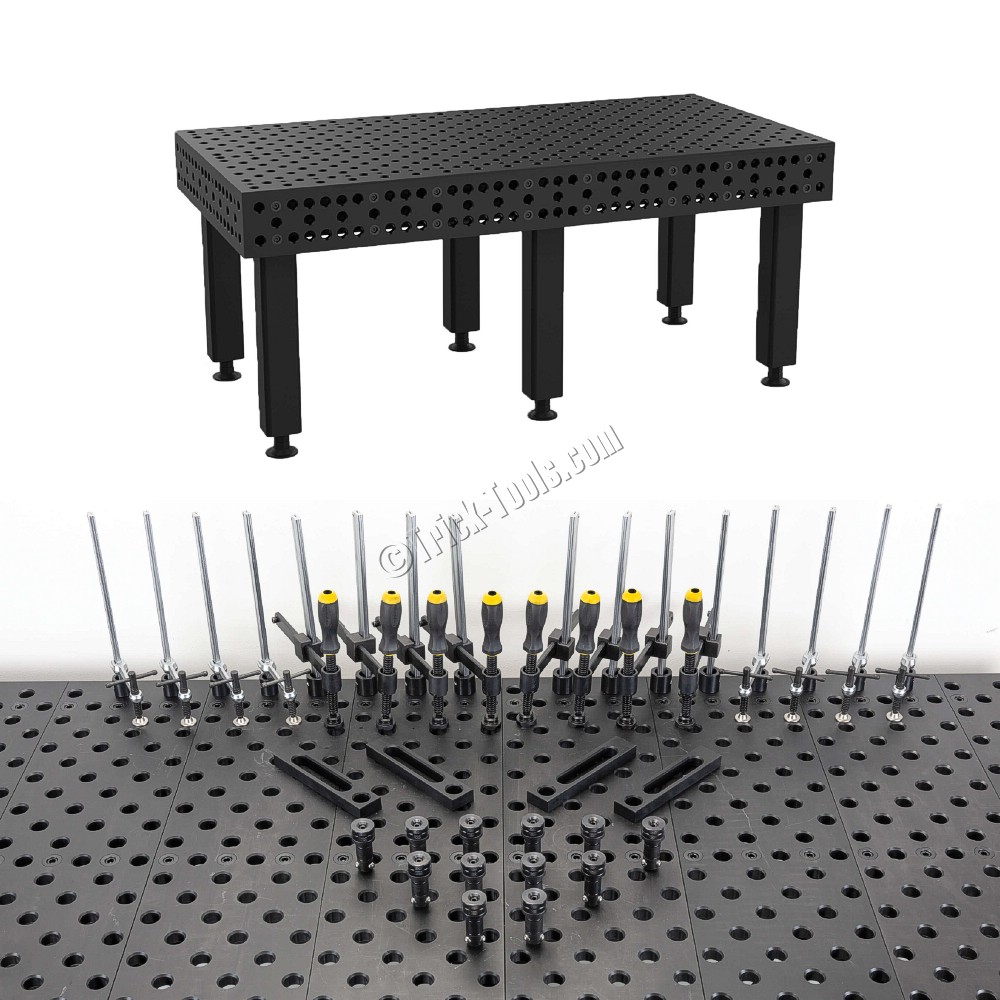

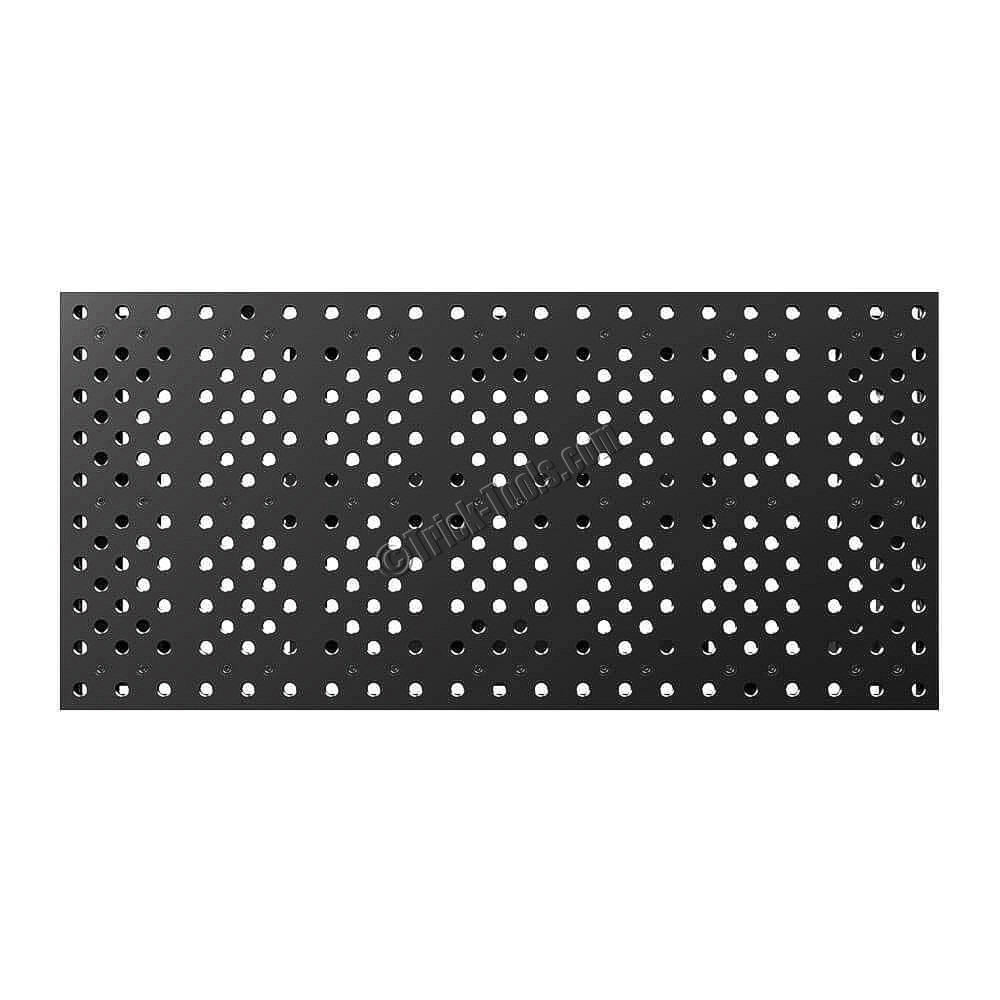

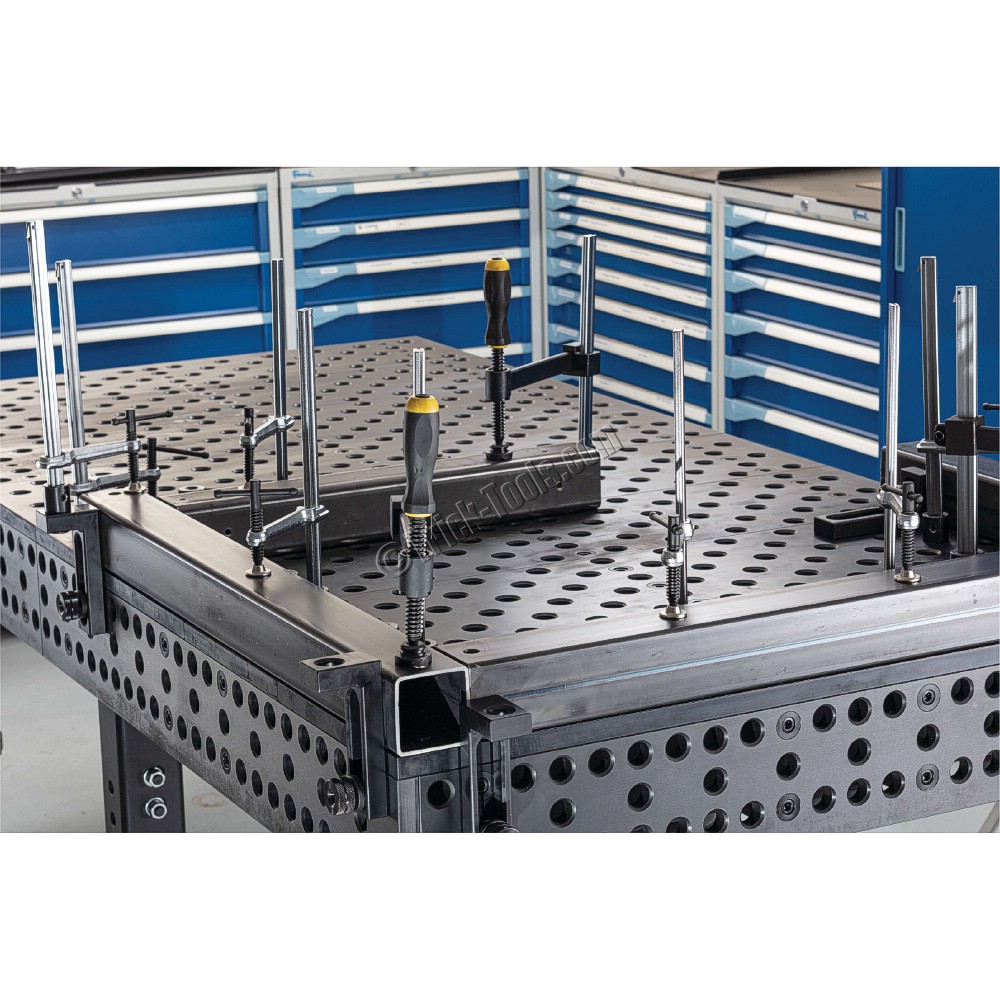

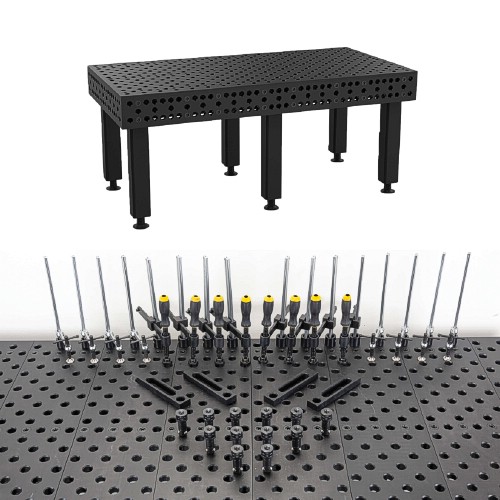

The ALPHA28 welding tables are designed with fabricators and production manufacturing in mind. These 5 sided fixturing tables use 28mm holes on a 100mm grid. The ALPHA28's plate design can be offset, flipped, and replaced making it one of the most versatile 28mm tables on the market. The nitride-coated top plates have a Vickers rating of 750 while the side plates have a Vickers rating of 550. This package includes standard 650mm legs, making the table's working height 33.5 inches.

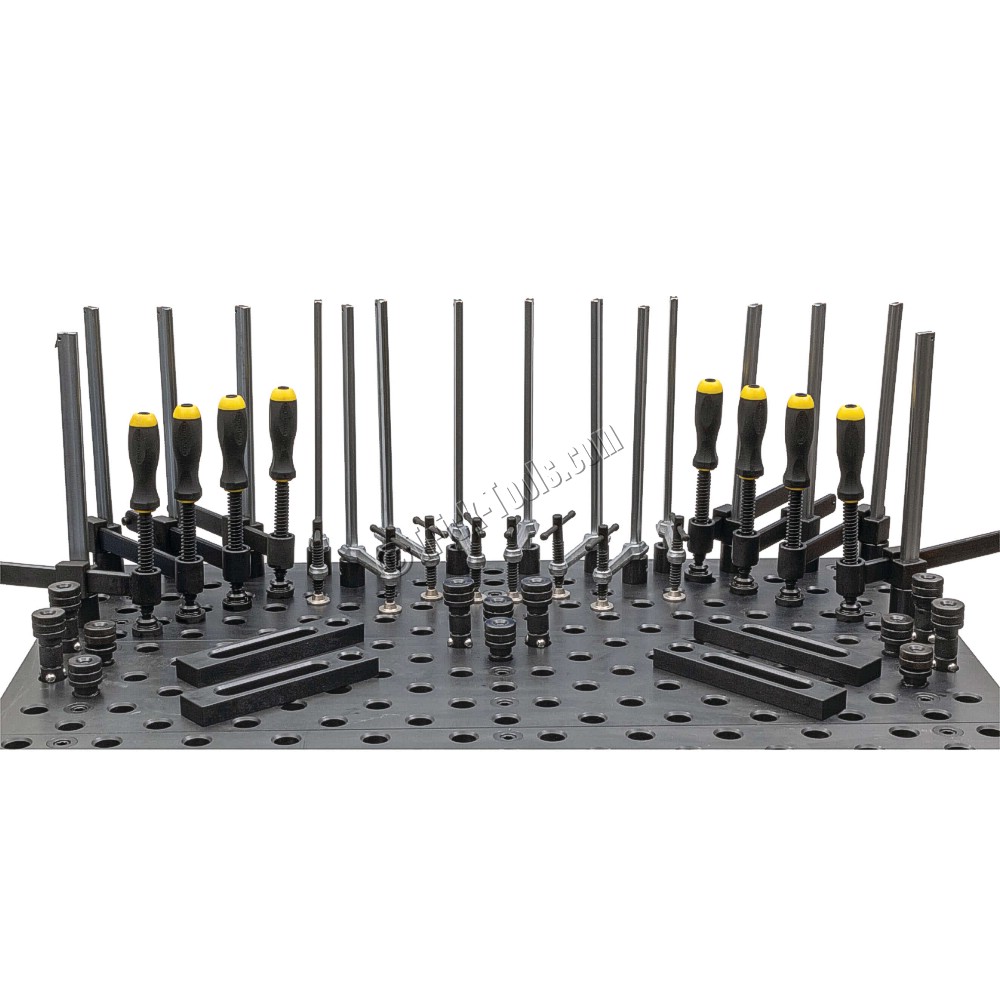

This package also includes a variety of clamps and fixturing accessories to get you started!

8 - T28-63130T Inserta Clamps
8 - T28-64230 Cross Post Bar Clamps
12 - T28-46450 Ball Lock Bolts
4 - T28-20255 Straight Edge Stops

Warranty:

90 day manufacturer's warranty

SPECIFICATIONS

•Size: 2.0m x 1.0m
•Flatness: +/- .004 inches per foot
•Finish: Nitrided
•Hole diameter: 28mm
•Hole spacing: 100mm
•Plate thickness: 1 inch +/- .002 (25mm)
•Weight (pounds): 2150
•Dimensions (LxWxH): 78.74 x 39.37 x 33.5 inches
