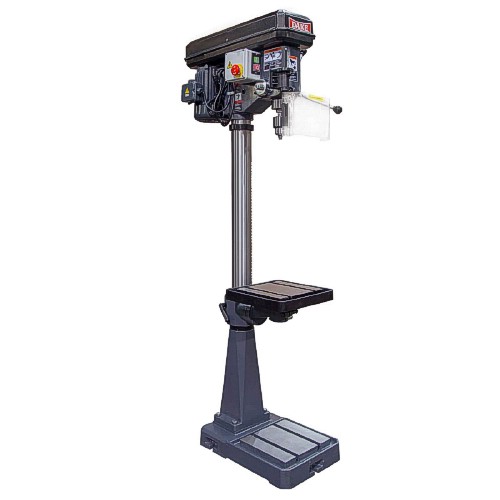

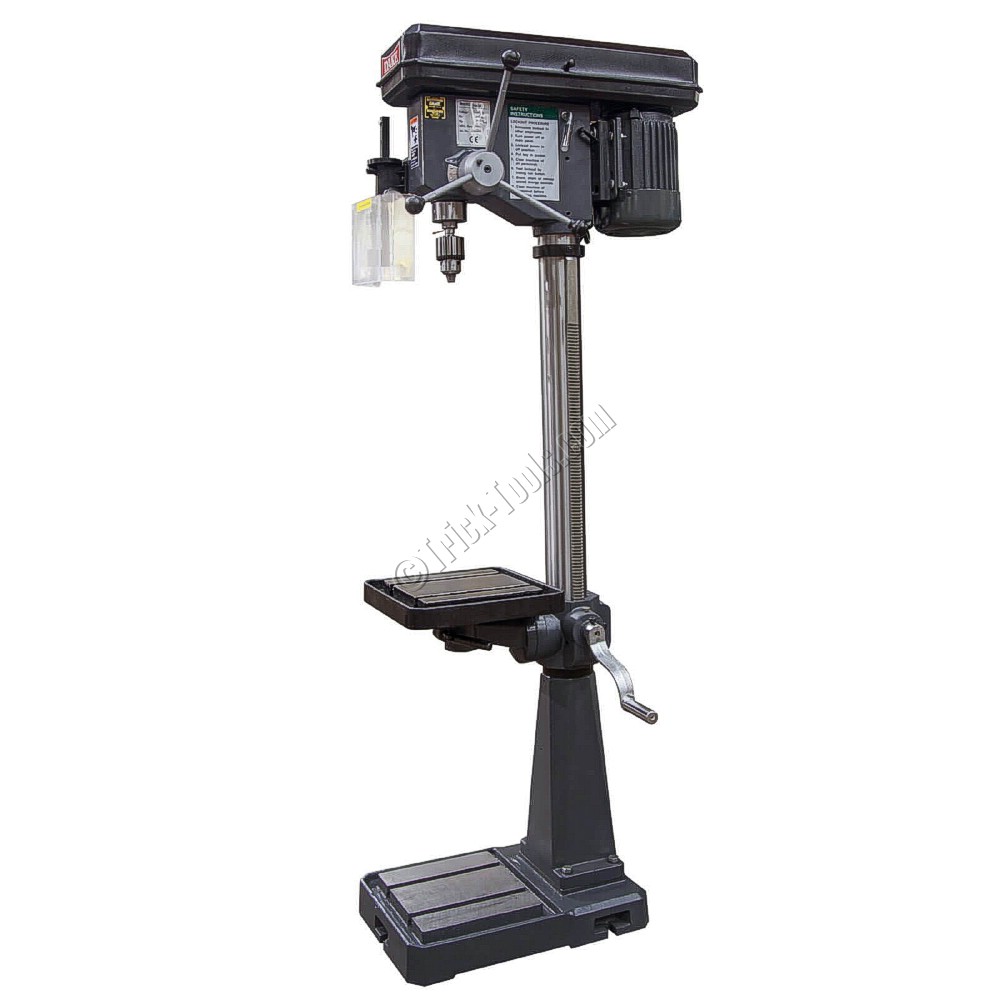

Dake SB-25 Floor Model Drill Press

Part #: 977600-1
Model: SB25
Ships From: Our warehouse

Lead Time: Usually ships within 1 day

We want to give you the best information possible regarding your order at Trick-Tools and product availability is very important to us. This information reflects our best estimate of the shipping time for your order on a product by product basis. Items in stock at our warehouse typically ship same day if the order is placed before 3pm Central Time.

Availability on Items shipped directly from the factory is an estimate for that product based on averages from our experience. Items marked "Call for availability" have limited stock or unpredictable lead times and require a phone call to get a lead time estimate. We apologize but we are unable to guarantee lead times on factory-shipped items.

In Stock

Price: $2,795.00

IN STOCK

Drilling capacity up to 1 inch
2 hp motor
MT3 spindle
18 inch working diameter

FREIGHT:

ORIGIN:

BRAND:

DESCRIPTION

The Dake SB25 drill press is great choice for a shop that needs a dependable floor standing drill press for drilling up to 1 inch diameter holes. It features a 3-5/8 inch diameter column to reduce flex, a MT3 spindle, and a generous working diameter of 18 inches. Speeds are easily adjusted by way of a quick belt tension release and step pulley system.

Warranty:

1 year manufacturer's warranty

SPECIFICATIONS

•Motor: 2 hp, 110v
•Number of Speeds: 9
•Spindle Speed(s)Range: 270-2000 rpm
•Drills To Center (inches): 18
•Drilling Capacity (inches): 1
•Spindle Taper: Morse no. 3
•Column Diameter (inches): 3-5/8
•Spindle Travel (inches): 5
•Spindle To Table Max (inches): 28.375
•Spindle To Base (inches): 49-1/4
•Table Size (inches): 13.75 x 13.75
•Base (inches): 23.625 x 15
•Weight (pounds): 483
•Dimensions (LxWxH): 23.625 x 15 x 71
