Dake Euromatic 370PP-L Vertical Column Automatic Non-Ferrous Cold Saw

Part #: 976210
Model: Euromatic 370 PPL
Ships From: Factory shipped

Lead Time: Usually ships within 1 week

We want to give you the best information possible regarding your order at Trick-Tools and product availability is very important to us. This information reflects our best estimate of the shipping time for your order on a product by product basis. Items in stock at our warehouse typically ship same day if the order is placed before 3pm Central Time.

Availability on Items shipped directly from the factory is an estimate for that product based on averages from our experience. Items marked "Call for availability" have limited stock or unpredictable lead times and require a phone call to get a lead time estimate. We apologize but we are unable to guarantee lead times on factory-shipped items.

Price: $52,995.00

Miters 90 degrees left and 45 degrees right
4.5 hp motor
Non-ferrous material
Automatic feed vise

FREIGHT:

ORIGIN:

BRAND:

DESCRIPTION

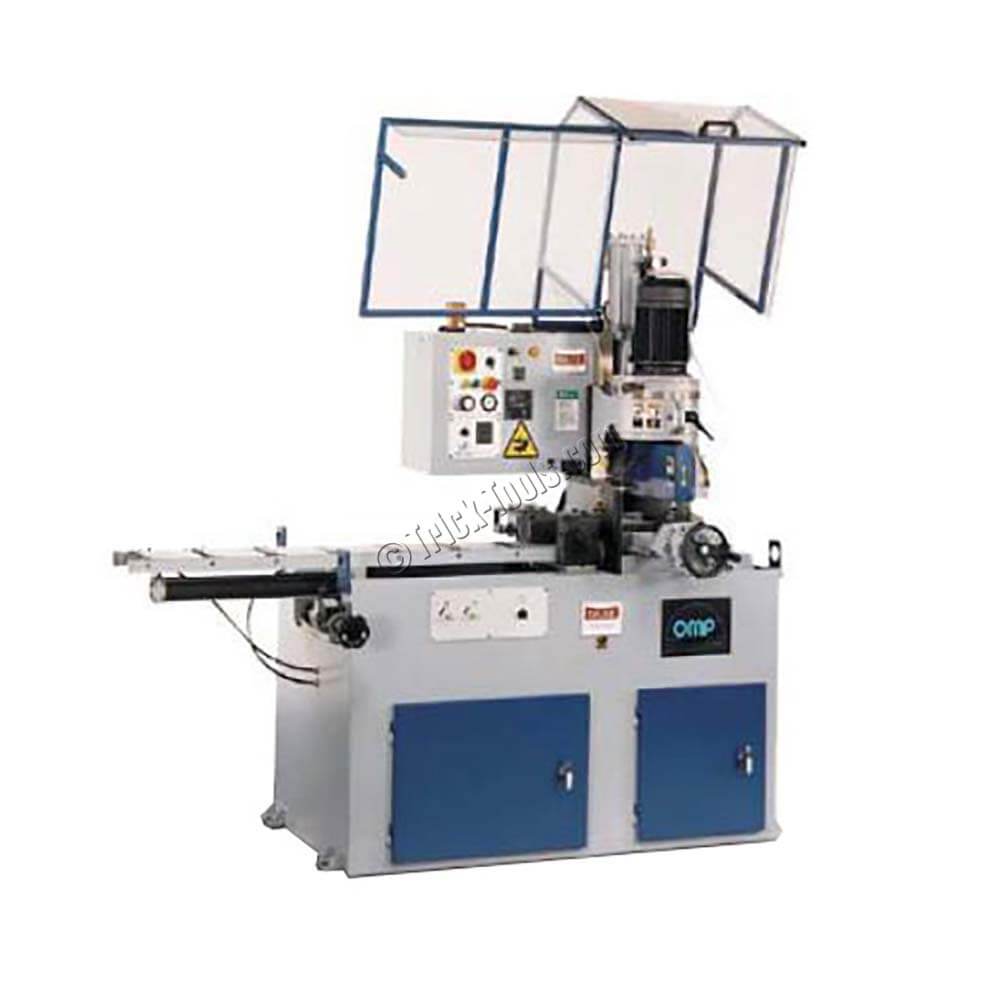

The Dake Euromatic 370PP-L Automatic non-ferrous Cold Saw is a cast iron cold saw that has a head that can rotate 45 degrees right for miter cuts and 90 degrees left for slotting operations. Dake's industry leading dependability is achieved using an oversized spindle that features a splined steel shaft and heavy duty bronze gear that is supported with tapered roller bearings.

Material clamping is done with the automatic vise featuring adjustable gib guides, removable face plates and an anti-burr arm. The self-adjusting, gripper-type feeder vise travels on 1-1/2 inch hardened rails with wiper rings and wear bushings for long life. Accurate material feed is controlled with the 20 inch shuttle feed that travels between two positive stops for accurate material feed and can have up to 99 strokes. The blade has a built in safety to shut off the saw, if the preset amp peak is exceeding during the cutting process. The best cold saws in the business all have one thing in common - the Dake name.

Warranty:

1 year manufacturer's warranty

SPECIFICATIONS

•Type: stationary
•Motor: 4.5 hp, 220 volt 3 phase
•Blade Size (inches): 14.5 (370mm)
•Number of Speeds: 2
•Speed(s): 1,500, 3,000 rpm
•Work Height (inches): 35
•Mitering Range: 90 degrees left, 45 degrees right
•Round Solid Capacity 90 Deg (inches): 4
•Round Solid Capacity 45 Deg (inches): 3-5/8
•Round Tube Capacity 90 Deg (inches): 5
•Round Tube Capacity 45 Deg (inches): 5
•Square Tube Capacity 90 Deg (inches): 4
•Square Tube Capacity 45 Deg (inches): 3-1/2
•Rectangle Tube Capacity 90 Deg (inches): 4 x 7
•Rectangle Tube Capacity 45 Deg (inches): 4 x 6
•Weight (pounds): 1716
•Dimensions (LxWxH): 73 x 55 x 87
