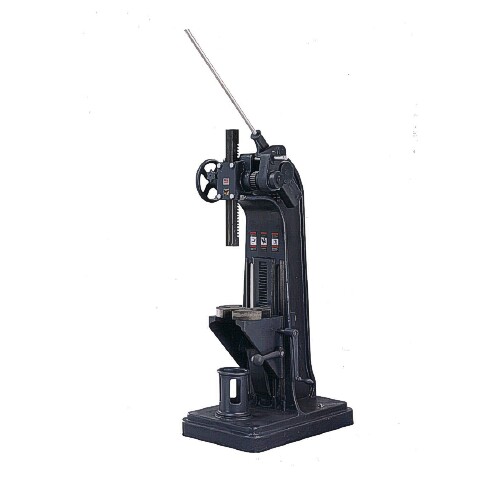

Dake No. 4 Compound Leverage Floor Arbor Press, 12 ton

Part #: 903007
Model: No. 4
Ships From: Factory shipped

Lead Time: Usually ships within 2-4 weeks

We want to give you the best information possible regarding your order at Trick-Tools and product availability is very important to us. This information reflects our best estimate of the shipping time for your order on a product by product basis. Items in stock at our warehouse typically ship same day if the order is placed before 3pm Central Time.

Availability on Items shipped directly from the factory is an estimate for that product based on averages from our experience. Items marked "Call for availability" have limited stock or unpredictable lead times and require a phone call to get a lead time estimate. We apologize but we are unable to guarantee lead times on factory-shipped items.

Price: $11,150.00

12 ton capacity
Handwheel ram advance
Converts from compound to single leverage

FREIGHT:

ORIGIN:

BRAND:

DESCRIPTION

The Dake No. 4 Compound Leverage Arbor Press, with a 12 ton capacity, features a sliding pin to convert from compound leverage to single leverage, rack and pinion table adjustment. The compound leverage mechanism results in a greater pressure applied with less effort. The ram can be quickly returned to start height with the hand wheel.

Warranty:

1 year manufacturer's warranty

SPECIFICATIONS

•Maximum Capacity: 12 tons
•Stroke (inches): 24
•Throat Depth (inches): 10
•Throat Height (inches): 26
•Ram Size: 2 x 2 x 24
•Weight (pounds): 1350
•Dimensions (LxWxH): 21.5 x 37 x 62
