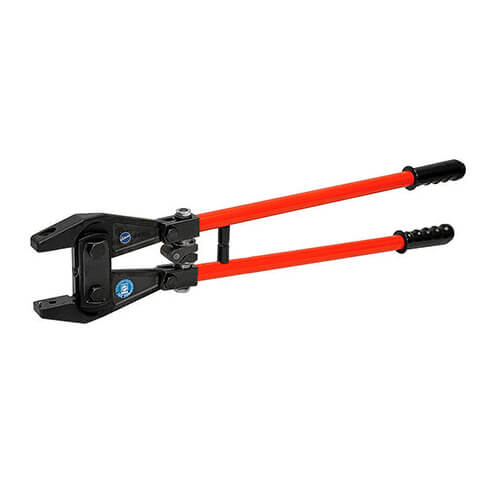

Eckold HZ52 Handheld Shrinker/Stretcher

Part #: 001.100.0010
Ships From: Factory shipped
Availability: Lead times vary - Call for availability
We want to give you the best information possible regarding your order at Trick-Tools and product availability is very important to us. This information reflects our best estimate of the shipping time for your order on a product by product basis. Items in stock at our warehouse typically ship same day if the order is placed before 3pm Central Time.

Availability on Items shipped directly from the factory is an estimate for that product based on averages from our experience. Items marked "Call for availability" have limited stock or unpredictable lead times and require a phone call to get a lead time estimate. We apologize but we are unable to guarantee lead times on factory-shipped items.
Model: HZ 52
Price: $1,312.94
  • Shrink, stretch, or clinch
  • 20 gauge mild steel capacity
  • .059 aluminum capacity
  • 1.85 inch throat depth

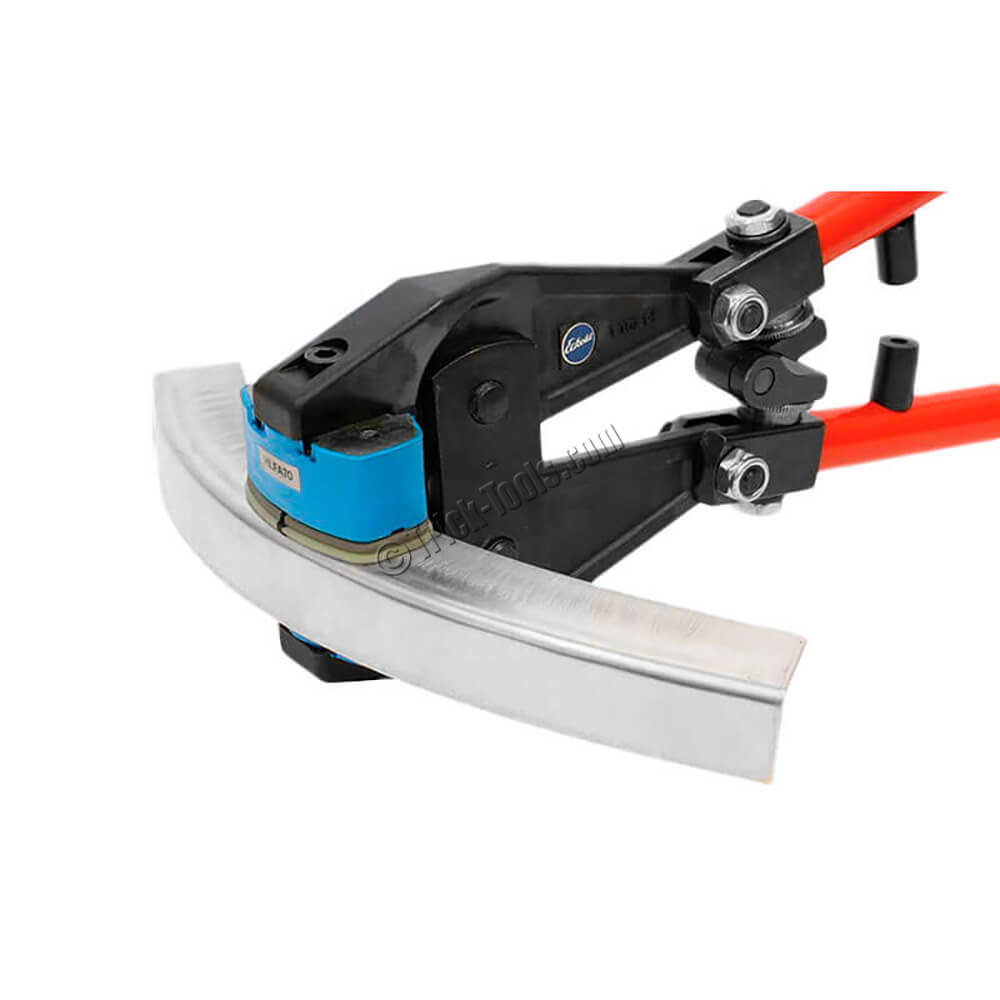

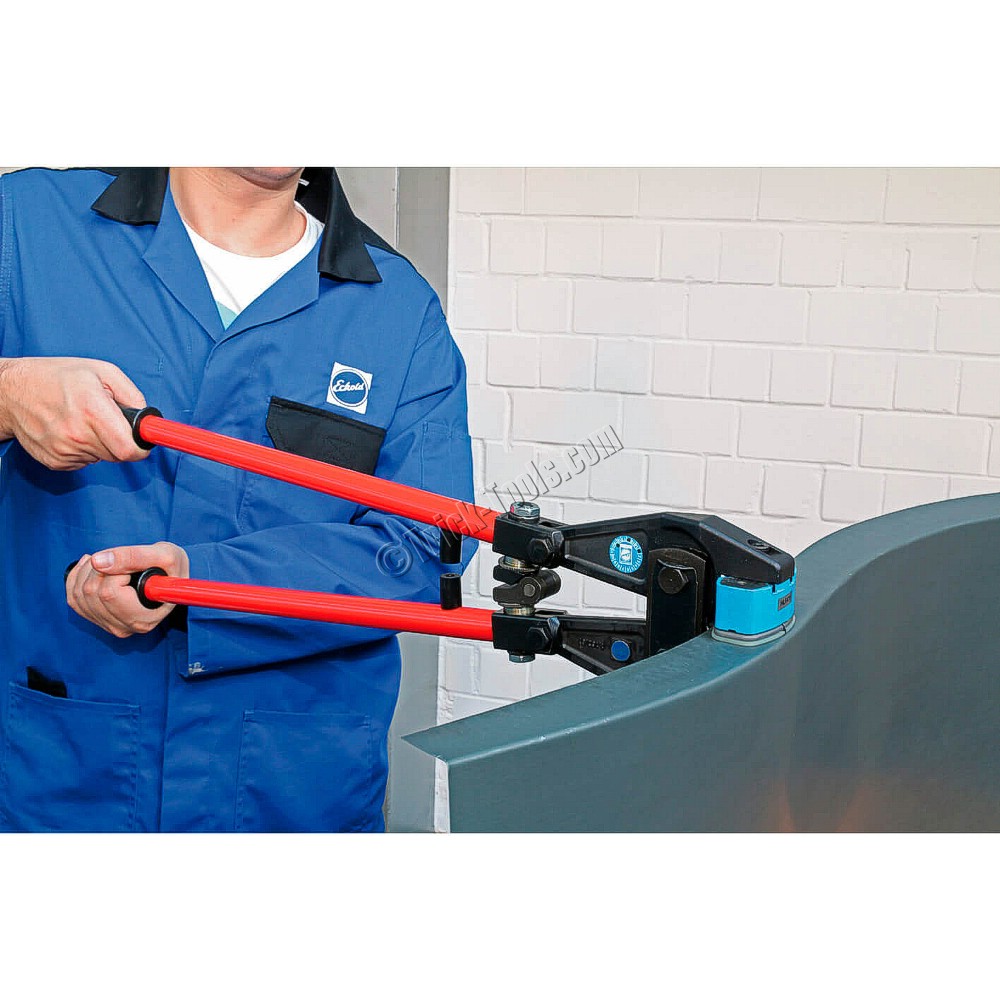

The Eckold HZ52 Handpliers are ideal for job site work and can be used in areas not accessible with standard shrinking and stretching machines. A great compliment any of the larger Eckold floor model machines as it can use some of the same standard tooling. Jaws are available for shrinking and stretching of up to 20 gauge (1.0 mm) mild steel or .059 (1.5mm) aluminum.

Jaws sold separately, please see accessories tab.


Throat Depth (inches): 1.85
Steel Capacity: 20 gauge
Aluminum Capacity (inches): .059
Weight (pounds): 8.4
Dimensions (LxWxH): 27 x 1.1 x 5.4


  • HZ 52 handpliers
  • Jaws sold separately (see accessories tab)
