Ellis 1600 Dual Mitering Head Band Saw

Part #: 1600-ELL
Model: 63502014600
Ships From: Our warehouse

Lead Time: Usually ships within 1 day

We want to give you the best information possible regarding your order at Trick-Tools and product availability is very important to us. This information reflects our best estimate of the shipping time for your order on a product by product basis. Items in stock at our warehouse typically ship same day if the order is placed before 3pm Central Time.

Availability on Items shipped directly from the factory is an estimate for that product based on averages from our experience. Items marked "Call for availability" have limited stock or unpredictable lead times and require a phone call to get a lead time estimate. We apologize but we are unable to guarantee lead times on factory-shipped items.

In Stock

Price: $4,620.00
Sale Price: $4,175.00

IN STOCK

1 hp motor
Miters up to 50 degrees
Hydraulic head down feed
Cuts 10 inch round at 90 degrees, 6-7/8 inch at 45 degrees
Dry cutting saw

FREIGHT:

ORIGIN:

BRAND:

DESCRIPTION

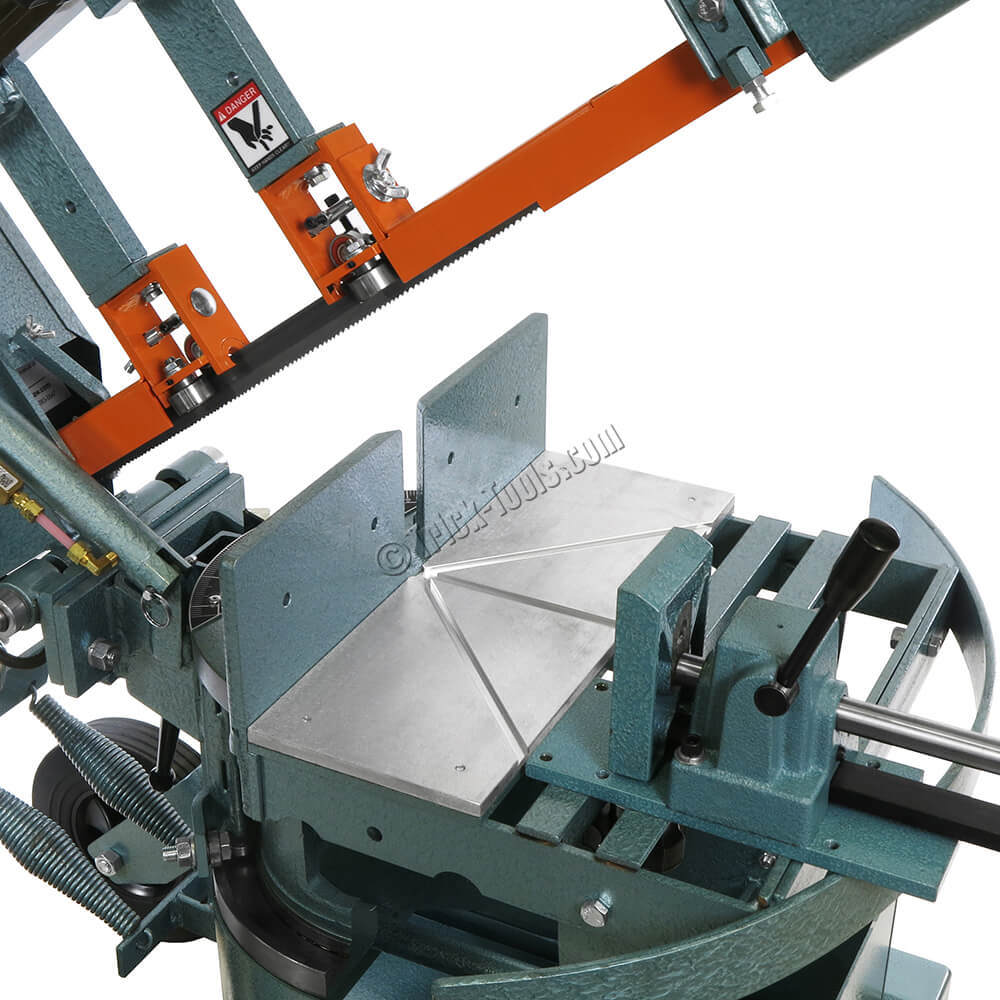

The Ellis 1600 band saw is a workhorse machine popular for its dual mitering capability, extremely large cutting capacity, and rugged durability. The solid construction of this band saw ensures smooth and accurate cuts through a variety of materials.

The Ellis 1600 is compact, portable, and uses shop space efficiently as the material stays stationary for miter cuts while the head rotates up to 45 degrees both left and right. Fast and accurate angle selection is easy with the large built-in protractor. The head feed rate is controlled by a hydraulic control, which has a locking valve for setting up your cuts. Material clamping and unclamping are lightning fast with the standard quick-acting vise.

Ellis band saws are individually set up and tested at the factory, including the blade break-in process, to ensure you will be up and running fast. Whether you're in the workshop or on-site, this reliable and low-maintenance saw is sure to deliver professional-grade results for years to come.

Note: 220-volt version can be special ordered from the factory with an average lead time of 8 weeks.

Warranty:

1 year manufacturer's warranty

SPECIFICATIONS

•Type: portable
•Motor: 1.0 hp 110 volt
•Blade Width (inches): 1
•Blade Length (inch): 120
•Blade Thickness (inches): .035
•Number of Speeds: 3
•Speed(s): 70, 135, 250 feet per minute
•Work Height (inches): 27-3/4
•Mitering Range: 50 degrees, left and right
•Round Solid Capacity 90 Deg (inches): 10
•Round Solid Capacity 45 Deg (inches): 6-7/8
•Round Tube Capacity 90 Deg (inches): 10
•Round Tube Capacity 45 Deg (inches): 6-7/8
•Square Tube Capacity 90 Deg (inches): 7
•Square Tube Capacity 45 Deg (inches): 5
•Rectangle Tube Capacity 90 Deg (inches): 10 H x 8 W
•Rectangle Tube Capacity 45 Deg (inches): 8 H x 6 W
•Weight (pounds): 481
•Dimensions (LxWxH): 59 x 24 x 48
