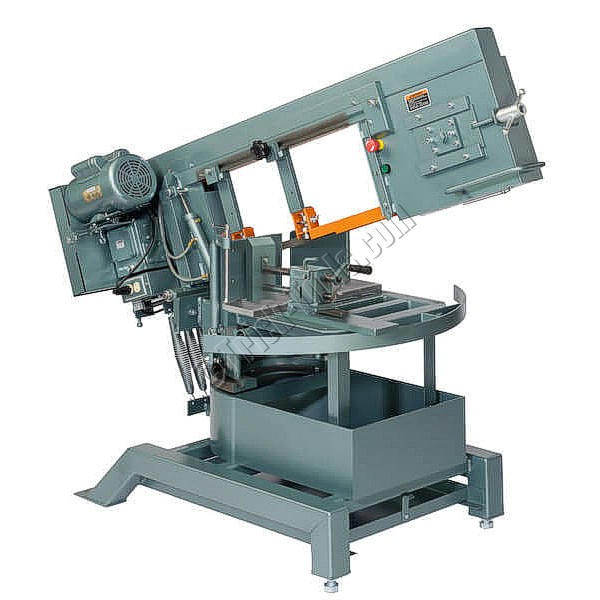

Ellis 2000 Dual Mitering Head Band Saw

Part #: 2000-ELL
Ships From: Our warehouse

Lead Time: Usually ships within 1 day

We want to give you the best information possible regarding your order at Trick-Tools and product availability is very important to us. This information reflects our best estimate of the shipping time for your order on a product by product basis. Items in stock at our warehouse typically ship same day if the order is placed before 3pm Central Time.

Availability on Items shipped directly from the factory is an estimate for that product based on averages from our experience. Items marked "Call for availability" have limited stock or unpredictable lead times and require a phone call to get a lead time estimate. We apologize but we are unable to guarantee lead times on factory-shipped items.

Price: $6,395.00
Sale Price: $6,249.00

IN STOCK

Miters 60 degrees left and right
1-1/2 hp motor
Hydraulic head down feed
Cuts 11 inch round at 90 and 45 degrees
Dry cutting saw

FREIGHT:

ORIGIN:

BRAND:

DESCRIPTION

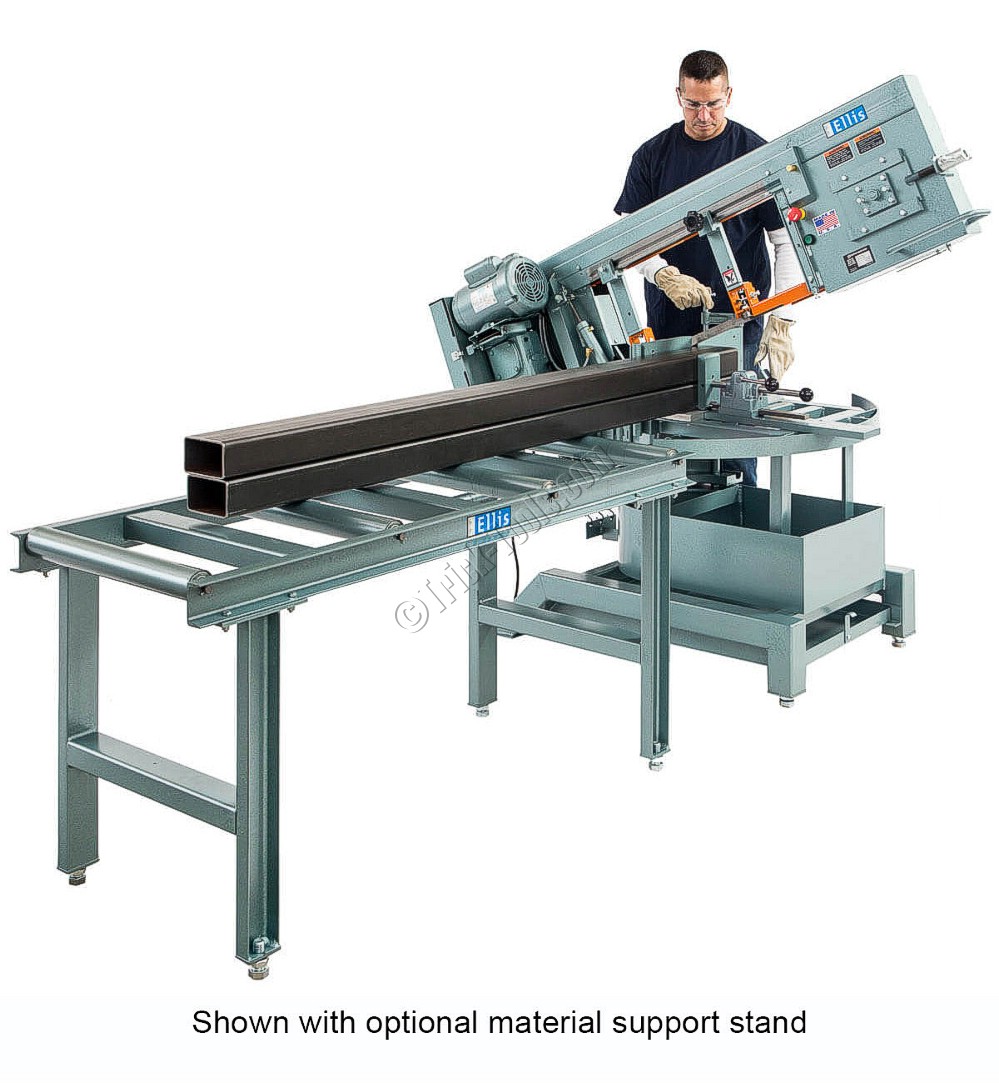

The Ellis 2000 band saw is very popular for its dual mitering capability, extremely large cutting capacity, and rugged durability. The material stays stationary for miter cuts while the head rotates. The Ellis 2000 model boasts the largest mitering capability in the whole Ellis line up at 60 degrees left and right!

Fast and accurate angle selection are possible with the built-in protractor and head feed rate is controlled by the hydraulic control with a locking valve. Material clamping and unclamping is quick and easy with the standard quick acting vise. This stationary band saw is an unbeatable value with hard to find capabilities.

Includes p/n 5750 stock gauge with micro adjuster - Free!

Warranty:

1 year manufacturer's warranty

SPECIFICATIONS

•Type: stationary
•Motor: 1.5 hp
•Blade Width (inches): 1
•Blade Length (inch): 144
•Blade Thickness (inches): .035
•Number of Speeds: 3
•Speed(s): 70, 135, 240 feet per minute
•Mitering Range: 60 degrees, left and right
•Round Solid Capacity 90 Deg (inches): 11
•Round Solid Capacity 45 Deg (inches): 11
•Round Tube Capacity 90 Deg (inches): 11
•Round Tube Capacity 45 Deg (inches): 11
•Square Tube Capacity 90 Deg (inches): 11
•Square Tube Capacity 45 Deg (inches): 9
•Rectangle Tube Capacity 90 Deg (inches): 11 H x 13 W
•Rectangle Tube Capacity 45 Deg (inches): 9 H x 11 W
•Weight (pounds): 800
•Dimensions (LxWxH): 72 x 34 x 47
