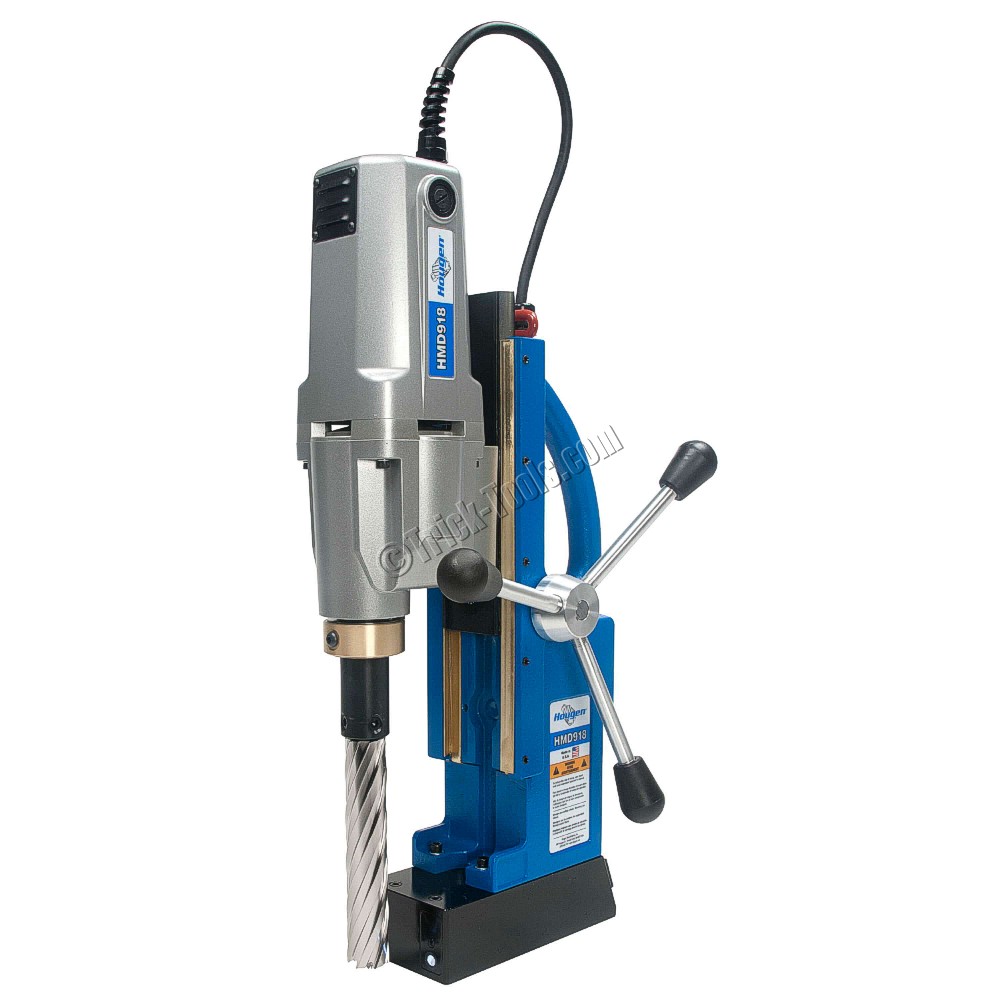

Hougen HMD918 Portable Magnetic Drill

Part #: 0918102
Model: HMD918
Ships From: Factory shipped
Lead Time: Usually ships within 1-2 days
We want to give you the best information possible regarding your order at Trick-Tools and product availability is very important to us. This information reflects our best estimate of the shipping time for your order on a product by product basis. Items in stock at our warehouse typically ship same day if the order is placed before 3pm Central Time.

Availability on Items shipped directly from the factory is an estimate for that product based on averages from our experience. Items marked "Call for availability" have limited stock or unpredictable lead times and require a phone call to get a lead time estimate. We apologize but we are unable to guarantee lead times on factory-shipped items.
Price: $3,236.75
Sale Price: $2,913.00
  • Receive a FREE Cutter Set when you purchase this Magnetic Drill. See the product description for more details!
  • Up to 6 inch depth of cut
  • LED pilot light
  • Two speed
  • Pressurized coolant system
SHIPPING:
UPS
ORIGIN:
BRAND:
Hougen logo
Quantity:

DESCRIPTION

Hougen's HMD918 Portable Magnetic Drill allows the user to cut through stacked material and reach cutting depths up to 6 inches. The HMD918 can drill holes up to 2-3/8 inches in diameter, 3 inches deep, or up to 1-1/4 OD up to 6 inches deep with standard cutters. With Hougen Copperhead Carbide cutters cutting depths of 6 inches can be performed up to 2 inch OD.

A variety of accessories are available to turn your drill into a portable machine shop including drill chucks, tapping, countersink, and more.

Features include:

  • Two-speed gearbox (250, 450 rpm)

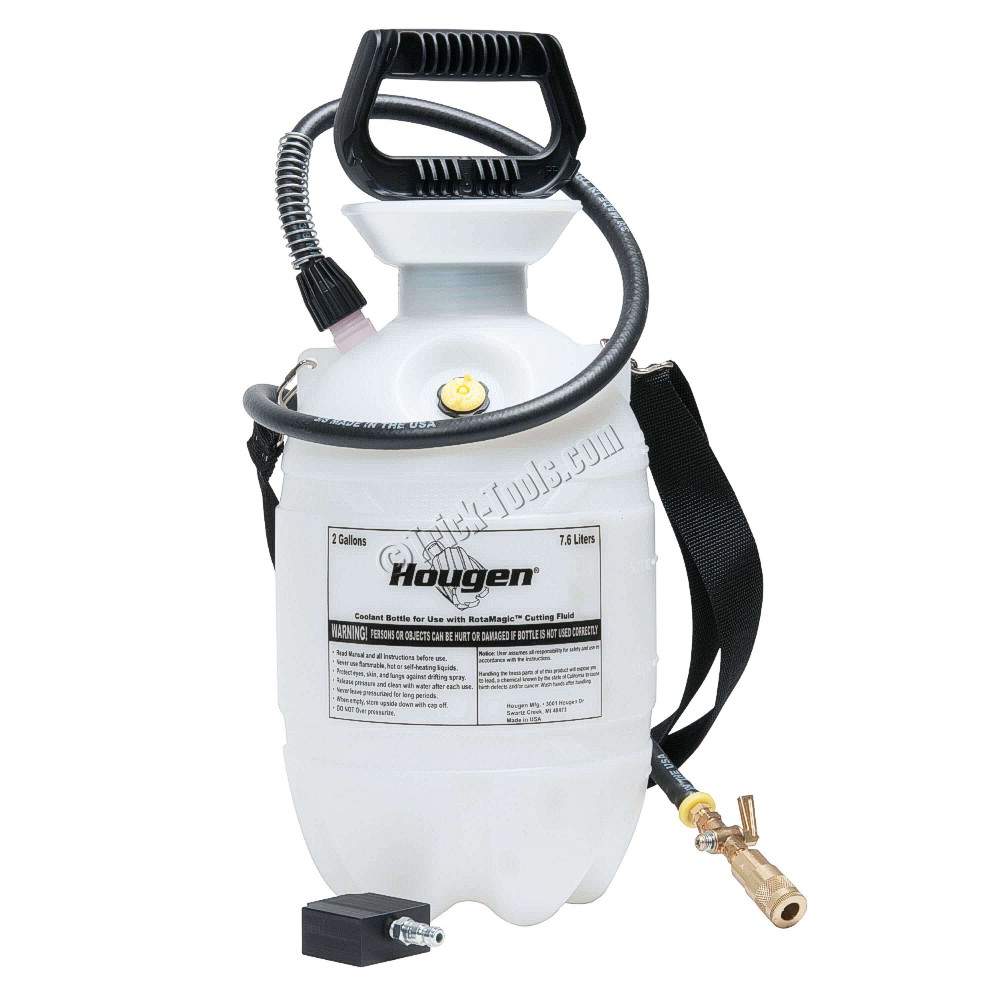

  • Included pressurized coolant system
  • Pilot light for low light conditions and greater hole accuracy
  • Two stage magnet, engages when the motor is turned for increased magnet life
  • Lift detector safety system

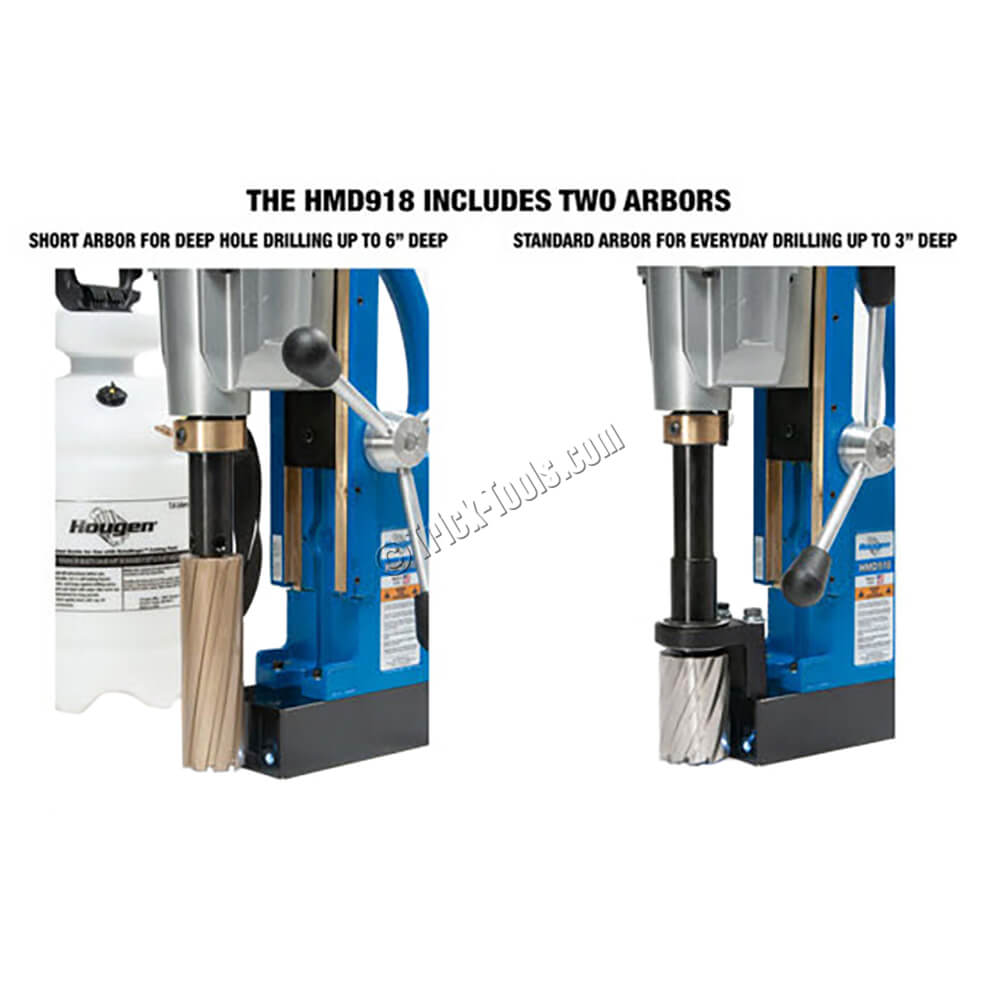

  • Includes extra arbor for deep holes
  • Positive slug ejection (up to 3 inch cutting depth)
  • Feed handle quickly changes from side to side

Purchase this Hougen Magnetic Drill and receive a FREE 12001 Cutter Kit for a limited time! Purchase your Magnetic Drill between August 1 and September 30, 2025, and register it on Hougen's website, Here to receive your FREE Cutter Kit. All Magnetic Drills must be registered by October 31, 2025 to receive this limited time offer!



Warranty:

2 year manufacturer's warranty

SPECIFICATIONS

Motor: 115 volt, 13.5 amp/220 volt, 6.75 amp
Number of Speeds: 2
Spindle Speed(s)Range: 250/450
Drilling Capacity (inches): 7/16 to 2-3/8
Tapping Capacity (inches): 5/8 w/ tapping unit
Spindle Travel (inches): 6.8
•Weight (pounds): 45

INCLUDES

  • HMD918 mag drill
  • Pressurized coolant system
  • Short arbor for deep cutting
  • Standard arbor for everyday cutting
  • Pint of coolant
  • Safety Chain
  • Hex wrenches
  • Carrying Case
