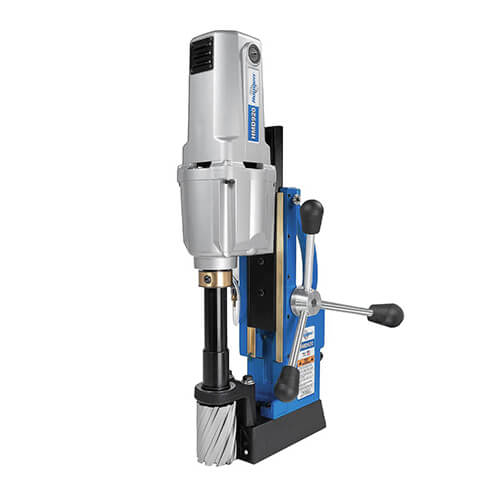

Hougen HMD920 Portable Magnetic Drill

Part #: 092010
Model: HMD920
Ships From: Factory shipped

Lead Time: Usually ships within 1 week

We want to give you the best information possible regarding your order at Trick-Tools and product availability is very important to us. This information reflects our best estimate of the shipping time for your order on a product by product basis. Items in stock at our warehouse typically ship same day if the order is placed before 3pm Central Time.

Availability on Items shipped directly from the factory is an estimate for that product based on averages from our experience. Items marked "Call for availability" have limited stock or unpredictable lead times and require a phone call to get a lead time estimate. We apologize but we are unable to guarantee lead times on factory-shipped items.

Price: $2,193.50
Sale Price: $1,974.00

NEW

Receive a FREE Cutter Set when you purchase this Magnetic Drill. See the product description for more details!
Drilling capacity up to 2-3/8 inch hole, 3 inches deep
LED pilot light
Three speed
Optional swivel base

SHIPPING:

ORIGIN:

BRAND:

DESCRIPTION

Hougen's new HMD920 Three Speed Magnetic Drill replaces the HMD917 and comes with a larger motor for increased strength as well as three speeds to allow the drill to use HSS and Carbide annular cutters in a variety of materials. The HMD920 can drill holes up to 2-3/8 inches in diameter and 3 inches deep.

A variety of accessories are available to turn your drill into a portable machine shop including drill chucks, tapping, countersink, and more. Choose optional standard or swivel base.

Features include:

Three-speed gearbox (250, 450, 700 rpm)
Integrated gravity-fed coolant system
Pilot light for low light conditions and greater hole accuracy
Two stage magnet, engages when the motor is turned for increased magnet life
Lift detector safety system
Quick change slot drive arbor system
Positive slug ejection
Optional swivel base

Purchase this Hougen Magnetic Drill and receive a FREE 12001 Cutter Kit for a limited time! Purchase your Magnetic Drill between August 1 and September 30, 2025, and register it on Hougen's website, Here to receive your FREE Cutter Kit. All Magnetic Drills must be registered by October 31, 2025 to receive this limited time offer!

Warranty:

2 year manufacturer's warranty

SPECIFICATIONS

•Motor: 115 volt, 9 amp
•Number of Speeds: 3
•Spindle Speed(s)Range: 250/450/700
•Drilling Capacity (inches): 7/16 to 2-3/8
•Tapping Capacity (inches): 1/2 w/ tapping unit
•Weight (pounds): 46
