Huth Counterclockwise Rotation Gauge

Part #: 976CC
Ships From: Our warehouse
Availability: Usually ships within 1 day
We want to give you the best information possible regarding your order at Trick-Tools and product availability is very important to us. This information reflects our best estimate of the shipping time for your order on a product by product basis. Items in stock at our warehouse typically ship same day if the order is placed before 3pm Central Time.

Availability on Items shipped directly from the factory is an estimate for that product based on averages from our experience. Items marked "Call for availability" have limited stock or unpredictable lead times and require a phone call to get a lead time estimate. We apologize but we are unable to guarantee lead times on factory-shipped items.
Price: $236.00
  • Useful for indexing tubes up to 3 inch OD for bending
  • Reads counter-clockwise for non-Huth bend cards
  • Easy to read 360 degree rotation

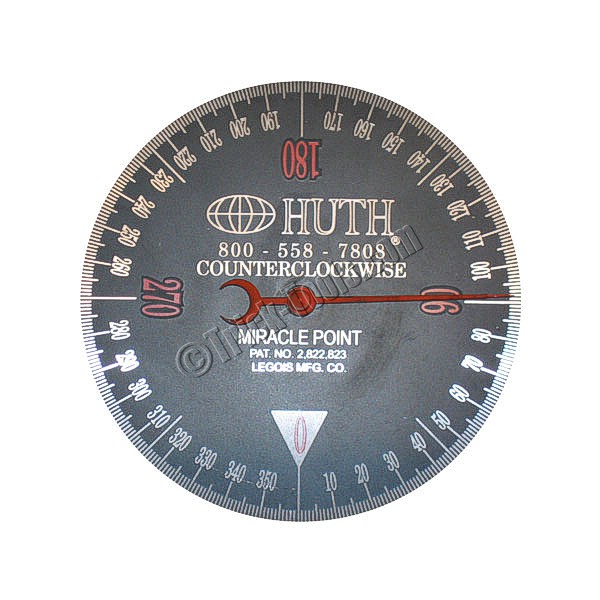

The Huth rotation dial indicators are the perfect companion to large diameter tube bending applications such as exhaust, turbo, and cold air intake systems. The 976 CC is used with all non-Huth bend data cards and is the most accurate in the industry. Built with a rugged cast aluminum body and weighted indicator arm, it is sure to stand up in a rugged environment.


Range: 0-360 degrees
Resolution: 1 degree
Accuracy: 1 degree
Capacity: 1-1/4 - 3 inch OD
Construction: cast aluminum
