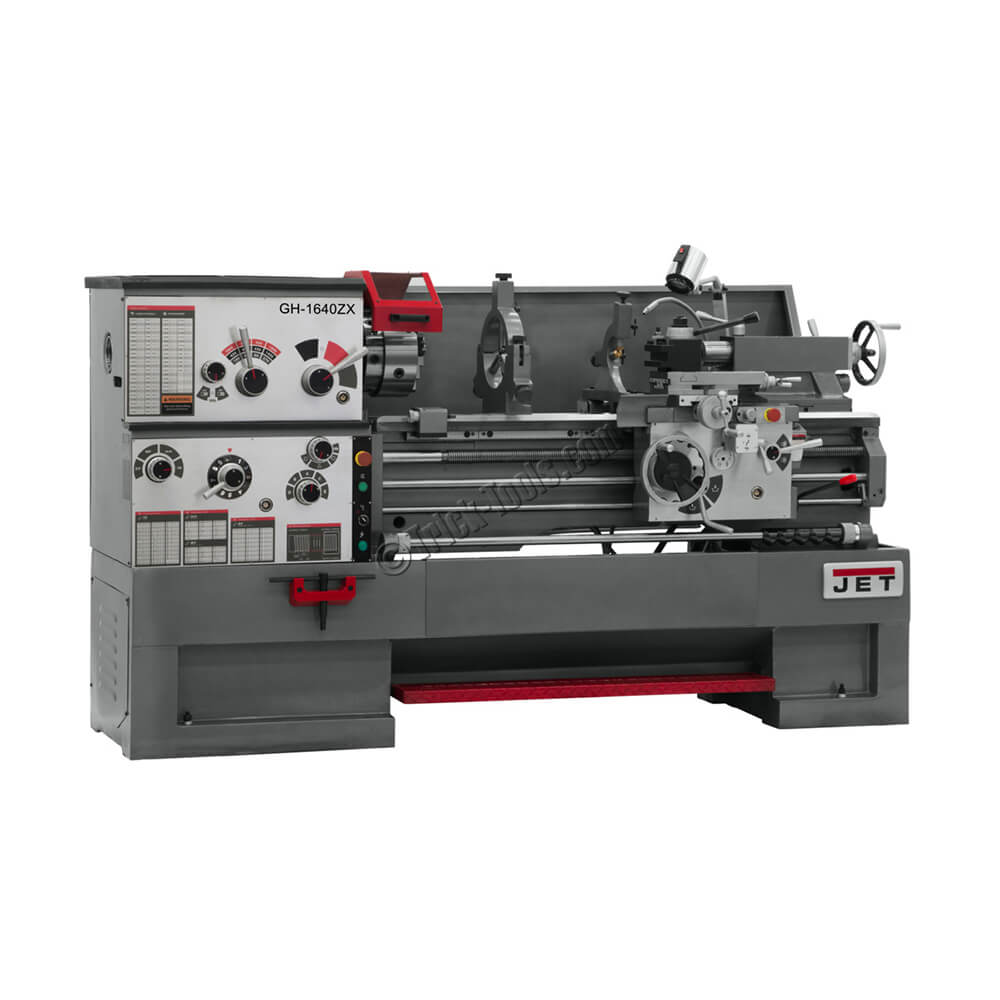

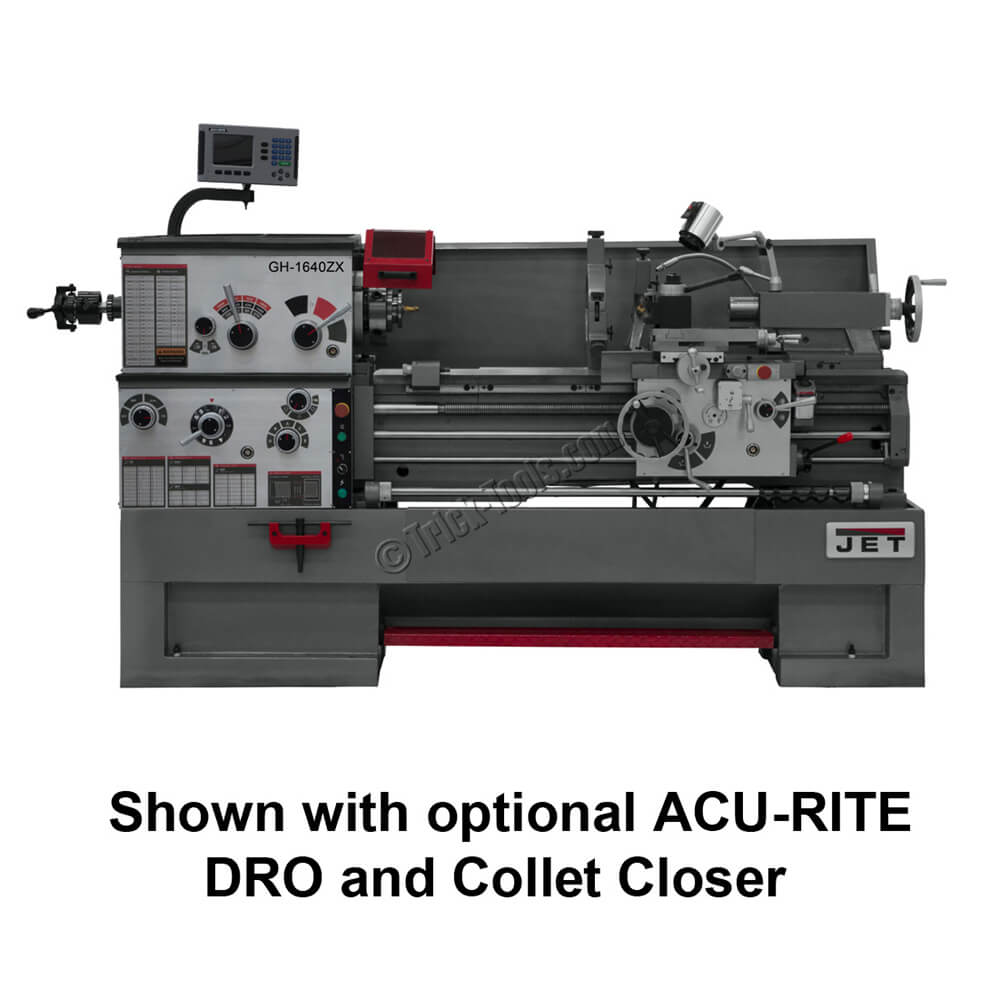

JET GH-1640ZX Large Spindle Bore Lathe

Part #: GH-1640ZX
Ships From: Factory shipped

Lead Time: Usually ships within 1-2 weeks

We want to give you the best information possible regarding your order at Trick-Tools and product availability is very important to us. This information reflects our best estimate of the shipping time for your order on a product by product basis. Items in stock at our warehouse typically ship same day if the order is placed before 3pm Central Time.

Availability on Items shipped directly from the factory is an estimate for that product based on averages from our experience. Items marked "Call for availability" have limited stock or unpredictable lead times and require a phone call to get a lead time estimate. We apologize but we are unable to guarantee lead times on factory-shipped items.

Price: $41,316.79
Sale Price: $33,629.99

FREE SHIPPING

Multiple configuration options available
7hp 230v three phase motor
16 x 40 inch capacity
Large 3-1/8 inch spindle bore

FREIGHT:

WARRANTY:

ORIGIN:

BRAND:

Options:

Quantity:

DESCRIPTION

The ZX-Series Large Spindle Bore Lathe combines power, precision, efficiency, and reliability for your turning needs. Its one-piece cast iron base minimizes vibrations during operation, allowing for heavier cuts while maintaining accuracy. The universal gearbox eliminates the hassle of changing gears, saving you time. This lathe is equipped with a 10 inch, three-jaw scroll chuck with top reversing jaws, plus an emergency stop on the carriage for added operator safety. Like all JET equipment, these lathes are backed by the JET Red Assurance—an industry-leading two-year warranty for added peace of mind.

Not seeing the configuration you are wanting or have additional questions? Reach out to us by phone or email and one of our knowledgeable sales staff would be happy to help.

Capacities:

Swing Over Bed: 16 inches
Swing Over Cross Slide: 10 inches
Swing Through Gap: 10 inches
Length of Gap: 12 inches
Distance Between Centers: 40 inches

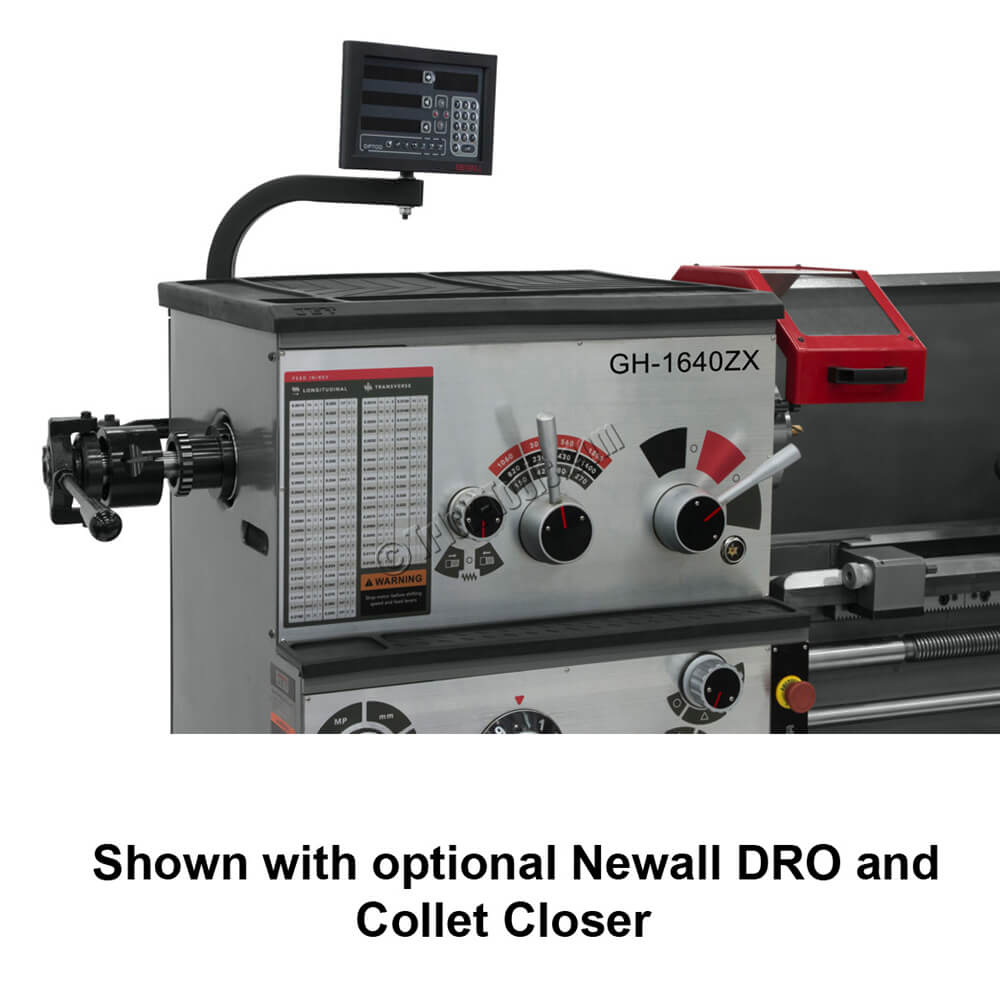

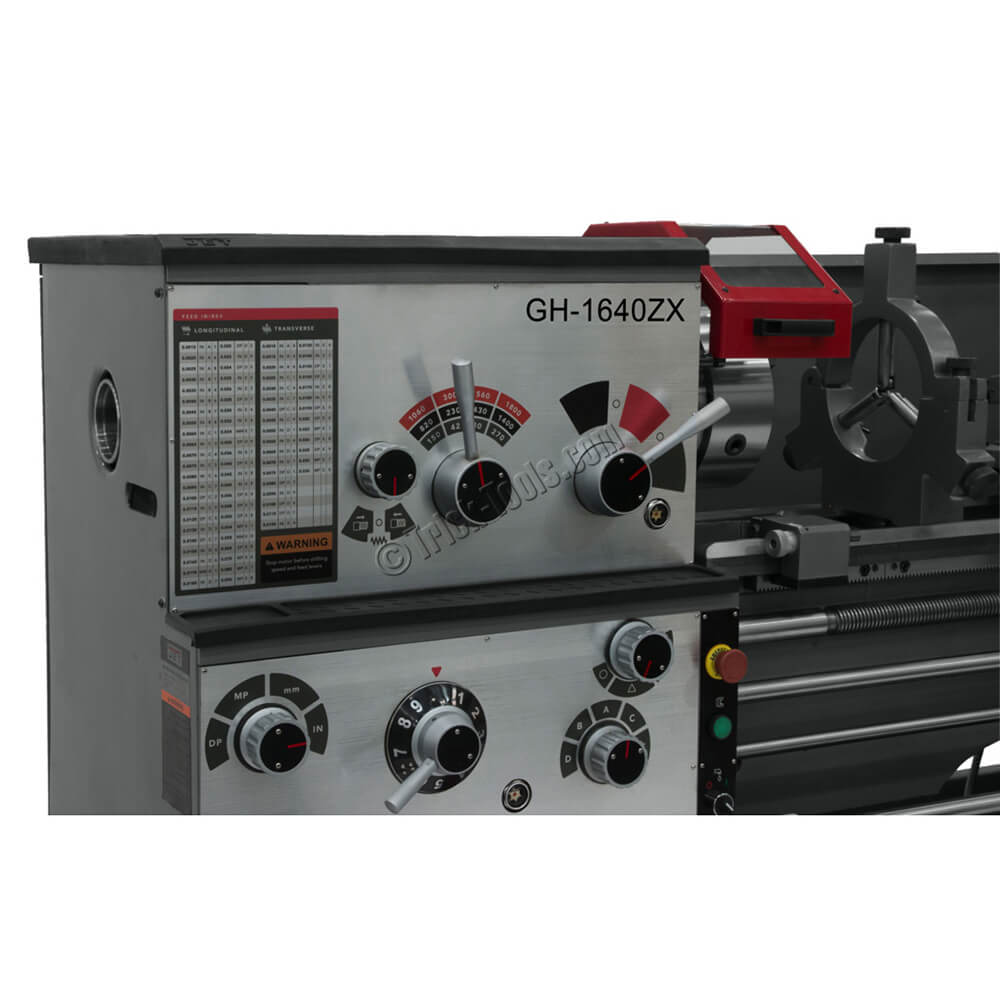

Headstock:

Spindle Bore: 3-1/8 inch
Spindle Mount: D1-8
Spindle with Sleeve: MT-7 (MT-5)
Number of Spindle Speeds: 12
Range of Spindle Speeds: 25-1800 RPM

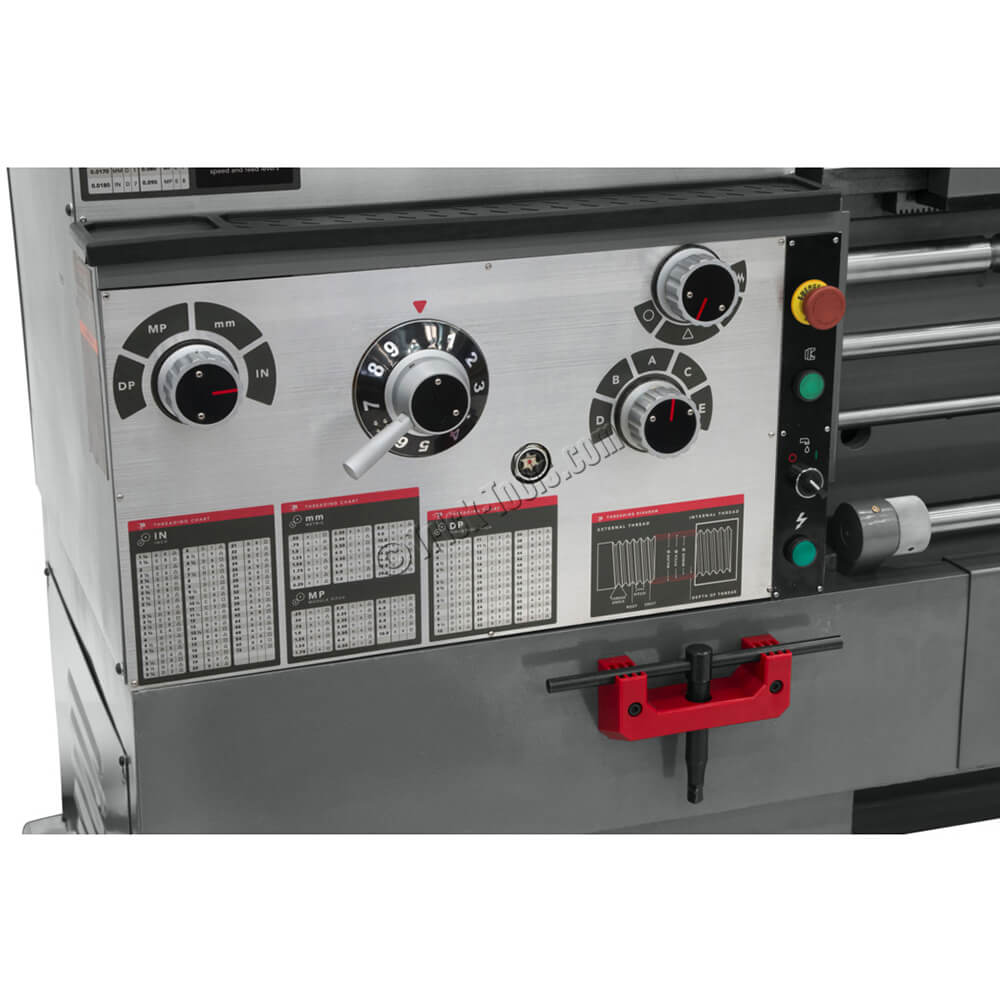

Gearbox:

Number of Longitudinal and Cross Feed Rates: 46/31
Range of Longitudinal Feeds (inch/rev): 0.0015 – 0.0900
Range of Cross Feeds (inch/rev): 0.0010 – 0.0360
Number of Inch Threads: 61
Range of Inch Threads: 1-5/8 – 72 TPI
Number of Metric Threads: 24
Range of Metric Threads: 0.50 - 20mm
Number of Diametral Threads: 45
Range of Diametral Threads: 3-1/4 - 96DP
Number of Diametral Threads: 20
Range of Diametral Threads: 0.25 - 10MP

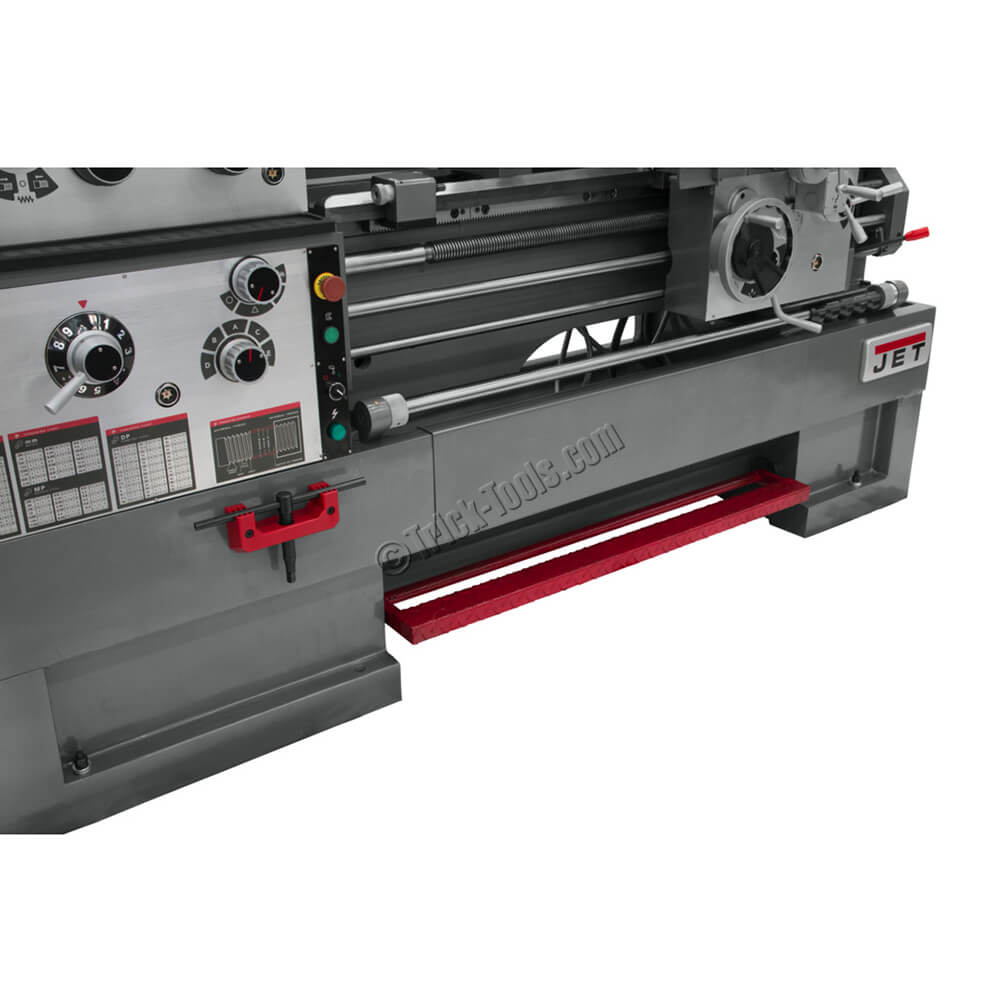

Compound and Carriage:

Maximum Compound Slide Travel: 5-1/8 inches
Maximum Cross Slide Travel: 9 inches
Maximum Carriage Travel: 36 inches

Tailstock:

Tailstock Spindle Travel: 6 inches
Taper in Tailstock Spindle: MT-3

Miscellaneous:

Steady Rest Capacity: 3/8 – 7 inches
Follow Rest Capacity: 1/2 – 3-1/2 inches
Width of Bed: 13-1/8 inches
Overall Dimensions: 91-5/16 x 41-5/16 x 50-5/8 inches (LxWxH)
Main Motor: 7-1/2HP, 3PH, 230V (460v available)
Net Weight (approx.): 4689

Warranty:

2 year manufacturer's warranty
