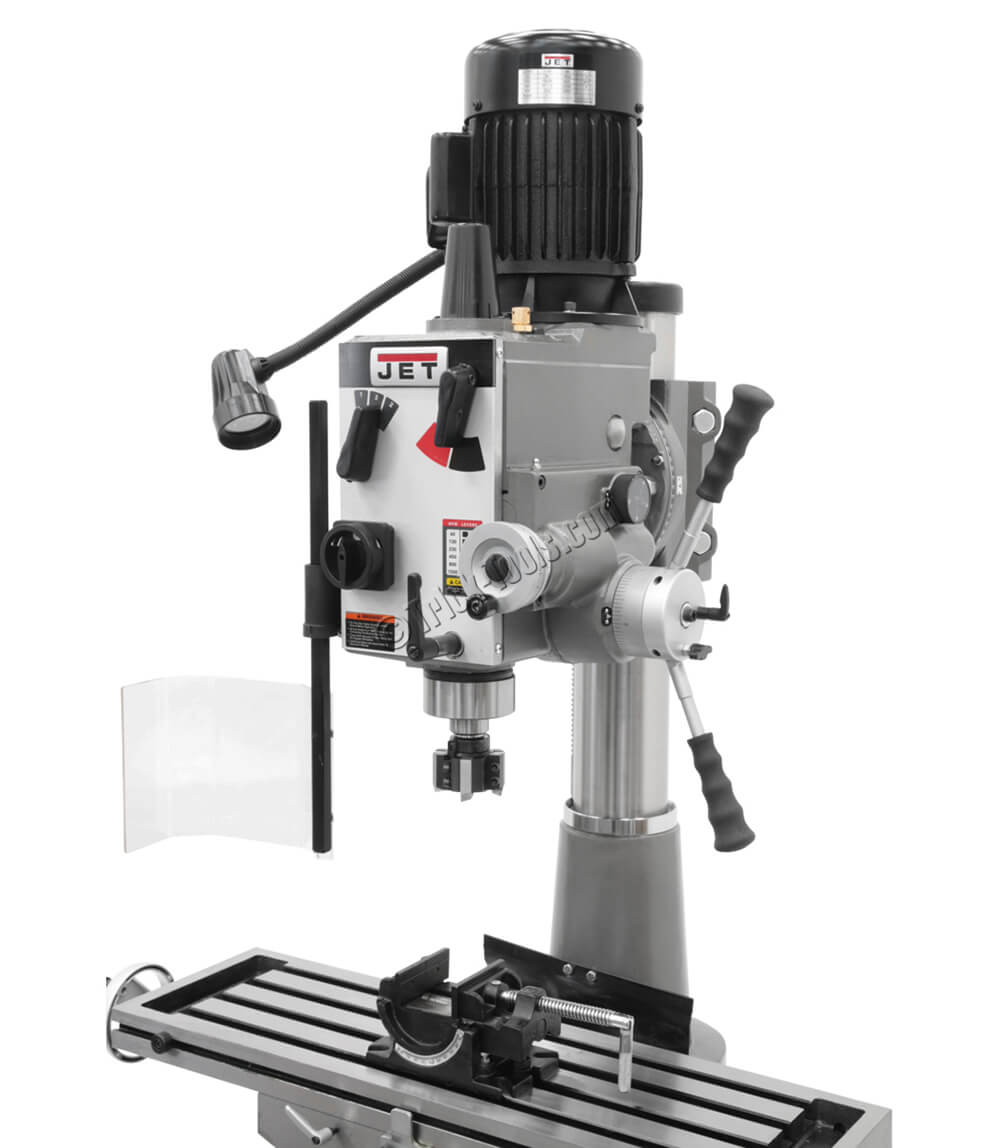

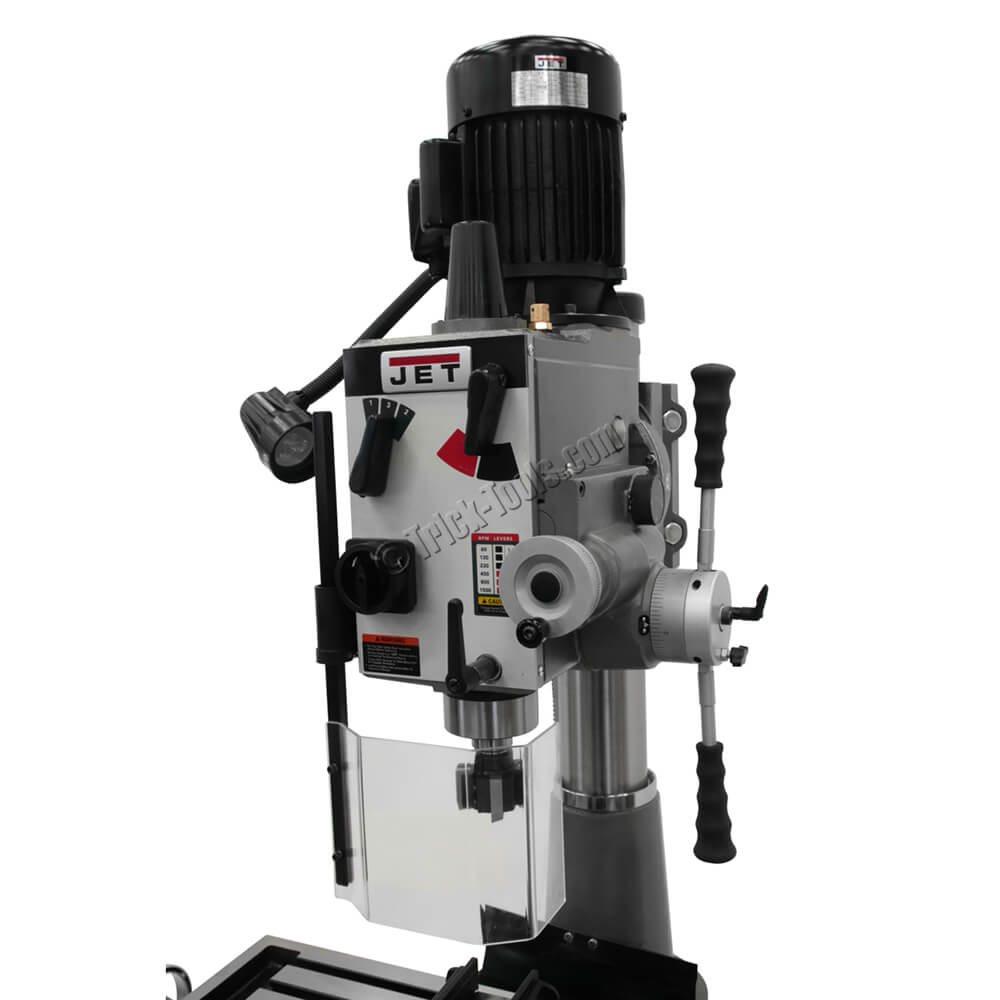

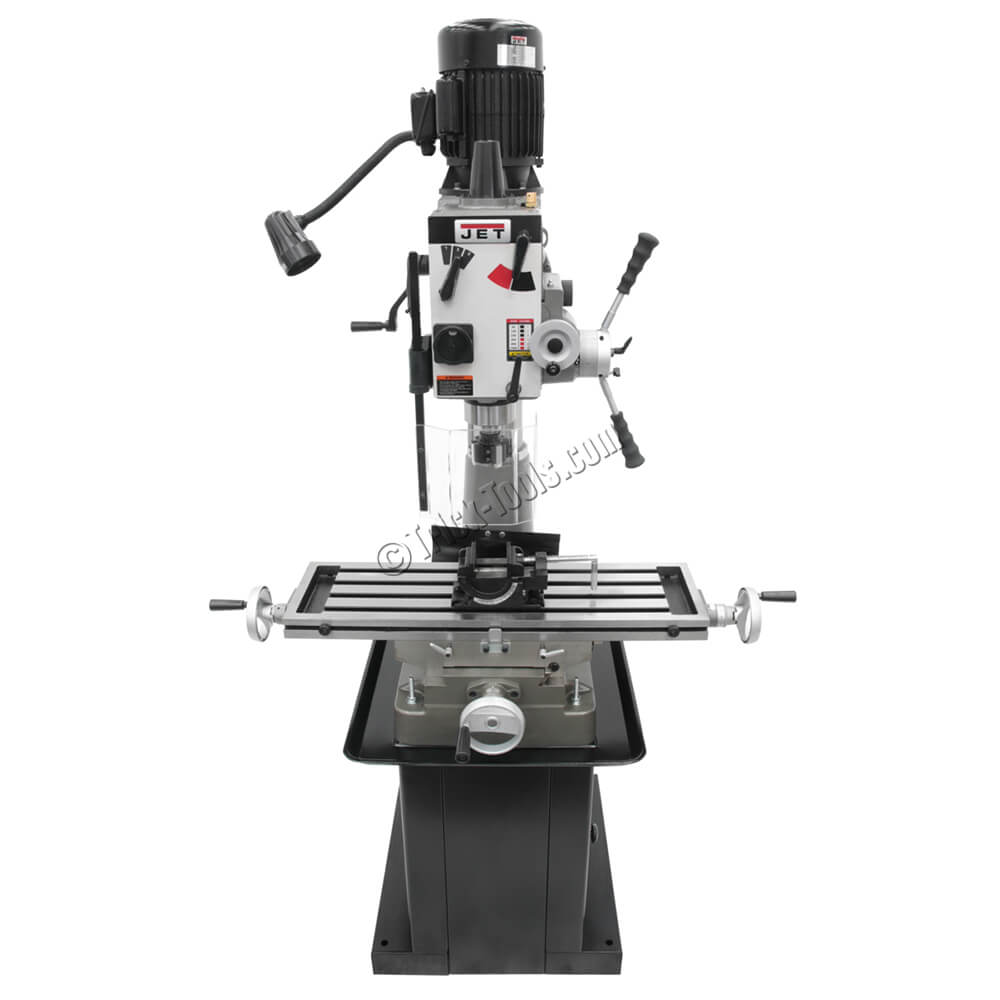

JET JMD-40 Geared Head Mill/Drill with Power Downfeed

Part #: JMD-40GHPF
Model: JMD-40GHPF
Ships From: Factory shipped

Lead Time: Usually ships within 1 week

We want to give you the best information possible regarding your order at Trick-Tools and product availability is very important to us. This information reflects our best estimate of the shipping time for your order on a product by product basis. Items in stock at our warehouse typically ship same day if the order is placed before 3pm Central Time.

Availability on Items shipped directly from the factory is an estimate for that product based on averages from our experience. Items marked "Call for availability" have limited stock or unpredictable lead times and require a phone call to get a lead time estimate. We apologize but we are unable to guarantee lead times on factory-shipped items.

Price: $7,899.69
Sale Price: $6,057.00

FREE SHIPPING

Save 10% on this Mill/Drill for a limited time!
Includes FREE stand ($525 value)

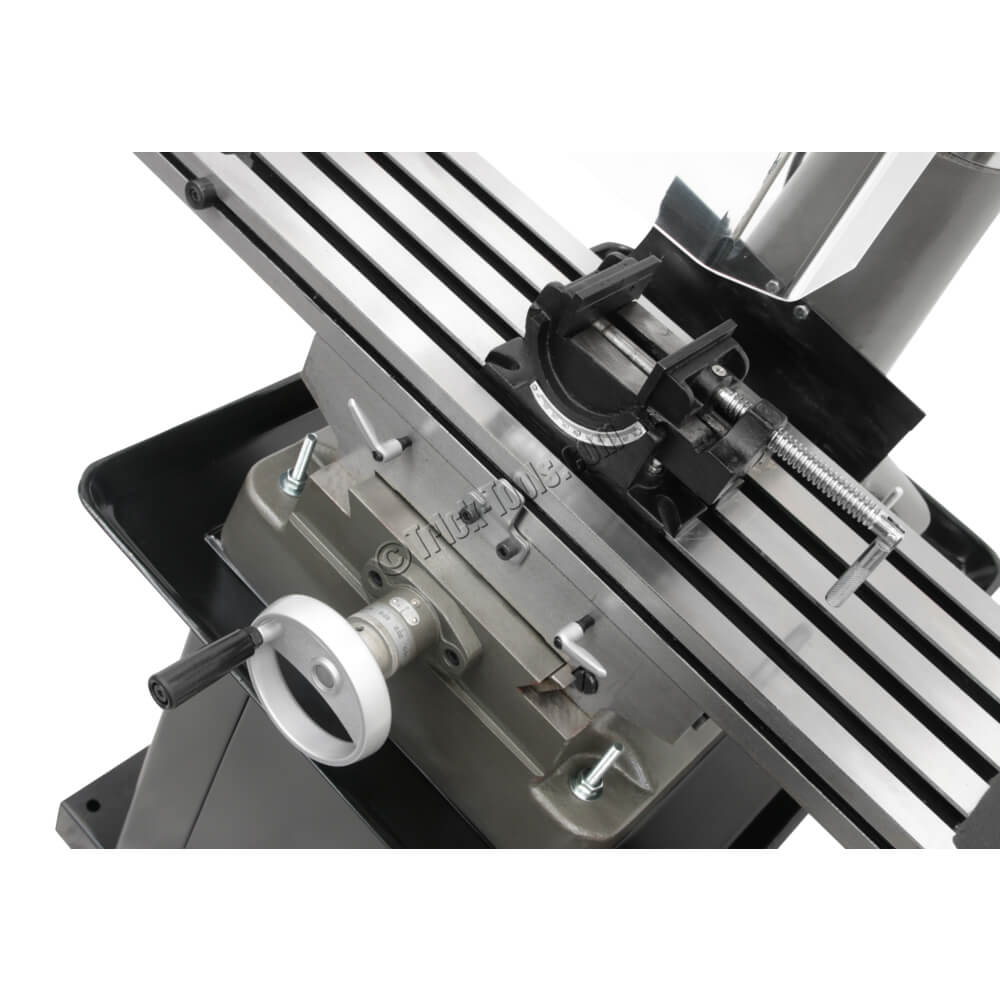

9-1/2 x 32-1/4 inch cast table
3 speed power downfeed
1-1/2 hp 115/230v motor

FREIGHT:

WARRANTY:

ORIGIN:

BRAND:

DESCRIPTION

Mill Drills are great for light duty machine work, drilling, and tapping. The JET JMD-40GHPF is a belt driven Mill/Drill and features a 1-1/2 hp 115/230v single phase motor, 360 degree swiveling head, 9-1/2 x 32-1/4 inch table, 3 speed power downfeed, and R-8 taper spindle. While the footprint may be small, the JMD Mill Drills still include JET's RED Assurance 2 year warranty.

For a limited time, receive a FREE work stand with the purchase of a JET Mill/Drill. ($525 value)

Specifications:

Drilling Capacity: 1-1/4 inches
Face Mill Capacity: 4 inches
End Mill Capacity: 3/4 inch
Swing: 20-1/2 inch
Maximum Distance Spindle to Table: 15-3/4 inches
Spindle Taper: R-8
Spindle Travel (manual): 5 inches
Spindle Travel (power feed): 4-1/2 inches
Quill Diameter: 3 inches
Head Swivel: 360 degrees
Column Diameter: 4-1/2 inches
Power Downfeed: Yes
Power Downfeed Speeds: 0.005, 0.007, 0.010 inch
Number of Spindle Speeds: 6
Range of Spindle Speeds: 65, 130, 220, 480, 925, 1550 RPM
Maximum Table Travel: 20-1/2 inches
Cross Travel: 8-1/4 inch
Working Surface of Table: 9-1/2 x 32-1/4 inches
Number of T-Slots: 4
T-Slot Size: 5/8 inch
Overall Dimensions (LxWxH): 28 x 39-1/4 x 42-1/2 inches (without stand)
Base Dimensions: 15-15/16 x 24-1/4 inches
Motor: 1-1/2HP, 115/230V single phase 60Hz (prewired 115V)
Electrical Certifications: UL Listed
Net Weight: 655 lbs
Shipping Weight: 721 lbs

Warranty:

2 year manufacturer's warranty

SPECIFICATIONS

•Motor: 1-1/2 hp
•Number of Speeds: 6
•Spindle Speed(s)Range: 65, 130, 220, 480, 925, or 1550 rpm
•Drills To Center (inches): 20.5
•Drilling Capacity (inches): 1-1/4
•Spindle Taper: R-8
•Quill Diameter (inches): 3
•Column Diameter (inches): 4-1/2
•Spindle Travel (inches): 5
•Spindle To Table Max (inches): 15-3/4
•Table Size (inches): 9.5 x 32.25
•Base (inches): 15.94 x 24.25
