JMR TN1000 Hole Saw Tube Notcher

Part #: TN1000
Ships From: Our warehouse

Lead Time: Backordered - Lead time unknown

We want to give you the best information possible regarding your order at Trick-Tools and product availability is very important to us. This information reflects our best estimate of the shipping time for your order on a product by product basis. Items in stock at our warehouse typically ship same day if the order is placed before 3pm Central Time.

Availability on Items shipped directly from the factory is an estimate for that product based on averages from our experience. Items marked "Call for availability" have limited stock or unpredictable lead times and require a phone call to get a lead time estimate. We apologize but we are unable to guarantee lead times on factory-shipped items.

Price: $795.00

BEST SELLER

Capable of notching in a 210 degree arc
2-1/2 inch tube, 2 inch pipe capacity
1-1/8 inch induction hardened shaft
Shaft supported by sealed needle bearings

SHIPPING:

ORIGIN:

BRAND:

DESCRIPTION

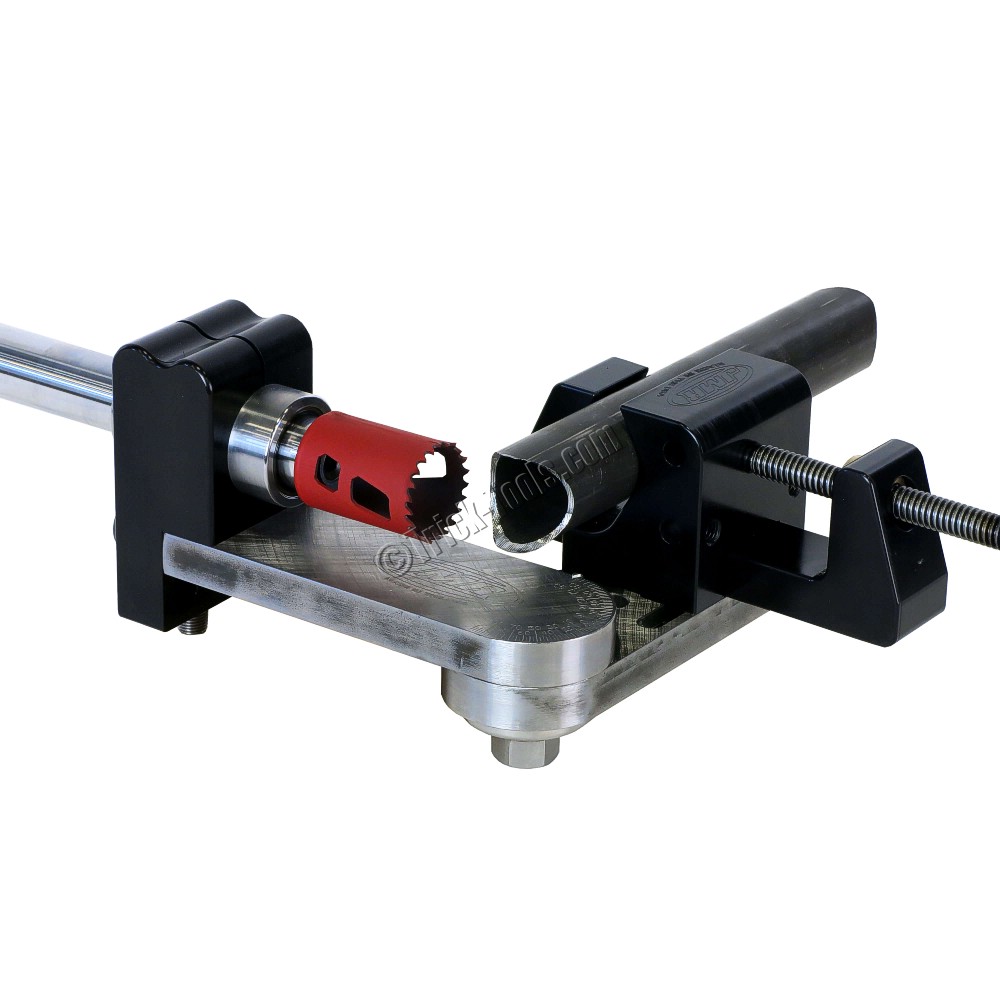

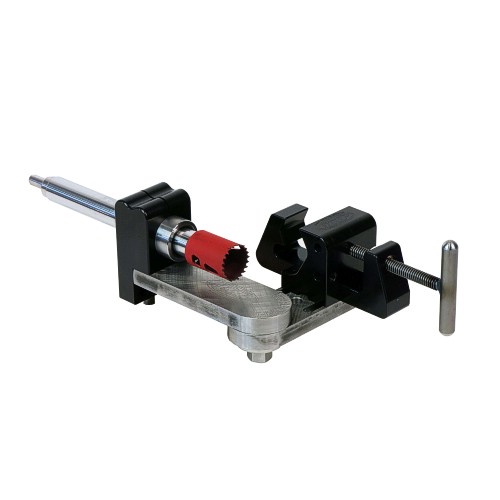

The JMR TN-1000 Tubing and Pipe Notcher is the highest quality and one of the most versatile hole saw notchers on the market. It is manufactured from bar stock, not plate, to increase strength and has a 1-1/8 inch induction hardened shaft supported by sealed needle bearings in an easily adjustable and replaceable cartridge. The shaft accepts replaceable hole saw mounting threads for both common hole saw sizes.

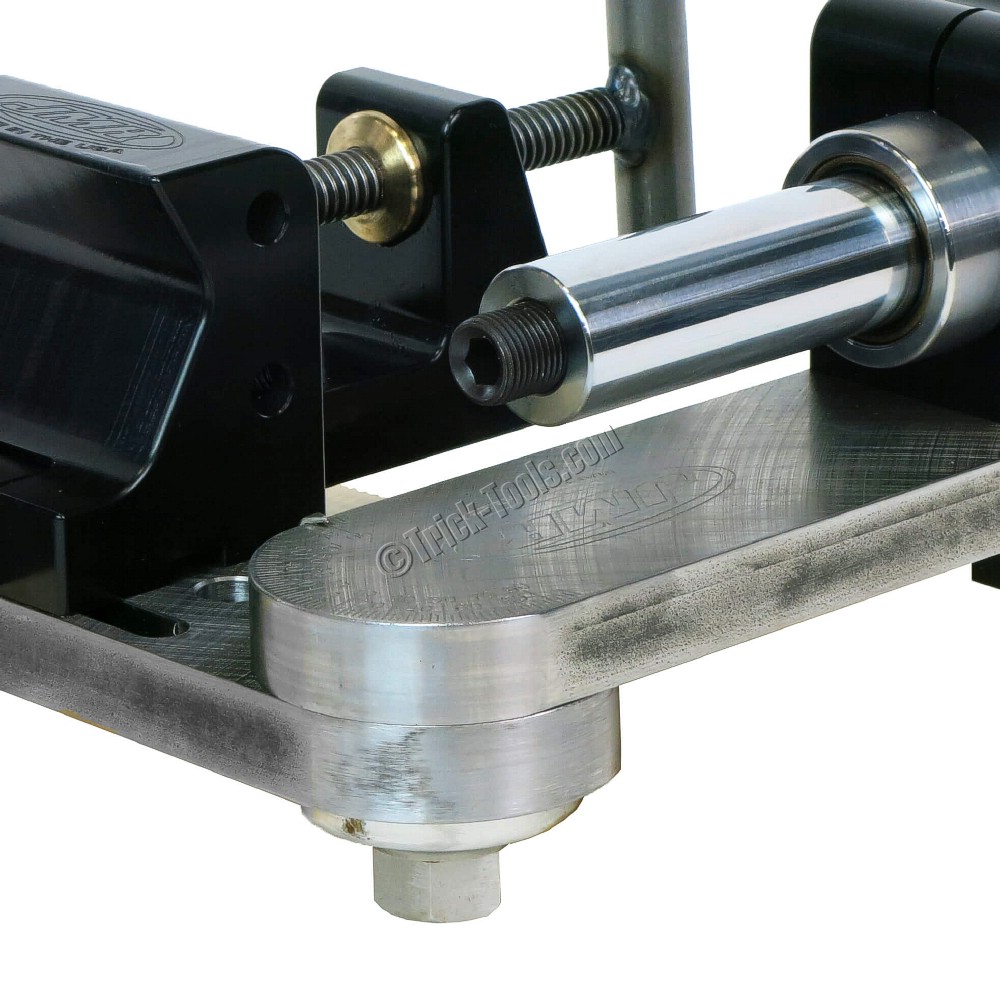

Angle changes can be made easily due to a thrust bearing at the pivot point to increase clamping force while reducing wrench pressure. Use it for prototyping or production work. The NEW adjustable offset feature allows for precise offset notching as well as a positive zero point.

Other features include:

Capable of notching in a 210-degree arc
2-1/2 inch tube, 2-inch pipe capacity
Positive zero point for a perfectly centered notch
Easily handles offset copes up to 1 inch

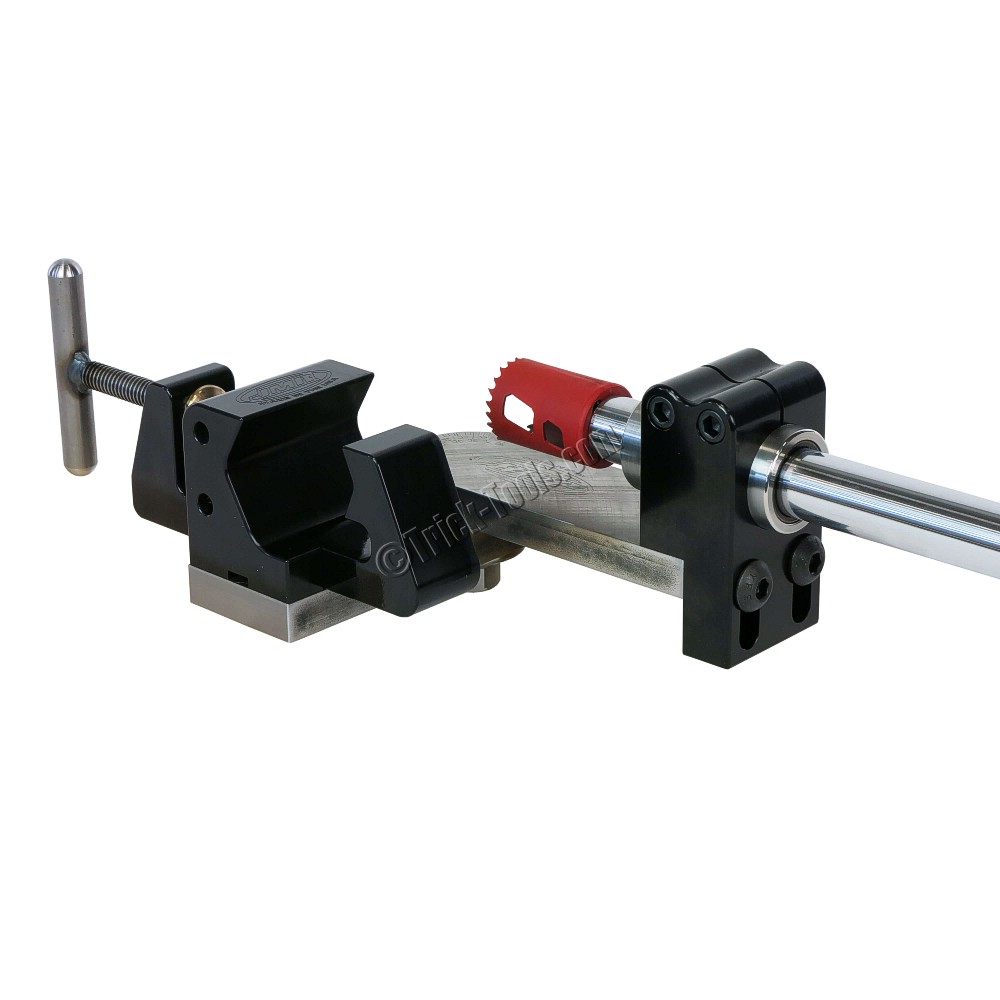

Double v-clamp vise allows square to be held flat or on diamond
Will hold thin wall tube without distortion
May be clamped on tube/pipe to bore holes

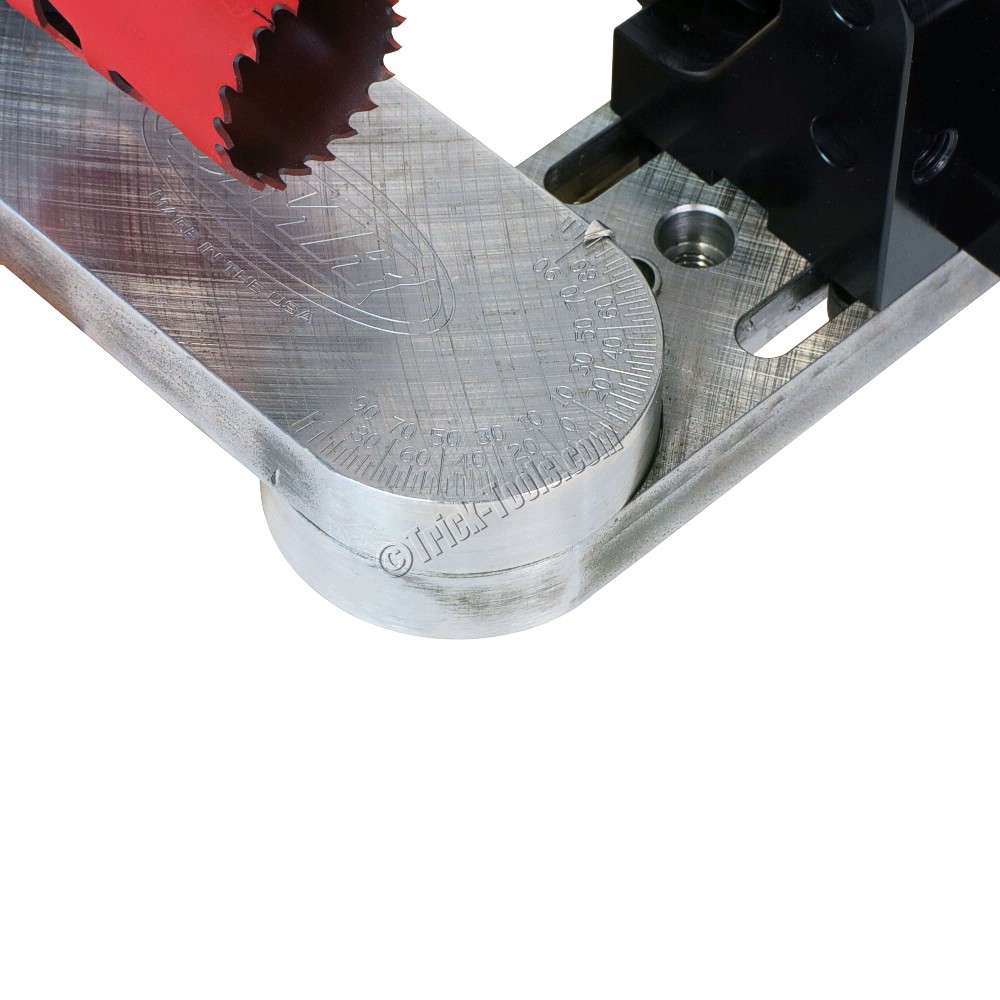

Engraved degrees and stainless steel pointer ensures accuracy
Aluminum bronze acme threaded bushing on clamp
Flats machined onto shaft for easier hole saw removal

Warranty:

1 year manufacturer's warranty

SPECIFICATIONS

•Arc Capacity: 210 degrees
•Max Notch Angle: Unlimited
•Max Diameter: 2-1/2 inch
•Min Diameter: 1/2 inch
•Max Offset (inches): 1
•Weight (pounds): 15
•Dimensions (LxWxH): 9.5 x 7 x 4
