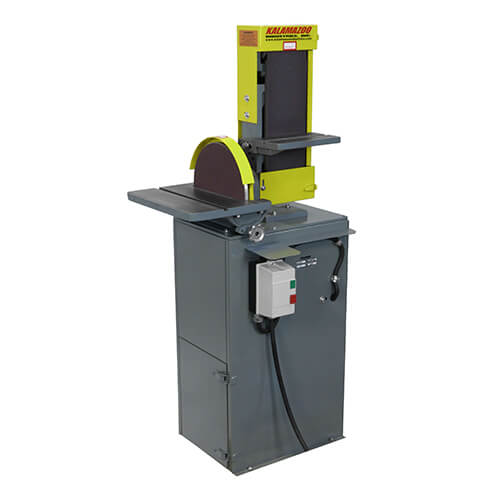

Kalamazoo Combination 6 inch Belt and 12 inch Disc Sander

Part #: S612
Ships From: Factory shipped
Availability: Usually ships within 4-6 weeks
We want to give you the best information possible regarding your order at Trick-Tools and product availability is very important to us. This information reflects our best estimate of the shipping time for your order on a product by product basis. Items in stock at our warehouse typically ship same day if the order is placed before 3pm Central Time.

Availability on Items shipped directly from the factory is an estimate for that product based on averages from our experience. Items marked "Call for availability" have limited stock or unpredictable lead times and require a phone call to get a lead time estimate. We apologize but we are unable to guarantee lead times on factory-shipped items.
Model: S612, S612V
Price: $2,495.00
NEW
  • 6 x 48 belt size
  • 12 inch disc
  • 3 hp motor
  • 2800 sfpm
FREIGHT:
Freight
ORIGIN:
BRAND:
Voltage:
Options:
Quantity:

Configuration

DESCRIPTION

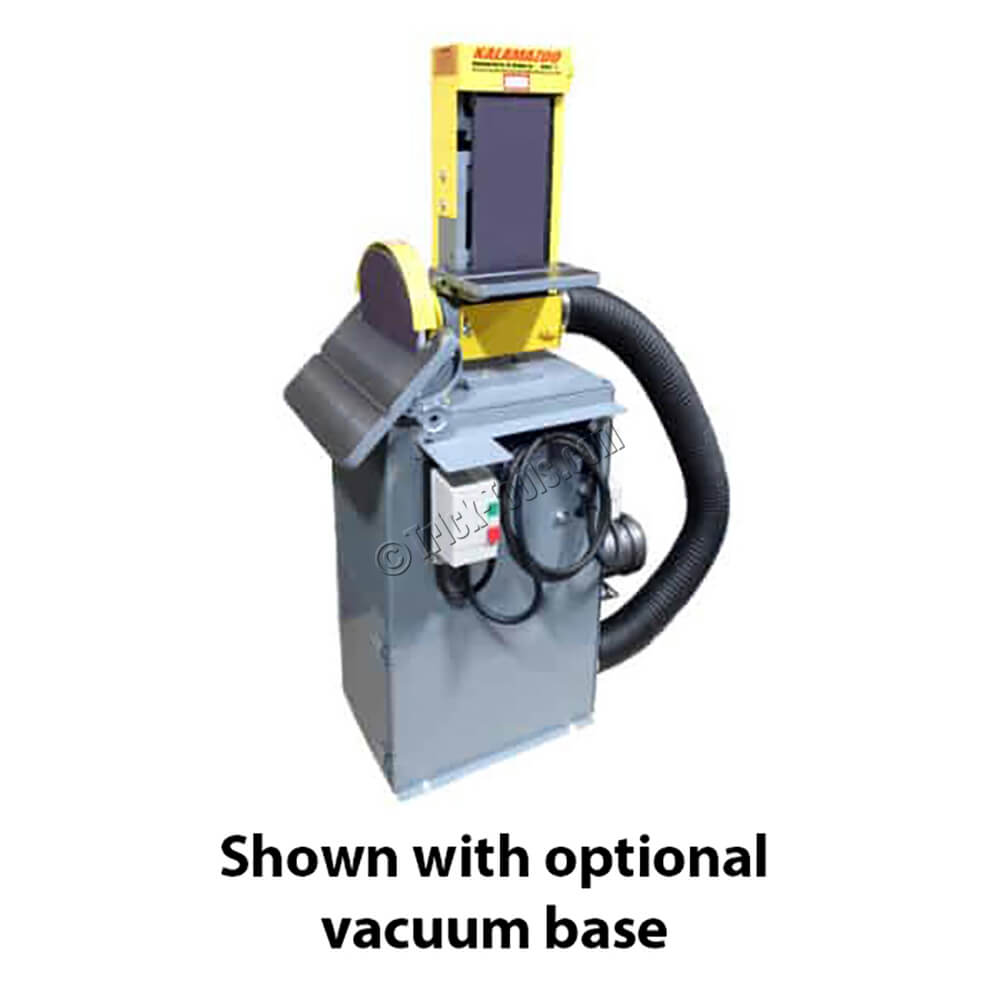

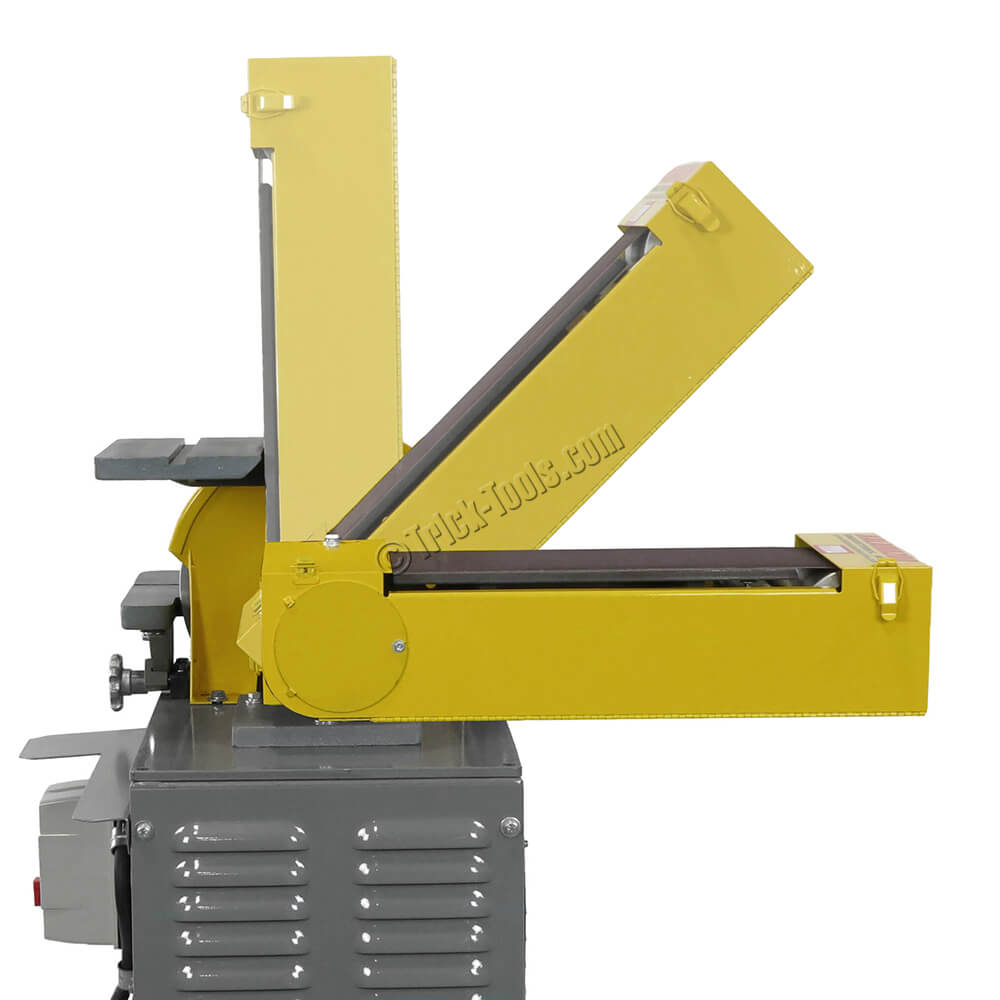

This industrial duty combination belt and disc sander by Kalamazoo features a powerful 3 hp motor and optional vacuum base. The belt sanding head can be positioned either in a vertical or horizontal position and belt changes are fast and easy with a single tension lever release.

The optional 100 CFM dust collector utilizes a cartridge filter and is built into the base unit. The S612 is made in the USA and perfect for use in energy, education, knife making, automotive, foundries, as well as many other manufacturing and fabrication environments.

Warranty:

1 year manufacturer's warranty

SPECIFICATIONS

Motor: 3 hp
Belt Width (inches): 6
Belt Length (inches): 48
Belt Speed: 2800 feet per minute
Platen Size (inches): 6.5 x 14

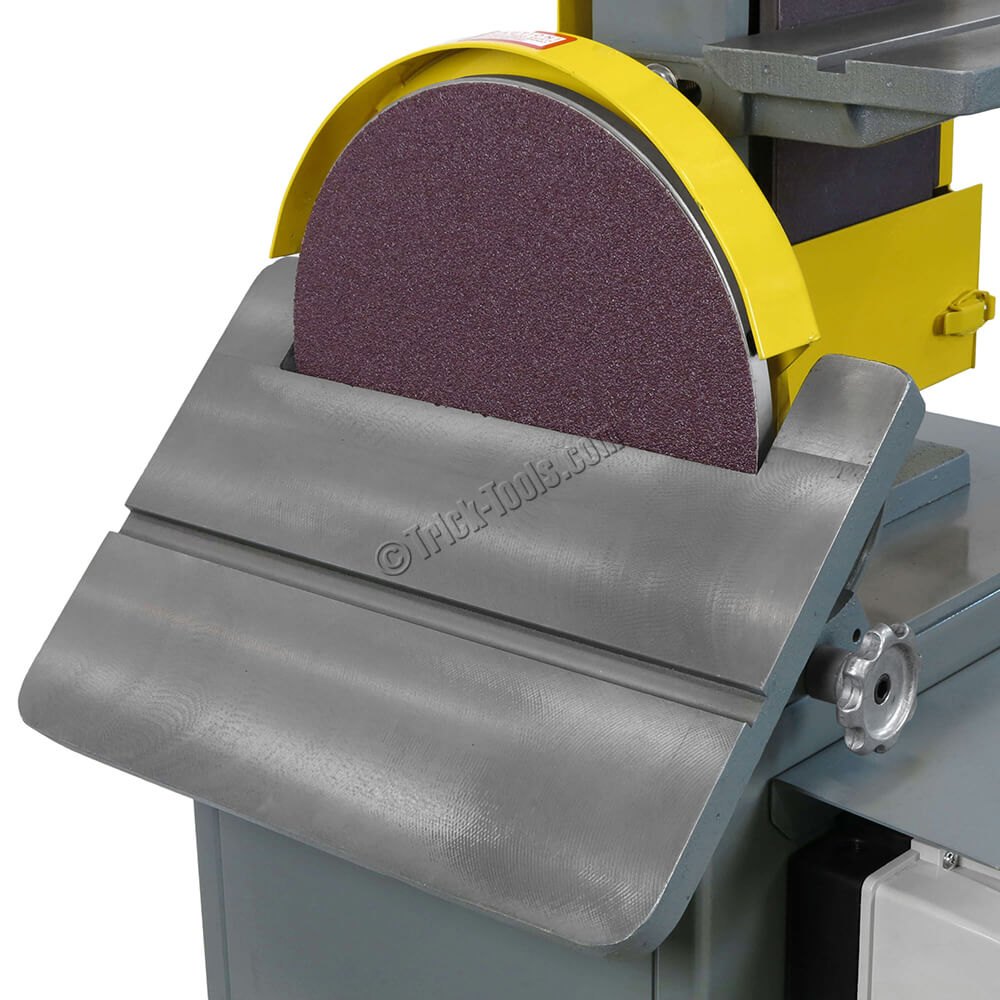

Disc Size (inches): 12
Disc Speed (rpm): 1960
Table Size: 6 x 10
Table Slots: 1/2 inch
Weight (pounds): 380
Dimensions (LxWxH): 12 x 14 x 60
