Multitool 4 x 48 inch, 1 hp Belt Grinder

Part #: MT484-8
Ships From: Our warehouse
Lead Time: Usually ships within 1 day
We want to give you the best information possible regarding your order at Trick-Tools and product availability is very important to us. This information reflects our best estimate of the shipping time for your order on a product by product basis. Items in stock at our warehouse typically ship same day if the order is placed before 3pm Central Time.

Availability on Items shipped directly from the factory is an estimate for that product based on averages from our experience. Items marked "Call for availability" have limited stock or unpredictable lead times and require a phone call to get a lead time estimate. We apologize but we are unable to guarantee lead times on factory-shipped items.
Price: $749.00
NEW
  • 4 x 48 belt size
  • 1 hp motor
  • 7 inch disc
  • Quick change belt system with automatic tensioning
SHIPPING:
UPS
WARRANTY:
Multitool Warranty
ORIGIN:
BRAND:
Multitool logo
Quantity:

DESCRIPTION

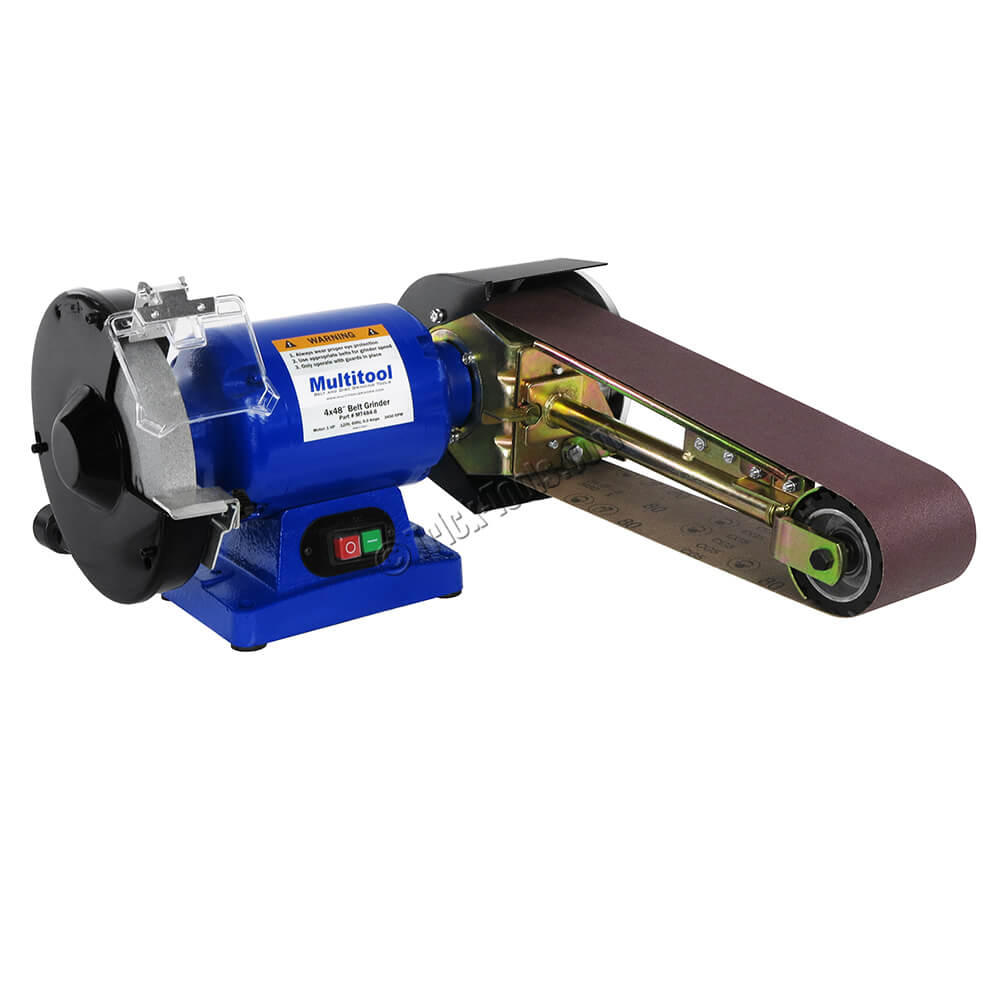

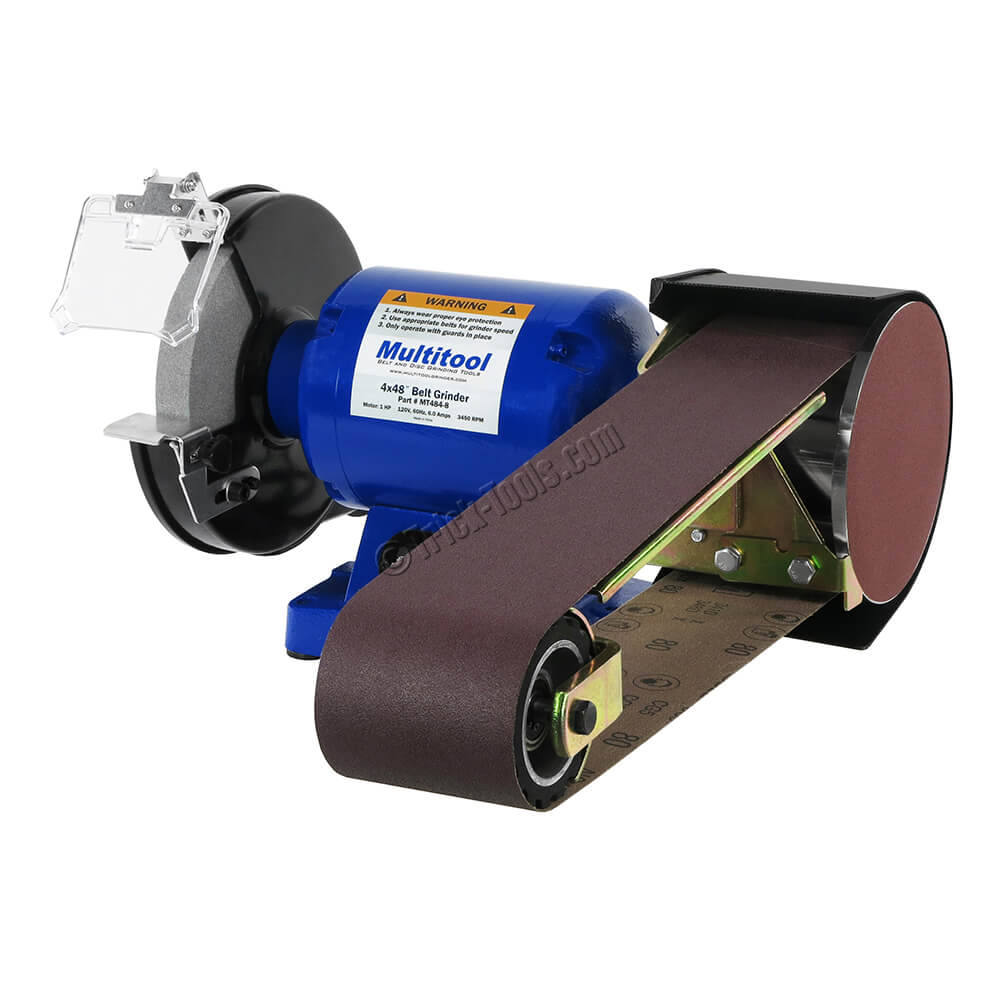

The Multitool 4 x 48 belt grinding attachment for your bench grinder is a must-have tool for any fabricator and is now available paired with a powerful 1hp Multitool motor! More than a traditional belt sander, this versatile tool has a belt speed of approximately 4,970 surface feet per minute which allows for material removal up to 5 times faster than with the equivalent grit grinding wheel.

In addition to the 8-inch grinding stone on the left, the Multitool has four different grinding surfaces to cover almost any grinding need. The most used surface is the front contact wheel which has a serrated surface to make grinding and deburring very controllable and smooth. The 10-inch long top platen can be used for straightening or profiling longer edges and the underside has a slack belt area for blending and finishing. Finally, the 7-inch disc on the side can be used with or without the optional miter table for beveling and profiling or final finishing.

Belts change in seconds from grinding to sand, deburr, or polish. A variety of belts and discs are available for any project, see the Accessories tab.



Warranty:

3 years on attachment, 2 years on motor

SPECIFICATIONS

Motor: 1 hp, 110 volt
Shaft Size (inches): 5/8
Belt Width (inches): 4
Belt Length (inches): 48
Belt Speed: 4970 feet per minute
RPM: 3450
Contact Wheel Diameter (inches) : 3.5
Platen Size (inches): 4.125 x 11.25
Disc Size (inches): 7
Table Tilt: 50 degree out, 5 degree in - optional
Table Slots: 1/2 inch

INCLUDES

  • 4 x 48 inch belt grinder
  • Powerful 1 hp motor
  • 36 grit stone, 100 grit belt, 120 grit disc
  • Instructions and hardware
