Mittler Bros. 24 inch Billet Aluminum Manual Bead Roller

Part #: 210-24M
Ships From: Factory shipped

Lead Time: Usually ships within 1 week

We want to give you the best information possible regarding your order at Trick-Tools and product availability is very important to us. This information reflects our best estimate of the shipping time for your order on a product by product basis. Items in stock at our warehouse typically ship same day if the order is placed before 3pm Central Time.

Availability on Items shipped directly from the factory is an estimate for that product based on averages from our experience. Items marked "Call for availability" have limited stock or unpredictable lead times and require a phone call to get a lead time estimate. We apologize but we are unable to guarantee lead times on factory-shipped items.

Price: $895.00

24 inch throat depth
Billet aluminum construction
19 gauge mild steel, .050 aluminum capacity
Manual crank can be upgraded to electric motor

SHIPPING:

ORIGIN:

BRAND:

DESCRIPTION

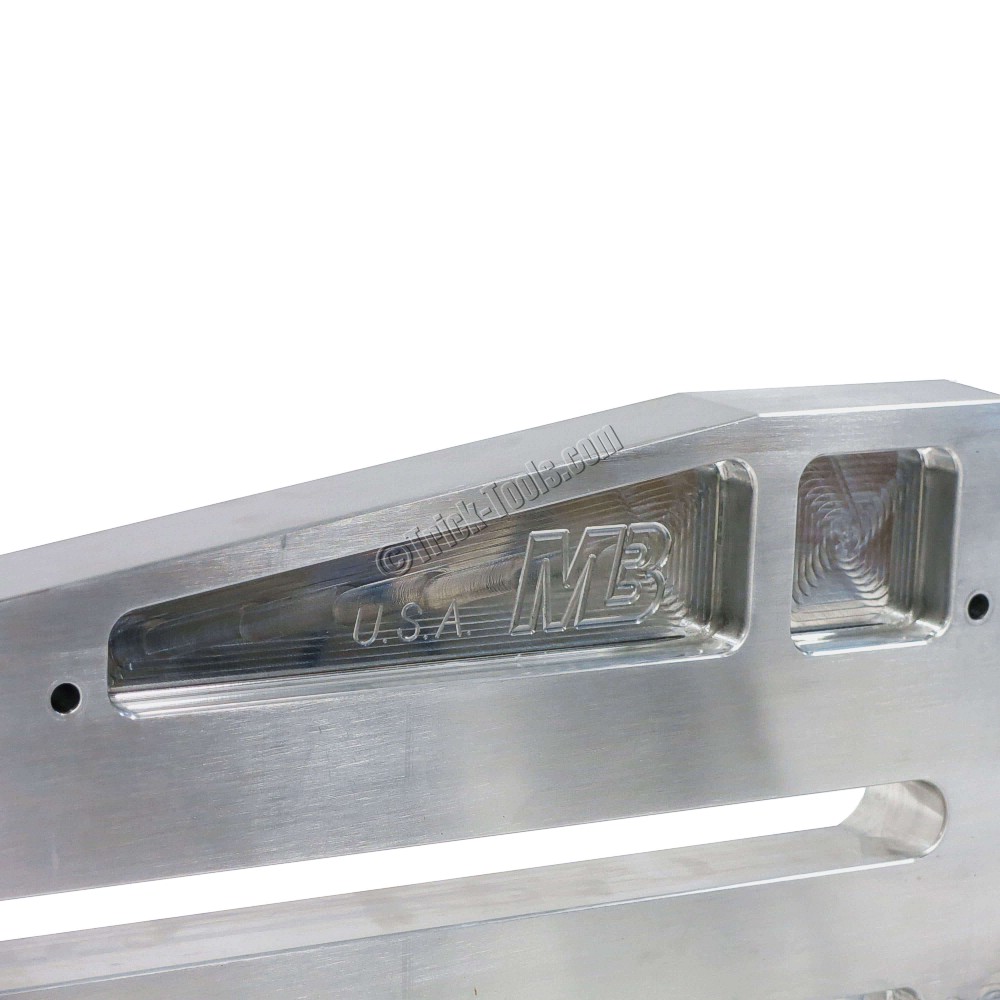

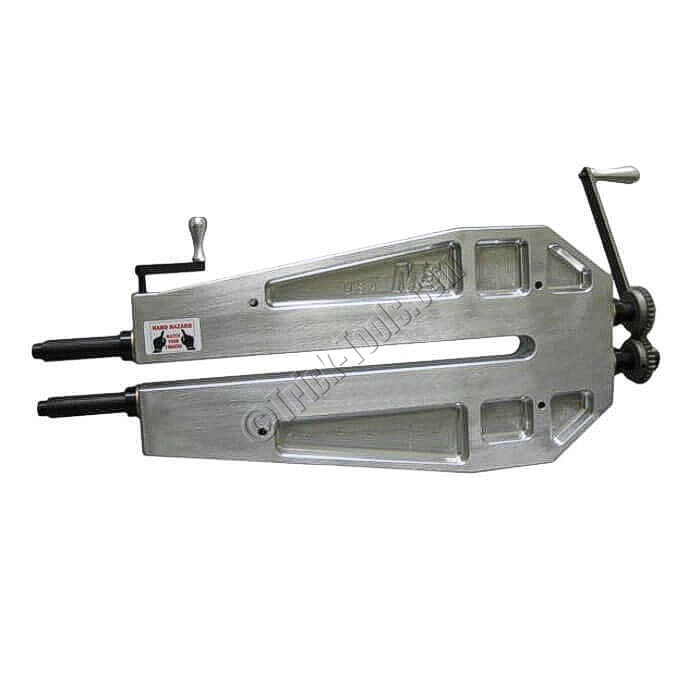

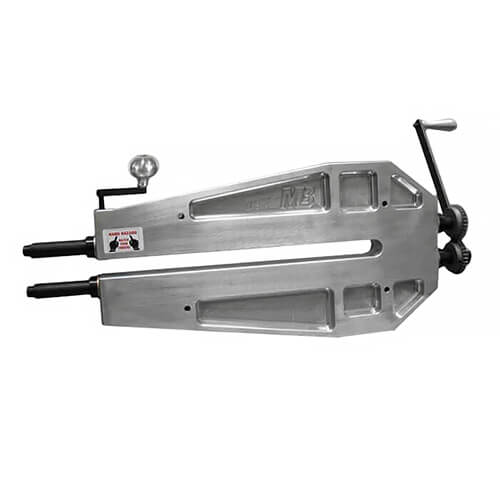

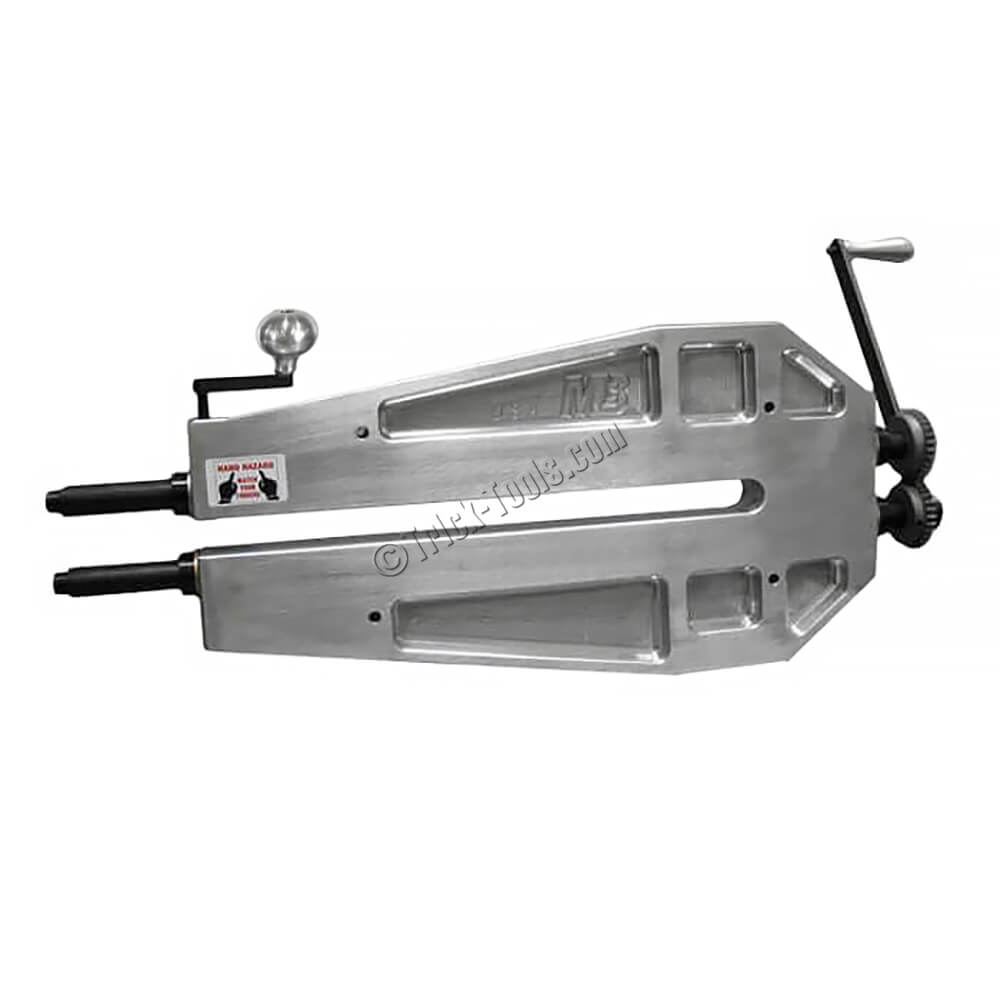

The Mittler Brothers 24 inch Manual Bead Roller is perfect for custom built sheet metal panels in street rods, aircraft restorations, and race cars. Machined from billet aluminum, with 3/4 inch heavy duty shafts, and hardened drive gears, this bead roller is built very rugged. Capacity is rated at 19 gauge mild steel and .050 aluminum.

The machine can easily be upgraded in the future with either the standard duty or industrial duty motors from Mittler Brothers to create a variable speed, foot pedal operated bead roller.

Other options such as a rolling pedestal, adjustable depth stop, and one of the largest selections of rolls available make this bead roller one of the best values available.

Warranty:

1 year manufacturer's warranty

SPECIFICATIONS

•Steel Capacity (inches): .040 (19 gauge)
•Aluminum Capacity: .050
•Stainless Capacity (inches): .035
•Throat Depth (inches): 24
•Throat Height (inches): 1-1/8
•Construction: billet aluminum
•Dimensions (LxWxH): 29 x 3 x 12
